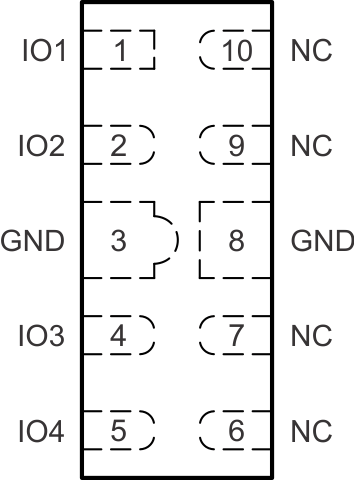

5 Pin Configuration and Functions

DQA Package
10-Pin USON
Top View
ESD204 po_slvsd85.gif

Pin Functions

PIN TYPE DESCRIPTION
NAME NO.
GND 3 Ground Ground. Connect to ground
GND 8
IO1 1 I/O ESD protected channel. Connect to the line being protected.
IO2 2
IO3 4
IO4 5
NC 6 NC Not connected internally; Can be connected to line being protected for optional flow-through routing. Can also be left floating or grounded
NC 7
NC 9
NC 10
