7 Parameter Measurement Information

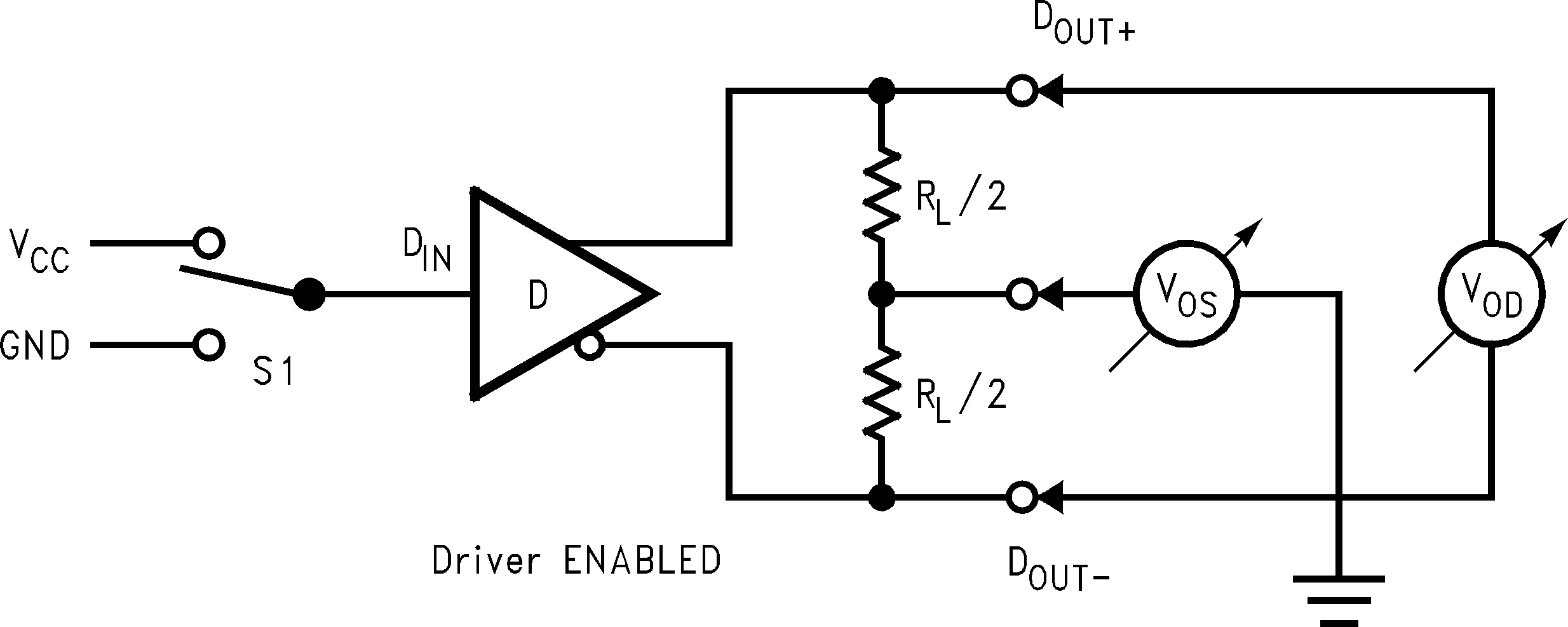

DS90LV031A 10009503.png Figure 3. Driver VOD and VOS Test Circuit

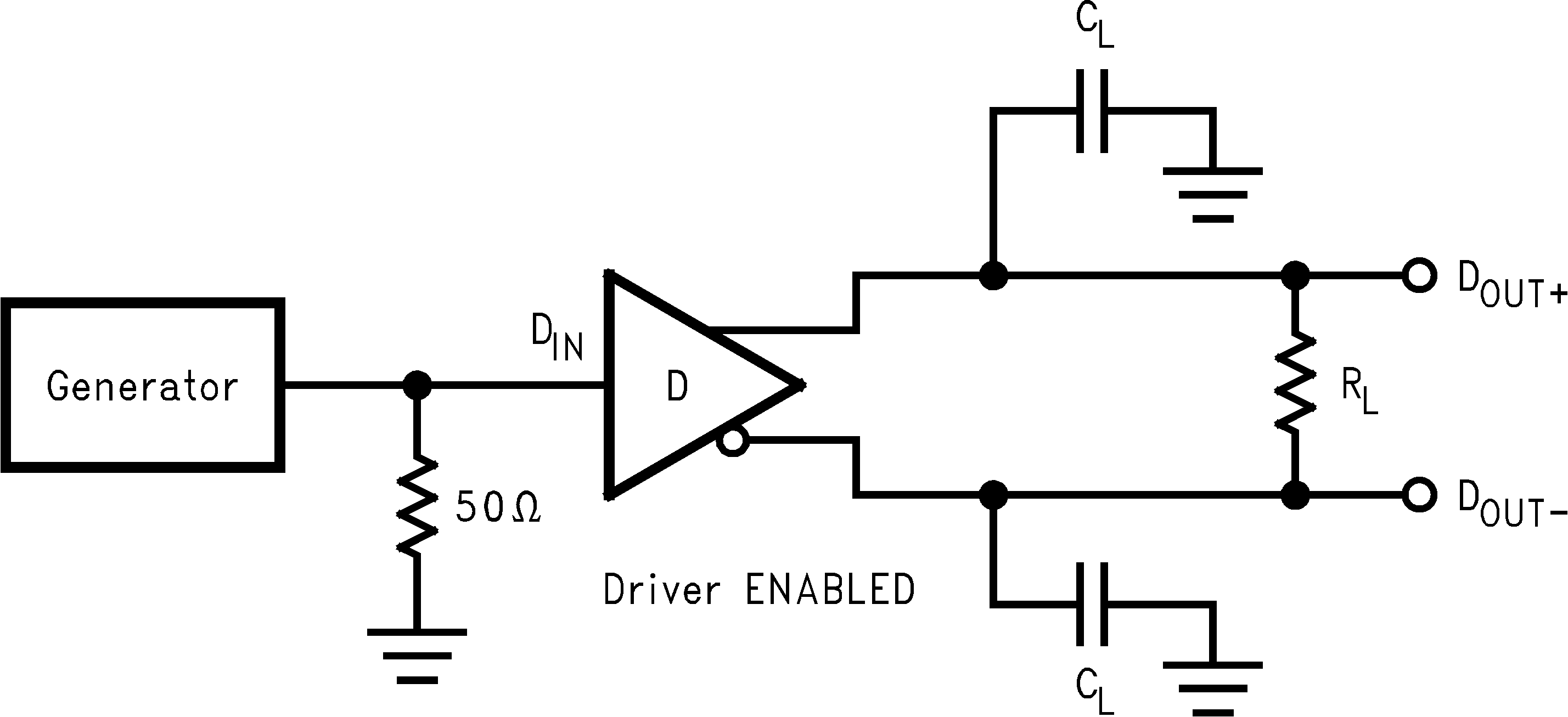

DS90LV031A 10009504.png Figure 4. Driver Propagation Delay and Transition Time Test Circuit

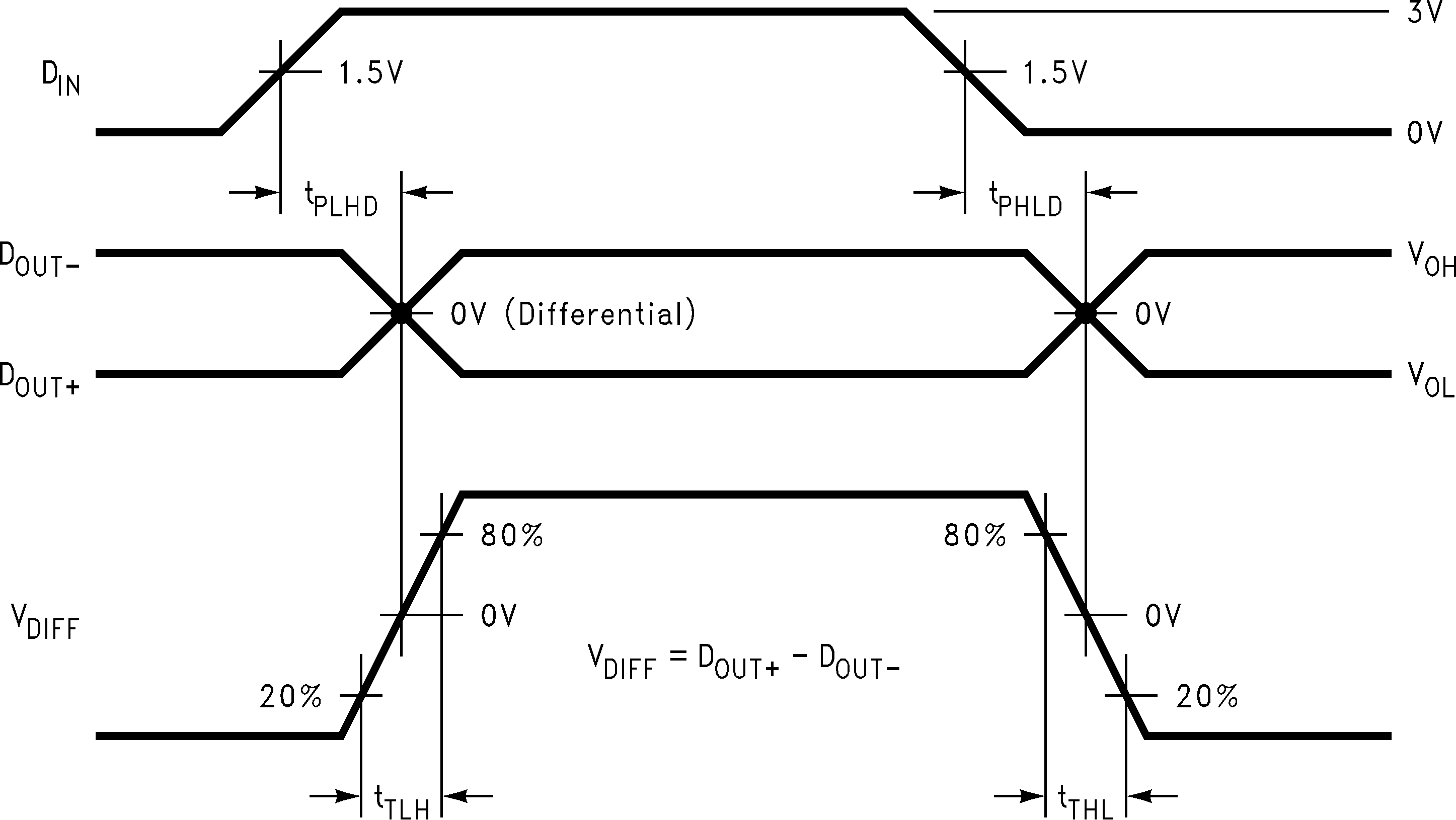

DS90LV031A 10009505.png Figure 5. Driver Propagation Delay and Transition Time Waveforms

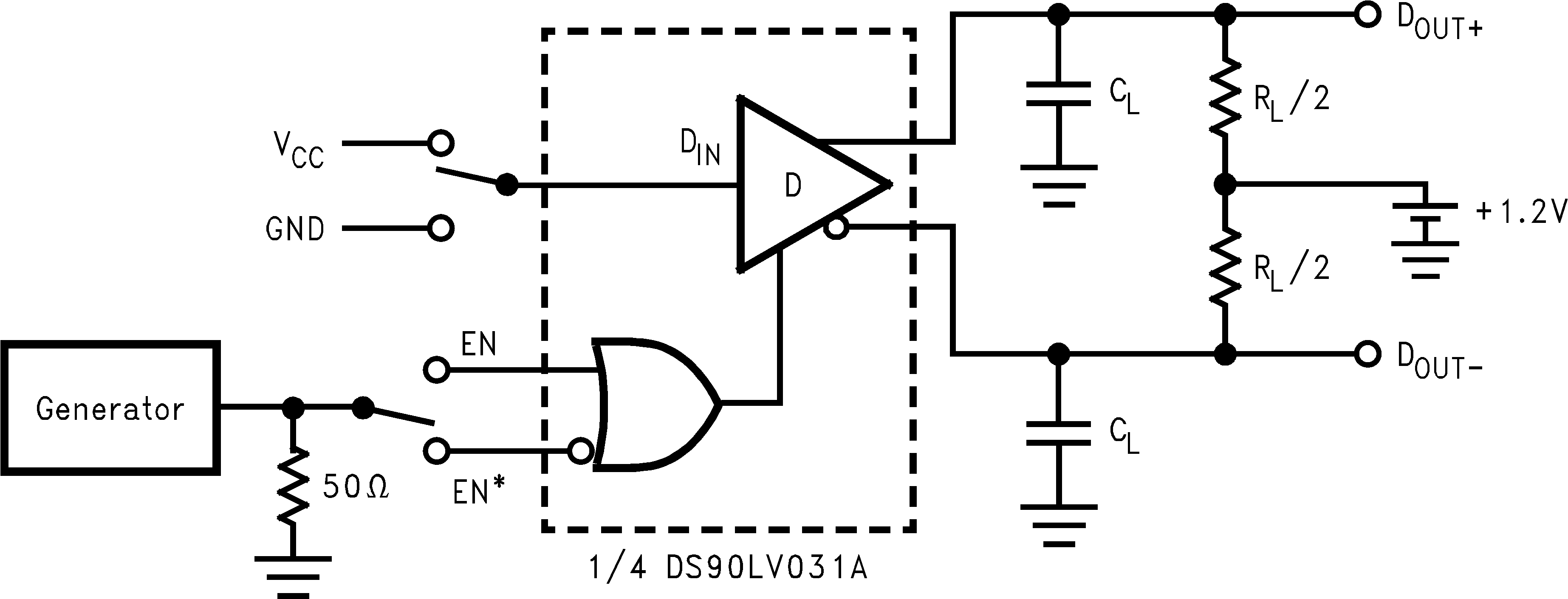

DS90LV031A 10009506.png Figure 6. Driver TRI-STATE Delay Test Circuit

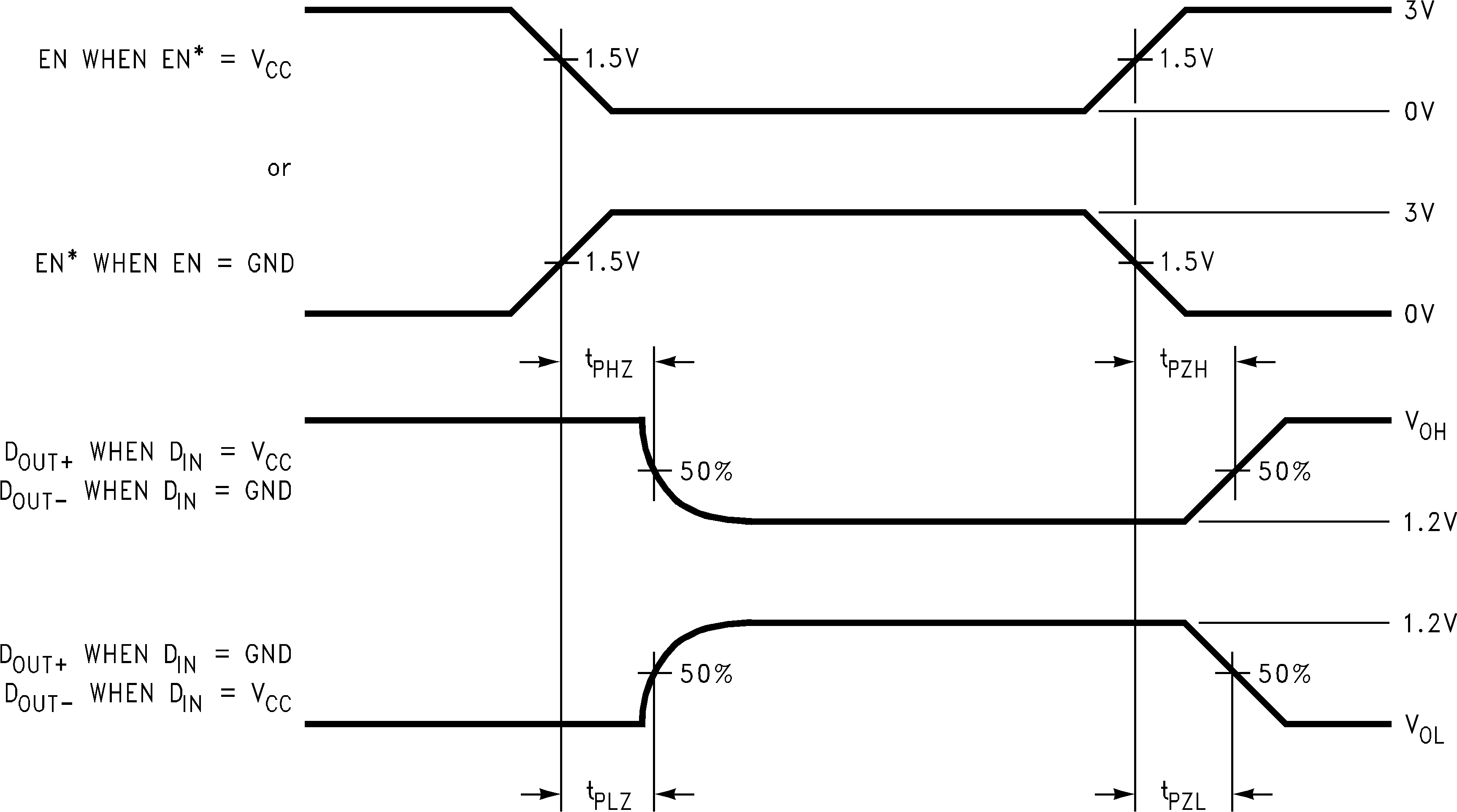

DS90LV031A 10009507.png Figure 7. Driver TRI-STATE Delay Waveforms
