9.2.2 Active Cable Applications

The DS250DF210 has strong equalization capabilities that allow it to recover data over long or thin-gauge copper cables. A single DS250DF210 can be used on a SFP28 paddle card to create a full-active cable assembly which is longer or thinner than passive cables.

Figure 18 illustrates this configuration, Figure 19 shows an example simplified schematic for a full-active cable application.

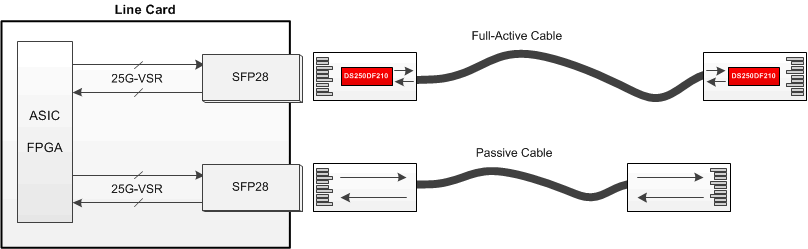

DS250DF210 DS250DF210_app_cable_bd.gifFigure 18. Active Cable Application Block Diagram

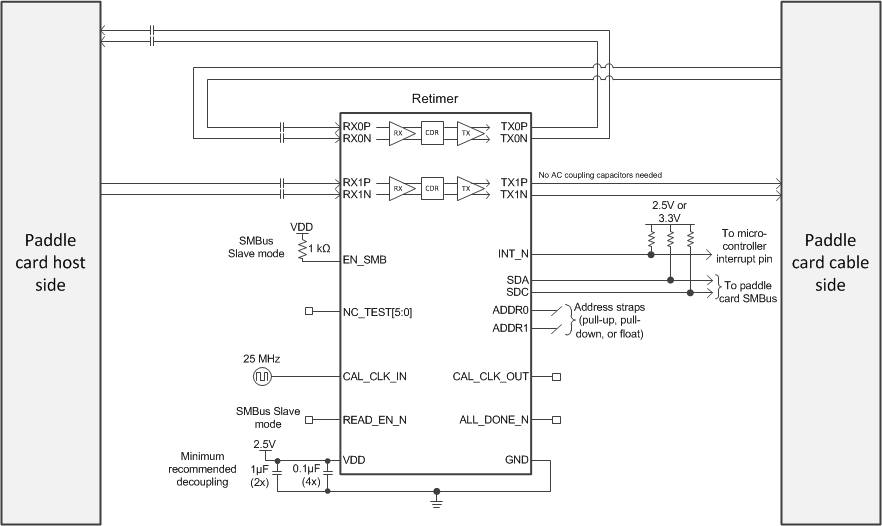

DS250DF210 DS250DF200_app_cable_schematic.gifFigure 19. Full-Active Cable Application Schematic
