Setting the Output VOD, Precursor, and Postcursor Equalization

The output differential voltage (VOD) of the driver is controlled by manipulating the FIR tap settings. The main cursor tap is the primary knob for amplitude adjustment. The pre and post cursor FIR tap settings can then be adjusted to provide equalization. To maintain a constant peak-to-peak VOD, the user should adjust the main cursor tap value relative to the pre and post tap changes so as to maintain a constant absolute sum of the FIR tap values. The table below shows various settings for VOD settings ranging from 205 mVpp to 1225 mVpp (typical). Note that the output peak-to-peak amplitude is a function of the sum of the absolute values of the taps, whereas the low-frequency amplitude is purely a function of the main-cursor value.

Table 2. Typical VOD and FIR Values

FIR SETTINGS PEAK-TO-PEAK VOD(V) RPRE (dB) RPST (dB)
PRECURSOR:
REG_0x3E[6:0]
MAIN CURSOR:
REG_0x3D[6:0]
POSTCURSOR:
REG_0x3F[6:0]
0 0 0 0.205 NA NA
0 +1 0 0.260 NA NA
0 +2 0 0.305 NA NA
0 +3 0 0.355 NA NA
0 +4 0 0.395 NA NA
0 +5 0 0.440 NA NA
0 +6 0 0.490 NA NA
0 +7 0 0.525 NA NA
0 +8 0 0.565 NA NA
0 +9 0 0.610 NA NA
0 +10 0 0.650 NA NA
0 +11 0 0.685 NA NA
0 +12 0 0.720 NA NA
0 +13 0 0.760 NA NA
0 +14 0 0.790 NA NA
0 +15 0 0.825 NA NA
0 +16 0 0.860 NA NA
0 +17 0 0.890 NA NA
0 +18 0 0.925 NA NA
0 +19 0 0.960 NA NA
0 +20 0 0.985 NA NA
0 +21 0 1.010 NA NA
0 +22 0 1.040 NA NA
0 +23 0 1.075 NA NA
0 +24 0 1.095 NA NA
0 +25 0 1.125 NA NA
0 +26 0 1.150 NA NA
0 +27 0 1.165 NA NA
0 +28 0 1.190 NA NA
0 +29 0 1.205 NA NA
0 +30 0 1.220 NA NA
0 +31 0 1.225 NA NA
0 +18 –1 0.960 NA 2.1
0 +17 –2 0.960 NA 2.5
0 +16 –3 0.960 NA 3.1
0 +15 –4 0.960 NA 3.8
0 +14 –5 0.960 NA 4.7
0 +13 –6 0.960 NA 5.8
0 +12 –7 0.960 NA 7.2
0 +11 –8 0.960 NA 9.0
0 +10 –9 0.960 NA 11.6
–1 18 0 0.960 1.0 NA
–2 17 0 0.960 1.6 NA
–3 16 0 0.960 2.4 NA
–4 15 0 0.960 3.3 NA
0 26 –1 1.165 NA 1.1
0 25 –2 1.165 NA 1.3
0 24 –3 1.165 NA 1.8
0 23 –4 1.165 NA 2.2
0 22 –5 1.165 NA 2.7
0 21 –6 1.165 NA 3.3
0 20 –7 1.165 NA 3.9
0 19 –8 1.165 NA 4.7
0 18 –9 1.165 NA 5.7
0 17 –10 1.165 NA 6.9
0 16 –11 1.165 NA 8.4
0 15 –12 1.165 NA 10.1
–1 26 0 1.165 0.7 NA
–2 25 0 1.165 1.2 NA
–3 24 0 1.165 1.5 NA
–4 23 0 1.165 2.0 NA
–5 22 0 1.165 2.6 NA
–6 21 0 1.165 3.2 NA
–7 20 0 1.165 4.0 NA

The recommended precursor and postcursor settings for a given channel depend on the channel characteristics (mainly insertion loss) as well as the equalization capabilities of the downstream receiver. The DS250DF210 receiver, with its highly-capable CTLE and DFE, does not require a significant amount of precursor or postcursor. The figures below give general recommendations for precursor and postcursor for different channel loss conditions. The insertion loss (IL) in these plots refers to the total loss between the link partner transmitter and the DS250DF210 receiver.

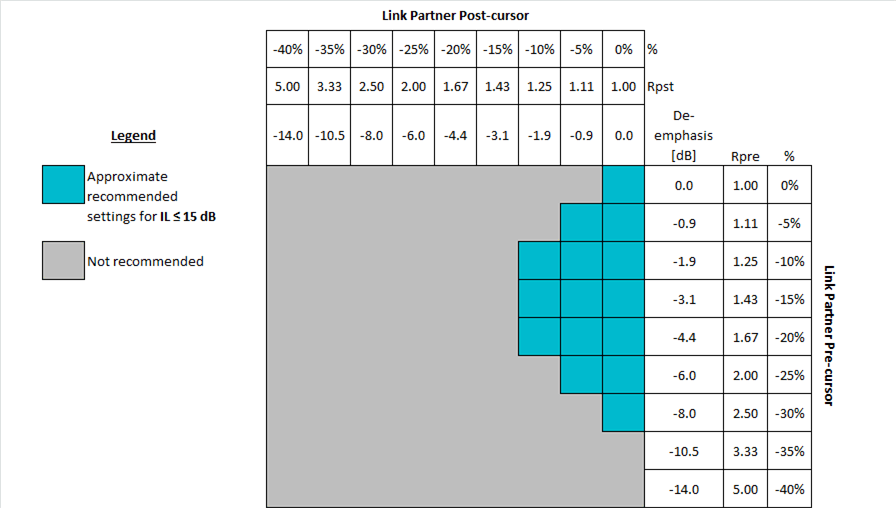

DS250DF210 FIR_setting_IL_15dB.gifFigure 11. Guideline for Link Partner FIR Settings When IL ≤ 15 dB

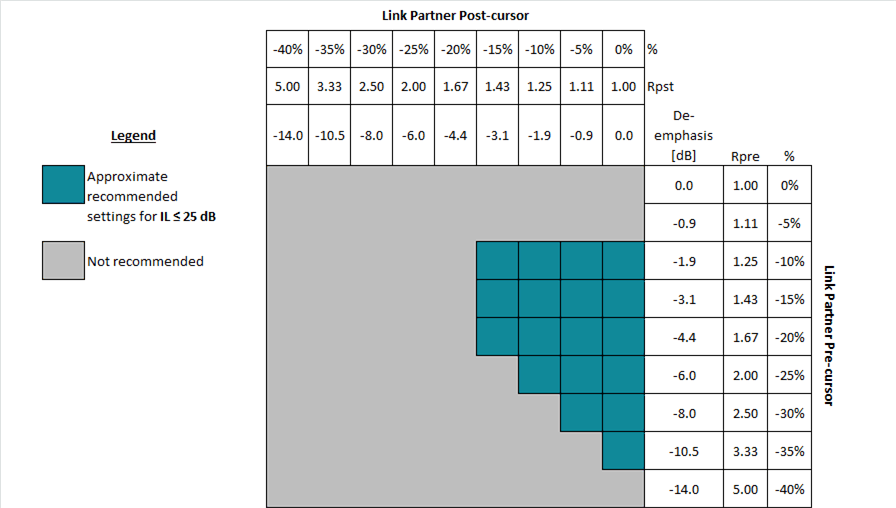

DS250DF210 FIR_setting_IL_25dB.gifFigure 12. Guideline for Link Partner FIR Settings When IL ≤ 25 dB

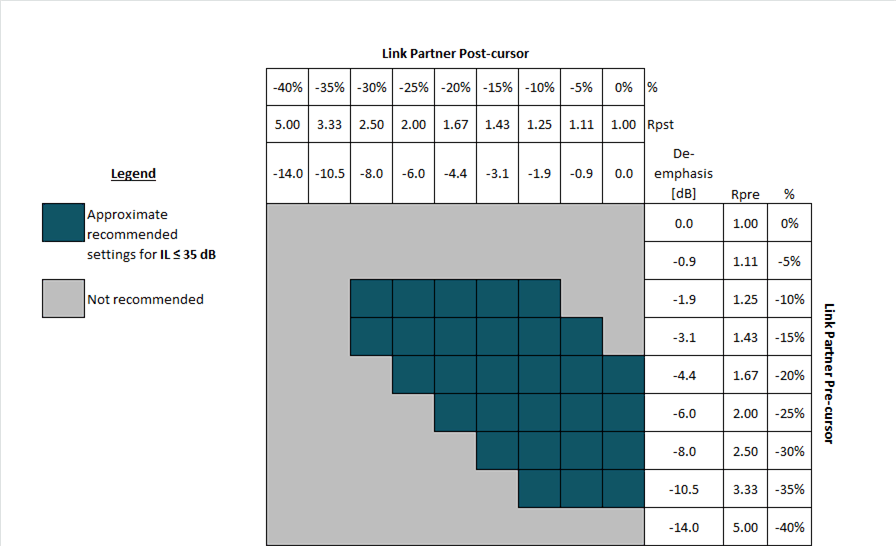

DS250DF210 FIR_setting_IL_35dB.gifFigure 13. Guideline for Link Partner FIR Settings When IL ≤ 35 dB
