8 Application and Implementation

8.1 Application Information

The DRV8802-Q1 device is used in medium voltage brushed-DC motor control applications.

8.2 Typical Application

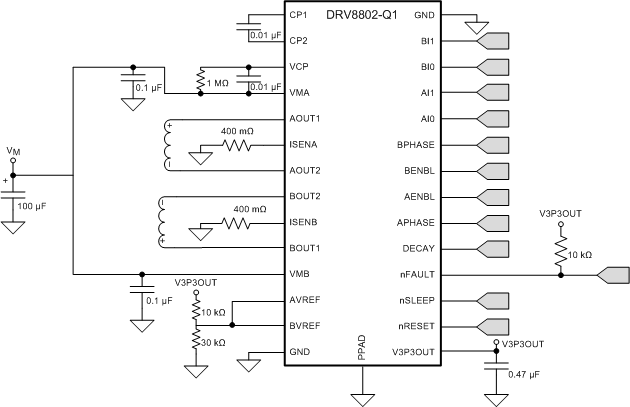

typ_app_slvsci2.gifFigure 7. Typical Application Diagram

8.2.1 Design Requirements

The example supply for this design is V(VMx) = 18 V.

8.2.2 Detailed Design Procedure

8.2.2.1 Drive Current

The current path is through the high-side sourcing DMOS driver, motor winding, and low-side sinking DMOS power driver. Power dissipation I2R losses in one source and sink DMOS driver are shown in Equation 2.

Equation 2. E001_SLVSAS7.gif

8.2.2.2 Slow-Decay SR (Brake Mode)

In slow-decay mode, both low-side sinking drivers turn on, allowing the current to circulate through the low side of the H-bridge (two sink drivers) and the load. Power dissipation I2R loses in the two sink DMOS drivers as shown in Equation 3.

Equation 3. E002_SLVSAS7.gif

8.2.3 Application Curves

Figure 8. 75% Drive, 25% Slow Decay; ƒ(PWM) = 5 kHz
Figure 9. 75% Drive, 25% Fast Decay; ƒ(PWM) = 5 kHz
