5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

Figure 5-1 Transient Thermal Impedance
Figure 5-2 Saturation Characteristics
VDS = –5 V

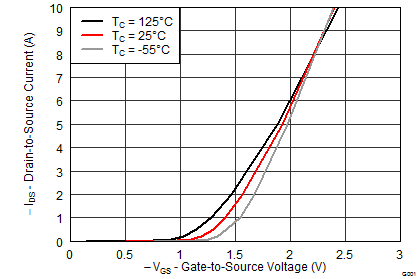

Figure 5-3 Transfer Characteristics
ID = –0.5 AVDS = 6 V
Figure 5-4 Gate Charge
ID = –250 µA

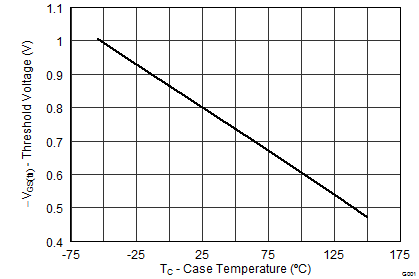

Figure 5-6 Threshold Voltage vs Temperature
VGS = –4.5 VID = –0.5 A
Figure 5-8 Normalized On-State Resistance vs Temperature
Single PulseTyp RθJA = 245°C/W

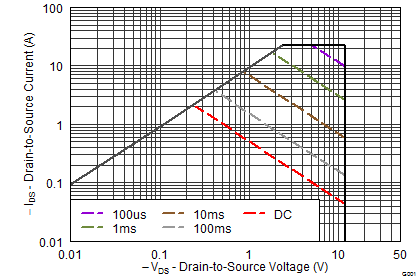

Figure 5-10 Maximum Safe Operating Area
Figure 5-5 Capacitance
Figure 5-7 On-State Resistance vs Gate-to-Source Voltage
Figure 5-9 Typical Diode Forward Voltage
Figure 5-11 Maximum Drain Current vs Temperature
