5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD18534Q5A graph01_SLPS366D.png

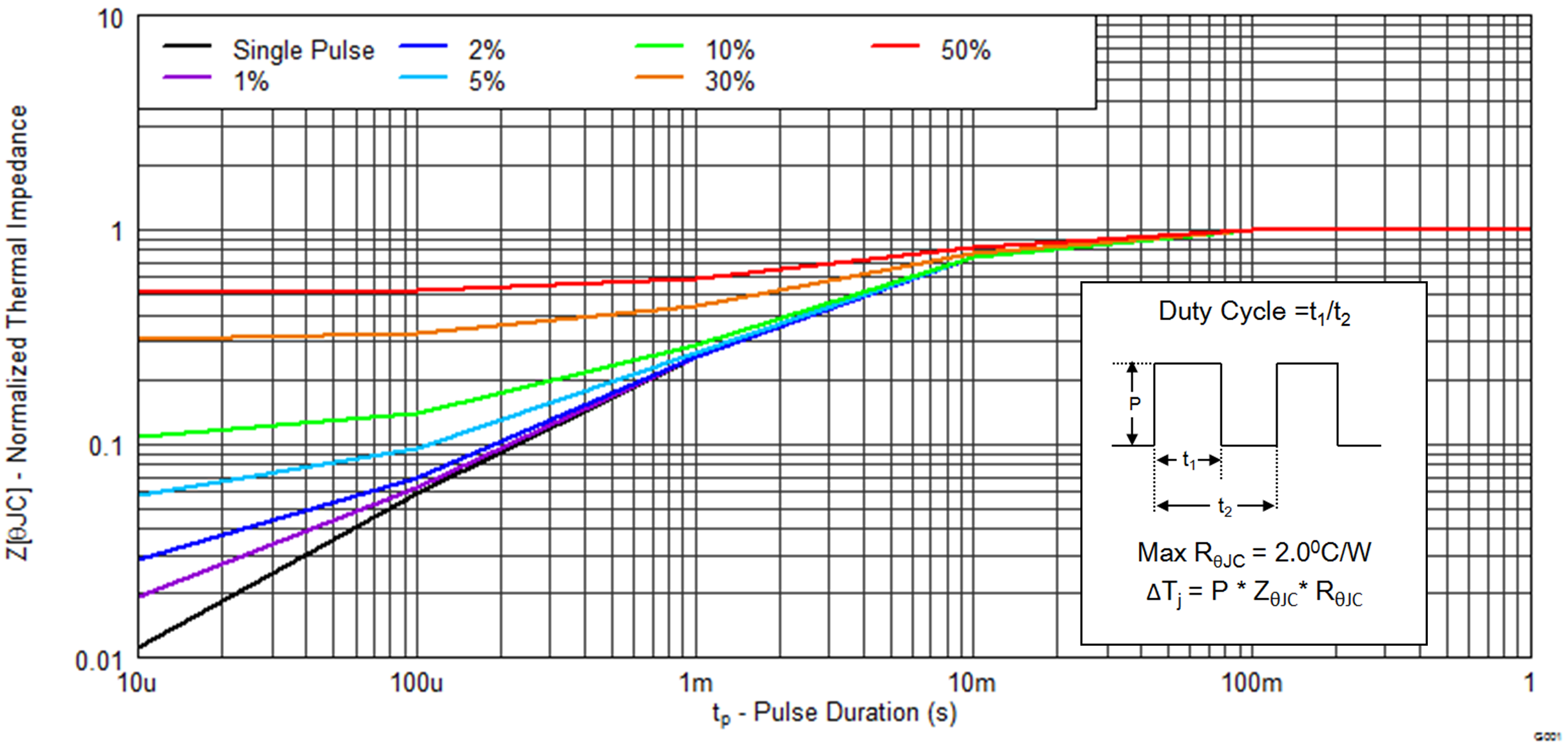

Figure 1. Transient Thermal Impedance

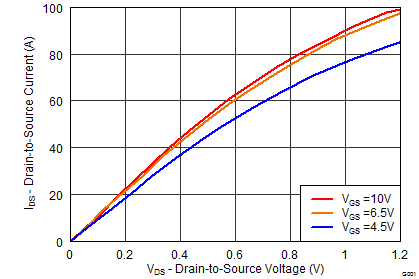

CSD18534Q5A graph02_SLPS389.png
Figure 2. Saturation Characteristics

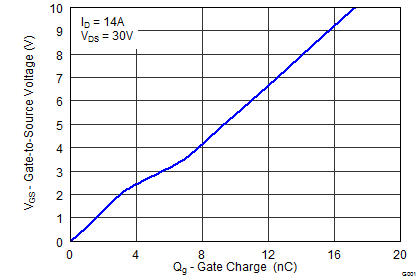

CSD18534Q5A graph04_SLPS389.png
Figure 4. Gate Charge
CSD18534Q5A graph06_SLPS389.png

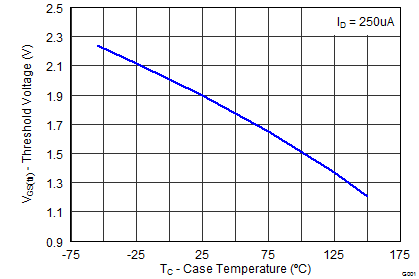

Figure 6. Threshold Voltage vs Temperature
CSD18534Q5A graph08_SLPS389.png

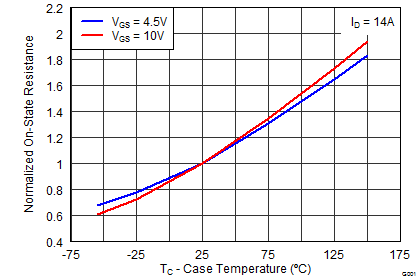

Figure 8. Normalized On-State Resistance vs Temperature
CSD18534Q5A graph10_SLPS389C.png

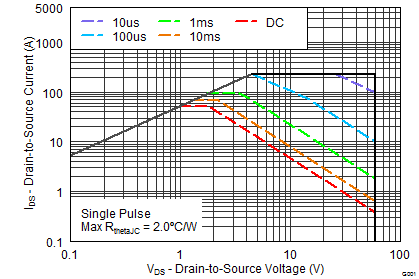

Figure 10. Maximum Safe Operating Area
CSD18534Q5A graph12_SLPS389.png

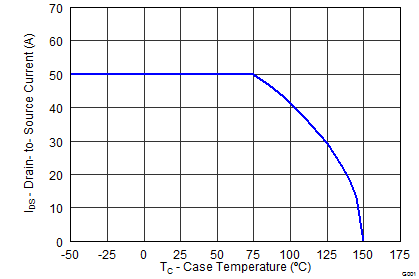

Figure 12. Maximum Drain Current vs Temperature
CSD18534Q5A graph03p2_SLPS389.png

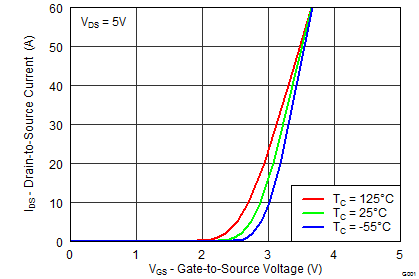

Figure 3. Transfer Characteristics
CSD18534Q5A graph05_SLPS389.png

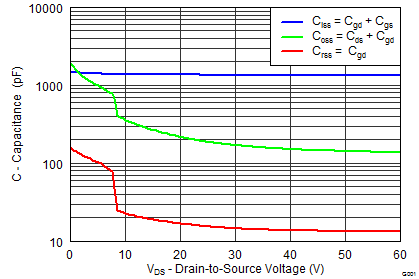

Figure 5. Capacitance
CSD18534Q5A graph07_SLPS389.png
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD18534Q5A graph09_SLPS389.png
Figure 9. Typical Diode Forward Voltage
CSD18534Q5A graph11_SLPS389.png

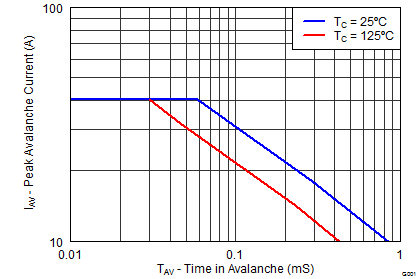

Figure 11. Single Pulse Unclamped Inductive Switching
