5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain to-source voltage VGS = 0 V, ID = 250 μA 40 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 32 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = 250 μA 1.5 1.8 2.3 V
RDS(on) Drain-to-source on-resistance VGS = 4.5 V, ID = 22 A 4.7 6.2
VGS = 10 V, ID = 22 A 3.4 4.3
gfs Transconductance VDS = 20 V, ID = 22 A 100 S
DYNAMIC CHARACTERISTICS
Ciss Input capacitance VGS = 0 V, VDS = 20 V, ƒ = 1 MHz 2200 2640 pF
Coss Output capacitance 510 612 pF
Crss Reverse transfer capacitance 13 16 pF
RG Series gate resistance 1.2 2.4 Ω
Qg Gate charge total (4.5 V) VDS = 20 V, ID = 22 A 13 16 nC
Qg Gate charge total (10 V) 27 32
Qgd Gate charge gate-to-drain 4.3 nC
Qgs Gate charge gate-to-source 4.5 nC
Qg(th) Gate charge at Vth 3.8 nC
Qoss Output charge VDS = 20 V, VGS = 0 V 30 nC
td(on) Turn on delay time VDS = 20 V, VGS = 10 V,
IDS = 22 A, RG = 0
4.5 ns
tr Rise time 8.8 ns
td(off) Turn off delay time 15 ns
tf Fall time 2.6 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage ISD = 22 A, VGS = 0 V 0.8 1 V
Qrr Reverse recovery charge VDS= 20 V, IF = 22 A,
di/dt = 300 A/μs
52 nC
trr Reverse recovery time 37 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance(1) 1.3 °C/W
RθJA Junction-to-ambient thermal resistance(1)(2) 50 °C/W
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inch × 1.5 inch
(3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.
CSD18503Q5A M0137-01_LPS198.gif

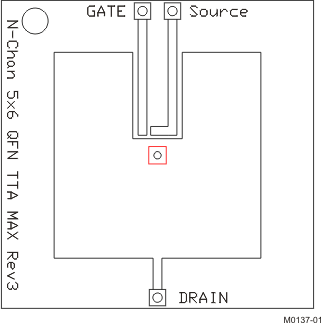

Max RθJA = 50°C/W when mounted on 1 inch2 (6.45 cm2) of
2 oz. (0.071 mm thick) Cu.
CSD18503Q5A M0137-02_LPS198.gif

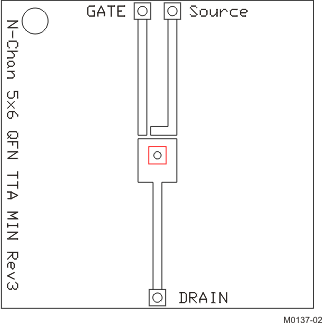

Max RθJA = 125°C/W when mounted on a minimum pad area of
2 oz. (0.071 mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD18503Q5A D001_SLPS358.png
Figure 1. Transient Thermal Impedance
CSD18503Q5A D002_SLPS358.gif

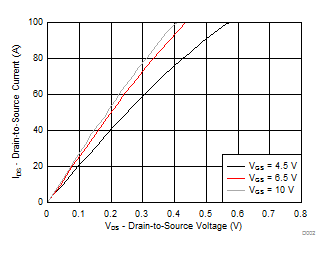

Figure 2. Saturation Characteristics
CSD18503Q5A D004_SLPS358.gif
ID = 22 A VDS = 20 V
Figure 4. Gate Charge
CSD18503Q5A D006_SLPS358.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD18503Q5A D008_SLPS358.gif
ID = 22 A

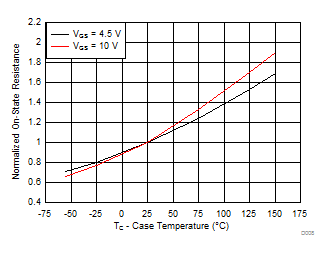

Figure 8. Normalized On-State Resistance vs Temperature
CSD18503Q5A D010_SLPS358.gif
Single Pulse, Max RθJC = 1.3°C/W
Figure 10. Maximum Safe Operating Area
CSD18503Q5A D012_SLPS358.gif
Figure 12. Maximum Drain Current vs Temperature
CSD18503Q5A D003_SLPS358.gif
VDS = 5 V
Figure 3. Transfer Characteristics
CSD18503Q5A D005_SLPS358.gif
Figure 5. Capacitance
CSD18503Q5A D007_SLPS358.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD18503Q5A D009_SLPS358.gif
Figure 9. Typical Diode Forward Voltage
CSD18503Q5A D011_SLPS358.gif
Figure 11. Single Pulse Unclamped Inductive Switching
