8 Parameter Measurement Information

8.1 Test Configurations

CDCM9102 output_tst_load_cas922.gif Figure 2. LVCMOS Output Test Load
CDCM9102 AC_conf_tst_cas922.gif Figure 3. LVCMOS AC Configuration for Device Test

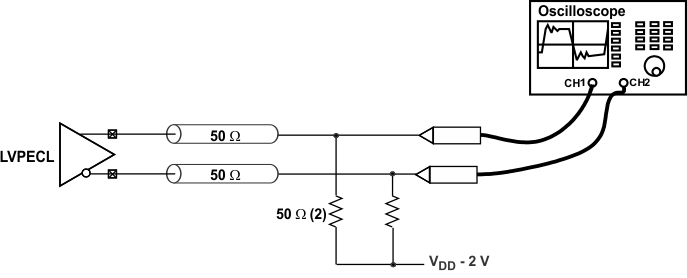

CDCM9102 DC_conf_tst_cas922.gif Figure 4. LVPECL DC Configuration for Device Test
CDCM9102 LVPECL_conf_tst_cas922.gif Figure 5. LVPECL AC Configuration for Device Test
CDCM9102 LVDS_DC_tst_cas922.gif Figure 6. LVDS DC Configuration for Device Test
CDCM9102 LVDS_AC_tst_cas922.gif Figure 7. LVDS AC Configuration for Device Test
