1 Features

  • High Speed: 4.5 ns
  • Rail-to-Rail I/O
  • Supply Voltage: 2.7 V to 5.5 V
  • Push-Pull CMOS Output Stage
  • Shutdown (TLV3501 Only)
  • Micro Packages: 6-Pin SOT-23 (Single), 8-Pin SOT-23 (Dual)
  • Low Supply Current: 3.2 mA

2 Applications

  • Automatic Test Equipment
  • Wireless Base Stations
  • Threshold Detectors
  • Zero-Crossing Detectors
  • Window Comparators

3 Description

The TLV350x family of push-pull output comparators feature a fast 4.5-ns propagation delay and operation from 2.7 V to 5.5 V. Beyond-the-rails input common-mode range makes it an ideal choice for low-voltage applications. The rail-to-rail output directly drives either CMOS or TTL logic.

Microsize packages provide options for portable and space-restricted applications. The single (TLV3501) is available in 6-pin SOT-23 and 8-pin SO packages. The dual (TLV3502) comes in the 8-pin SOT-23 and 8-pin SO packages.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
TLV3501 SOT-23 (6) 1.60 mm × 2.90 mm
SOIC (8) 3.91 mm × 4.90 mm
TLV3502 SOT-23 (8) 1.63 mm × 2.90 mm
SOIC (8) 3.91 mm × 4.90 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

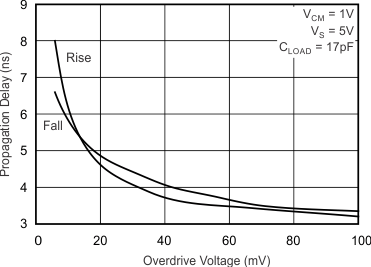

Propagation Delay vs Overdrive Voltage

TLV3501 TLV3502 front_bos321.gif
