Data Sheet

TPS748 具有可编程软启动功能的 1.5A 低压降线性稳压器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

下载最新的英语版本

1 特性

  • VOUT 范围:0.8V 至 3.6V
  • 超低 VIN 范围:0.8V 至 5.5V
  • VBIAS 范围:2.7V 至 5.5V
  • 低压降:1.5A、VBIAS = 5V 下的典型值为 60mV
  • 电源正常 (PG) 输出可实现电源监视或为其他电源提供时序信号
  • 线路、负载和温度范围内的精度为 1%(新芯片)
  • 线路、负载和温度范围内的精度为 2%(旧芯片)
  • 可编程软启动可提供线性电压启动
  • VBIAS 支持低 VIN 运行,具有良好的瞬态响应
  • 任何输出电容器 ≥ 2.2μF 时保持稳定
  • 采用小型 3mm × 3mm × 1mm VSON-10 封装和 5mm × 5mm VQFN-20 封装

2 应用

  • 网络附加存储 - 企业级
  • 机架式服务器
  • 网络接口卡 (NIC)
  • 商用网络和服务器 PSU

3 说明

TPS748 低压降 (LDO) 线性稳压器可面向多种应用提供易于使用的稳健型电源管理解决方案。用户可编程软启动通过减少启动时的电容涌入电流,最大限度地减少了输入电源上的应力。软启动具有单调性,旨在为各类处理器和 ASIC 供电。借助使能输入和电源正常输出,可通过外部稳压器轻松实现上电排序。凭借全方位的灵活性,该器件可为 FPGA、DSP 等具有特殊启动要求的应用配置可满足其时序要求的解决方案。

具有精密基准的误差放大器可在整个负载、线路、温度和过程范围内提供 1% 精度(新芯片)。该器件在使用大于或等于 2.2μF 的任何类型的电容器时都能保持稳定运行,并具有 TJ = –40°C 至 +125°C 的额定结温范围。TPS748 采用小型 3mm × 3mm VSON-10 封装,可实现高度紧凑的解决方案总尺寸。该器件还可采用 5mm × 5mm VQFN-20 封装,从而与 TPS742 兼容。

封装信息
器件型号 封装(1) 封装尺寸(2)
TPS748 DRC(VSON,10) 3mm × 3mm
RGW(VQFN,20) 5mm × 5mm
(1) 如需更多信息,请参阅机械、封装和可订购信息。
(2) 封装尺寸(长 × 宽)为标称值,并包括引脚(如适用)。



TPS748 典型应用电路(可调节)典型应用电路(可调节)
TPS748 导通响应导通响应

4 Pin Configuration and Functions

TPS748 DRC Package,10-Pin VSON With Thermal Pad(Top
                            View) Figure 4-1 DRC Package,10-Pin VSON With Thermal Pad(Top View)
TPS748 RGW Package,20-Pin VQFN(Top View) Figure 4-2 RGW Package,20-Pin VQFN(Top View)
Table 4-1 Pin Functions
PIN I/O DESCRIPTION
NAME VSON VQFN
BIAS 4 10 I Bias input voltage for error amplifier, reference, and internal control circuits. A 1-µF or larger input capacitor is recommended for optimal performance. If IN is connected to BIAS, a 4.7-µF or larger capacitor must be used.
EN 5 11 I Enable pin. Driving this pin high enables the regulator. Driving this pin low puts the regulator into shutdown mode. This pin must not be left unconnected.
FB 8 16 I Feedback pin. The feedback connection to the center tap of an external resistor divider network that sets the output voltage. This pin must not be left floating.
GND 6 12 — Ground
IN 1, 2 5-8 I Input to the device. A 1-µF or larger input capacitor is recommended for optimal performance.
NC N/A 2-4, 13, 14, 17 — No connection. This pin can be left floating or connected to GND to allow better thermal contact to the top-side plane.
OUT 9, 10 1, 18-20 O Regulated output voltage. A small capacitor (total typical capacitance ≥ 2.2 μF, ceramic) is needed from this pin to ground to assure stability.
PG 3 9 O Power Good pin. An open-drain, active-high output that indicates the status of VOUT. When VOUT exceeds the PG trip threshold, the PG pin goes into a high-impedance state. When VOUT is below this threshold the pin is driven to a low-impedance state. A pull-up resistor from 10 kΩ to 1 MΩ should be connected from this pin to a supply of up to 5.5 V. The supply can be higher than the input voltage. Alternatively, the PG pin can be left unconnected if output monitoring is not necessary.
SS 7 15 — Soft-Start pin. A capacitor connected on this pin to ground sets the start-up time. If this pin is left unconnected, the regulator output soft-start ramp time is typically 200 μs.
Thermal pad — Must be soldered to the ground plane for increased thermal performance. Internally connected to ground.

5 Specifications

5.1 Absolute Maximum Ratings

over operating temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VIN, VBIAS  Input voltage    –0.3 6 V
VEN Enable voltage
–0.3


6


V

VPG Power-good voltage –0.3 6
V

IPG PG sink current 0 1.5 mA
VSS Soft-start voltage
–0.3


6

V
VFB Feedback voltage
–0.3


6

V
VOUT Output voltage –0.3 VIN + 0.3 V
IOUT Maximum output current Internally limited
Output short-circuit duration Indefinite
PDISS Continuous total power dissipation See Thermal Information
TJ Junction Temperature –40 150 °C
Tstg Storage Temperature –55 150
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

5.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

5.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VIN  Input supply voltage VOUT + VDO (VIN) VOUT + 0.3 5.5 V
VEN  Enable supply voltage VIN 5.5 V
VBIAS(1)  BIAS supply voltage VOUT + VDO (VBIAS)(2) VOUT + 1.6(2) 5.5 V
VOUT Output voltage 0.8 3.3 V
IOUT Output current 0 1.5 A
COUT Output capacitor 2.2 µF
CIN Input capacitor(3) 1 µF
CBIAS Bias capacitor 0.1 1 µF
TJ Operating junction temperature –40 125 ℃
(1) BIAS supply is required when VIN is below VOUT + 1.62 V.
(2) VBIAS has a minimum voltage of 2.7 V or VOUT + VDO (VBIAS), whichever is higher.
(3) If VIN and VBIAS are connected to the same supply, the recommended minimum capacitor for the supply is 4.7 μF.

5.4 Thermal Information

THERMAL METRIC(1) TPS748 UNIT
RGW (VQFN) RGW (VQFN)(2) DRC (VSON) DRC (VSON) (2)
20 PINS 20 PINS 10 PINS 10 PINS
RθJA Junction-to-ambient thermal resistance 35.6 34.7 44.2 47.2 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 33.3 31.0 50.3 63.7 °C/W
RθJB Junction-to-board thermal resistance 15 13.5 19.6 19.5 °C/W
ψJT Junction-to-top characterization parameter 0.4 1.4 0.7 4.2 °C/W
ψJB Junction-to-board characterization parameter 15.2 13.5 17.8 19.4 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 3.8 3.6 4.3 3.3 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC package thermla metrics application note.
(2) New Chip.

5.5 Electrical Characteristics

at VEN = 1.1 V, VIN = VOUT + 0.3 V, CBIAS = 0.1 μF, CIN = COUT = 10 μF, CNR = 1 nF, IOUT = 50 mA, VBIAS = 5.0 V, and TJ = –40°C to 125°C (unless otherwise noted); typical values are at TJ = 25°C
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VREF Internal reference (Adj.) TA = 25°C 0.796 0.8 0.804 V
VOUT Output voltage range VIN = 5 V, IOUT = 1.5 A VREF 3.6 V
Accuracy(1) 2.97 V ≤ VBIAS ≤ 5.5 V, 50 mA ≤ IOUT ≤ 1.5 A (Legacy Chip) –2 ±0.5 2 %
2.97 V ≤ VBIAS ≤ 5.5 V, 50 mA ≤ IOUT ≤ 1.5 A (New Chip) –1 ±0.3 1
ΔVOUT(ΔVIN) Line regulation VOUT(nom) + 0.3 ≤ VIN ≤ 5.5 V (Legacy Chip) 0.03 %/V
VOUT(nom) + 0.3 ≤ VIN ≤ 5.5 V (New Chip) 0.001
ΔVOUT(ΔIOUT) Load regulation 50 mA ≤ IOUT ≤ 1.5 A 0.09 %/A
VDO VIN dropout voltage(2) IOUT = 1.5 A, VBIAS – VOUT(nom) ≥ 3.25 V (Legacy Chip) (3) 60 165 mV
IOUT = 1.5 A, VBIAS – VOUT(nom) ≥ 3.25 V (New Chip) (3) 50 100
VBIAS dropout voltage(2) IOUT = 1.5 A, VIN = VBIAS (Legacy Cip) 1.31 1.6 V
IOUT = 1.5 A, VIN = VBIAS (New Chip) 1.31 1.43
ICL Output current limit VOUT = 80% × VOUT(nom) 2 5.5 A
IBIAS BIAS pin current (Legacy Chip) 1 2 mA
(New Chip)  1 1.2
ISHDN Shutdown supply current (IGND) VEN ≤ 0.4 V (Legacy Chip) 1 50 µA
VEN ≤ 0.4 V (New Chip)  0.85 2.75
IFB Feedback pin current (Legacy Chip) –1 0.15 1 µA
(New Chip) –30 0.15 30 nA
PSRR Power-supply rejection (VIN to VOUT) 1 kHz, IOUT = 1.5 A, VIN = 1.8 V, VOUT = 1.5 V 60 dB
300 kHz, IOUT = 1.5 A, VIN = 1.8 V, VOUT = 1.5 V 30
Power-supply rejection (VBIAS to VOUT) 1 kHz, IOUT = 1.5 A, VIN = 1.8 V, VOUT = 1.5 V (Legacy Chip) 50
1 kHz, IOUT = 1.5 A, VIN = 1.8 V, VOUT = 1.5 V (New Chip) 59
300 kHz, IOUT = 1.5 A, VIN = 1.8 V, VOUT = 1.5 V (Legacy Chip) 30
300 kHz, IOUT = 1.5 A, VIN = 1.8 V, VOUT = 1.5 V (New Chip) 50
Vn Output noise voltage BW = 100 Hz to 100 kHz, IOUT = 1.5 A, CSS = 1 nF (Legacy Chip) 25 × VOUT μVrms
BW = 100 Hz to 100 kHz, IOUT = 1.5 A, CSS = 1 nF (New Chip) 20 × VOUT
tSTR Minimum startup time RLOAD for IOUT = 1.0 A, CSS = open (Legacy Chip) 200 µs
RLOAD for IOUT = 1.0 A, CSS = open (New Chip) 250
ISS Soft-start charging current VSS = 0.4 V (Legacy Chip) 440 nA
VSS = 0.4 V (New Chip) 530
VEN(hi) Enable input high level 1.1 5.5 V
VEN(lo) Enable input low level 0 0.4 V
VEN(hys) Enable pin hysteresis (Legacy Chip) 50 mV
(New Chip) 55
VEN(dg) Enable pin deglitch time 20 µs
IEN Enable pin current VEN = 5 V (Legacy Chip)  0.1 1 µA
VEN = 5 V (New Chip) 0.1 0.3
VIT PG trip threshold VOUT decreasing 85 90 94 %VOUT
VHYS PG trip hysteresis 3 %VOUT
VPG(lo) PG output low voltage IPG = 1 mA (sinking), VOUT < VIT (Legacy Chip) 0.3 V
IPG = 1 mA (sinking), VOUT < VIT (New Chip) 0.125
IPG(lkg) PG leakage current VPG = 5.25 V, VOUT > VIT (Legacy Chip) 0.1 1 µA
VPG = 5.25 V, VOUT > VIT (New Chip) 0.001 0.05
TSD Thermal shutdown temperature Shutdown, temperature increasing 165 ℃
Reset, temperature decreasing 140
RPULLDOWN Output pulldown resitance VBIAS = 5V, VEN = 0V 0.83 1 kΩ
(1) Adjustable devices tested at 0.8 V; resistor tolerance is not taken into account.
(2) Dropout is defined as the voltage from VIN to VOUT when VOUT is 3% below nominal.
(3) 3.25 V is a test condition of this device and can be adjusted by referring to Figure 5-11.

5.6 Typical Characteristics: IOUT = 50 mA

at TJ = 25°C, VIN = VOUT(nom) + 0.3 V, VBIAS = 5 V, IOUT = 50 mA, VEN = VIN, CIN = 1 μF, CBIAS = 4.7 μF, and COUT = 10 μF (unless otherwise noted)

TPS748 VIN Line Regulation
Legacy chip
Figure 5-1 VIN Line Regulation
TPS748 VBIAS Line Regulation
Legacy chip
Figure 5-3 VBIAS Line Regulation
TPS748 Load
                        Regulation at Light Load

Figure 5-5 Load Regulation at Light Load
TPS748 Load Regulation
Legacy chip
Figure 5-7 Load Regulation
TPS748 VIN Dropout Voltage vs IOUT and Temperature
                            (TJ)
Legacy chip
Figure 5-9 VIN Dropout Voltage vs IOUT and Temperature (TJ)
TPS748 VIN Dropout Voltage vs (VBIAS – VOUT)
                        and Temperature (TJ)

Figure 5-11 VIN Dropout Voltage vs (VBIAS – VOUT) and Temperature (TJ)
TPS748 VBIAS Dropout Voltage vs IOUT and Temperature
                            (TJ)
Legacy chip
Figure 5-13 VBIAS Dropout Voltage vs IOUT and Temperature (TJ)
TPS748 VBIAS PSRR vs Frequency
Legacy chip
Figure 5-15 VBIAS PSRR vs Frequency
TPS748 VIN PSRR vs Frequency
Legacy chip
Figure 5-17 VIN PSRR vs Frequency
TPS748 VIN PSRR vs (VIN – VOUT)
Legacy chip
Figure 5-19 VIN PSRR vs (VIN – VOUT)
TPS748 Noise
                        Spectral Density
Legacy chip
Figure 5-21 Noise Spectral Density
TPS748 BIAS
                        Pin Current vs Output Current and Temperature (TJ)
Legacy chip
Figure 5-23 BIAS Pin Current vs Output Current and Temperature (TJ)
TPS748 BIAS
                        Pin Current vs VBIAS and Temperature (TJ)
Legacy chip
Figure 5-25 BIAS Pin Current vs VBIAS and Temperature (TJ)
TPS748 Soft-Start Charging Current (ISS) vs Temperature
                        (TJ)
Legacy chip
Figure 5-27 Soft-Start Charging Current (ISS) vs Temperature (TJ)
TPS748 Low-Level PG Voltage vs Current
Legacy chip
Figure 5-29 Low-Level PG Voltage vs Current
TPS748 Current Limit vs (VBIAS – VOUT)
Legacy chip
Figure 5-31 Current Limit vs (VBIAS – VOUT)
TPS748 VIN Line Regulation
New chip
Figure 5-2 VIN Line Regulation
TPS748 VBIAS Line Regulation
New chip
Figure 5-4 VBIAS Line Regulation
TPS748 Load
                        Regulation at Light Load
New chip
Figure 5-6 Load Regulation at Light Load
TPS748 Load Regulation
New chip
Figure 5-8 Load Regulation
TPS748 VIN Dropout Voltage vs IOUT
                        and Temperature (TJ)
New chip
Figure 5-10 VIN Dropout Voltage vs IOUT and Temperature (TJ)
TPS748 VIN Dropout Voltage vs (VBIAS – VOUT)
                        and Temperature (TJ)

Figure 5-12 VIN Dropout Voltage vs (VBIAS – VOUT) and Temperature (TJ)
TPS748 VBIAS Dropout Voltage vs IOUT
                        and Temperature (TJ)
New chip
Figure 5-14 VBIAS Dropout Voltage vs IOUT and Temperature (TJ)
TPS748 VBIAS PSRR vs Frequency
New chip
Figure 5-16 VBIAS PSRR vs Frequency
TPS748 VIN PSRR vs Frequency

Figure 5-18 VIN PSRR vs Frequency
TPS748 VIN PSRR vs (VIN –
                            VOUT)
New chip
Figure 5-20 VIN PSRR vs (VIN – VOUT)
TPS748 Noise Spectral Density
New chip
Figure 5-22 Noise Spectral Density
TPS748 BIAS Pin Current vs Output Current and Temperature
                            (TJ)
New chip
Figure 5-24 BIAS Pin Current vs Output Current and Temperature (TJ)
TPS748 BIAS Pin Current vs VBIAS and Temperature
                            (TJ)
New chip
Figure 5-26 BIAS Pin Current vs VBIAS and Temperature (TJ)
TPS748 Soft-Start Charging Current (ISS) vs
                        Temperature (TJ)
New chip
Figure 5-28 Soft-Start Charging Current (ISS) vs Temperature (TJ)
TPS748 Low-Level PG Voltage vs Current
New chip
Figure 5-30 Low-Level PG Voltage vs Current
TPS748 Current Limit vs (VBIAS –
                        VOUT)
New chip
Figure 5-32 Current Limit vs (VBIAS – VOUT)

5.7 Typical Characteristics: IOUT = 1 A

at TJ = 25°C, VIN = VOUT(nom) + 0.3 V, VBIAS = 5 V, IOUT = 1 A, VEN = VIN = 1.8 V, VOUT = 1.5 V, CIN = 1 μF, CBIAS = 4.7 μF, and COUT = 10 μF (unless otherwise noted)

TPS748 VBIAS Line Transient
Legacy chip
Figure 5-33 VBIAS Line Transient
TPS748 VIN Line Transient
Legacy chip
Figure 5-35 VIN Line Transient
TPS748 Output Load Transient Response
Legacy chip
Figure 5-37 Output Load Transient Response
TPS748 Turn-On Response
Legacy chip
Figure 5-39 Turn-On Response
TPS748 Power-Up, Power-Down
Legacy chip
Figure 5-41 Power-Up, Power-Down

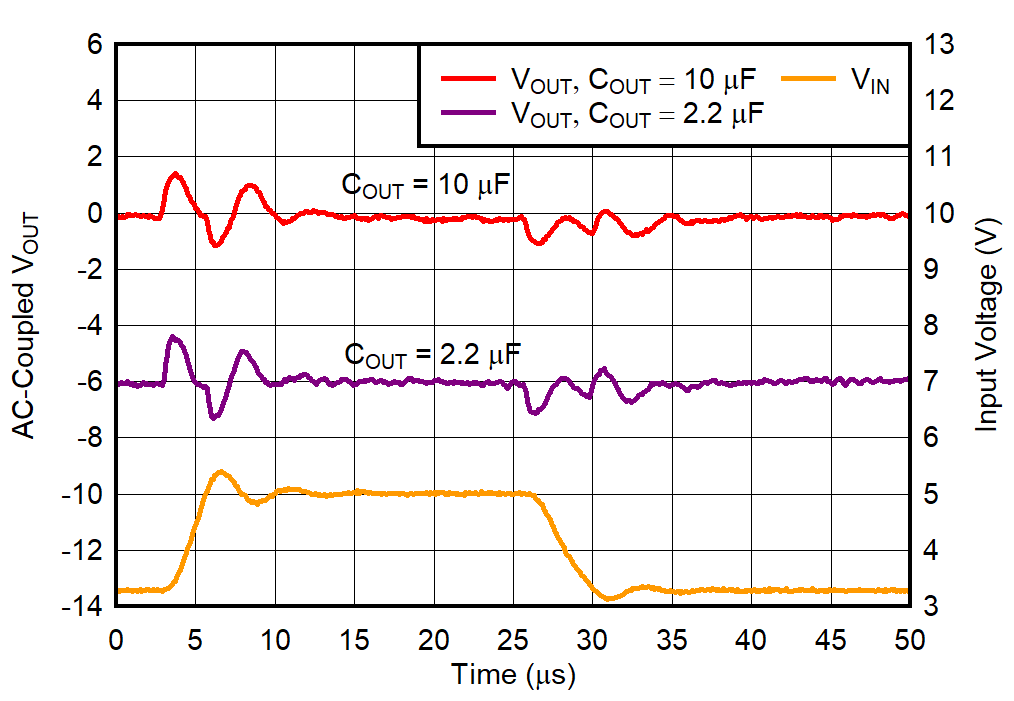

TPS748 VBIAS Line Transient
New chip
Figure 5-34 VBIAS Line Transient
TPS748 VIN Line Transient
New chip
Figure 5-36 VIN Line Transient
TPS748 Output Load Transient Response
New chip
Figure 5-38 Output Load Transient Response
TPS748 Turn-On Response
New chip
Figure 5-40 Turn-On Response
TPS748 Power-Up, Power-Down
New chip
Figure 5-42 Power-Up, Power-Down

6 Detailed Description

6.1 Overview

The TPS748 is a low-dropout regulator that features soft-start capability. This regulator uses a low current bias input to power all internal control circuitry, allowing the NMOS pass transistor to regulate very low input and output voltages.

The use of an NMOS-pass transistor offers several critical advantages for many applications. Unlike a PMOS topology device, the output capacitor has little effect on loop stability. This architecture allows the TPS748 to be stable with any capacitor type of value 2.2 μF or greater. Transient response is also superior to PMOS topologies, particularly for low VIN applications.

The TPS748 features a programmable voltage-controlled soft-start circuit that provides a smooth, monotonic start-up and limits start-up inrush currents that may be caused by large capacitive loads. A power-good (PG) output is available to allow supply monitoring and sequencing of other supplies. An enable (EN) pin with hysteresis and deglitch allows slow-ramping signals to be used for sequencing the device. The low VIN and VOUT capability allows for inexpensive, easy-to-design, and efficient linear regulation between the multiple supply voltages often required by processor-intensive systems.



Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
