Typical Characteristics

at TA = 25°C, AVDD = 3.3 V, DVDD = 3.3 V, fCLKIN = 8.192 MHz, data rate = 4 kSPS, and gain = 1 (unless otherwise noted)

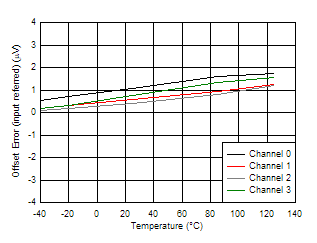

Gain = 8, global-chop mode disabled
Figure 6-4 Offset Error vs Temperature

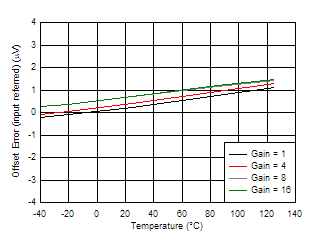

Global-chop mode disabled
Figure 6-6 Offset Error vs Temperature
Including error of internal voltage reference
Figure 6-8 Gain Error vs Temperature
Gain = 8, global-chop mode disabled
Figure 6-10 Input-referred Noise vs Temperature
Gain = 1, OSR = 1024, all four ADC channels enabled
Figure 6-12 Analog Supply Current vs Temperature
OSR = 1024
Figure 6-14 Digital Supply Current vs Temperature
Gain = 8, global-chop mode enabled
Figure 6-5 Offset Error vs Temperature
Global-chop mode enabled
Figure 6-7 Offset Error vs Temperature
Gain = 1, including error of internal voltage reference

Figure 6-9 Gain Error Long-Term Drift


Figure 6-11 Oscillator Frequency Error vs Temperature
Gain = 8, OSR = 1024, all four ADC channels enabled
Figure 6-13 Analog Supply Current vs Temperature
Standby mode
Figure 6-15 Supply Current vs Temperature
