  • 具有 FSK 调制功能的 LMX2572LP 2GHz 低功耗宽带射频合成器

    • ZHCSIA2 May   2018 LMX2572LP

      PRODUCTION DATA.

  • CONTENTS
  • SEARCH
  • 具有 FSK 调制功能的 LMX2572LP 2GHz 低功耗宽带射频合成器
  1. 1 特性
  2. 2 应用
  3. 3 说明
    1.     Device Images

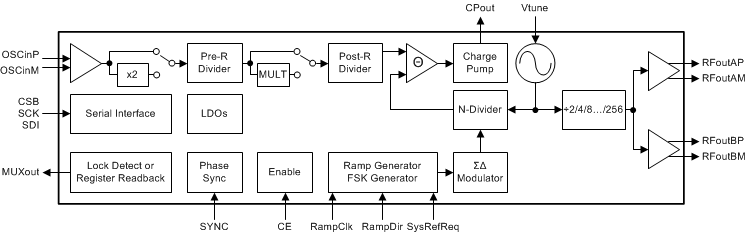

      1.      功能方框图
  4. 4 修订历史记录
  5. 5 Pin Configuration and Functions
    1.     Pin Functions
  6. 6 Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 Timing Requirements
    7. 6.7 Timing Diagrams
    8. 6.8 Typical Characteristics
  7. 7 Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1  Reference Oscillator Input
      2. 7.3.2  Reference Path
      3. 7.3.3  PLL Phase Detector and Charge Pump
      4. 7.3.4  PLL N Divider and Fractional Circuitry
      5. 7.3.5  Voltage-Controlled Oscillator
      6. 7.3.6  Channel Divider
      7. 7.3.7  Output Buffer
      8. 7.3.8  Lock Detect
      9. 7.3.9  Register Readback
      10. 7.3.10 Powerdown
      11. 7.3.11 Phase Synchronization
      12. 7.3.12 Phase Adjustment
      13. 7.3.13 Ramping Function
      14. 7.3.14 FSK Modulation
    4. 7.4 Device Functional Modes
    5. 7.5 Programming
      1. 7.5.1 Recommended Initial Power-On Programming
        1. 7.5.1.1 Programming Sequence
        2. 7.5.1.2 Programming Register
      2. 7.5.2 Recommended Sequence for Changing Frequencies
      3. 7.5.3 Double Buffering
      4. 7.5.4 Block Programming
    6. 7.6 Register Maps
      1. 7.6.1   Register R0 (offset = 00h) [reset = 221Ch]
        1. Table 7. Register R0 Field Descriptions
      2. 7.6.2   Register R1 (offset = 01h) [reset = 0808h]
        1. Table 8. Register R1 Field Descriptions
      3. 7.6.3   Register R2 (offset = 02h) [reset = 0500h]
        1. Table 9. Register R2 Field Descriptions
      4. 7.6.4   Register R3 (offset = 03h) [reset = 0782h]
        1. Table 10. Register R3 Field Descriptions
      5. 7.6.5   Register R4 (offset = 04h) [reset = 0A43h]
        1. Table 11. Register R4 Field Descriptions
      6. 7.6.6   Register R5 (offset = 05h) [reset = 30C8h]
        1. Table 12. Register R5 Field Descriptions
      7. 7.6.7   Register R6 (offset = 06h) [reset = C802h]
        1. Table 13. Register R6 Field Descriptions
      8. 7.6.8   Register R7 (offset = 07h) [reset = 00B2h]
        1. Table 14. Register R7 Field Descriptions
      9. 7.6.9   Register R8 (offset = 08h) [reset = 2000h]
        1. Table 15. Register R8 Field Descriptions
      10. 7.6.10  Register R9 (offset = 09h) [reset = 0004h]
        1. Table 16. Register R9 Field Descriptions
      11. 7.6.11  Register R10 (offset = 0Ah) [reset = 10F8h]
        1. Table 17. Register R10 Field Descriptions
      12. 7.6.12  Register R11 (offset = 0Bh) [reset = B018h]
        1. Table 18. Register R11 Field Descriptions
      13. 7.6.13  Register R12 (offset = 0Ch) [reset = 5001h]
        1. Table 19. Register R12 Field Descriptions
      14. 7.6.14  Register R13 (offset = 0Dh) [reset = 4000h]
        1. Table 20. Register R13 Field Descriptions
      15. 7.6.15  Register R14 (offset = 0Eh) [reset = 1840h]
        1. Table 21. Register R14 Field Descriptions
      16. 7.6.16  Register R15 (offset = 0Fh) [reset = 060Eh]
        1. Table 22. Register R15 Field Descriptions
      17. 7.6.17  Register R16 (offset = 10h) [reset = 0080h]
        1. Table 23. Register R16 Field Descriptions
      18. 7.6.18  Register R17 (offset = 11h) [reset = 0096h]
        1. Table 24. Register R17 Field Descriptions
      19. 7.6.19  Register R18 (offset = 12h) [reset = 0064h]
        1. Table 25. Register R18 Field Descriptions
      20. 7.6.20  Register R19 (offset = 13h) [reset = 27B7h]
        1. Table 26. Register R19 Field Descriptions
      21. 7.6.21  Register R20 (offset = 14h) [reset = 3048h]
        1. Table 27. Register R20 Field Descriptions
      22. 7.6.22  Register R21 (offset = 15h) [reset = 0409h]
        1. Table 28. Register R21 Field Descriptions
      23. 7.6.23  Register R22 (offset = 16h) [reset = 0001h]
        1. Table 29. Register R22 Field Descriptions
      24. 7.6.24  Register R23 (offset = 17h) [reset = 007Ch]
        1. Table 30. Register R23 Field Descriptions
      25. 7.6.25  Register R24 (offset = 18h) [reset = 071Ah]
        1. Table 31. Register R24 Field Descriptions
      26. 7.6.26  Register R25 (offset = 19h) [reset = 0624h]
        1. Table 32. Register R25 Field Descriptions
      27. 7.6.27  Register R26 (offset = 1Ah) [reset = 0808h]
        1. Table 33. Register R26 Field Descriptions
      28. 7.6.28  Register R27 (offset = 1Bh) [reset = 0002h]
        1. Table 34. Register R27 Field Descriptions
      29. 7.6.29  Register R28 (offset = 1Ch) [reset = 0488h]
        1. Table 35. Register R28 Field Descriptions
      30. 7.6.30  Register R29 (offset = 1Dh) [reset = 18C6h]
        1. Table 36. Register R29 Field Descriptions
      31. 7.6.31  Register R30 (offset = 1Eh) [reset = 18C6h]
        1. Table 37. Register R30 Field Descriptions
      32. 7.6.32  Register R31 (offset = 1Fh) [reset = C3E6h]
        1. Table 38. Register R31 Field Descriptions
      33. 7.6.33  Register R32 (offset = 20h) [reset = 05BFh]
        1. Table 39. Register R32 Field Descriptions
      34. 7.6.34  Register R33 (offset = 21h) [reset = 1E01h]
        1. Table 40. Register R33 Field Descriptions
      35. 7.6.35  Register R34 (offset = 22h) [reset = 0010h]
        1. Table 41. Register R34 Field Descriptions
      36. 7.6.36  Register R35 (offset = 23h) [reset = 0004h]
        1. Table 42. Register R35 Field Descriptions
      37. 7.6.37  Register R36 (offset = 24h) [reset = 0028h]
        1. Table 43. Register R36 Field Descriptions
      38. 7.6.38  Register R37 (offset = 25h) [reset = 0205h]
        1. Table 44. Register R37 Field Descriptions
      39. 7.6.39  Register R38 (offset = 26h) [reset = FFFFh]
        1. Table 45. Register R38 Field Descriptions
      40. 7.6.40  Register R39 (offset = 27h) [reset = FFFFh]
        1. Table 46. Register R39 Field Descriptions
      41. 7.6.41  Register R40 (offset = 28h) [reset = 0000h]
        1. Table 47. Register R40 Field Descriptions
      42. 7.6.42  Register R41 (offset = 29h) [reset = 0000h]
        1. Table 48. Register R41 Field Descriptions
      43. 7.6.43  Register R42 (offset = 2Ah) [reset = 0000h]
        1. Table 49. Register R42 Field Descriptions
      44. 7.6.44  Register R43 (offset = 2Bh) [reset = 0000h]
        1. Table 50. Register R43 Field Descriptions
      45. 7.6.45  Register R44 (offset = 2Ch) [reset = 08A2h]
        1. Table 51. Register R44 Field Descriptions
      46. 7.6.46  Register R45 (offset = 2Dh) [reset = C608h]
        1. Table 52. Register R45 Field Descriptions
      47. 7.6.47  Register R46 (offset = 2Eh) [reset = 07F0h]
        1. Table 53. Register R46 Field Descriptions
      48. 7.6.48  Register R47 (offset = 2Fh) [reset = 0300h]
        1. Table 54. Register R47 Field Descriptions
      49. 7.6.49  Register R48 (offset = 30h) [reset = 03E0h]
        1. Table 55. Register R48 Field Descriptions
      50. 7.6.50  Register R49 (offset = 31h) [reset = 4180h]
        1. Table 56. Register R49 Field Descriptions
      51. 7.6.51  Register R50 (offset = 32h) [reset = 0080h]
        1. Table 57. Register R50 Field Descriptions
      52. 7.6.52  Register R51 (offset = 33h) [reset = 0080h]
        1. Table 58. Register R51 Field Descriptions
      53. 7.6.53  Register R52 (offset = 34h) [reset = 0420h]
        1. Table 59. Register R52 Field Descriptions
      54. 7.6.54  Register R53 (offset = 35h) [reset = 0000h]
        1. Table 60. Register R53 Field Descriptions
      55. 7.6.55  Register R54 (offset = 36h) [reset = 0000h]
        1. Table 61. Register R54 Field Descriptions
      56. 7.6.56  Register R55 (offset = 37h) [reset = 0000h]
        1. Table 62. Register R55 Field Descriptions
      57. 7.6.57  Register R56 (offset = 38h) [reset = 0000h]
        1. Table 63. Register R56 Field Descriptions
      58. 7.6.58  Register R57 (offset = 39h) [reset = 0000h]
        1. Table 64. Register R57 Field Descriptions
      59. 7.6.59  Register R58 (offset = 3Ah) [reset = 8001h]
        1. Table 65. Register R58 Field Descriptions
      60. 7.6.60  Register R59 (offset = 3Bh) [reset = 0001h]
        1. Table 66. Register R59 Field Descriptions
      61. 7.6.61  Register R60 (offset = 3Ch) [reset = 03E8h]
        1. Table 67. Register R60 Field Descriptions
      62. 7.6.62  Register R61 (offset = 3Dh) [reset = 00A8h]
        1. Table 68. Register R61 Field Descriptions
      63. 7.6.63  Register R62 (offset = 3Eh) [reset = 00AFh]
        1. Table 69. Register R62 Field Descriptions
      64. 7.6.64  Register R63 (offset = 3Fh) [reset = 0000h]
        1. Table 70. Register R63 Field Descriptions
      65. 7.6.65  Register R64 (offset = 40h) [reset = 1388h]
        1. Table 71. Register R64 Field Descriptions
      66. 7.6.66  Register R65 (offset = 41h) [reset = 0000h]
        1. Table 72. Register R65 Field Descriptions
      67. 7.6.67  Register R66 (offset = 42h) [reset = 01F4h]
        1. Table 73. Register R66 Field Descriptions
      68. 7.6.68  Register R67 (offset = 43h) [reset = 0000h]
        1. Table 74. Register R67 Field Descriptions
      69. 7.6.69  Register R68 (offset = 44h) [reset = 03E8h]
        1. Table 75. Register R68 Field Descriptions
      70. 7.6.70  Register R69 (offset = 45h) [reset = 0000h]
        1. Table 76. Register R69 Field Descriptions
      71. 7.6.71  Register R70 (offset = 46h) [reset = C350h]
        1. Table 77. Register R70 Field Descriptions
      72. 7.6.72  Register R71 (offset = 47h) [reset = 0080h]
        1. Table 78. Register R71 Field Descriptions
      73. 7.6.73  Register R72 (offset = 48h) [reset = 0001h]
        1. Table 79. Register R72 Field Descriptions
      74. 7.6.74  Register R73 (offset = 49h) [reset = 003Fh]
        1. Table 80. Register R73 Field Descriptions
      75. 7.6.75  Register R74 (offset = 4Ah) [reset = 0000h]
        1. Table 81. Register R74 Field Descriptions
      76. 7.6.76  Register R75 (offset = 4Bh) [reset = 0800h]
        1. Table 82. Register R75 Field Descriptions
      77. 7.6.77  Register R76 (offset = 4Ch) [reset = 000Ch]
        1. Table 83. Register R76 Field Descriptions
      78. 7.6.78  Register R77 (offset = 4Dh) [reset = 0000h]
        1. Table 84. Register R77 Field Descriptions
      79. 7.6.79  Register R78 (offset = 4Eh) [reset = 0064h]
        1. Table 85. Register R78 Field Descriptions
      80. 7.6.80  Register R79 (offset = 4Fh) [reset = 0000h]
        1. Table 86. Register R79 Field Descriptions
      81. 7.6.81  Register R80 (offset = 50h) [reset = 0000h]
        1. Table 87. Register R80 Field Descriptions
      82. 7.6.82  Register R81 (offset = 51h) [reset = 0000h]
        1. Table 88. Register R81 Field Descriptions
      83. 7.6.83  Register R82 (offset = 52h) [reset = 0000h]
        1. Table 89. Register R82 Field Descriptions
      84. 7.6.84  Register R83 (offset = 53h) [reset = 0000h]
        1. Table 90. Register R83 Field Descriptions
      85. 7.6.85  Register R84 (offset = 54h) [reset = 0000h]
        1. Table 91. Register R84 Field Descriptions
      86. 7.6.86  Register R85 (offset = 55h) [reset = 0000h]
        1. Table 92. Register R85 Field Descriptions
      87. 7.6.87  Register R86 (offset = 56h) [reset = 0000h]
        1. Table 93. Register R86 Field Descriptions
      88. 7.6.88  Register R87 (offset = 57h) [reset = 0000h]
        1. Table 94. Register R87 Field Descriptions
      89. 7.6.89  Register R88 (offset = 58h) [reset = 0000h]
        1. Table 95. Register R88 Field Descriptions
      90. 7.6.90  Register R89 (offset = 59h) [reset = 0000h]
        1. Table 96. Register R89 Field Descriptions
      91. 7.6.91  Register R90 (offset = 5Ah) [reset = 0000h]
        1. Table 97. Register R90 Field Descriptions
      92. 7.6.92  Register R91 (offset = 5Bh) [reset = 0000h]
        1. Table 98. Register R91 Field Descriptions
      93. 7.6.93  Register R92 (offset = 5Ch) [reset = 0000h]
        1. Table 99. Register R92 Field Descriptions
      94. 7.6.94  Register R93 (offset = 5Dh) [reset = 0000h]
        1. Table 100. Register R93 Field Descriptions
      95. 7.6.95  Register R94 (offset = 5Eh) [reset = 0000h]
        1. Table 101. Register R94 Field Descriptions
      96. 7.6.96  Register R95 (offset = 5Fh) [reset = 0000h]
        1. Table 102. Register R95 Field Descriptions
      97. 7.6.97  Register R96 (offset = 60h) [reset = 0000h]
        1. Table 103. Register R96 Field Descriptions
      98. 7.6.98  Register R97 (offset = 61h) [reset = 0000h]
        1. Table 104. Register R97 Field Descriptions
      99. 7.6.99  Register R98 (offset = 62h) [reset = 0000h]
        1. Table 105. Register R98 Field Descriptions
      100. 7.6.100 Register R99 (offset = 63h) [reset = 0000h]
        1. Table 106. Register R99 Field Descriptions
      101. 7.6.101 Register R100 (offset = 64h) [reset = 0000h]
        1. Table 107. Register R100 Field Descriptions
      102. 7.6.102 Register R101 (offset = 65h) [reset = 0000h]
        1. Table 108. Register R101 Field Descriptions
      103. 7.6.103 Register R102 (offset = 66h) [reset = 0000h]
        1. Table 109. Register R102 Field Descriptions
      104. 7.6.104 Register R103 (offset = 67h) [reset = 0000h]
        1. Table 110. Register R103 Field Descriptions
      105. 7.6.105 Register R104 (offset = 68h) [reset = 0000h]
        1. Table 111. Register R104 Field Descriptions
      106. 7.6.106 Register R105 (offset = 69h) [reset = 4440h]
        1. Table 112. Register R105 Field Descriptions
      107. 7.6.107 Register R106 (offset = 6Ah) [reset = 0007h]
        1. Table 113. Register R106 Field Descriptions
      108. 7.6.108 Register R107 (offset = 6Bh) [reset = 0000h]
        1. Table 114. Register R107 Field Descriptions
      109. 7.6.109 Register R108 (offset = 6Ch) [reset = 0000h]
        1. Table 115. Register R108 Field Descriptions
      110. 7.6.110 Register R109 (offset = 6Dh) [reset = 0000h]
        1. Table 116. Register R109 Field Descriptions
      111. 7.6.111 Register R110 (offset = 6Eh) [reset = 0000h]
        1. Table 117. Register R110 Field Descriptions
      112. 7.6.112 Register R111 (offset = 6Fh) [reset = 0000h]
        1. Table 118. Register R111 Field Descriptions
      113. 7.6.113 Register R112 (offset = 70h) [reset = 0000h]
        1. Table 119. Register R112 Field Descriptions
      114. 7.6.114 Register R113 (offset = 71h) [reset = 0000h]
        1. Table 120. Register R113 Field Descriptions
      115. 7.6.115 Register R114 (offset = 72h) [reset = 7800h]
        1. Table 121. Register R114 Field Descriptions
      116. 7.6.116 Register R115 (offset = 73h) [reset = 0000h]
        1. Table 122. Register R115 Field Descriptions
      117. 7.6.117 Register R116 (offset = 74h) [reset = 0000h]
        1. Table 123. Register R116 Field Descriptions
      118. 7.6.118 Register R117 (offset = 75h) [reset = 0000h]
        1. Table 124. Register R117 Field Descriptions
      119. 7.6.119 Register R118 (offset = 76h) [reset = 0000h]
        1. Table 125. Register R118 Field Descriptions
      120. 7.6.120 Register R119 (offset = 77h) [reset = 0000h]
        1. Table 126. Register R119 Field Descriptions
      121. 7.6.121 Register R120 (offset = 78h) [reset = 0000h]
        1. Table 127. Register R120 Field Descriptions
      122. 7.6.122 Register R121 (offset = 79h) [reset = 0000h]
        1. Table 128. Register R121 Field Descriptions
      123. 7.6.123 Register R122 (offset = 7Ah) [reset = 0000h]
        1. Table 129. Register R122 Field Descriptions
      124. 7.6.124 Register R123 (offset = 7Bh) [reset = 0000h]
        1. Table 130. Register R123 Field Descriptions
      125. 7.6.125 Register R124 (offset = 7Ch) [reset = 0000h]
        1. Table 131. Register R124 Field Descriptions
      126. 7.6.126 Register R125 (offset = 7Dh) [reset = 0820h]
        1. Table 132. Register R125 Field Descriptions
  8. 8 Application and Implementation
    1. 8.1 Application Information
      1. 8.1.1  OSCin Configuration
      2. 8.1.2  OSCin Slew Rate
      3. 8.1.3  VCO Gain
      4. 8.1.4  VCO Calibration
        1. 8.1.4.1 Partial Assist
        2. 8.1.4.2 Close Frequency Assist
        3. 8.1.4.3 Full Assist
      5. 8.1.5  Output Buffer Control
        1. 8.1.5.1 Output Power
        2. 8.1.5.2 Power-Up Response
        3. 8.1.5.3 Unused Output Pin
      6. 8.1.6  Application for SYNC
      7. 8.1.7  Application for Ramp
        1. 8.1.7.1 Manual Ramping Mode
        2. 8.1.7.2 Automatic Ramping Mode
      8. 8.1.8  Application for FSK
      9. 8.1.9  Unused Pins
      10. 8.1.10 External Loop Filter
      11. 8.1.11 Power-Up, Wake-Up Time
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
      2. 8.2.2 Detailed Design Procedure
      3. 8.2.3 Application Curves
    3. 8.3 Do's and Don'ts
  9. 9 Power Supply Recommendations
  10. 10Layout
    1. 10.1 Layout Guidelines
    2. 10.2 Layout Example
  11. 11器件和文档支持
    1. 11.1 器件支持
      1. 11.1.1 开发支持
    2. 11.2 文档支持
      1. 11.2.1 相关文档
    3. 11.3 接收文档更新通知
    4. 11.4 社区资源
    5. 11.5 商标
    6. 11.6 静电放电警告
    7. 11.7 术语表
  12. 12机械、封装和可订购信息
  13. 重要声明
search No matches found.
  • Full reading width
    • Full reading width
    • Comfortable reading width
    • Expanded reading width
  • Card for each section
  • Card with all content



DATA SHEET

具有 FSK 调制功能的 LMX2572LP 2GHz 低功耗宽带射频合成器

本资源的原文使用英文撰写。 为方便起见，TI 提供了译文；由于翻译过程中可能使用了自动化工具，TI 不保证译文的准确性。 为确认准确性，请务必访问 ti.com 参考最新的英文版本（控制文档）。

1 特性

  • 输出频率：12.5MHz 至 2GHz
  • 低功耗：70mA，3.3V 电源供电
  • 在 100kHz 偏移和 800MHz 载波的情况下具有 –124dBc/Hz 的相位噪声
  • PLL 品质因数：–232dBc/Hz
  • PLL 标称 1/f 噪声：–123.5dBc/Hz
  • 32 位分数 N 分频器
  • 用可编程输入乘法器消除整数边界杂散
  • 跨多个设备实现输出相位同步
  • 支持斜升和线性调频脉冲函数
  • 支持 FSK 直接数字调制
  • 两个可编程输出功率水平差动输出
  • 较快的 VCO 校准速度：< 20µs
  • 3V 至 3.5V 单电源

2 应用

  • 测试和测量设备
  • 双线制数字音频广播
  • 低功耗无线电通信系统
  • 卫星通信
  • 无线耳机
  • 专有无线连接
  • MIMO
  • 高速数据转换器计时

3 说明

LMX2572LP 是一款低功耗、高性能宽带合成器，可生成从 12.5MHz 到 2GHz 之间的一个频率，而无需使用内部倍频器。该 PLL 可提供优异的性能，而 3.3V 单电源中的电流消耗仅为 70mA。

对于数字移动无线电 (DMR) 和无线麦克风等 应用 ，LMX2572LP 支持 FSK 调制。它支持离散电平 FSK 和脉冲整形 FSK。离散数字 FSK 调制可通过编程或引脚实现。

LMX2572LP 允许用户同步多个器件的输出，并可支持 需要输入和输出之间具有确定延迟的 应用。LMX2572LP 提供了一个可精准调节相位的选项，以解决电路板上或器件内的延迟不匹配问题。频率斜升发生器可在自动斜坡生成选项或手动选项中最多合成 2 段斜坡，以实现最大的灵活性。通过快速校准算法，用户可在不到 20μs 的时间内改变频率。

LMX2572LP 集成了通过 3.3V 单电源供电的 LDO，无需再配备板载低噪声 LDO。

器件信息(1)

器件型号 封装 封装尺寸（标称值）
LMX2572LP VQFN (40) 6.00mm × 6.00mm
  1. 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

Device Images

功能方框图

LMX2572LP FuncBD-SNAS764.gif

4 修订历史记录

日期 版本 注释
2018 年 5 月 * 初始发行版

5 Pin Configuration and Functions

RHA Package
40-Pin VQFN
Top View

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
CE 1 Input Chip enable. High impedance CMOS input. 1.8-V to 3.3-V logic. Active HIGH powers on the device.
CPout 12 Output Charge pump output. Place C1 of loop filter close to this pin.
CSB 24 Input SPI latch. High impedance CMOS input. 1.8-V to 3.3-V logic.
DAP — Ground RF ground.
GND 2, 4, 25, 31, 34, 39 Ground VCO ground.
6, 14, 40 Ground Digital ground.
13 Ground Charge pump ground.
MUXout 20 Output Multiplexed output pin. Configurable between lock detect and register readback.
OSCinM 9 Input Reference input clock (–). High impedance self-biasing pin. Requires AC-coupling.
OSCinP 8 Input Reference input clock (+). High impedance self-biasing pin. Requires AC-coupling.
RampClk 30 Input Ramp trigger in automatic ramping mode or ramp clock in manual ramping mode. Can also be used as FSK I2S clock input. High impedance CMOS input. 1.8-V to 3.3-V logic.
RampDir 32 Input Ramp trigger in automatic ramping mode or ramp segment selection in manual ramping mode. Can also be used as FSK I2S data input. High impedance CMOS input. 1.8-V to 3.3-V logic.
RFoutAM 22 Output Differential output A (–). Low impedance output. Requires AC-coupling.
RFoutAP 23 Output Differential output A (+). Low impedance output. Requires AC-coupling.
RFoutBM 18 Output Differential output B (–). Low impedance output. Requires AC-coupling.
RFoutBP 19 Output Differential output B (+). Low impedance output. Requires AC-coupling.
SCK 16 Input SPI clock. High impedance CMOS input. 1.8-V to 3.3-V logic.
SDI 17 Input SPI data. High impedance CMOS input. 1.8-V to 3.3-V logic.
SYNC 5 Input Phase synchronization trigger. Configurable to accept CMOS input (1.8-V to 3.3-V logic) or differential input.
SysRefReq 28 Input FSK I2S Frame Sync input. High impedance CMOS input. 1.8-V to 3.3-V logic.
VbiasVARAC 33 Bypass VCO Varactor bias. Connect a 10-µF decoupling capacitor to VCO ground.
VbiasVCO 3 Bypass VCO bias. Connect a 470-nF (X7R) decoupling capacitor to VCO ground as close to this pin as possible.
VbiasVCO2 27 Bypass VCO bias. Connect a 100-nF (X7R) decoupling capacitor to VCO ground.
VccBUF 21 Supply Supply for output buffers. Connect a 0.1-µF decoupling capacitor to RF ground.
VccCP 11 Supply Supply for charge pump. Connect a 0.1-µF decoupling capacitor to charge pump ground.
VccDIG 7 Supply Digital power supply. Connect a 0.1-µF decoupling capacitor to digital ground.
VccMASH 15 Supply Digital power supply. Connect a 1-µF decoupling capacitor to digital ground.
VccVCO 37 Supply Supply for VCO. Connect a 1-µF decoupling capacitor to VCO ground.
VccVCO2 26 Supply Supply for VCO. Connect a 1-µF decoupling capacitor to VCO ground.
VrefVCO 36 Bypass VCO supply reference. Connect a 10-µF decoupling capacitor to VCO ground.
VrefVCO2 29 Bypass VCO supply reference. Connect a 10-µF decoupling capacitor to VCO ground.
VregIN 10 Bypass Input reference path regulator output. Connect a 1-µF decoupling capacitor to RF ground as close to this pin as possible.
VregVCO 38 Bypass VCO regulator node. Connect a 10-nF decoupling capacitor to VCO ground.
Vtune 35 Input VCO tuning voltage input. Connect a 1.5-nF or more capacitor to VCO ground. See External Loop Filter for details.

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VCC Power supply voltage –0.3 3.6 V
VIN IO input voltage VCC + 0.3 V
TJ Junction temperature 150 °C
Tstg Storage temperature –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
