DATA SHEET

具有 I2C 接口的 ADS122C04 24 位 4 通道 2kSPS Δ-Σ ADC

本资源的原文使用英文撰写。 为方便起见，TI 提供了译文；由于翻译过程中可能使用了自动化工具，TI 不保证译文的准确性。 为确认准确性，请务必访问 ti.com 参考最新的英文版本（控制文档）。

1 特性

  • 电流消耗低至 315µA（典型值）
  • 宽电源电压范围：2.3V 至 5.5V
  • 可编程增益：1 至 128
  • 可编程数据速率：高达 2kSPS
  • 高达 20 位的有效分辨率
  • 采用单周期稳定数字滤波器，在 20SPS 时实现同步 50Hz 和 60Hz 抑制
  • 两个差分输入或四个单端输入
  • 双匹配可编程电流源：
    10μA 至 1.5mA
  • 集成 2.048V 基准电压：漂移 5ppm/°C（典型值）
  • 集成 2% 精准振荡器
  • 集成温度传感器：精度 0.5°C（典型值）
  • 与 I2C 兼容的接口
  • 支持的 I2C 总线速度模式：
    标准模式、快速模式、超快速模式
  • 16 引脚可配置 I2C 地址
  • 封装：3.0mm × 3.0mm × 0.75mm WQFN

2 应用

  • 现场发送器：
    温度、压力、应变、流量
  • 可编程逻辑控制器 (PLC) 和分布式控制系统 (DCS) 模拟输入模块
  • 温度控制器
  • 热量计
  • 患者监护系统：
    体温、血压

3 说明

ADS122C04 是一款 24 位精密模数转换器 (ADC)，集成了多种 特性， 能够降低系统成本并减少小型传感器信号测量 应用 中的组件数量。该器件 具有 通过灵活的输入多路复用器 (MUX) 实现的两个差分输入或四个单端输入、一个低噪声可编程增益放大器 (PGA)、两个可编程激励电流源、一个电压基准、一个振荡器以及一个精密温度传感器。

此器件能够以高达 2000 次/秒 (SPS) 采样数据速率执行转换，并且能够在单周期内稳定。针对噪声环境中的工业应用，当采样频率为 20SPS 时，数字滤波器可同时提供 50Hz 和 60Hz 抑制。内部 PGA 提供高达 128 的增益。此 PGA 使得 ADS122C04 非常适合可测量小传感器信号的 应用 ，例如电阻式温度检测器 (RTD)、热电偶、热敏电阻和阻性桥式传感器。

ADS122C04 具有 一个与 I2C 兼容的 2 线接口，支持高达 1Mbps 的 I2C 总线速度。可通过两个地址引脚为器件选择 16 个不同的 I2C 地址。

ADS122C04 采用无引线的 16 引脚 WQFN 或 16 引脚 TSSOP 封装，额定工作温度范围为 –40°C 至 +125°C。

器件信息(1)

器件编号 封装 封装尺寸（标称值）
ADS122C04 WQFN (16) 3.00mm × 3.00mm
TSSOP (16) 5.00mm × 4.40mm
  1. 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

Device Images

K 型热电偶测量

ADS122C04 FP_TC_CJC_example_bas751.gif

4 修订历史记录

Changes from A Revision (March 2018) to B Revision

  • Changed Internal Voltage Reference, Accuracy parameter: added TSSOP package to test conditions of first row and added second row for the WQFN package Go
  • Added TSSOP package to conditions of Internal Reference Voltage Histogram figureGo
  • Changed Digital Supply Current vs Temperature figureGo
  • Deleted last sentence from first paragraph of Pseudo Code Example sectionGo
  • Changed (MUX[3:1] = 1110) to (MUX[3:0] = 1110) in Pseudo Code Example section Go

Changes from * Revision (October 2017) to A Revision

  • 进行生产发布Go

5 Pin Configuration and Functions

RTE Package
16-Pin WQFN
Top View
PW Package
16-Pin TSSOP
Top View

Pin Functions

PIN ANALOG OR DIGITAL
INPUT/OUTPUT		 DESCRIPTION(1)
NAME NO.
RTE PW
A0 15 1 Digital input I2C slave address select pin 0. See the I2C Address section for details.
A1 16 2 Digital input I2C slave address select pin 1. See the I2C Address section for details.
AIN0 9 11 Analog input Analog input 0
AIN1 8 10 Analog input Analog input 1
AIN2 5 7 Analog input Analog input 2
AIN3 4 6 Analog input Analog input 3
AVDD 10 12 Analog supply Positive analog power supply. Connect a 100-nF (or larger) capacitor to AVSS.
AVSS 3 5 Analog supply Negative analog power supply
DGND 2 4 Digital supply Digital ground
DRDY 12 14 Digital output Data ready, active low. Connect to DVDD using a pullup resistor.
DVDD 11 13 Digital supply Positive digital power supply. Connect a 100-nF (or larger) capacitor to DGND.
REFN 6 8 Analog input Negative reference input
REFP 7 9 Analog input Positive reference input
RESET 1 3 Digital input Reset, active low
SCL 14 16 Digital input Serial clock input. Connect to DVDD using a pullup resistor.
SDA 13 15 Digital input/output Serial data input and output. Connect to DVDD using a pullup resistor.
Thermal pad Pad — — Thermal power pad. Connect to AVSS.
(1) See the Unused Inputs and Outputs section for details on how to connect unused pins.

6 Specifications

6.1 Absolute Maximum Ratings(1)

MIN MAX UNIT
Power-supply voltage AVDD to AVSS –0.3 7 V
DVDD to DGND –0.3 7
AVSS to DGND –2.8 0.3
Analog input voltage AIN0, AIN1, AIN2, AIN3, REFP, REFN AVSS – 0.3 AVDD + 0.3 V
Digital input voltage SCL, SDA, A0, A1, DRDY, RESET DGND – 0.3 7 V
Input current Continuous, any pin except power-supply pins –10 10 mA
Temperature Junction, TJ 150 °C
Storage, Tstg –60 150
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±750
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating ambient temperature range (unless otherwise noted)
MIN NOM MAX UNIT
POWER SUPPLY
Unipolar analog power supply AVDD to AVSS 2.3 5.5 V
AVSS to DGND –0.1 0 0.1
Bipolar analog power supply AVDD to DGND 2.3 2.5 2.75 V
AVSS to DGND –2.75 –2.5 –2.3
Digital power supply DVDD to DGND 2.3 5.5 V
ANALOG INPUTS(1)
V(AINx) Absolute input voltage(2) PGA disabled, gain = 1 to 4 AVSS – 0.1 AVDD + 0.1 V
PGA enabled, gain = 1 to 4 AVSS + 0.2 AVDD – 0.2
PGA enabled, gain = 8 to 128 AVSS + 0.2 +
|VINMAX|·(Gain – 4) / 8		 AVDD – 0.2 –
|VINMAX|·(Gain – 4) / 8
VIN Differential input voltage VIN = VAINP – VAINN(3) –VREF / Gain VREF / Gain V
VOLTAGE REFERENCE INPUTS
VREF Differential reference input voltage VREF = V(REFP) – V(REFN) 0.75 2.5 AVDD – AVSS V
V(REFN) Absolute negative reference voltage AVSS – 0.1 V(REFP) – 0.75 V
V(REFP) Absolute positive reference voltage V(REFN) + 0.75 AVDD + 0.1 V
DIGITAL INPUTS
Input voltage SCL, SDA, A0, A1, DRDY,
2.3 V ≤ DVDD < 3.0 V		 DGND DVDD + 0.5 V
SCL, SDA, A0, A1, DRDY,
3.0 V ≤ DVDD ≤ 5.5 V		 DGND 5.5
RESET DGND DVDD
TEMPERATURE RANGE
TA Operating ambient temperature –40 125 °C
(1) AINP and AINN denote the positive and negative inputs of the PGA. AINx denotes one of the four available analog inputs.
PGA disabled means the low-noise PGA is powered down and bypassed. Gains of 1, 2, and 4 are still possible in this case.
See the Low-Noise Programmable Gain Stage section for more information.
(2) VINMAX denotes the maximum differential input voltage, VIN, that is expected in the application. |VINMAX| can be smaller than VREF / Gain.
(3) Excluding the effects of offset and gain error.

6.4 Thermal Information

THERMAL METRIC(1) ADS122C04 UNIT
WQFN (RTE) TSSOP (PW)
16 PINS 16 PINS
RθJA Junction-to-ambient thermal resistance 57.7 90.3 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 29.0 31.7 °C/W
RθJB Junction-to-board thermal resistance 19.9 41.8 °C/W
ψJT Junction-to-top characterization parameter 0.3 1.8 °C/W
ψJB Junction-to-board characterization parameter 19.8 41.2 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 11.8 N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

6.5 Electrical Characteristics

minimum and maximum specifications apply from TA = –40°C to +125°C; typical specifications are at TA = 25°C; all specifications are at AVDD = 2.3 V to 5.5 V, AVSS = 0 V, DVDD = 3.3 V, PGA enabled, all data rates, and internal reference enabled (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ANALOG INPUTS
Absolute input current PGA disabled, gain = 1 to 4, normal mode, VIN = 0 V ±5 nA
PGA disabled, gain = 1 to 4, turbo mode, VIN = 0 V ±10
Gain = 1 to 128, VIN = 0 V ±1
Absolute input current drift PGA disabled, gain = 1 to 4, VIN = 0 V 10 pA/°C
Gain = 1 to 128, VIN = 0 V 5
Differential input current PGA disabled, gain = 1 to 4, normal mode,
VCM = AVDD / 2, –VREF / Gain ≤ VIN ≤ VREF / Gain		 ±5 nA
PGA disabled, gain = 1 to 4, turbo mode,
VCM = AVDD / 2, –VREF / Gain ≤ VIN ≤ VREF / Gain		 ±10
Gain = 1 to 128,
VCM = AVDD / 2, –VREF / Gain ≤ VIN ≤ VREF / Gain		 ±1
Differential input current drift PGA disabled, gain = 1 to 4,
VCM = AVDD / 2, –VREF / Gain ≤ VIN ≤ VREF / Gain		 10 pA/°C
Gain = 1 to 128,
VCM = AVDD / 2, –VREF / Gain ≤ VIN ≤ VREF / Gain		 2
SYSTEM PERFORMANCE
Resolution (no missing codes) 24 Bits
DR Data rate Normal mode 20, 45, 90, 175, 330, 600, 1000 SPS
Turbo mode 40, 90, 180, 350, 660, 1200, 2000
Noise (input-referred)(1) Normal mode, gain = 128, DR = 20 SPS 110 nVRMS
INL Integral nonlinearity AVDD = 3.3 V, gain = 1 to 128, VCM = AVDD / 2, external VREF, normal mode, best fit –15 ±6 15 ppmFSR
VIO Input offset voltage PGA disabled, gain = 1 to 4, differential inputs ±4 µV
Gain = 1, differential inputs, TA = 25°C –150 ±5 150
Gain = 2 to 128, differential inputs ±4
Offset drift vs temperature PGA disabled, gain = 1 to 4 0.02 µV/°C
Gain = 1 to 128 0.1 0.6
Gain error(2) PGA disabled, gain = 1 to 4 ±0.01%
Gain = 1 to 32, TA = 25°C –0.05% ±0.01% 0.05%
Gain = 64 to 128, TA = 25°C –0.1% ±0.015% 0.1%
Gain drift vs temperature(2) PGA disabled, gain = 1 to 4 0.5 ppm/°C
Gain = 1 to 32 0.5 2
Gain = 64 to 128 1 4
SYSTEM PERFORMANCE (continued)
NMRR Normal-mode rejection ratio 50 Hz ±1 Hz, DR = 20 SPS 78 88 dB
60 Hz ±1 Hz, DR = 20 SPS 80 88
CMRR Common-mode rejection ratio At dc, gain = 1, AVDD = 3.3 V 90 105 dB
fCM = 50 Hz or 60 Hz, DR = 20 SPS, AVDD = 3.3 V 105 115
fCM = 50 Hz or 60 Hz, DR = 2 kSPS, AVDD = 3.3 V 95 110
PSRR Power-supply rejection ratio AVDD at dc, VCM = AVDD / 2 85 105 dB
DVDD at dc, VCM = AVDD / 2 95 115
INTERNAL VOLTAGE REFERENCE
VREF Reference voltage 2.048 V
Accuracy TA = 25°C, TSSOP package –0.15% ±0.01% 0.15%
TA = 25°C, WQFN package –0.25% ±0.04% 0.25%
Temperature drift 5 30 ppm/°C
Long-term drift 1000 hours 110 ppm
VOLTAGE REFERENCE INPUTS
Reference input current REFP = VREF, REFN = AVSS, AVDD = 3.3 V ±10 nA
INTERNAL OSCILLATOR
fCLK Frequency Normal mode 1.024 MHz
Turbo mode 2.048
Accuracy Normal mode –2% ±1% 2%
Turbo mode –4% ±2% 4%
EXCITATION CURRENT SOURCES (IDACs) (AVDD = 3.3 V to 5.5 V)
Current settings 10, 50, 100, 250, 500, 1000, 1500 µA
Compliance voltage All IDAC settings AVDD – 0.9 V
Accuracy (each IDAC) IDAC = 50 µA to 1.5 mA –6% ±1% 6%
Current matching between IDACs IDAC = 50 µA to 1.5 mA, TA = 25°C 0.3% 2%
Temperature drift (each IDAC) IDAC = 50 µA to 1.5 mA 50 ppm/°C
Temperature drift matching between IDACs IDAC = 50 µA to 1.5 mA 8 40 ppm/°C
BURN-OUT CURRENT SOURCES (BOCS)
Magnitude Sink and source 10 µA
Accuracy ±5%
TEMPERATURE SENSOR
Conversion resolution 14 Bits
Temperature resolution 0.03125 °C
Accuracy TA = 0°C to +85°C –1 ±0.25 1 °C
TA = –40°C to +125°C –1.5 ±0.5 1.5
Accuracy vs analog supply voltage 0.0625 0.25 °C/V
DIGITAL INPUTS/OUTPUTS
VIL Logic input level, low DGND 0.3 DVDD V
VIH Logic input level, high 2.3 V ≤ DVDD < 3.0 V,
SCL, SDA, A0, A1, DRDY 		0.7 DVDD DVDD + 0.5 V
3.0 V ≤ DVDD ≤ 5.5 V,
SCL, SDA, A0, A1, DRDY 		0.7 DVDD 5.5
RESET 0.7 DVDD DVDD
Vhys Hysteresis of Schmitt-trigger inputs Fast-mode, fast-mode plus 0.05 DVDD V
VOL Logic output level, low IOL = 3 mA DGND 0.15 0.4 V
IOL Low-level output current VOL = 0.4 V, standard-mode, fast-mode 3 mA
VOL = 0.4 V, fast-mode plus 20
VOL = 0.6 V, fast-mode 6
Ii Input current DGND + 0.1 V < VDigital Input < DVDD – 0.1 V –10 10 µA
Ci Capacitance Each pin 10 pF
ANALOG SUPPLY CURRENT (AVDD = 3.3 V, VIN = 0 V, IDACs Turned Off)
IAVDD Analog supply current Power-down mode 0.1 3 µA
Normal mode, PGA disabled, gain = 1 to 4 250
Normal mode, gain = 1 to 16 360 510
Normal mode, gain = 32 455
Normal mode, gain = 64, 128 550
Turbo mode, PGA disabled, gain = 1 to 4 370
Turbo mode, gain = 1 to 16 580
Turbo mode, gain = 32 765
Turbo mode, gain = 64, 128 955
ADDITIONAL ANALOG SUPPLY CURRENTS PER FUNCTION (AVDD = 3.3 V)
IAVDD Analog supply current External reference selected 60 µA
IDAC overhead (excludes the actual IDAC current) 195
DIGITAL SUPPLY CURRENT (DVDD = 3.3 V, All Data Rates, I2C Not Active)
IDVDD Digital supply current Power-down mode 0.3 5 µA
Normal mode 65 100
Turbo mode 100
POWER DISSIPATION (AVDD = DVDD = 3.3 V, All Data Rates, VIN = 0 V, I2C Not Active)
PD Power dissipation Normal mode, gain = 1 to 16 1.4 mW
Turbo mode, gain = 1 to 16 2.2
(1) See the Noise Performance section for more information.
(2) Excluding error of voltage reference.

6.6 I2C Timing Requirements

over operating ambient temperature range and DVDD = 2.3 V to 5.5 V, bus capacitance = 10 pF to 400 pF, and pullup resistor = 1 kΩ (unless otherwise noted)
MIN MAX UNIT
STANDARD-MODE
fSCL SCL clock frequency 0 100 kHz
tHD;STA Hold time, (repeated) START condition.
After this period, the first clock pulse is generated.		 4 µs
tLOW Pulse duration, SCL low 4.7 µs
tHIGH Pulse duration, SCL high 4.0 µs
tSU;STA Setup time, repeated START condition 4.7 µs
tHD;DAT Hold time, data 0 µs
tSU;DAT Setup time, data 250 ns
tr Rise time, SCL, SDA 1000 ns
tf Fall time, SCL, SDA 250 ns
tSU;STO Setup time, STOP condition 4.0 µs
tBUF Bus free time, between STOP and START condition 4.7 µs
tVD;DAT Valid time, data 3.45 µs
tVD;ACK Valid time, acknowledge 3.45 µs
FAST-MODE
fSCL SCL clock frequency 0 400 kHz
tHD;STA Hold time, (repeated) START condition.
After this period, the first clock pulse is generated.		 0.6 µs
tLOW Pulse duration, SCL low 1.3 µs
tHIGH Pulse duration, SCL high 0.6 µs
tSU;STA Setup time, repeated START condition 0.6 µs
tHD;DAT Hold time, data 0 µs
tSU;DAT Setup time, data 100 ns
tr Rise time, SCL, SDA 20 300 ns
tf Fall time, SCL, SDA 20 · (DVDD / 5.5 V) 250 ns
tSU;STO Setup time, STOP condition 0.6 µs
tBUF Bus free time, between STOP and START condition 1.3 µs
tVD;DAT Valid time, data 0.9 µs
tVD;ACK Valid time, acknowledge 0.9 µs
tSP Pulse width of spikes that must be suppressed by the input filter 0 50 ns
FAST-MODE PLUS
fSCL SCL clock frequency 0 1000 kHz
tHD;STA Hold time, (repeated) START condition.
After this period, the first clock pulse is generated.		 0.26 µs
tLOW Pulse duration, SCL low 0.5 µs
tHIGH Pulse duration, SCL high 0.26 µs
tSU;STA Setup time, repeated START condition 0.26 µs
tHD;DAT Hold time, data 0 µs
tSU;DAT Setup time, data 50 ns
tr Rise time, SCL, SDA 120 ns
tf Fall time, SCL, SDA Pullup resistor = 350 Ω 20 · (DVDD / 5.5 V) 120 ns
tSU;STO Setup time, STOP condition 0.26 µs
tBUF Bus free time, between STOP and START condition 0.5 µs
tVD;DAT Valid time, data 0.45 µs
tVD;ACK Valid time, acknowledge 0.45 µs
tSP Pulse duration of spikes that must be suppressed by the input filter 0 50 ns
RESET PIN
tw(RSL) Pulse duration, RESET low 250 ns
td(RSSTA) Delay time, START condition after RESET rising edge(2) 100 ns
DRDY PIN
td(DRSTA) Delay time, START condition after DRDY falling edge 0 ns
TIMEOUT
Timeout(1) Normal mode 14000 tMOD
Turbo mode 28000
(1) See the Timeout section for more information.
tMOD = 1 / fMOD. Modulator frequency fMOD = 256 kHz (normal mode) and 512 kHz (turbo mode).
(2) No delay time is required when using the RESET command as long as all I2C timing requirements for the (repeated) START and STOP conditions are met.

6.7 I2C Switching Characteristics

over operating ambient temperature range, DVDD = 2.3 V to 5.5 V, bus capacitance = 10 pF to 400 pF, and pullup resistor = 1 kΩ (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tw(DRH) Pulse duration, DRDY high(1) 2 tMOD
tp(RDDR) Propagation delay time, RDATA command latched to DRDY rising edge 2 tMOD
(1) tMOD = 1 / fMOD. Modulator frequency fMOD = 256 kHz (normal mode) and 512 kHz (turbo mode).
ADS122C04 ti_I2C_bas751.gifFigure 1. I2C Timing Requirements
ADS122C04 tim-rst-bas751.gifFigure 2. RESET Pin Timing Requirements
ADS122C04 tim-rdata-drdy-bas751.gifFigure 3. DRDY Pin Timing Requirements and Switching Characteristics

6.8 Typical Characteristics

at TA = 25°C, AVDD = 3.3 V, and AVSS = 0 V using internal VREF = 2.048 V (unless otherwise noted)
ADS122C04 D019_sbas752.gif
Normal mode, PGA disabled, VIN = 0 V
Figure 4. Absolute Input current vs Absolute Input Voltage
ADS122C04 D023_sbas752.gif
Turbo mode, PGA disabled, VIN = 0 V
Figure 6. Absolute Input Current vs Absolute Input Voltage
ADS122C04 D027_sbas752.gif
Normal mode, PGA disabled, VCM = 1.65 V
Figure 8. Differential Input Current vs
Differential Input Voltage
ADS122C04 D031_sbas752.gif
Turbo mode, PGA disabled, VCM = 1.65 V
Figure 10. Differential Input Current vs
Differential Input Voltage
ADS122C04 D002_sbas752.gif
PGA enabled, external reference, best fit
Figure 12. INL vs Differential Input Voltage
ADS122C04 D036_sbas752.gif
PGA enabled, gain = 1, 620 samples
Figure 14. Offset Voltage Histogram
ADS122C04 D043_sbas752.gif
PGA enabled
Figure 16. Input Offset Voltage vs Temperature
ADS122C04 D011_sbas752.gif
PGA enabled, gain = 1, 620 samples
Figure 18. Gain Error Histogram
ADS122C04 D041_sbas752.gif
PGA disabled
Figure 20. Gain Error vs Temperature
ADS122C04 D051_sbas752.gif
PGA disabled
Figure 22. DC CMRR vs Temperature
ADS122C04 D062_sbas752.gif
5940 samples, TSSOP package
Figure 24. Internal Reference Voltage Histogram
ADS122C04 D035_sbas752.gif
Figure 26. Internal Reference Voltage vs AVDD
ADS122C04 D053_sbas752.gif
Normal mode
Figure 28. Internal Oscillator Frequency Histogram
ADS122C04 D061_sbas752.gif
Normal mode
Figure 30. Internal Oscillator Frequency vs DVDD
ADS122C04 D064_sbas752.gif
Figure 32. IDAC Accuracy vs Temperature
ADS122C04 D066_sbas752.gif
Figure 34. Internal Temperature Sensor Accuracy vs Temperature

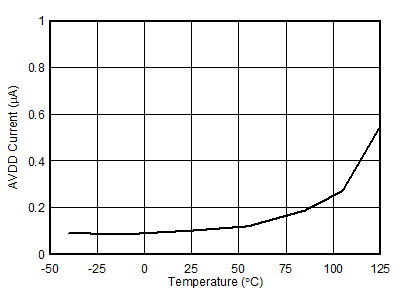

ADS122C04 D044_sbas752.gif
Power-down mode
Figure 36. Analog Supply Current vs Temperature
ADS122C04 D046_sbas752.gif
Normal mode
Figure 38. Analog Supply Current vs AVDD
ADS122C04 D040_sbas752.gif
Normal mode
Figure 40. Digital Supply Current vs Temperature
ADS122C04 D021_sbas752.gif
Normal mode, PGA enabled, VIN = 0 V
Figure 5. Absolute Input Current vs Absolute Input Voltage
ADS122C04 D025_sbas752.gif
Turbo mode, PGA enabled, VIN = 0 V
Figure 7. Absolute Input Current vs Absolute Input Voltage
ADS122C04 D029_sbas752.gif
Normal mode, PGA enabled, VCM = 1.65 V
Figure 9. Differential Input Current vs
Differential Input Voltage

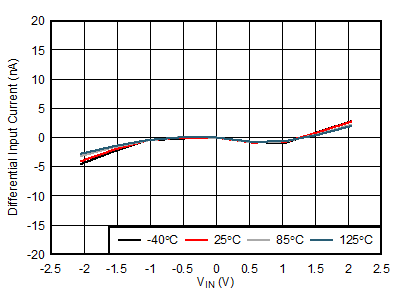

ADS122C04 D033_sbas752.gif
Turbo mode, PGA enabled, VCM = 1.65 V
Figure 11. Differential Input Current vs
Differential Input Voltage
ADS122C04 D003_sbas752.gif
PGA enabled, internal reference, best fit
Figure 13. INL vs Differential Input Voltage
ADS122C04 D001_sbas752.gif
PGA disabled
Figure 15. Input Offset Voltage vs Temperature
ADS122C04 D008_sbas752.gif
PGA disabled, gain = 1, 620 samples
Figure 17. Gain Error Histogram
ADS122C04 D018_sbas752.gif
PGA enabled, gain = 128, 620 samples
Figure 19. Gain Error Histogram
ADS122C04 D042_sbas752.gif
PGA enabled
Figure 21. Gain Error vs Temperature
ADS122C04 D052_sbas752.gif
PGA enabled
Figure 23. DC CMRR vs Temperature
ADS122C04 D063_sbas752.gif
Figure 25. Internal Reference Voltage vs Temperature
ADS122C04 D059_sbas752.gif
Figure 27. External Reference Input Current vs Temperature
ADS122C04 D060_sbas752.gif
Normal mode
Figure 29. Internal Oscillator Frequency vs Temperature
ADS122C04 C006_bas501.png
Figure 31. IDAC Accuracy vs Compliance Voltage
ADS122C04 D065_sbas752.gif
Figure 33. IDAC Matching vs Temperature
ADS122C04 vol_vs_iol_bas751.gif
DVDD = 3.3 V
Figure 35. Digital Pin Output Voltage vs Sinking Current

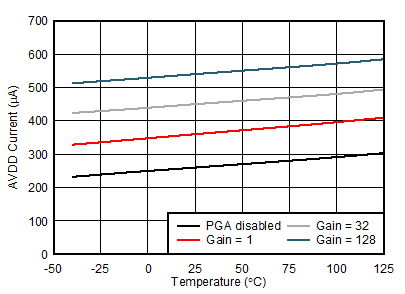

ADS122C04 D045_sbas752.gif
Normal mode
Figure 37. Analog Supply Current vs Temperature
ADS122C04 D039_sbas752.gif
Power-down mode
Figure 39. Digital Supply Current vs Temperature

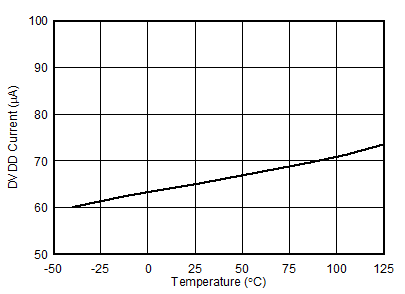

ADS122C04 D038_sbas752.gif
Normal mode
Figure 41. Digital Supply Current vs DVDD

7 Parameter Measurement Information

7.1 Noise Performance

Delta-sigma (ΔΣ) analog-to-digital converters (ADCs) are based on the principle of oversampling. The input signal of a ΔΣ ADC is sampled at a high frequency (modulator frequency) and subsequently filtered and decimated in the digital domain to yield a conversion result at the respective output data rate. The ratio between modulator frequency and output data rate is called oversampling ratio (OSR). By increasing the OSR, and thus reducing the output data rate, the noise performance of the ADC can be optimized. In other words, the input-referred noise drops when reducing the output data rate because more samples of the internal modulator are averaged to yield one conversion result. Increasing the gain also reduces the input-referred noise, which is particularly useful when measuring low-level signals.

Table 1 to Table 8 summarize the device noise performance. Data are representative of typical noise performance at TA = 25°C using the internal 2.048-V reference. Data shown are the result of averaging readings from a single device over a time period of approximately 0.75 seconds and are measured with the inputs internally shorted together. Table 1, Table 3, Table 5, and Table 7 list the input-referred noise in units of μVRMS for the conditions shown. Values in µVPP are shown in parenthesis. Table 2, Table 4, Table 6, and Table 8 list the corresponding data in effective resolution calculated from μVRMS values using Equation 1. Noise-free resolution calculated from peak-to-peak noise values using Equation 2 are shown in parenthesis.

The input-referred noise (Table 1, Table 3, Table 5, and Table 7) only changes marginally when using an external low-noise reference, such as the REF5020. Use Equation 1 and Equation 2 to calculate effective resolution numbers and noise-free resolution when using a reference voltage other than 2.048 V:

Equation 1. Effective Resolution = ln [2 · VREF / (Gain · VRMS-Noise)] / ln(2)
Equation 2. Noise-Free Resolution = ln [2 · VREF / (Gain · VPP-Noise)] / ln(2)

Table 1. Noise in μVRMS (μVPP)
at AVDD = 3.3 V, AVSS = 0 V, Normal Mode, PGA Enabled, and Internal VREF = 2.048 V

DATA RATE
(SPS)		 GAIN (PGA Enabled)
1 2 4 8 16 32 64 128
20 5.10 (21.69) 2.49 (10.71) 1.25 (5.74) 0.64 (2.92) 0.41 (1.52) 0.24 (0.98) 0.14 (0.54) 0.11 (0.46)
45 6.53 (29.99) 3.02 (14.47) 1.67 (6.80) 0.93 (4.00) 0.52 (2.43) 0.28 (1.39) 0.17 (0.71) 0.13 (0.57)
90 9.01 (41.61) 4.67 (24.36) 2.41 (10.95) 1.24 (6.54) 0.73 (3.46) 0.41 (2.06) 0.25 (1.20) 0.19 (0.91)
175 12.78 (63.79) 6.75 (37.30) 3.26 (17.00) 1.92 (9.81) 1.02 (5.27) 0.60 (3.32) 0.35 (1.93) 0.25 (1.49)
330 17.75 (107.88) 8.75 (48.95) 4.72 (28.25) 2.62 (14.47) 1.42 (8.06) 0.85 (4.64) 0.50 (2.93) 0.37 (1.91)
600 24.73 (153.77) 12.89 (76.01) 6.81 (38.94) 3.84 (22.30) 2.02 (12.07) 1.18 (6.69) 0.70 (4.49) 0.51 (3.14)
1000 36.90 (228.90) 18.07 (108.90) 9.48 (58.24) 5.49 (31.55) 2.86 (17.41) 1.65 (10.23) 1.04 (6.21) 0.73 (4.69)

Table 2. Effective Resolution From RMS Noise (Noise-Free Resolution From Peak-to-Peak Noise)
at AVDD = 3.3 V, AVSS = 0 V, Normal Mode, PGA Enabled, and Internal VREF = 2.048 V

DATA RATE
(SPS)		 GAIN (PGA Enabled)
1 2 4 8 16 32 64 128
20 19.62 (17.53) 19.65 (17.54) 19.64 (17.44) 19.61 (17.22) 19.25 (17.36) 19.02 (16.99) 18.80 (16.85) 18.15 (16.09)
45 19.26 (17.06) 19.37 (17.11) 19.23 (17.20) 19.07 (16.94) 18.91 (16.68) 18.80 (16.49) 18.52 (16.46) 17.91 (15.78)
90 18.79 (16.59) 18.74 (16.36) 18.70 (16.51) 18.66 (16.23) 18.42 (16.18) 18.25 (15.92) 17.97 (15.70) 17.36 (15.10)
175 18.29 (15.97) 18.21 (15.74) 18.26 (15.88) 18.02 (15.48) 17.94 (15.57) 17.70 (15.23) 17.48 (15.02) 16.97 (14.39)
330 17.82 (15.21) 17.84 (15.35) 17.73 (15.12) 17.58 (15.15) 17.46 (14.96) 17.20 (14.75) 16.97 (14.41) 16.40 (14.03)
600 17.34 (14.70) 17.28 (14.72) 17.20 (14.68) 17.02 (14.70) 16.95 (14.37) 16.73 (14.22) 16.46 (13.80) 15.94 (13.32)
1000 16.76 (14.13) 16.79 (14.20) 16.72 (14.10) 16.51 (13.99) 16.45 (13.99) 16.24 (13.61) 15.91 (13.33) 15.42 (12.74)

Table 3. Noise in μVRMS (μVPP)
at AVDD = 3.3 V, AVSS = 0 V, Normal Mode, PGA Disabled, and Internal VREF = 2.048 V

DATA RATE
(SPS)		 GAIN (PGA Disabled)
1 2 4
20 5.04 (19.71) 2.53 (10.06) 1.57 (5.68)
45 6.57 (33.34) 3.43 (14.00) 1.60 (6.98)
90 8.75 (42.59) 4.35 (22.83) 2.13 (10.52)
175 12.64 (65.71) 6.27 (35.00) 3.40 (16.83)
330 18.58 (106.06) 9.33 (52.59) 4.54 (26.30)
600 25.74 (150.81) 12.57 (79.15) 6.47 (36.87)
1000 36.98 (221.61) 18.67 (111.61) 9.27 (55.07)

Table 4. Effective Resolution From RMS Noise (Noise-Free Resolution From Peak-to-Peak Noise)
at AVDD = 3.3 V, AVSS = 0 V, Normal Mode, PGA Disabled, and Internal VREF = 2.048 V

DATA RATE
(SPS)		 GAIN (PGA Disabled)
1 2 4
20 19.63 (17.66) 19.63 (17.64) 19.32 (17.46)
45 19.25 (16.91) 19.19 (17.16) 19.29 (17.16)
90 18.84 (16.55) 18.84 (16.45) 18.87 (16.57)
175 18.31 (15.93) 18.32 (15.84) 18.20 (15.89)
330 17.75 (15.24) 17.74 (15.25) 17.78 (15.25)
600 17.28 (14.73) 17.31 (14.66) 17.27 (14.76)
1000 16.76 (14.17) 16.74 (14.16) 16.75 (14.18)

Table 5. Noise in μVRMS (μVPP)
at AVDD = 3.3 V, AVSS = 0 V, Turbo Mode, PGA Enabled, and Internal VREF = 2.048 V

DATA RATE
(SPS)		 GAIN (PGA Enabled)
1 2 4 8 16 32 64 128
40 4.41 (19.43) 2.25 (10.62) 1.12 (5.32) 0.63 (2.74) 0.36 (1.64) 0.22 (1.10) 0.13 (0.63) 0.10 (0.51)
90 5.76 (30.73) 2.98 (14.16) 1.62 (7.84) 0.92 (4.43) 0.52 (2.59) 0.31 (1.59) 0.18 (0.97) 0.15 (0.76)
180 8.49 (44.61) 4.48 (22.25) 2.29 (13.23) 1.34 (6.83) 0.71 (4.11) 0.43 (2.49) 0.28 (1.51) 0.22 (1.05)
350 12.77 (71.04) 6.33 (37.00) 3.33 (19.17) 1.89 (10.76) 1.04 (5.91) 0.61 (3.54) 0.41 (2.13) 0.29 (1.64)
660 17.10 (105.64) 9.04 (54.97) 4.51 (27.74) 2.84 (16.98) 1.42 (8.45) 0.86 (5.07) 0.57 (3.32) 0.41 (2.38)
1200 25.26 (153.74) 12.51 (78.75) 6.58 (39.68) 3.90 (23.84) 2.11 (13.19) 1.23 (7.46) 0.81 (5.17) 0.58 (3.50)
2000 35.35 (226.39) 17.82 (112.98) 9.40 (59.37) 5.37 (32.97) 3.02 (18.73) 1.76 (11.12) 1.12 (7.06) 0.83 (5.41)

Table 6. Effective Resolution From RMS Noise (Noise-Free Resolution From Peak-to-Peak Noise)
at AVDD = 3.3 V, AVSS = 0 V, Turbo Mode, PGA Enabled, and Internal VREF = 2.048 V

DATA RATE
(SPS)		 GAIN (PGA Enabled)
1 2 4 8 16 32 64 128
40 19.83 (17.69) 19.80 (17.56) 19.80 (17.55) 19.63 (17.51) 19.44 (17.25) 19.15 (16.83) 18.91 (16.63) 18.29 (15.94)
90 19.44 (17.02) 19.39 (17.14) 19.27 (16.99) 19.09 (16.82) 18.91 (16.59) 18.66 (16.30) 18.44 (16.01) 17.70 (15.36)
180 18.88 (16.49) 18.80 (16.49) 18.77 (16.24) 18.54 (16.19) 18.46 (15.93) 18.18 (15.65) 17.80 (15.37) 17.15 (14.90)
350 18.29 (15.82) 18.30 (15.76) 18.23 (15.71) 18.05 (15.55) 17.91 (15.40) 17.68 (15.14) 17.25 (14.87) 16.75 (14.25)
660 17.87 (15.24) 17.79 (15.19) 17.79 (15.17) 17.46 (14.88) 17.46 (14.89) 17.18 (14.62) 16.78 (14.23) 16.25 (13.71)
1200 17.31 (14.70) 17.32 (14.67) 17.25 (14.66) 17.00 (14.39) 16.89 (14.24) 16.67 (14.07) 16.27 (13.60) 15.75 (13.16)
2000 16.82 (14.14) 16.81 (14.15) 16.73 (14.07) 16.54 (13.92) 16.37 (13.74) 16.15 (13.49) 15.80 (13.15) 15.23 (12.53)

Table 7. Noise in μVRMS (μVPP)
at AVDD = 3.3 V, AVSS = 0 V, Turbo Mode, PGA Disabled, and Internal VREF = 2.048 V

DATA RATE
(SPS)		 GAIN (PGA Disabled)
1 2 4
40 4.30 (18.73) 2.18 (9.84) 1.10 (5.38)
90 6.19 (32.78) 3.14 (13.53) 1.42 (7.19)
180 9.08 (47.57) 4.49 (25.48) 2.18 (10.96)
350 12.40 (72.79) 5.89 (33.34) 3.07 (18.31)
660 17.59 (103.97) 9.05 (51.15) 4.39 (24.69)
1200 24.67 (149.07) 12.56 (76.35) 6.31 (37.48)
2000 34.54 (224.19) 17.76 (113.98) 8.85 (56.87)

Table 8. Effective Resolution From RMS Noise (Noise-Free Resolution From Peak-to-Peak Noise)
at AVDD = 3.3 V, AVSS = 0 V, Turbo Mode, PGA Disabled, and Internal VREF = 2.048 V

DATA RATE
(SPS)		 GAIN (PGA Disabled)
1 2 4
40 19.86 (17.74) 19.84 (17.67) 19.83 (17.54)
90 19.34 (16.93) 19.32 (17.21) 19.46 (17.12)
180 18.78 (16.39) 18.80 (16.29) 18.84 (16.51)
350 18.33 (15.78) 18.41 (15.91) 18.34 (15.77)
660 17.83 (15.27) 17.79 (15.29) 17.83 (15.34)
1200 17.34 (14.75) 17.32 (14.71) 17.31 (14.74)
2000 16.86 (14.16) 16.82 (14.13) 16.82 (14.14)

8 Detailed Description

8.1 Overview

The ADS122C04 is a small, low-power, 24-bit, ΔΣ ADC that offers many integrated features to reduce system cost and component count in applications measuring small sensor signals.

In addition to the ΔΣ ADC core and single-cycle settling digital filter, the device offers a low-noise, high input impedance, programmable gain amplifier (PGA), an internal 2.048-V voltage reference, and a clock oscillator. The device also integrates a highly linear and accurate temperature sensor as well as two matched programmable current sources (IDACs) for sensor excitation. All of these features are intended to reduce the required external circuitry in typical sensor applications and improve overall system performance. The device is fully configured through four registers and controlled by six commands through an I2C-compatible interface. The Functional Block Diagram section shows the device functional block diagram.

The ADS122C04 ADC measures a differential signal, VIN, which is the difference in voltage between nodes AINP and AINN. The converter core consists of a differential, switched-capacitor, ΔΣ modulator followed by a digital filter. The digital filter receives a high-speed bitstream from the modulator and outputs a code proportional to the input voltage. This architecture results in a very strong attenuation of any common-mode signal.

The device has two available conversion modes: single-shot conversion and continuous conversion mode. In single-shot conversion mode, the ADC performs one conversion of the input signal upon request and stores the value in an internal data buffer. The device then enters a low-power state to save power. Single-shot conversion mode is intended to provide significant power savings in systems that require only periodic conversions, or when there are long idle periods between conversions. In continuous conversion mode, the ADC automatically begins a conversion of the input signal as soon as the previous conversion is completed. New data are available at the programmed data rate. Data can be read at any time without concern of data corruption and always reflect the most recently completed conversion.


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
