Insulation Characteristics Curves

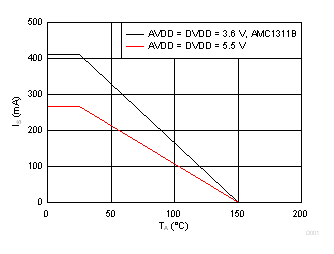

Figure 7-2 Thermal Derating Curve for Safety-Limiting Current per VDE
TA up to 150°C, stress-voltage frequency = 60 Hz, isolation working voltage = 1500 VRMS, operating lifetime = 135 years
Figure 7-4 Reinforced Isolation Capacitor Lifetime Projection

Figure 7-3 Thermal Derating Curve for Safety-Limiting Power per VDE
