DATA SHEET

ADS54J64 四通道、14 位、1GSPS、2 倍过采样模数转换器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 四通道、14 位分辨率
  • 最大采样率:1GSPS
  • 最大输出采样率:500MSPS
  • 高阻抗模拟输入缓冲器
  • 模拟输入带宽 (–3 dB):1GHz
  • 输出选项:
    • 使用 16 位 NCO 的数字下变频器
    • 全速率输出高达 500MSPS 的 DDC 旁路
  • 差分满量程输入:1.1VPP
  • JESD204B 接口:
    • 支持子类 1
    • 每个 ADC 一条信道,速率高达 10Gsps
    • 专用于通道对的 SYNC 引脚
  • 支持多芯片同步
  • 频谱性能:
    • fIN = 190-MHz IF(–1dBFS 时):
      • 信噪比 (SNR):69dBFS
      • 噪声频谱密度 (NSD):-153dBFS/Hz
      • 无杂散动态范围 (SFDR):86dBc(HD2,HD3),
        95dBFS(非 HD2,HD3)
    • fIN = 370-MHz IF(–3dBFS 时):
      • SNR:68.5dBFS
      • NSD:–152.5dBFS/Hz
      • SFDR:80dBc(HD2,HD3),
        86dBFS(非 HD2,HD3)
  • 72 引脚 VQFN 封装 (10mm × 10mm)
  • 功耗:625 mW/通道,共 2.5W
  • 电源:1.15V、1.15V、1.9V

2 应用

  • 多载波多模式 GSM 蜂窝基础设施基站
  • 电信接收器
  • 雷达和天线阵列
  • 电缆 CMTS,DOCSIS 3.1 接收器
  • 通信测试设备
  • 微波接收器
  • 软件定义无线电 (SDR)
  • 数字转换器
  • 医疗成像和诊断功能

3 说明

ADS54J64 器件是四通道、14 位、
1GSPS 模数转换器 (ADC),提供宽带宽、2倍过采样和高 SNR。ADS54J64 支持 JESD204B 串行接口,每个通道上具有 1 条信道,数据速率高达 10Gbps。经缓冲的模拟输入可在较宽频率范围内提供一致的阻抗,并最大程度降低采样保持干扰能量。ADS54J64 以超低功耗在较大输入频率范围内提供出色的无杂散动态范围 (SFDR)。数字信号处理块包含复频混频器,后接低通滤波器,低通滤波器具有 2 倍抽取率和 4 倍抽取率两个选项,支持高达 200MHz 的接收带宽。ADS54J64 还支持 DDC 旁路模式的 14 位、500MSPS 输出。

四通道 JESD204B 接口简化了连接,可实现高系统集成密度。内部锁相环 (PLL) 会将传入的 ADC 采样时钟加倍,以获得串行输出各通道的 14 位数据时所使用的位时钟。

器件信息(1)

器件型号 封装 封装尺寸(标称值)
ADS54J64 VQFN (72) 10.00mm x 10.00mm
  1. 如需了解所有可用封装,请参阅产品说明书末尾的可订购产品附录。

空白

空白

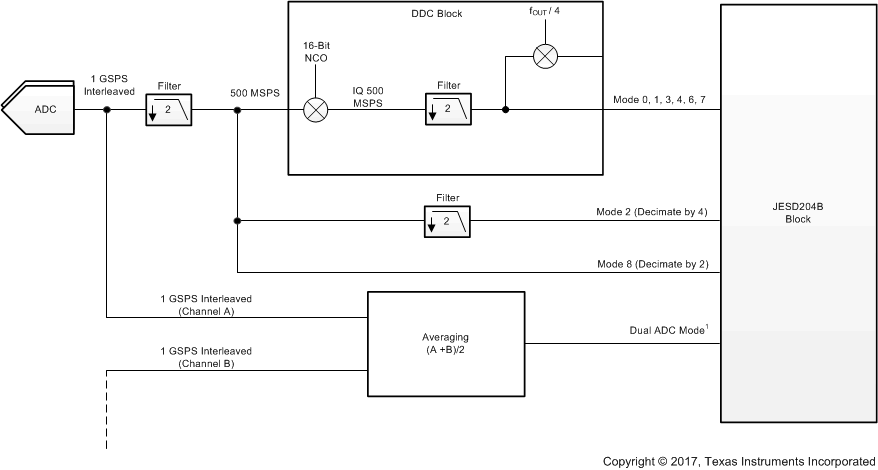

简化框图

ADS54J64 bd_bas841.gif

4 修订历史记录

日期 修订版本 说明
2017 年 10 月 * 初始发行版。

5 Pin Configuration and Functions

RMP Package
72-Pin VQFN
Top View

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
INPUT, REFERENCE
INAM 41 I Differential analog input pin for channel A, internal bias via a 2-kΩ resistor to VCM
INAP 42
INBM 37 I Differential analog input pin for channel B, internal bias via a 2-kΩ resistor to VCM
INBP 36
INCM 18 I Differential analog input pin for channel C, internal bias via a 2-kΩ resistor to VCM
INCP 19
INDM 14 I Differential analog input pin for channel D, internal bias via a 2-kΩ resistor to VCM
INDP 13
CLOCK, SYNC
CLKINM 28 I Differential clock input pin for the ADC with internal 100-Ω differential termination; requires external ac coupling
CLKINP 27
SYSREFM 34 I External SYSREF input; requires dc coupling and external termination
SYSREFP 33
CONTROL, SERIAL
NC 1, 2, 22, 23, 53, 54 — No connection
PDN 50 I/O Power down. This pin can be configured via an SPI register setting. This pin has an internal 10-kΩ pulldown resistor.
RES 49 — Reserved pin, connect to GND
RESET 48 I Hardware reset; active high. This pin has an internal 10-kΩ pulldown resistor.
SCLK 6 I Serial interface clock input. This pin has an internal 10-kΩ pulldown resistor.
SDIN 5 I Serial interface data input. This pin has an internal 10-kΩ pulldown resistor.
SDOUT 11 O 1.8-V logic serial interface data output
SEN 7 I Serial interface enable. This pin has an internal 10-kΩ pullup resistor to DVDD.
DATA INTERFACE
DAM 59 O JESD204B serial data output pin for channel A
DAP 58
DBM 62 O JESD204B serial data output pin for channel B
DBP 61
DCM 65 O JESD204B serial data output pin for channel C
DCP 66
DDM 68 O JESD204B serial data output pin for channel D
DDP 69
SYNCbABM 56 I Synchronization input pin for JESD204B port channels A and B. This pin can be configured via SPI to a SYNCb signal for all four channels. This pin has an internal differential termination of 100 Ω.
SYNCbABP 55
SYNCbCDM 71 I Synchronization input pin for JESD204B port channels C and D. This pin can be configured via SPI to a SYNCb signal for all four channels. This pin has an internal differential termination of 100 Ω.
SYNCbCDP 72
POWER SUPPLY
AGND 21, 26, 29, 32 I Analog ground
AVDD 9, 12, 15, 17, 20, 25, 30, 35, 38, 40, 43, 44, 46 I Analog 1.15-V power supply
AVDD19 10, 16, 24, 31, 39, 45 I Analog 1.9-V supply for analog buffer
DGND 3, 52, 60, 63, 67 I Digital ground
DVDD 4, 8, 47,51, 57, 64, 70 I Digital 1.15-V power supply
Thermal pad Pad — Connect to GND

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage AVDD19 –0.3 2.1 V
AVDD –0.3 1.4
DVDD –0.3 1.4
Voltage between AGND and DGND –0.3 0.3 V
Voltage applied to input pins INAP, INBP, INAM, INBM, INCP, INDP, INCM, INDM –0.3 2.1 V
CLKINP, CLKINM –0.3 AVDD + 0.3
SYSREFP, SYSREFM –0.3 1.9
SCLK, SEN, SDIN, RESET, SYNCbABP, SYNCbABM, SYNCbCDP, SYNCbCDM, PDN, TRIGAB, TRIGCD –0.2 AVDD19 + 0.3
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Supply voltage range AVDD19 1.8 1.9 2 V
AVDD 1.1 1.15 1.2
DVDD 1.1 1.15 1.2
Analog inputs Differential input voltage range 1.1 VPP
Input common-mode voltage (VCM) 1.3 V
Clock inputs Input clock frequency, device clock frequency 400 1000 MHz
Input clock amplitude differential
(VCLKP – VCLKM)
Sine wave, ac-coupled 1.5 VPP
LVPECL, ac-coupled 1.6
LVDS, ac-coupled 0.7
Input device clock duty cycle, default after reset 45% 50% 55%
Temperature Operating free-air, TA –40 100(2) ºC
Operating junction, TJ 105(1)
Specified maximum, measured at the device footprint thermal pad on the printed circuit board, TP-MAX 104.5(1)
(1) Prolonged use above this junction temperature can increase the device failure-in-time (FIT) rate.
(1) The recommended maximum temperature at the PCB footprint thermal pad assumes the junction-to-package bottom thermal resistance, RθJC(bot) = 0.2°C/W, the thermal resistance of the device thermal pad connection to the PCB footprint is negligible, and the device power consumption is 2.5 W.
(2) Assumes system thermal design meets the TJ specification.

6.4 Thermal Information

THERMAL METRIC(1) ADS54J64 UNIT
RMP (VQFNP)
72 PINS
RθJA Junction-to-ambient thermal resistance (1) 22.3 °C/W
RθJC(top) Junction-to-case (top) thermal resistance (2) 5.1 °C/W
RθJB Junction-to-board thermal resistance (2) 2.4 °C/W
ψJT Junction-to-top characterization parameter (3) 0.1 °C/W
ψJB Junction-to-board characterization parameter (4) 2.3 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance (5) 0.2 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
(1) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, high-K board, as specified in JESD51-7, in an environment described in JESD51-2a.
(2) The junction-to-case (top) thermal resistance is obtained by simulating a cold plate test on the package top. No specific JEDEC-standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.
(3) The junction-to-board thermal resistance is obtained by simulating in an environment with a ring cold plate fixture to control the PCB temperature, as described in JESD51-8.
(4) The junction-to-top characterization parameter, ψJT, estimates the junction temperature of a device in a real system and is extracted from the simulation data for obtaining θJA, using a procedure described in JESD51-2a (sections 6 and 7).
(5) The junction-to-board characterization parameter, ψJB, estimates the junction temperature of a device in a real system and is extracted from the simulation data for obtaining θJA , using a procedure described in JESD51-2a (sections 6 and 7).

6.5 Electrical Characteristics

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = +100°C, input clock frequency = 1 GHz, 50% clock duty cycle, output sample rate = 500 MSPS, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –1-dBFS differential input, and fIN = 190 MHz (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
GENERAL
ADC sampling rate 1 GSPS
Resolution 14 Bits
POWER SUPPLY
AVDD19 1.9-V analog supply 1.85 1.9 1.95 V
AVDD 1.15-V analog supply 1.1 1.15 1.2 V
DVDD 1.15-V digital supply 1.1 1.15 1.2 V
IAVDD19 1.9-V analog supply current 100-MHz, full-scale input on all four channels 618 mA
IAVDD 1.15-V analog supply current 100-MHz, full-scale input on all four channels 415 mA
IDVDD 1.15-V digital supply current DDC bypass mode (mode 8), 100-MHz, full-scale input on all four channels 629 mA
Mode 3, 100-MHz, full-scale input on all four channels 730
Mode 0 and 2, 100-MHz, full-scale input on all four channels 674
Mode 1, 4, 6, and 7, 100-MHz, full-scale input on all four channels 703
PDIS Total power dissipation DDC bypass mode (mode 8), 100-MHz, full-scale input on all four channels 2.37 W
Mode 3, 100-MHz, full-scale input on all four channels 2.49
Mode 0 and 2, 100-MHz, full-scale input on all four channels 2.42
Mode 1, 4, 6, and 7, 100-MHz, full-scale input on all four channels 2.46
Global power-down power dissipation Full-scale input on all four channels 120 mW
ANALOG INPUTS
Differential input full-scale voltage 1.1 VPP
Input common-mode voltage 1.3 V
Differential input resistance At fIN = dc 4 kΩ
Differential input capacitance 2.5 pF
Analog input bandwidth (3 dB) 1000 MHz
ISOLATION
Crosstalk(1) isolation between near channels
(channels A and B are near to each other, channels C and D are near to each other)
fIN = 10 MHz 75 dBFS
fIN = 100 MHz 75
fIN = 170 MHz 74
fIN = 270 MHz 72
fIN = 370 MHz 71
fIN = 470 MHz 70
Crosstalk(1) isolation between far channels
(channels A and B are far from channels C and D)
fIN = 10 MHz 110 dBFS
fIN = 100 MHz 110
fIN = 170 MHz 110
fIN = 270 MHz 110
fIN = 370 MHz 110
fIN = 470 MHz 110
CLOCK INPUT
Internal clock biasing CLKINP and CLKINM pins are connected to the internal biasing voltage through a 5-kΩ resistor 0.7 V
(1) Crosstalk is measured with a –1-dBFS input signal on the aggressor channel and no input on the victim channel.

6.6 AC Performance

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = +100°C, input clock frequency = 1 GHz, 50% clock duty cycle, output sample rate = 500 MSPS, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –1-dBFS differential input, and fIN = 190 MHz (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX MIN TYP MAX UNIT
DDC BYPASS MODE DECIMATE-BY-4
(DDC Mode 2)
SNR Signal-to-noise ratio fIN = 10 MHz, AIN = –1 dBFS 69.9 72.2 dBFS
fIN = 70 MHz, AIN = –1 dBFS 69.6 71.8
fIN = 190 MHz, AIN = –1 dBFS 69.2 71.8
fIN = 190 MHz, AIN = –3 dBFS 66.5 69.6 71
fIN = 300 MHz, AIN = –3 dBFS 69.3 71.7
fIN = 370 MHz, AIN = –3 dBFS 68.7 71.3
fIN = 470 MHz, AIN = –3 dBFS 68.4 69.8
NSD Noise spectral density fIN = 10 MHz, AIN = –1 dBFS –153.9 –153.2 dBFS/Hz
fIN = 70 MHz, AIN = –1 dBFS –153.6 –152.8
fIN = 190 MHz, AIN = –1 dBFS –153.2 –152.7
fIN = 190 MHz, AIN = –3 dBFS –150.5 –153.6 –153.2
fIN = 300 MHz, AIN = –3 dBFS –152.8 –152.7
fIN = 370 MHz, AIN = –3 dBFS –152.5 –152.2
fIN = 470 MHz, AIN = –3 dBFS –151.5 –151
SFDR(1) Spurious-free dynamic range fIN = 10 MHz, AIN = –1 dBFS 83 83 dBc
fIN = 70 MHz, AIN = –1 dBFS 81 100
fIN = 190 MHz, AIN = –1 dBFS 87 100
fIN = 190 MHz, AIN = –3 dBFS 78 88 98
fIN = 300 MHz, AIN = –3 dBFS 79 98
fIN = 370 MHz, AIN = –3 dBFS,
input clock frequency = 983.04 MHz
82 70
fIN = 470 MHz, AIN = –3 dBFS 78 76
SINAD Signal-to-noise and distortion ratio fIN = 10 MHz, AIN = –1 dBFS 68.5 70.6 dBFS
fIN = 70 MHz, AIN = –1 dBFS 68.5 70.6
fIN = 190 MHz, AIN = –1 dBFS 68.2 72.2
fIN = 190 MHz, AIN = –3 dBFS 68.5 73
fIN = 300 MHz, AIN = –3 dBFS 68.9 72.3
fIN = 370 MHz, AIN = –3 dBFS 68 68.2
fIN = 470 MHz, AIN = –3 dBFS 68 69
HD2(1) Second-order harmonic distortion fIN = 10 MHz, AIN = –1 dBFS –83 –90 dBc
fIN = 70 MHz, AIN = –1 dBFS –82 –100
fIN = 190 MHz, AIN = –1 dBFS –85 –98
fIN = 190 MHz, AIN = –3 dBFS –78 –86 –100
fIN = 300 MHz, AIN = –3 dBFS –82 –100
fIN = 370 MHz, AIN = –3 dBFS
input clock frequency = 983.04 MHz
–82 –69
fIN = 470 MHz, AIN = –3 dBFS –100 –94
HD3(1) Third-order harmonic distortion fIN = 10 MHz, AIN = –1 dBFS –83 –85 dBc
fIN = 70 MHz, AIN = –1 dBFS –81 –100
fIN = 190 MHz, AIN = –1 dBFS –92 –100
fIN = 190 MHz, AIN = –3 dBFS –78 –92 –100
fIN = 300 MHz, AIN = –3 dBFS –90 –100
fIN = 370 MHz, AIN = –3 dBFS –90 –100
fIN = 470 MHz, AIN = –3 dBFS –80 –79
Non
HD2, HD3
Spurious-free dynamic range (excluding HD2, HD3) fIN = 10 MHz, AIN = –1 dBFS 95 –100 dBFS
fIN = 70 MHz, AIN = –1 dBFS 95 –92
fIN = 190 MHz, AIN = –1 dBFS 95 –100
fIN = 190 MHz, AIN = –3 dBFS 87 95 –98
fIN = 300 MHz, AIN = –3 dBFS 95 –100
fIN = 370 MHz, AIN = –3 dBFS 95 –100
fIN = 470 MHz, AIN = –3 dBFS 93 –100
THD(1) Total harmonic distortion fIN = 10 MHz, AIN = –1 dBFS –81 –83 dBc
fIN = 70 MHz, AIN = –1 dBFS –79 –100
fIN = 190 MHz, AIN = –1 dBFS –83 –100
fIN = 190 MHz, AIN = –3 dBFS –85 –100
fIN = 300 MHz, AIN = –3 dBFS –81 –100
fIN = 370 MHz, AIN = –3 dBFS –76 –68
fIN = 470 MHz, AIN = –3 dBFS –82 –80
IMD3 Two-tone, third-order intermodulation distortion f1 = 185 MHz, f2 = 190 MHz,
AIN = –10 dBFS
–90 –87 dBFS
f1 = 365 MHz, f2 = 370 MHz,
AIN = –10 dBFS
–90 –94
f1 = 465 MHz, f2 = 470 MHz,
AIN = –10 dBFS
–85 –85
(1) Harmonic distortion performance can be significantly improved by using the frequency planning explained in the Frequency Planning section.

6.7 Digital Characteristics

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = +100°C, input clock frequency = 1 GHz, 50% clock duty cycle, output sample rate = 500 MSPS, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –1-dBFS differential input, and fIN = 190 MHz (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DIGITAL INPUTS (RESET, SCLK, SEN, SDIN, PDN, TRIGAB, TRIGCD)(1)
VIH High-level input voltage All digital inputs support 1.2-V and 1.8-V logic levels 0.8 V
VIL Low-level input voltage All digital inputs support 1.2-V and 1.8-V logic levels 0.4 V
IIH High-level input current SEN 0 µA
RESET, SCLK, SDIN, PDN, TRIGAB, TRIGCD 50
IIL Low-level input current SEN 50 µA
RESET, SCLK, SDIN, PDN, TRIGAB, TRIGCD 0
Input capacitance 4 pF
DIGITAL INPUTS
VD Differential input voltage SYSREFP, SYSREFM 0.35 0.45 0.55 V
SYNCbABM, SYNCbABP, SYNCbCDM, SYNCbCDP 0.35 0.45 0.8
V(CM_DIG) Common-mode voltage for SYSREF SYSREFP, SYSREFM 0.9 1.2 1.4 V
SYNCbABM, SYNCbABP, SYNCbCDM, SYNCbCDP 0.9 1.2 1.4
DIGITAL OUTPUTS (SDOUT, TRDYAB, TRDYCD)
VOH High-level output voltage 100-µA current AVDD19 – 0.2 V
VOL Low-level output voltage 100-µA current 0.2 V
DIGITAL OUTPUTS (JESD204B Interface: DxP, DxM)(2)
VOD Output differential voltage With default swing setting 700 mVPP
VOC Output common-mode voltage 450 mV
Transmitter short-circuit current Transmitter pins shorted to any voltage between –0.25 V and 1.45 V –100 100 mA
zos Single-ended output impedance 50 Ω
Output capacitance Output capacitance inside the device,
from either output to ground
2 pF
(1) The RESET, SCLK, SDIN, and PDN pins have a 10-kΩ (typical) internal pulldown resistor to ground, and the SEN pin has a 10-kΩ (typical) pullup resistor to DVDD.
(2) 50-Ω, single-ended external termination to DVDD.

6.8 Timing Characteristics

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = +100°C, input clock frequency = 1 GHz, 50% clock duty cycle, output sample rate = 500 MSPS, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –1-dBFS differential input, and fIN = 190 MHz (unless otherwise noted)
MIN TYP MAX UNITS
SAMPLE TIMING CHARACTERISTICS
Aperture delay 0.55 0.92 ns
Aperture delay matching between two channels on the same device ±100 ps
Aperture delay matching between two devices at the same temperature and supply voltage ±100 ps
Aperture jitter 100 fS rms
Wake-up time Global power-down 10 ms
Pin power-down (fast power-down) 5 µs
Data latency: ADC sample to digital output DDC bypass mode 116 Input clock cycles
DDC mode 0 204
tSU_SYSREF Setup time for SYSREF, referenced to input clock rising edge 350 900 ps
tH_SYSREF Hold time for SYSREF, referenced to input clock rising edge 100 ps
JESD OUTPUT INTERFACE TIMING CHARACTERISTICS
Unit interval 100 ps
Serial output data rate 10 Gbps
Total jitter for BER of 1E-15 and lane rate = 10 Gbps 24 ps
Random jitter for BER of 1E-15 and lane rate = 10 Gbps 0.95 ps rms
Deterministic jitter for BER of 1E-15 and lane rate = 10 Gbps 8.8 ps, pk-pk
tR, tF Data rise time, data fall time: rise and fall times measured from 20% to 80%, differential output waveform, 2.5 Gbps ≤ bit rate ≤ 10 Gbps 35 ps
ADS54J64 elect_char_clk_sbas807.gif Figure 1. Latency Timing Diagram in DDC Bypass Mode

6.9 Typical Characteristics: DDC Bypass Mode

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = +100°C, device sampling frequency = 1 GSPS, 50% clock duty cycle, output sample rate = 500 MSPS, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –1-dBFS differential input, and fIN = 190 MHz (unless otherwise noted)
ADS54J64 D001_SBAS807.gif
fIN = 100 MHz, AIN = –1 dBFS, SNR = 69.57 dBFS,
SFDR = 85.23 dBc, SFDR = 102.09 dBc (non 23)
Figure 2. FFT for 100-MHz Input Signal
ADS54J64 D003_SBAS807.gif
fIN = 190 MHz, AIN = –3 dBFS, SNR = 69.60 dBFS,
SFDR = 88.45 dBc, SFDR = 99.78 dBc (non 23)
Figure 4. FFT for 190-MHz Input Signal
ADS54J64 D005_SBAS807.gif

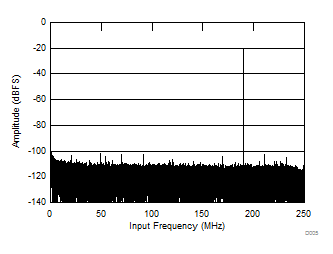

fIN = 190 MHz, AIN = –20 dBFS, SNR = 70.23 dBFS,
SFDR = 81.71 dBc, SFDR = 81.71 dBc (non 23)
Figure 6. FFT for 190-MHz Input Signal
ADS54J64 D007_SBAS807.gif
fIN = 270 MHz, AIN = –3 dBFS, SNR = 69.27 dBFS,
SFDR = 82.98 dBc, SFDR = 95.4 dBc (non 23)
Figure 8. FFT for 270-MHz Input Signal
ADS54J64 D009_SBAS807.gif
fIN = 470 MHz, AIN = –3 dBFS, SNR = 68.21 dBFS,
SFDR = 79.85 dBc, SFDR = 99.12 dBc (non 23)
Figure 10. FFT for 470-MHz Input Signal
ADS54J64 D011_SBAS807.gif
fIN1 = 160 MHz, fIN2 = 170 MHz, IMD = 103.44 dBFS,
each tone at –10 dBFS
Figure 12. FFT for Two-Tone Input Signal
ADS54J64 D013_SBAS807.gif
fIN1 = 340 MHz, fIN2 = 350 MHz, IMD = 95.08 dBFS,
each tone at –10 dBFS
Figure 14. FFT for Two-Tone Input Signal
ADS54J64 D015_SBAS807.gif
Figure 16. HD3 vs Input Frequency
ADS54J64 D017_SBAS807.gif
Figure 18. SNR vs Input Frequency and Temperature
ADS54J64 D019_SBAS807.gif
Figure 20. HD2 vs Input Frequency and Temperature
ADS54J64 D021_SBAS807.gif
Figure 22. HD3 vs Input Frequency and AVDD19 Supply
ADS54J64 D023_SBAS807.gif
Figure 24. HD3 vs Input Frequency and AVDD Supply
ADS54J64 D025_SBAS807.gif
Figure 26. HD3 vs Input Frequency and DVDD Supply
ADS54J64 D027_SBAS807.gif
fIN = 370 MHz
Figure 28. Performance vs Input Signal Amplitude
ADS54J64 D029_SBAS841.gif
fIN1 = 340 MHz, fIN2 = 350 MHz
Figure 30. IMD vs Input Amplitude
ADS54J64 D031_SBAS807.gif
fIN = 190 MHz, AIN = –1 dBFS, fNoise = 5 MHz, ANoise = 50 mVPP
Figure 32. PSRR vs Power-Supply Noise Frequency
ADS54J64 D033_SBAS807.gif
fIN = 190 MHz, AIN = –1 dBFS, fNoise = 5 MHz, ANoise = 50 mVPP

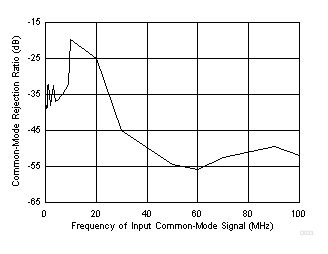

Figure 34. CMRR vs Common-Mode Noise Frequency
ADS54J64 D002_SBAS807.gif
fIN = 190 MHz, AIN = –1 dBFS, SNR = 69.23 dBFS,
SFDR = 86.83 dBc, SFDR = 91.23 dBc (non 23)
Figure 3. FFT for 190-MHz Input Signal
ADS54J64 D004_SBAS807.gif
fIN = 190 MHz, AIN = –10 dBFS, SNR = 70.05 dBFS,
SFDR = 93.27 dBc, SFDR = 97.26 dBc (non 23)
Figure 5. FFT for 190-MHz Input Signal
ADS54J64 D006_SBAS807.gif
fIN = 230 MHz, AIN = –1 dBFS, SNR = 69.17 dBFS,
SFDR = 85.29 dBc, SFDR = 89.30 dBc (non 23)
Figure 7. FFT for 230-MHz Input Signal
ADS54J64 D008_SBAS807.gif
fIN = 370 MHz, AIN = –3 dBFS, SNR = 68.36 dBFS,
SFDR = 81.37 dBc, SFDR = 97.28 dBc (non 23)
Figure 9. FFT for 370-MHz Input Signal
ADS54J64 D010_SBAS807.gif
fIN1 = 160 MHz, fIN2 = 170 MHz, IMD = 102.68 dBFS,
each tone at –7 dBFS
Figure 11. FFT for Two-Tone Input Signal
ADS54J64 D012_SBAS807.gif
fIN1 = 340 MHz, fIN2 = 350 MHz, IMD = 84.34 dBFS,
each tone at –7 dBFS
Figure 13. FFT for Two-Tone Input Signal
ADS54J64 D014_SBAS807.gif
Figure 15. SNR vs Input Frequency
ADS54J64 D016_SBAS807.gif
Figure 17. HD2 vs Input Frequency
ADS54J64 D018_SBAS807.gif
Figure 19. HD3 vs Input Frequency and Temperature
ADS54J64 D020_SBAS807.gif
Figure 21. SNR vs Input Frequency and AVDD19 Supply
ADS54J64 D022_SBAS807.gif
Figure 23. SNR vs Input Frequency and AVDD Supply
ADS54J64 D024_SBAS807.gif
Figure 25. SNR vs Input Frequency and DVDD Supply
ADS54J64 D026_SBAS807.gif
fIN = 190 MHz
Figure 27. Performance vs Input Signal Amplitude
ADS54J64 D028_SBAS807.gif
fIN1 = 160 MHz, fIN2 = 170 MHz
Figure 29. IMD vs Input Amplitude
ADS54J64 D030_SBAS807.gif
fIN = 190 MHz, AIN = –1 dBFS, fNoise = 5 MHz,
ANoise = 50 mVPP, SFDR = 73.5 dBFS
Figure 31. Power-Supply Rejection Ratio FFT
for 50-mV Noise on AVDD Supply
ADS54J64 D032_SBAS807.gif
fIN = 190 MHz, AIN = –1 dBFS, fNoise = 5 MHz,
ANoise = 50 mVPP, SFDR = 63.12 dBFS
Figure 33. Common-Mode Rejection Ratio FFT
ADS54J64 D034_SBAS807.gif

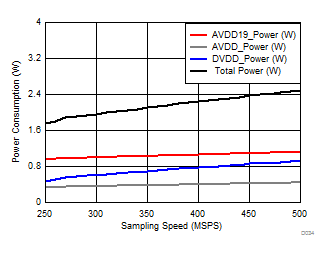

Figure 35. Power Consumption vs Sampling Speed

6.10 Typical Characteristics: Mode 2

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = +100°C, device sampling frequency = 1 GSPS, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –1-dBFS differential input, and fIN = 190 MHz (unless otherwise noted)
ADS54J64 D035_SBAS807.gif
fIN = 150 MHz, AIN= –1 dBFS, SNR = 72.85 dBFS,
SFDR = 84.41 dBc, SFDR = 100.99 dBc (non 23)
Figure 36. FFT for 150-MHz Input Signal
ADS54J64 D037_SBAS807.gif
fIN = 300 MHz, AIN= –3 dBFS, SNR = 72.3 dBFS,
SFDR = 100.31 dBc, SFDR = 100.75 dBc (non 23)
Figure 38. FFT for 300-MHz Input Signal
ADS54J64 D036_SBAS807.gif
fIN = 190 MHz, AIN= –1 dBFS, SNR = 72.37 dBFS,
SFDR = 99.95 dBc, SFDR = 100.76 dBc (non 23)
Figure 37. FFT for 190-MHz Input Signal
ADS54J64 D038_SBAS807.gif
fIN = 350 MHz, AIN= –3 dBFS, SNR = 72.02 dBFS,
SFDR = 79.23 dBc, SFDR = 96.42 dBc (non 23)
Figure 39. FFT for 350-MHz Input Signal

6.11 Typical Characteristics: Mode 0

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = +100°C, device sampling frequency = 1 GSPS, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –1-dBFS differential input, and fIN = 190 MHz (unless otherwise noted)
ADS54J64 D039_SBAS807.gif
fIN = 100 MHz, AIN= –1 dBFS, SNR = 70.16 dBFS,
SFDR = 84.95 dBc, SFDR = 95.41 dBc (non 23)
Figure 40. FFT for 100-MHz Input Signal
ADS54J64 D041_SBAS807.gif
fIN = 220 MHz, AIN= –1 dBFS, SNR = 69.27 dBFS,
SFDR = 87.66 dBc, SFDR = 91.04 dBc (non 23)
Figure 42. FFT for 220-MHz Input Signal
ADS54J64 D040_SBAS807.gif
fIN = 170 MHz, AIN= –1 dBFS, SNR = 69.35 dBFS,
SFDR = 86.46 dBc, SFDR = 89.27 dBc (non 23)
Figure 41. FFT for 170-MHz Input Signal

6.12 Typical Characteristics: Dual ADC Mode

typical values are at TA = 25°C, full temperature range is from TMIN = –40°C to TMAX = +100°C, device sampling frequency = 1 GSPS, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –1-dBFS differential input, and fIN = 190 MHz (unless otherwise noted)
ADS54J64 D046_SBAS841.gif
fIN = 230 MHz, AIN= –1 dBFS, SNR = 68.11 dBFS,
SFDR = 77.01 dBc, interleaving spur = –42.85 dBFS
Figure 43. FFT for 230-MHz Input Signal
ADS54J64 D048_SBAS841.gif
Figure 45. Interleaving Spur vs Input Frequency
ADS54J64 D047_SBAS841.gif
fIN = 470 MHz, AIN= –1 dBFS, SNR = 66.56 dBFS,
SFDR = 72.32 dBc, interleaving spur = –36.96 dBFS
Figure 44. FFT for 470-MHz Input Signal

7 Detailed Description

7.1 Overview

The ADS54J64 is a quad-channel device with a complex digital down-converter (DDC) and digital decimation to allow flexible signal processing to suit different usage cases. Each channel is composed of two interleaved analog-to-digital converters (ADCs) sampling at half the input clock rate. The 2x interleaved data are decimated by 2 to provide a processing gain of 3 dB. The decimation filter has a programmable option to be configured as low pass (default) or high pass. In default mode, the device operates in DDC mode 0, where the input is mixed with a constant frequency of –fS / 4 and transmitted as complex IQ. In DDC bypass mode (mode 8), the DDC is bypassed and the 2x decimated data are available on the JESD output. The different operational modes of the ADS54J64 are listed in Table 1.

The ADS54J64 can also be operated in a dual-channel interleaved mode (dual mode), in which two channels are averaged and the 2x interleaved and averaged data are available directly at the JESD output.

7.2 Functional Block Diagram

ADS54J64 bd_bas841.gif

7.3 Feature Description

7.3.1 Analog Inputs

The ADS54J64 analog signal inputs are designed to be driven differentially. The analog input pins have internal analog buffers that drive the sampling circuit. As a result of the analog buffer, the input pins present a high-impedance input across a very wide frequency range to the external driving source that enables great flexibility in the external analog filter design as well as excellent 50-Ω matching for RF applications. The buffer also helps isolate the external driving circuit from the internal switching currents of the sampling circuit, resulting in a more constant SFDR performance across input frequencies. The common-mode voltage of the signal inputs is internally biased to 1.3 V using 2-kΩ resistors to allow for ac-coupling of the input drive network. Each input pin (INP, INM) must swing symmetrically between (VCM + 0.275 V) and (VCM – 0.275 V), resulting in a 1.1-VPP (default) differential input swing. The input sampling circuit has a 3-dB bandwidth that extends up to 1000 MHz.

7.3.2 Recommended Input Circuit

In order to achieve optimum ac performance, the following circuitry (shown in Figure 46) is recommended at the analog inputs.

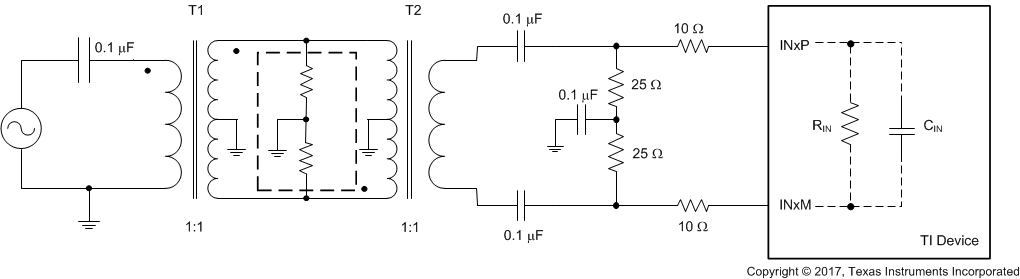

ADS54J64 recomm_input_circ_bas807.gif Figure 46. Analog Input Driving Circuit

7.3.3 Clock Input

The clock inputs of the ADS54J64 supports LVDS and LVPECL standards. The CLKP, CLKM inputs have an internal termination of 100 Ω. The clock inputs must be ac-coupled, as shown in Figure 47 and Figure 48, because the input pins are self-biased to a common-mode voltage of 0.7 V.

ADS54J64 ai_lvpecl_drive_bas841.gif Figure 47. LVPECL Clock Driving Circuit
ADS54J64 ai_lvds_drive_bas841.gif Figure 48. LVDS Clock Driving Circuit

7.4 Device Functional Modes

7.4.1 Digital Functions

Figure 49 shows the various operational modes available in the ADS54J64. In quad mode, the maximum output rate is half the sampling rate. The 2x interleaved data are filtered using a half-band filter (HBF) that can be configured as a low-pass or high-pass filter using register writes. In dual mode, the device can be operated at a full sampling rate with 2x interleaving and averaging of two channels.

Quad mode supports a maximum complex and a real bandwidth of 200 MHz. The HBF output can be brought directly on the JESD lines at half rate. The complex data are obtained through a digital down-converter (DDC) that is comprised of a 16-bit numerically controlled oscillator (NCO) and a 100-MHz or 200-MHz filter. The DDC also has a real output mode where the data are decimated by 2 and mixed to fOUT / 4 to support a bandwidth of 100 MHz. In addition to the DDC modes, the HBF output can be decimated by 2 to obtain an overall decimation by 4 on the 2x interleaved data.

Dual mode supports a maximum sampling rate of 1 GSPS. The 2x interleaved data from channel A and channel B (and likewise channels C and D) can be averaged and given on the JESD lanes.

Table 1 lists all modes of operation with the maximum bandwidth provided at a sample rate of 491.52 MSPS and 368.64 MSPS.

ADS54J64 BD_Chnl_oprtng_Mde_sbas841.gif
1. 1-GSPS data are transmitted using two JESD lanes.
Figure 49. ADS54J64 Channel Operating Modes

Table 1. ADS54J64 Operating Modes

OPERATING
MODE
DESCRIPTION 1ST-STAGE DECIMATION DIGITAL
MIXER
2ND-STAGE DECIMATION BANDWIDTH AT
491.52 MSPS
BANDWIDTH AT 368.64 MSPS OUTPUT
MIXER
OUTPUT
FORMAT
MAX OUTPUT
RATE
0 Decimation 2 ±fS / 4 2 200 MHz 150 MHz — Complex 250 MSPS
1 2 16-bit NCO 2 200 MHz 150 MHz — Complex 250 MSPS
2 2 — 2 100 MHz (LP, LP or HP, HP),
75 MHz (HP, LP or LP, HP)
75 MHz,
56.25 MHz
— Real 250 MSPS
3 2 16-bit NCO Bypass 200 MHz 150 MHz fOUT / 4 Real 500 MSPS
4 2 16-bit NCO 2 100 MHz 75 MHz fOUT / 4 Real 250 MSPS
5 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved
6 2 16-bit NCO 4 100 MHz 75 MHz — Complex 125 MSPS
7 2 16-bit NCO 2 100 MHz 75 MHz fOUT / 4 Real with zero insertion 500 MSPS
8 DDC bypass mode 2 — — 223 MHz 167 MHz — Real 500 MSPS
8 Dual ADC mode — — — — — — — 1000 MSPS

7.4.1.1 Numerically Controlled Oscillators (NCOs) and Mixers

The ADS54J64 is equipped with a complex numerically-controlled oscillator. The oscillator generates a complex exponential sequence: x[n] = ejωn. The frequency (ω) is specified by the 16-bit register setting. The complex exponential sequence is multiplied by the real input from the ADC to mix the desired carrier down to 0 Hz.

The NCO frequency setting is set by the 16-bit register value, NCO_FREQ[n]:

Equation 1. ADS54J64 eq_fnco_sbas807.gif

7.4.1.2 Decimation Filter

The ADS54J64 has two decimation filters (decimate-by-2) in the data path. The first stage of the decimation filter is non-programmable and is used in all functional modes. The second stage of decimation, available in DDC mode 2 and 6, can be used to obtain noise and linearity improvement for low bandwidth applications.

7.4.1.2.1 Stage-1 Filter

The first-stage filter is used for decimation of the 2x interleaved data from fCLK to fCLK / 2. Figure 50 and Figure 51 show the frequency response and pass-band ripple of the first-stage decimation filter, respectively.

ADS54J64 D042_SBAS807.gif
Input clock rate = 1 GHz
Figure 50. Decimation Filter Response vs Frequency
ADS54J64 D043_SBAS807.gif
Input clock rate = 1 GHz
Figure 51. Decimation Filter Pass-Band Ripple vs Frequency

7.4.1.2.2 Stage-2 Filter

The second-stage filter is used for decimating the data from a sample rate of fCLK / 2 to fCLK / 4. Figure 52 and Figure 53 show the frequency response and pass-band ripple of the second-stage filter, respectively.

ADS54J64 D044_SBAS807.gif
Input clock rate (fCLK) = 1 GHz
Figure 52. Decimation Filter Response vs Frequency
ADS54J64 D045_SBAS807.gif
Input clock rate (fCLK) = 1 GHz
Figure 53. Decimation Filter Pass-Band Ripple vs Frequency

7.4.1.3 Mode 0: Decimate-by-4 With IQ Outputs and fS / 4 Mixer

In mode 0, the DDC block includes a fixed frequency ±fS / 4 complex digital mixer preceding the second-stage decimation filters. Figure 54 shows that the IQ pass band is approximately ±100 MHz centered at fS / 8 or 3fS / 8.

ADS54J64 Oprtng_Mde_0_sbas807.gif Figure 54. Operating Mode 0

7.4.1.4 Mode 1: Decimate-by-4 With IQ Outputs and 16-Bit NCO

In mode 1, the DDC block includes a 16-bit frequency resolution complex digital mixer, as shown in Figure 55, preceding the second-stage decimation filters.

ADS54J64 Oprtng_Mde_1_sbas807.gif Figure 55. Operating Mode 1

7.4.1.5 Mode 2: Decimate-by-4 With Real Output

In mode 2, the DDC block cascades two decimate-by-2 filters. Each filter can be configured as low pass (LP) or high pass (HP), as shown in Table 2, to allow down conversion of different frequency ranges. Figure 56 shows that the LP, HP and HP, LP output spectra are inverted.

ADS54J64 Oprtng_Mde_2_sbas807.gif Figure 56. Operating in Mode 2

Table 2. ADS54J64 Operating Mode 2, Down-Converted Frequency Ranges

1ST-STAGE FILTER 2ND-STAGE FILTER FREQUENCY RANGE WITH CLOCK RATE OF 983.04 MHz BANDWIDTH WITH CLOCK RATE OF 983.04 MHz FREQUENCY RANGE WITH CLOCK RATE OF 737.28 MHz BANDWIDTH WITH CLOCK RATE OF 737.28 MHz
LP LP 0 MHz–100 MHz 100 MHz 0 MHz–75 MHz 75 MHz
LP HP 150 MHz–223 MHz 73 MHz 112.5 MHz–167.25 MHz 54.75 MHz
HP LP 268.52 MHz–341.52 MHz 73 MHz 201.39 MHz–256.14 MHz 54.75 MHz
HP HP 391.52 MHz–491.52 MHz 100 MHz 293.64 MHz–368.64 MHz 75 MHz

7.4.1.6 Mode 3: Decimate-by-2 Real Output With Frequency Shift

In mode 3, the DDC block includes a 16-bit complex NCO digital mixer followed by a fS / 4 mixer with a real output to center the band at fS / 4. As shown in Figure 57, the NCO must be set to a value different from ±fS / 4, or else the samples are zeroed.

ADS54J64 Oprtng_Mde_3_sbas807.gif Figure 57. Operating Mode 3

7.4.1.7 Mode 4: Decimate-by-4 With Real Output

In mode 4, the DDC block includes a 16-bit complex NCO digital mixer preceding the second-stage decimation filter. As shown in Figure 58, the signal is then mixed with fOUT / 4 to generate a real output. The bandwidth available in this mode is 100 MHz.

ADS54J64 Oprtng_Mde_4_sbas807.gif Figure 58. Operating Mode 4

7.4.1.8 Mode 6: Decimate-by-4 With IQ Outputs for Up to 110 MHz of IQ Bandwidth

In mode 6, the DDC block shown in Figure 59 includes a 16-bit complex NCO digital mixer preceding a second-stage filter with a decimate-by-4 complex, generating a complex output at fS / 8.

ADS54J64 Oprtng_Mde_6_sbas807.gif Figure 59. Operating Mode 6

7.4.1.9 Mode 7: Decimate-by-4 With Real Output and Zero Stuffing

In mode 7, the DDC block includes a 16-bit complex NCO digital mixer preceding the second-stage decimation filter. The signal is then mixed with fOUT / 4, as shown in Figure 60, to generate a real output that is then doubled in sample rate by zero-stuffing every other sample. The bandwidth available in this mode is 100 MHz.

ADS54J64 Oprtng_Mde_7_sbas807.gif Figure 60. Operating Mode 7

7.4.1.10 Mode 8: DDC Bypass Mode

In mode 8, the DDC block is bypassed as shown in Figure 61 and the 2x decimated data are available on the JESD output. The decimation filter can be configured to be high pass or low pass using an SPI register bit. The stop-band attenuation is approximately 40 dB and the available bandwidth is 225 MHz. The decimation filter response is illustrated in Figure 50 and Figure 51.

ADS54J64 Oprtng_Mde_8_sbas841.gif Figure 61. Operating Mode 8

7.4.1.11 Averaging Mode

In dual ADC mode, two channels (channels A, B and C, D) are averaged and given out as a single output. As a result, the device operates in a dual-channel mode with 2x interleaved sample rate. For a 1-GSPS input clock, the averaged output at 1 GSPS is available on two JESD lanes, each operating at 10 Gbps. Figure 62 shows the device supporting an averaging of channels A and B. An identical averaging path is available for channels C and D. Configure the device in mode 8 before enabling dual ADC mode through SPI register writes.

ADS54J64 Avg_Mde_ab_sbas841.gif Figure 62. Averaging Mode for Channels A and B (C and D Averaging is Identical)

7.4.1.12 Overrange Indication

The ADS54J64 provides a fast overrange indication that can be presented in the digital output data stream via SPI configuration. When the FOVR indication is embedded in the output data stream as shown in Figure 63, this indication replaces the LSB (D0) of the 16 bits going to the 8b, 10b encode.

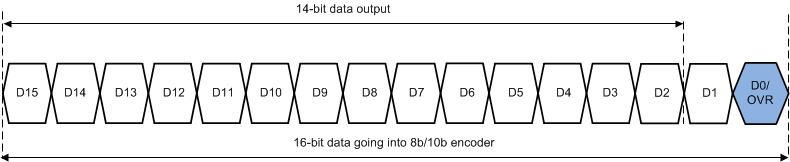

ADS54J64 OVR_Indctr_sbas807.gif Figure 63. FOVR Timing Diagram

The fast overrange feature of the ADS54J64 is configured using an upper (FOVR Hi) and a lower (FOVR Lo) 8-bit threshold that are compared against the partial ADC output of the initial pipeline stages. Figure 64 shows the FOVR high and FOVR low thresholds.

The two thresholds are configured via the SPI register where a setting of 136 maps to the maximum ADC code for a high FOVR, and a setting of 8 maps to the minimum ADC code for a low FOVR.

ADS54J64 Fvr_l_H_Thrshld_sbas807.gif Figure 64. FOVR High and FOVR Low Thresholds

Equation 2 calculates the FOVR threshold from a full-scale input based on the ADC code:

Equation 2. ADS54J64 eq_fovr_sbas764.gif

Therefore, a threshold of –0.5 dBFS from full-scale can be set with:

  • FOVR high = 132 (27h, 84h)
  • FOVR low = 12 (28h, 0Ch)

7.5 Programming

7.5.1 JESD204B Interface

The ADS54J64 supports device subclass 1 with a maximum output data rate of 10 Gbps for each serial transmitter.

Figure 65 shows that an external SYSREF signal is used to align all internal clock phases and the local multi-frame clock to a specific sampling clock edge. A common SYSREF signal allows synchronization of multiple devices in a system and minimizes timing and alignment uncertainty. The ADS54J64 supports single (for all four JESD links) or dual (for channels A, B and C, D) SYNCb inputs and can be configured via the SPI.

ADS54J64 JESD_trsmttr_blk_sbas807.gif Figure 65. JESD204B Transmitter Block

Depending on the ADC sampling rate, the JESD204B output interface can be operated with one lane per channel. The JESD204B setup and configuration of the frame assembly parameters is handled via the SPI interface.

The JESD204B transmitter block shown in Figure 66 consists of the transport layer, the data scrambler, and the link layer. The transport layer maps the ADC output data into the selected JESD204B frame data format and manages if the ADC output data or test patterns are being transmitted. The link layer performs the 8b, 10b data encoding as well as the synchronization and initial lane alignment using the SYNC input signal. Optionally, data from the transport layer can be scrambled.

ADS54J64 jesd204b_bd_sbas807.gif Figure 66. JESD Interface Block Diagram

7.5.2 JESD204B Initial Lane Alignment (ILA)

The initial lane alignment process is started by the receiving device by deasserting the SYNCb signal. When a logic low is detected on the SYNC input pins, as shown in Figure 67, the ADS54J64 starts transmitting comma (K28.5) characters to establish code group synchronization.

When synchronization is complete, the receiving device reasserts the SYNCb signal and the ADS54J64 starts the initial lane alignment sequence with the next local multi-frame clock boundary. The ADS54J64 transmits four multi-frames, each containing K frames (K is SPI programmable). Each of the multi-frames contains the frame start and end symbols and the second multi-frame also contains the JESD204 link configuration data.

ADS54J64 jesd204b_initial_lane_align_bas717.gif Figure 67. ILA Sequence

7.5.3 JESD204B Frame Assembly

The JESD204B standard defines the following parameters:

  • L is the number of lanes per link
  • M is the number of converters per device
  • F is the number of octets per frame clock period
  • S is the number of samples per frame

Table 3 lists the available JESD204B formats and valid ranges for the ADS54J64. The ranges are limited by the SerDes line rate and the maximum ADC sample frequency.

Table 3. Available JESD204B Formats and Valid Ranges for the ADS54J64

L M F S OPERATING MODE DIGITAL MODE OUTPUT FORMAT MAX ADC OUTPUT
RATE (MSPS)
MAX fSerDes
(Gbps)
JESD PLL REGISTER CONFIGURATION
4 8 4 1 0, 1 2x decimation Complex 250 10.0 —
4 4 2 1 2, 4 2x decimation Real 250 5.0 CTRL_SER_MODE = 1,
SerDes_MODE = 1
2 4 4 1 2, 4 2x decimation Real 250 10.0 —
4 8 4 1 6 4x decimation Complex 125 5.0 —
2 8 8 1 6 4x decimation Complex 125 10.0 CTRL_SER_MODE = 1,
SerDes_MODE = 3
4 4 2 1 7 2x decimation with 0-pad Real 500 10.0 —
4 4 2 1 3, 8 DDC bypass Real 500 10.0 —
4 2 1 1 8 DDC bypass dual ADC Real 1000 10.0 —

Table 4, Table 5, and Table 6 show the detailed frame assembly for various LMFS settings.

Table 4. Detailed Frame Assembly for Four-Lane Modes (Modes 0, 1, 3, 6, 7, and 8)

OUTPUT LANE LMFS = 4841 LMFS = 4421 LMFS = 4421
DA AI0[15:8] AI0[7:0] AQ0[15:8] AQ0[7:0] A0[15:8] A0[7:0] A1[15:8] A1[7:0] A0[15:8] A0[7:0] 0000 0000 0000 0000
DB BI0[15:8] BI0[7:0] BQ0[15:8] BQ0[7:0] B0[15:8] B0[7:0] B1[15:8] B1[7:0] B0[15:8] B0[7:0] 0000 0000 0000 0000
DC CI0[15:8] CI0[7:0] CQ0[15:8] CQ0[7:0] C0[15:8] C0[7:0] C1[15:8] C1[7:0] C0[15:8] C0[7:0] 0000 0000 0000 0000
DD DI0[15:8] DI0[7:0] DQ0[15:8] DQ0[7:0] D0[15:8] D0[7:0] D1[15:8] D1[7:0] D0[15:8] D0[7:0] 0000 0000 0000 0000

Table 5. Detailed Frame Assembly for Two-Lane Modes (Modes 2 and 4)

OUTPUT LANE LMFS = 2441 LMFS = 2881
DB A0[15:8] A0[7:0] B0[15:8] B0[7:0] AI0[15:8] AI0[7:0] AQ0[15:8] AQ0[7:0] BI0[15:8] BI0[7:0] BQ0[15:8] BQ0[7:0]
DC C0[15:8] C0[7:0] D0[15:8] D0[7:0] CI0[15:8] CI0[7:0] CQ0[15:8] CQ0[7:0] DI0[15:8] DI0[7:0] DQ0[15:8] DQ0[7:0]

Table 6. Detailed Frame Assembly for Four-Lane Mode (2x Interleaved Dual ADC)

OUTPUT LANE LMFS = 4211
DA AB(1)0[15:8] AB1[15:8] AB2[15:8] AB3[15:8]
DB AB0[7:0] AB1[7:0] AB2[7:0] AB3[7:0]
DC CD(2)0[15:8] CD1[15:8] CD2[15:8] CD3[15:8]
DD CD0[7:0] CD1[7:0] CD2[7:0] CD3[7:0]
(1) AB corresponds to the average output of channel A and channel B.
(2) CD corresponds to the average output of channel C and channel D.

7.5.4 JESD Output Switch

To ease layout constraints, the ADS54J64 provides a digital cross-point switch in the JESD204B block (as shown in Figure 68) that allows internal routing of any output of the two ADCs within one channel pair to any of the two JESD204B serial transmitters. The cross-point switch routing is configured via the SPI (address 41h in the SERDES_XX digital page).

ADS54J64 jesd_output_switch_bes717.gif Figure 68. Switching the Output Lanes

7.5.4.1 SerDes Transmitter Interface

As shown in Figure 69, each 10-Gbps SerDes transmitter output requires ac-coupling between the transmitter and receiver. Terminate the differential pair with 100 Ω as close to the receiving device as possible to avoid unwanted reflections and signal degradation.

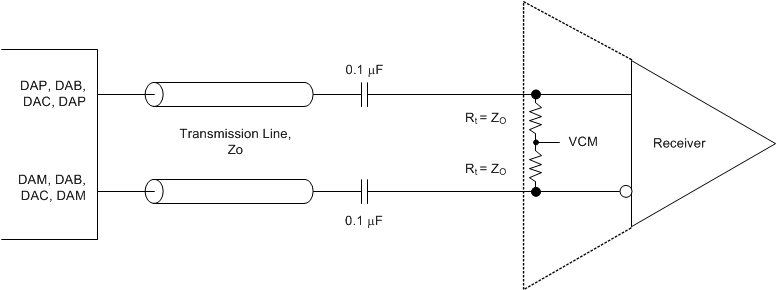

ADS54J64 cml_serdes_trans_interf_bas717.gif Figure 69. SerDes Transmitter Connection to Receiver

7.5.4.2 SYNCb Interface

The ADS54J64 supports single SYNCb control (where the SYNCb input controls all four JESD204B links) or dual SYNCb control (where one SYNCb input controls two JESD204B lanes: DA, DB and DC, DD). When using the single SYNCb control, connect the unused input to a differential logic high (SYNCbxxP = DVDD, SYNCbxxM = 0 V).

7.5.4.3 Eye Diagram

Figure 70 to Figure 73 show the serial output eye diagrams of the ADS54J64 at 7.5 Gbps and 10 Gbps with default and increased output voltage swing against the JESD204B mask.

ADS54J64 eye_dgm1_sbas807.gif Figure 70. Eye at 10-Gbps Bit Rate With
Default Output Swing
ADS54J64 eye_dgm3_sbas807.gif Figure 72. Eye at 10-Gbps Bit Rate With
Increased Output Swing
ADS54J64 eye_dgm2_sbas807.gif Figure 71. Eye at 7.5-Gbps Bit Rate With
Default Output Swing
ADS54J64 eye_dgm4_sbas807.gif Figure 73. Eye at 7.5-Gbps Bit Rate With
Increased Output Swing

7.5.5 Device Configuration

The ADS54J64 can be configured using a serial programming interface, as described in the Register Maps section. In addition, the device has one dedicated parallel pin (PDN) for controlling the power-down modes. The ADS54J64 supports a 24-bit (16-bit address, 8-bit data) SPI operation and uses paging to access all register bits.

7.5.5.1 Details of the Serial Interface

The ADC has a set of internal registers that can be accessed by the serial interface formed by the SEN (serial interface enable), SCLK (serial interface clock), SDIN (serial data input data), and SDOUT (serial data output) pins. Serially shifting bits into the device is enabled when SEN is low. SDIN serial data are latched at every SCLK rising edge when SEN is active (low). Data can be loaded in multiples of 24-bit words within a single active SEN pulse. The first 16 bits form the register address and the remaining eight bits are the register data. The interface can work with SCLK frequencies from 10 MHz down to very low speeds (of a few hertz) and also with a non-50% SCLK duty cycle.

7.5.5.1.1 Register Initialization

After power-up, the internal registers must be initialized to the default values. This initialization can be accomplished in one hardware reset by applying a high pulse on the RESET pin.

7.5.5.2 Serial Register Write

The internal registers of the ADS54J64 can be programmed (as shown in Figure 74) by:

  1. Driving the SEN pin low
  2. Setting the R/W bit = 0
  3. Initiating a serial interface cycle specifying the address of the register (A[14:0]) whose content must be written
  4. Writing the 8-bit data that is latched in on the SCLK rising edge

The ADS54J64 has several different register pages (page selection in address 11h, 12h). Specify the register page before writing to the desired address. The register page only must be set one time for continuous writes to the same page.

During the write operation, the SDOUT pin is in a high-impedance mode and must float.

ADS54J64 serial_regstr_write_sbas807.gif Figure 74. Serial Interface Write Timing Diagram

7.5.5.3 Serial Read

Figure 75 shows a typical 4-wire serial register readout. In the default 4-pin configuration, the SDIN pin is the data output from the ADS54J64 during the data transfer cycle when SDOUT is in a high-impedance state. The internal registers of the ADS54J64 can be read out by:

  1. Driving the SEN pin low
  2. Setting the R/W bit to 1 to enable read back
  3. Specifying the address of the register (A[14:0]) whose content must be read back
  4. The device outputs the contents (D[7:0]) of the selected register on the SDOUT pin (pin 51)
  5. The external controller can latch the contents at the SCLK rising edge

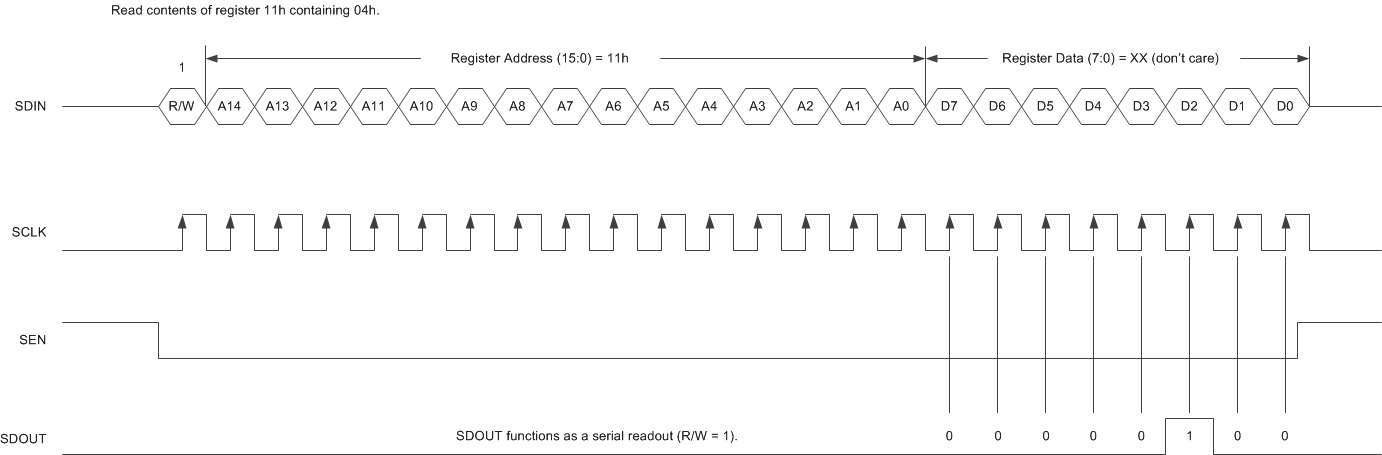

ADS54J64 serial_regstr_read_back_sbas807.gif Figure 75. Serial Interface 4-Wire Read Timing Diagram

7.6 Register Maps

7.6.1 Register Map

The ADS54J64 registers are organized on different pages depending on their internal functions. The pages are accessed by selecting the page in the master pages 11h–13h. The page selection must only be written one time for a continuous update of registers for that page.

There are six different SPI banks (see Figure 76 and Table 7) that group together different functions:

  • GLOBAL: contains controls for accessing other SPI banks
  • DIGTOP: top-level digital functions
  • ANALOG: registers controlling power-down and analog functions
  • SERDES_XX: registers controlling JESD204B functions
  • CHX: registers controlling channel-specific functions, including DDC
  • ADCXX: register page for one of the eight interleaved ADCs

ADS54J64 spi_banks_sbas807.gif Figure 76. SPI Register Block Diagram

Table 7. Serial Interface Register Map

ADDRESS (Hex) 7 6 5 4 3 2 1 0
GLOBAL PAGE
00h WRITE_1 0 0 0 0 0 0 SW_RESET
04h VERSION_ID
11h SPI_D2 SPI_D1 SPI_C2 SPI_C1 SPI_B2 SPI_B1 SPI_A2 SPI_A1
12h 0 SPI_SERDES_CD SPI_SERDES_AB SPI_CHD SPI_CHC SPI_CHB SPI_CHA SPI_DIGTOP
13h 0 0 0 0 0 0 0 SPI_ANALOG
DIGTOP PAGE
64h 0 0 0 0 0 0 FS_375_500 0
8Dh CUSTOMPATTERN1[7:0]
8Eh CUSTOMPATTERN1[15:8]
8Fh CUSTOMPATTERN2[7:0]
90h CUSTOMPATTERN2[15:8]
91h TESTPATTERNSELECT TESTPATTERNENCHD TESTPATTERNENCHC TESTPATTERNENCHB TESTPATTERNENCHA
A5h 0 0 0 0 0 0 CH_CD_AVG_EN CH_AB_AVG_EN
A6h 0 0 AVG_ENABLE OVR_ON_LSB GAIN_WORD_ENABLE 0 0 0
ABh 0 0 0 0 0 0 INTERLEAVE_A SPECIALMODE0
ACh 0 0 0 0 0 0 INTERLEAVE_C SPECIALMODE1
ADh 0 0 0 0 DDCMODEAB
AEh 0 0 0 0 DDCMODECD
B7h 0 0 0 0 0 0 0 LOAD_TRIMS
8Ch 0 0 0 0 0 0 ENABLE_LOAD_TRIMS 0
ANALOG PAGE
6Ah 0 0 0 0 0 0 DIS_SYSREF 0
6Fh 0 JESD_SWING 0 0 0 0
71h EMP_LANE_B[5:4] EMP_LANE_A
72h 0 0 0 0 EMP_LANE_B[3:0]
93h EMP_LANE_D[5:4] EMP_LANE_C
94h 0 0 0 0 EMP_LANE_D[3:0]
9Bh 0 0 0 SYSREF_PDN 0 0 0 0
9Dh PDN_CHA PDN_CHB 0 0 PDN_CHD PDN_CHC 0 0
9Eh 0 0 0 PDN_SYNCAB 0 0 0 PDN_GLOBAL
9Fh 0 0 0 0 0 0 PIN_PDN_MODE FAST_PDN
AFh 0 0 0 0 0 0 PDN_SYNCCD 0
SERDES_XX PAGE
20h CTRL_K CTRL_SER_MODE 0 TRANS_TEST_EN 0 LANE_ALIGN FRAME_ALIGN TX_ILA_DIS
21h SYNC_REQ OPT_SYNC_REQ SYNCB_SEL_AB_CD 0 0 0 SERDES_MODE
22h LINK_LAYER_TESTMODE_SEL RPAT_SET_DISP LMFC_MASK_RESET 0 0 0
23h FORCE_LMFC_COUNT LMFC_CNT_INIT RELEASE_ILANE_REQ
25h SCR_EN 0 0 0 0 0 0 0
26h 0 0 0 K_NO_OF_FRAMES_PER_MULTIFRAME
28h 0 0 0 0 CTRL_LID 0 0 0
2Dh LID1 LID2
36h PRBS_MODE 0 0 0 0 0 0
41h LANE_BONA LANE_AONB
42h 0 0 0 0 INVERT_AC INVERT_BD
CHX PAGE
26h 0 0 0 0 0 0 GAINWORD
27h OVR_ENABLE OVR_FAST_SEL 0 0 OVR_LSB1 0 OVR_LSB0 0
2Dh 0 0 0 0 0 0 NYQUIST_SELECT 0
78h 0 0 0 0 0 FS4_SIGN NYQ_SEL_MODE02 NYQ_SEL
7Ah NCO_WORD[15:8]
7Bh NCO_WORD[7:0]
7Eh 0 0 0 0 0 MODE467_GAIN MODE0_GAIN MODE13_GAIN
ADCXX PAGE
07h FAST_OVR_THRESHOLD_HIGH
08h FAST_OVR_THRESHOLD_LOW
D5h 0 0 0 0 CAL_EN 0 0 0
2Ah 0 0 0 0 0 0 0 ADC_TRIM1
CFh ADC_TRIM2 0 0 0 0

7.6.1.1 Register Description

Table 8 lists the access codes for the ADS54J64 registers.

Table 8. ADS54J64 Access Type Codes

Access Type Code Description
R R Read
R/W R-W Read or Write
W W Write
-n Value after reset or the default value

7.6.1.1.1 GLOBAL Page Register Description

7.6.1.1.1.1 Register 00h (address = 00h) [reset = 0h], GLOBAL Page

Figure 77. Register 0h
7 6 5 4 3 2 1 0
WRITE_1 0 0 0 0 0 0 SW_RESET
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 9. Register 00h Field Descriptions

Bit Field Type Reset Description
7 WRITE_1 R/W 0h Always write 1
6-1 0 R/W 0h Must read or write 0
0 SW_RESET R/W 0h This bit rests the device.

7.6.1.1.1.2 Register 04h (address = 04h) [reset = 0h], GLOBAL Page

Figure 78. Register 4h
7 6 5 4 3 2 1 0
VERSION_ID
R-0h

Table 10. Register 04h Field Descriptions

Bit Field Type Reset Description
7-0 VERSION_ID R 0h These bits set the version ID of the device.
16 : PG 1.0
32 : PG 2.0
48 : PG 3.0

7.6.1.1.1.3 Register 11h (address = 11h) [reset = 0h], GLOBAL Page

Figure 79. Register 11h
7 6 5 4 3 2 1 0
SPI_D2 SPI_D1 SPI_C2 SPI_C1 SPI_B2 SPI_B1 SPI_A2 SPI_A1
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 11. Register 11h Field Descriptions

Bit Field Type Reset Description
7 SPI_D2 R/W 0h This bit selects the ADC D2 SPI.
0 : ADC D2 SPI is disabled
1 : ADC D2 SPI is enabled
6 SPI_D1 R/W 0h This bit selects the ADC D1 SPI.
0 : ADC D1 SPI is disabled
1 : ADC D1 SPI is enabled
5 SPI_C2 R/W 0h This bit selects the ADC C2 SPI
0 : ADC C2 SPI is disabled
1 : ADC C2 SPI is enabled
4 SPI_C1 R/W 0h This bit selects the ADC C1 SPI.
0 : ADC C1 SPI is disabled
1 : ADC C1 SPI is enabled
3 SPI_B2 R/W 0h This bit selects the ADC B2 SPI.
0 : ADC B2 SPI is disabled
1 : ADC B2 SPI is enabled
2 SPI_B1 R/W 0h This bit selects the ADC B1 SPI.
0 : ADC B1 SPI is disabled
1 : ADC B1 SPI is enabled
1 SPI_A2 R/W 0h This bit selects the ADC A2 SPI.
0 : ADC A2 SPI is disabled
1 : ADC A2 SPI is enabled
0 SPI_A1 R/W 0h This bit selects the ADC A1 SPI.
0 : ADC A1 SPI is disabled
1 : ADC A1 SPI is enabled

7.6.1.1.1.4 Register 12h (address = 12h) [reset = 0h], GLOBAL Page

Figure 80. Register 12h
7 6 5 4 3 2 1 0
0 SPI_SERDES_CD SPI_SERDES_AB SPI_CHD SPI_CHC SPI_CHB SPI_CHA SPI_DIGTOP
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 12. Register 12h Field Descriptions

Bit Field Type Reset Description
7 0 R/W 0h Must read or write 0
6 SPI_SERDES_CD R/W 0h This bit selects the channel CD SerDes SPI.
0 : Channel CD SerDes SPI is disabled
1 : Channel CD SerDes SPI is enabled
5 SPI_SERDES_AB R/W 0h This bit selects the channel AB SerDes SPI.
0 : Channel AB SerDes is disabled
1 : Channel AB SerDes is enabled
4 SPI_CHD R/W 0h This bit selects the channel D SPI.
0 : Channel D SPI is disabled
1 : Channel D SPI is enabled
3 SPI_CHC R/W 0h This bit selects the channel C SPI.
0 : Channel C SPI is disabled
1 : Channel C SPI is enabled
2 SPI_CHB R/W 0h This bit selects the channel B SPI.
0 : Channel B SPI is disabled
1 : Channel B SPI is enabled
1 SPI_CHA R/W 0h This bit selects the channel A SPI.
0 : Channel A SPI is disabled
1 : Channel A SPI is enabled
0 SPI_DIGTOP R/W 0h This bit selects the DIGTOP SPI.
0 : DIGTOP SPI is disabled
1 : DIGTOP SPI is enabled

7.6.1.1.1.5 Register 13h (address = 13h) [reset = 0h], GLOBAL Page

Figure 81. Register 13h
7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 SPI_ANALOG
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 13. Register 13h Field Descriptions

Bit Field Type Reset Description
7-1 0 R/W 0h Must read or write 0
0 SPI_ANALOG R/W 0h This bit selects the analog SPI.
0 : Analog SPI is disabled
1 : Analog SPI is enabled

7.6.1.1.2 DIGTOP Page Register Description

7.6.1.1.2.1 Register 64h (address = 64h) [reset = 0h], DIGTOP Page

Figure 82. Register 64h
7 6 5 4 3 2 1 0
0 0 0 0 0 0 FS_375_500 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 14. Register 64h Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 FS_375_500 R/W 0h This bit selects the clock rate for loading trims.
0 : 375 MSPS
1 : 500 MSPS
0 0 R/W 0h Must read or write 0

7.6.1.1.2.2 Register 8Dh (address = 8Dh) [reset = 0h], DIGTOP Page

Figure 83. Register 8Dh
7 6 5 4 3 2 1 0
CUSTOMPATTERN1[7:0]
R/W-0h

Table 15. Register 8Dh Field Descriptions

Bit Field Type Reset Description
7-0 CUSTOMPATTERN1[7:0] R/W 0h These bits set the custom pattern 1 that is used when the test pattern is enabled and set to a single or dual test pattern.

7.6.1.1.2.3 Register 8Eh (address = 8Eh) [reset = 0h], DIGTOP Page

Figure 84. Register 8Eh
7 6 5 4 3 2 1 0
CUSTOMPATTERN1[15:8]
R/W-0h

Table 16. Register 8Eh Field Descriptions

Bit Field Type Reset Description
7-0 CUSTOMPATTERN1[15:8] R/W 0h These bits set the custom pattern 1 that is used when the test pattern is enabled and set to a single or dual test pattern.

7.6.1.1.2.4 Register 8Fh (address = 8Fh) [reset = 0h], DIGTOP Page

Figure 85. Register 8Fh
7 6 5 4 3 2 1 0
CUSTOMPATTERN2[7:0]
R/W-0h

Table 17. Register 8Fh Field Descriptions

Bit Field Type Reset Description
7-0 CUSTOMPATTERN2[7:0] R/W 0h These bits set the custom pattern 2 that is used when the test pattern select is set to dual pattern mode.

7.6.1.1.2.5 Register 90h (address = 90h) [reset = 0h], DIGTOP Page

Figure 86. Register 90h
7 6 5 4 3 2 1 0
CUSTOMPATTERN2[15:8]
R/W-0h

Table 18. Register 90h Field Descriptions

Bit Field Type Reset Description
7-0 CUSTOMPATTERN2[15:8] R/W 0h These bits set the custom pattern 2 that is used when the test pattern select is set to dual pattern mode.

7.6.1.1.2.6 Register 91h (address = 91h) [reset = 0h], DIGTOP Page

Figure 87. Register 91h
7 6 5 4 3 2 1 0
TESTPATTERNSELECT TESTPATTERNENCHD TESTPATTERNENCHC TESTPATTERNENCHB TESTPATTERNENCHA
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 19. Register 91h Field Descriptions

Bit Field Type Reset Description
7-4 TESTPATTERNSELECT R/W 0h These bits select the test pattern on the output when the test pattern is enabled for a suitable channel.
0 : Default
1 : All zeros
2 : All ones
3 : Toggle pattern
4 : Ramp pattern
6 : Custom pattern 1
7 : Toggle between custom pattern 1 and custom pattern 2
8 : Deskew pattern (0xAAAA)
3 TESTPATTERNENCHD R/W 0h This bit enables the channel D test pattern.
0 : Default data on channel D
1 : Enable test pattern on channel D
2 TESTPATTERNENCHC R/W 0h This bit enables the channel C test pattern.
0 : Default data on channel C
1 : Enable test pattern on channel C
1 TESTPATTERNENCHB R/W 0h This bit enables the channel B test pattern.
0 : Default data on channel B
1 : Enable test pattern on channel B
0 TESTPATTERNENCHA R/W 0h This bit enables the channel A test pattern.
0 : Default data on channel A
1 : Enable test pattern on channel A

7.6.1.1.2.7 Register A5h (address = A5h) [reset = 0h], DIGTOP Page

Figure 88. Register A5h
7 6 5 4 3 2 1 0
0 0 0 0 0 0 CH_CD_AVG_EN CH_AB_AVG_EN
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 20. Register A5h Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 CH_CD_AVG_EN R/W 0h 0: Averaging is disabled for channels C, D
1: Averaging is enabled for channels C, D; set AVG_ENABLE in Register A6h (address = A6h) [reset = 0h], DIGTOP Page to 1 if using this option
0 CH_AB_AVG_EN R/W 0h 0: Averaging is disabled for channels A, B
1: Averaging is enabled for channels A, B; set AVG_ENABLE in Register A6h (address = A6h) [reset = 0h], DIGTOP Page to 1 if using this option

7.6.1.1.2.8 Register A6h (address = A6h) [reset = 0h], DIGTOP Page

Figure 89. Register A6h
7 6 5 4 3 2 1 0
0 0 AVG_ENABLE OVR_ON_
LSB
GAIN_WORD_
ENABLE
0 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 21. Register A6h Field Descriptions

Bit Field Type Reset Description
7-6 0 R/W 0h Must read or write 0
5 AVG_ENABLE R/W 0h 0: Default operation
1: Enable averaging option for the AB and CD channel pairs
4 OVR_ON_LSB R/W 0h This bit enables the overrange indicator (OVR) on the LSB1 and LSB0 bits. OVR_LSB1 and OVR_LSB0 must be configured in register 27h of the CHX page.
0 : Default data
1 : OVR on LSB1 and LSB0 bits
3 GAIN_WORD_ENABLE R/W 0h This bit enables the digital gain. Gain can be programmed using the GAINWORD bits in register 26h of the CHX page.
0 : Disable digital gain
1 : Enable digital gain
2-0 0 R/W 0h Must read or write 0

7.6.1.1.2.9 Register ABh (address = ABh) [reset = 0h], DIGTOP Page

Figure 90. Register ABh
7 6 5 4 3 2 1 0
0 0 0 0 0 0 INTERLEAVE_A SPECIALMODE0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 22. Register ABh Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 INTERLEAVE_A R/W 0h 0: Default operation
1: 2x interleaved data enable; this bit is used in dual ADC mode to bring the average data of channels A and B on the JESD outputs; averaging mode is enabled by setting CH_AB_AVG_EN to 1 (see register A5h)
0 SPECIALMODE0 R/W 0h Always write 1

7.6.1.1.2.10 Register ACh (address = ACh) [reset = 0h], DIGTOP Page

Figure 91. Register ACh
7 6 5 4 3 2 1 0
0 0 0 0 0 0 INTERLEAVE_C SPECIALMODE1
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 23. Register ACh Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 INTERLEAVE_C R/W 0h 0: Default operation
1: 2x interleaved data enable; this bit is used in dual ADC mode to bring the average data of channels C and D on the JESD outputs; averaging mode is enabled by setting CH_CD_AVG_EN to 1 (see register A5h)
0 SPECIALMODE1 R/W 0h Always write 1

7.6.1.1.2.11 Register ADh (address = ADh) [reset = 0h], DIGTOP Page

Figure 92. Register ADh
7 6 5 4 3 2 1 0
0 0 0 0 DDCMODEAB
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 24. Register ADh Field Descriptions

Bit Field Type Reset Description
7-4 0 R/W 0h Must read or write 0
3-0 DDCMODEAB R/W 0h These bits select the DDC mode for the AB channel pair.
0 : Mode 0
1 : Mode 1
2 : Mode 2
3 : Mode 3
4 : Mode 4
6 : Mode 6
7 : Mode 7
8 : Mode 8

7.6.1.1.2.12 Register AEh (address = AEh) [reset = 0h], DIGTOP Page

Figure 93. Register AEh
7 6 5 4 3 2 1 0
0 0 0 0 DDCMODECD
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 25. Register AEh Field Descriptions

Bit Field Type Reset Description
7-4 0 R/W 0h Must read or write 0
3-0 DDCMODECD R/W 0h These bits select the DDC mode for the CD channel pair.
0 : Mode 0
1 : Mode 1
2 : Mode 2
3 : Mode 3
4 : Mode 4
6 : Mode 6
7 : Mode 7
8 : Mode 8

7.6.1.1.2.13 Register B7h (address = B7h) [reset = 0h], DIGTOP Page

Figure 94. Register B7h
7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 LOAD_TRIMS
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 26. Register B7h Field Descriptions

Bit Field Type Reset Description
7-1 0 R/W 0h Must read or write 0
0 LOAD_TRIMS R/W 0h This bit load trims the device.

7.6.1.1.2.14 Register 8Ch (address = 8Ch) [reset = 0h], DIGTOP Page

Figure 95. Register 8Ch
7 6 5 4 3 2 1 0
0 0 0 0 0 0 ENABLE_LOAD_TRIMS 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 27. Register 8Ch Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 ENABLE_LOAD_TRIMS R/W 0h 0: Trim loading is disabled
1: Trim loading is enabled (recommended)
0 0 R/W 0h Must read or write 0

7.6.1.1.3 ANALOG Page Register Description

7.6.1.1.3.1 Register 6Ah (address = 6Ah) [reset = 0h], ANALOG Page

Figure 96. Register 6Ah
7 6 5 4 3 2 1 0
0 0 0 0 0 0 DIS_SYSREF 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 28. Register 6Ah Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 DIS_SYSREF R/W 0h This bit masks the SYSREF input.
0 : SYSREF input is not masked
1 : SYSREF input is masked
0 0 R/W 0h Must read or write 0

7.6.1.1.3.2 Register 6Fh (address = 6Fh) [reset = 0h], ANALOG Page

Figure 97. Register 6Fh
7 6 5 4 3 2 1 0
0 JESD_SWING 0 0 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 29. Register 6Fh Field Descriptions

Bit Field Type Reset Description
7 0 R/W 0h Must read or write 0
6-4 JESD_SWING R/W 0h These bits control the JESD swing.
0 : 860 mVPP
1 : 810 mVPP
2 : 770 mVPP
3 : 745 mVPP
4 : 960 mVPP
5 : 930 mVPP
6 : 905 mVPP
7 : 880 mVPP
3-0 0 R/W 0h Must read or write 0

7.6.1.1.3.3 Register 71h (address = 71h) [reset = 0h], ANALOG Page

Figure 98. Register 71h
7 6 5 4 3 2 1 0
EMP_LANE_B[5:4] EMP_LANE_A
R/W-0h R/W-0h

Table 30. Register 71h Field Descriptions

Bit Field Type Reset Description
7-6 EMP_LANE_B[5:4] R/W 0h These bits along with bits 3-0 of register 72h set the de-emphasis for lane B.
These bits select the amount of de-emphasis for the JESD output transmitter. The de-emphasis value in decibels (dB) is measured as the ratio between the peak value after the signal transitions to the settled value of the voltage in one bit period.
0 : 0 dB
1 : –1 dB
3 : –2 dB
7 : –4.1 dB
15 : –6.2 dB
31 : –8.2 dB
63 : –11.5 dB
Others: Do not use
5-0 EMP_LANE_A R/W 0h These bits set the de-emphasis for lane A.
These bits select the amount of de-emphasis for the JESD output transmitter. The de-emphasis value in dB is measured as the ratio between the peak value after the signal transitions to the settled value of the voltage in one bit period.
0 : 0 dB
1 : –1 dB
3 : –2 dB
7 : –4.1 dB
15 : –6.2 dB
31 : –8.2 dB
63 : –11.5 dB
Others: Do not use

7.6.1.1.3.4 Register 72h (address = 72h) [reset = 0h], ANALOG Page

Figure 99. Register 72h
7 6 5 4 3 2 1 0
0 0 0 0 EMP_LANE_B[3:0]
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 31. Register 72h Field Descriptions

Bit Field Type Reset Description
7-4 0 R/W 0h Must read or write 0
3-0 EMP_LANE_B[3:0] R/W 0h These bits along with bits 7-6 of register 71h set the de-emphasis for lane B.
These bits select the amount of de-emphasis for the JESD output transmitter. The de-emphasis value in dB is measured as the ratio between the peak value after the signal transitions to the settled value of the voltage in one bit period.
0 : 0 dB
1 : –1 dB
3 : –2 dB
7 : –4.1 dB
15 : –6.2 dB
31 : –8.2 dB
63 : –11.5 dB
Others: Do not use

7.6.1.1.3.5 Register 93h (address = 93h) [reset = 0h], ANALOG Page

Figure 100. Register 93h
7 6 5 4 3 2 1 0
EMP_LANE_D[5:4] EMP_LANE_C
R/W-0h R/W-0h

Table 32. Register 93h Field Descriptions

Bit Field Type Reset Description
7-6 EMP_LANE_D[5:4] R/W 0h These bits along with bits 3-0 of register 94h set the de-emphasis for lane D.
These bits select the amount of de-emphasis for the JESD output transmitter. The de-emphasis value in dB is measured as the ratio between the peak value after the signal transitions to the settled value of the voltage in one bit period.
0 : 0 dB
1 : –1 dB
3 : –2 dB
7 : –4.1 dB
15 : –6.2 dB
31 : –8.2 dB
63 : –11.5 dB
Others: Do not use
5-0 EMP_LANE_C R/W 0h These bits set the de-emphasis for lane C.
These bits select the amount of de-emphasis for the JESD output transmitter. The de-emphasis value in dB is measured as the ratio between the peak value after the signal transitions to the settled value of the voltage in one bit period.
0 : 0 dB
1 : –1 dB
3 : –2 dB
7 : –4.1 dB
15 : –6.2 dB
31 : –8.2 dB
63 : –11.5 dB
Others: Do not use

7.6.1.1.3.6 Register 94h (address = 94h) [reset = 0h], ANALOG Page

Figure 101. Register 94h
7 6 5 4 3 2 1 0
0 0 0 0 EMP_LANE_D[3:0]
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 33. Register 94h Field Descriptions

Bit Field Type Reset Description
7-4 0 R/W 0h Must read or write 0
3-0 EMP_LANE_D[3:0] R/W 0h These bits along with bits 7-4 of register 93h set the de-emphasis for lane D.
These bits select the amount of de-emphasis for the JESD output transmitter. The de-emphasis value in dB is measured as the ratio between the peak value after the signal transitions to the settled value of the voltage in one bit period.
0 : 0 dB
1 : –1 dB
3 : –2 dB
7 : –4.1 dB
15 : –6.2 dB
31 : –8.2 dB
63 : –11.5 dB
Others: Do not use

7.6.1.1.3.7 Register 9Bh (address = 9Bh) [reset = 0h], ANALOG Page

Figure 102. Register 9Bh
7 6 5 4 3 2 1 0
0 0 0 SYSREF_PDN 0 0 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 34. Register 9Bh Field Descriptions

Bit Field Type Reset Description
7-5 0 R/W 0h Must read or write 0
4 SYSREF_PDN R/W 0h This bit powers down the SYSREF buffer.
0 : SYSREF buffer is powered up
1 : SYSREF buffer is powered down
3-0 0 R/W 0h Must read or write 0

7.6.1.1.3.8 Register 9Dh (address = 9Dh) [reset = 0h], ANALOG Page

Figure 103. Register 9Dh
7 6 5 4 3 2 1 0
PDN_CHA PDN_CHB 0 0 PDN_CHD PDN_CHC 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 35. Register 9Dh Field Descriptions

Bit Field Type Reset Description
7 PDN_CHA R/W 0h This bit powers down channel A.
0 : Normal operation
1 : Channel A is powered down
6 PDN_CHB R/W 0h This bit powers down channel B.
0 : Normal operation
1 : Channel B is powered down
5-4 0 R/W 0h Must read or write 0
3 PDN_CHD R/W 0h This bit powers down channel D.
0 : Normal operation
1 : Channel D is powered down
2 PDN_CHC R/W 0h This bit powers down channel C.
0 : Normal operation
1 : Channel C is powered down
1-0 0 R/W 0h Must read or write 0

7.6.1.1.3.9 Register 9Eh (address = 9Eh) [reset = 0h], ANALOG Page

Figure 104. Register 9Eh
7 6 5 4 3 2 1 0
0 0 0 PDN_SYNCAB 0 0 0 PDN_GLOBAL
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 36. Register 9Eh Field Descriptions

Bit Field Type Reset Description
7-5 0 R/W 0h Must read or write 0
4 PDN_SYNCAB R/W 0h This bit controls the STNCAB buffer power-down.
0 : SYNCAB buffer is powered up
1 : SYNCAB buffer is powered down
3-1 0 R/W 0h Must read or write 0
0 PDN_GLOBAL R/W 0h This bit controls the global power-down.
0 : Global power-up
1 : Global power-down

7.6.1.1.3.10 Register 9Fh (address = 9Fh) [reset = 0h], ANALOG Page

Figure 105. Register 9Fh
7 6 5 4 3 2 1 0
0 0 0 0 0 0 PIN_PDN_MODE FAST_PDN
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 37. Register 9Fh Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 PIN_PDN_MODE R/W 0h This bit selects the pin power-down mode.
0 : PDN pin is configured to fast power-down
1 : PDN pin is configured to global power-down
0 FAST_PDN R/W 0h This bit controls the fast power-down.
0 : Device powered up
1 : Fast power down

7.6.1.1.3.11 Register AFh (address = AFh) [reset = 0h], ANALOG Page

Figure 106. Register AFh
7 6 5 4 3 2 1 0
0 0 0 0 0 0 PDN_SYNCCD 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 38. Register AFh Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 PDN_SYNCCD R/W 0h This bit controls the SYNCCD buffer power-down.
0 : SYNCCD buffer is powered up
1 : SYNCCD buffer is powered down
0 0 R/W 0h Must read or write 0

7.6.1.1.4 SERDES_XX Page Register Description

7.6.1.1.4.1 Register 20h (address = 20h) [reset = 0h], SERDES_XX Page

Figure 107. Register 20h
7 6 5 4 3 2 1 0
CTRL_K CTRL_SER_
MODE
0 TRANS_TEST_EN 0 LANE_ALIGN FRAME_ALIGN TX_ILA_DIS
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 39. Register 20h Field Descriptions

Bit Field Type Reset Description
7 CTRL_K R/W 0h This bit is the enable bit for programming the number of frames per multi-frame.
0 : Five frames per multi-frame (default)
1 : Frames per multi-frame can be programmed using register 26h
6 CTRL_SER_MODE R/W 0h This bit allows the SERDES_MODE setting in register 21h (bits 1-0) to be changed.
0 : Disabled
1 : Enables SERDES_MODE setting
5 0 R/W 0h Must read or write 0
4 TRANS_TEST_EN R/W 0h This bit generates the long transport layer test pattern mode, as per section 5.1.6.3 of the JESD204B specification.
0 : Test mode is disabled
1 : Test mode is enabled
3 0 R/W 0h Must read or write 0
2 LANE_ALIGN R/W 0h This bit inserts the lane-alignment character (K28.3) for the receiver to align to the lane boundary, as per section 5.3.3.5 of the JESD204B specification.
0 : Normal operation
1 : Inserts lane-alignment characters
1 FRAME_ALIGN R/W 0h This bit inserts the frame-alignment character (K28.7) for the receiver to align to the lane boundary, as per section 5.3.3.5 of the JESD204B specification.
0 : Normal operation
1 : Inserts frame-alignment characters
0 TX_ILA_DIS R/W 0h This bit disables sending the initial link alignment (ILA) sequence when SYNC is deasserted.
0 = Normal operation
1 = Disables ILA

7.6.1.1.4.2 Register 21h (address = 21h) [reset = 0h], SERDES_XX Page

Figure 108. Register 21h
7 6 5 4 3 2 1 0
SYNC_REQ OPT_SYNC_REQ SYNCB_SEL_AB_CD 0 0 0 SERDES_MODE
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 40. Register 21h Field Descriptions

Bit Field Type Reset Description
7 SYNC_REQ R/W 0h This bit controls the SYNC register (bit 6 must be enabled).
0 : Normal operation
1 : ADC output data are replaced with K28.5 characters
6 OPT_SYNC_REQ R/W 0h This bit enables SYNC operation.
0 : Normal operation
1 : Enables SYNC from the SYNC_REQ register bit
5 SYNCB_SEL_AB_CD R/W 0h This bit selects which SYNCb input controls the JESD interface.
0 : Use the SYNCbAB, SYNCbCD pins
1 : When set in the SerDes AB SPI, SYNCbCD is used for the SerDes AB and CD; when set in the SerDes CD SPI, SYNCbAB is used for the SerDes AB and CD
4-2 0 R/W 0h Must read or write 0
1-0 SerDes_MODE R/W 0h These bits set the JESD output parameters. The CTRL_SER_MODE bit (register 20h, bit 6) must also be set to control these bits. These bits are auto configured for modes 0, 1, 3, and 7, but must be configured for modes 2, 4, and 6.

7.6.1.1.4.3 Register 22h (address = 22h) [reset = 0h], SERDES_XX Page

Figure 109. Register 22h
7 6 5 4 3 2 1 0
LINK_LAYER_TESTMODE_SEL RPAT_SET_DISP LMFC_MASK_RESET 0 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 41. Register 22h Field Descriptions

Bit Field Type Reset Description
7-5 LINK_LAYER_TESTMODE_SEL R/W 0h These bits generate a pattern as per section 5.3.3.8.2 of the JESD204B document.
0 : Normal ADC data
1 : D21.5 (high-frequency jitter pattern)
2 : K28.5 (mixed-frequency jitter pattern)
3 : Repeat the initial lane alignment (generates a K28.5 character and continuously repeats lane alignment sequences)
4 : 12-octet RPAT jitter pattern
6 : PRBS pattern (PRBS7, 15, 23, 31); use PRBS_MODE (register 36h, bits 7-6) to select the PRBS pattern
4 RPAT_SET_DISP R/W 0h This bit changes the running disparity in the modified RPAT pattern test mode (only when the link layer test mode = 100).
0 : Normal operation
1 : Changes disparity
3 LMFC_MASK_RESET R/W 0h 0 : Default
1 : Resets the LMFC mask
2-0 0 R/W 0h Must read or write 0

7.6.1.1.4.4 Register 23h (address = 23h) [reset = 0h], SERDES_XX Page

Figure 110. Register 23h
7 6 5 4 3 2 1 0
FORCE_LMFC_COUNT LMFC_CNT_INIT RELEASE_ILANE_REQ
R/W-0h R/W-0h R/W-0h

Table 42. Register 23h Field Descriptions

Bit Field Type Reset Description
7 FORCE_LMFC_COUNT R/W 0h This bit forces an LMFC count.
0 : Normal operation
1 : Enables using a different starting value for the LMFC counter
6-2 LMFC_CNT_INIT R/W 0h These bits set the initial value to which the LMFC count resets. The FORCE_LMFC_COUNT register bit must be enabled.
1-0 RELEASE_ILANE_REQ R/W 0h These bits delay the generation of the lane alignment sequence by 0, 1, 2, or 3 multi-frames after the code group synchronization.
0 : 0 multi-frames
1 : 1 multi-frame
2 : 2 multi-frames
3 : 3 multi-frames

7.6.1.1.4.5 Register 25h (address = 25h) [reset = 0h], SERDES_XX Page

Figure 111. Register 25h
7 6 5 4 3 2 1 0
SCR_EN 0 0 0 0 0 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 43. Register 25h Field Descriptions

Bit Field Type Reset Description
7 SCR_EN R/W 0h This bit is the scramble enable bit in the JESD204B interface.
0 : Scrambling is disabled
1 : Scrambling is enabled
6-0 0 R/W 0h Must read or write 0

7.6.1.1.4.6 Register 26h (address = 26h) [reset = 0h], SERDES_XX Page

Figure 112. Register 26h
7 6 5 4 3 2 1 0
0 0 0 K_NO_OF_FRAMES_PER_MULTIFRAME
R/W-0h R/W-0h R/W-0h R/W-0h

Table 44. Register 26h Field Descriptions

Bit Field Type Reset Description
7-5 0 R/W 0h Must read or write 0
4-0 K_NO_OF_FRAMES_PER_MULTIFRAME R/W 0h These bits set the number of frames per multi-frame.
The K value used is set value + 1 (for example, if the set value is 0xF, then K = 16).

7.6.1.1.4.7 Register 28h (address = 28h) [reset = 0h], SERDES_XX Page

Figure 113. Register 28h
7 6 5 4 3 2 1 0
0 0 0 0 CTRL_LID 0 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 45. Register 28h Field Descriptions

Bit Field Type Reset Description
7-4 0 R/W 0h Must read or write 0
3 CTRL_LID R/W 0h This bit is the enable bit to program the lane ID (LID).
0 : Default LID
1 : Enable LID programming
2-0 0 R/W 0h Must read or write 0

7.6.1.1.4.8 Register 2Dh (address = 2Dh) [reset = 0h], SERDES_XX Page

Figure 114. Register 2Dh
7 6 5 4 3 2 1 0
LID1 LID2
R/W-0h R/W-0h

Table 46. Register 2Dh Field Descriptions

Bit Field Type Reset Description
7-4 LID1 R/W 0h Lane ID for channels A, C. Select SerDes AB for channel A and SerDes CD for channel C.
Valid only when CTRL_LID = 1.
3-0 LID2 R/W 0h Lane ID for channels B, D. Select SerDes AB for channel B and SerDes CD for channel D.

7.6.1.1.4.9 Register 36h (address = 36h) [reset = 0h], SERDES_XX Page

Figure 115. Register 36h
7 6 5 4 3 2 1 0
PRBS_MODE 0 0 0 0 0 0
R-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 47. Register 36h Field Descriptions

Bit Field Type Reset Description
7-6 PRBS_MODE R 0h These bits select the PRBS polynomial in the PRBS pattern mode.
0 : PRBS7
1 : PRBS15
2 : PRBS23
3 : PRBS31
5-0 0 R/W 0h Must read or write 0

7.6.1.1.4.10 Register 41h (address = 41h) [reset = 0h], SERDES_XX Page

Figure 116. Register 41h
7 6 5 4 3 2 1 0
LANE_BONA LANE_AONB
R/W-0h R/W-0h

Table 48. Register 41h Field Descriptions

Bit Field Type Reset Description
7-4 LANE_BONA R/W 0h These bits enable lane swap.
0 : Default
10 : For SerDes AB, channel B on lane A; for SerDes CD, channel D on lane C
Others: Do not use
3-0 LANE_AONB R/W 0h These bits enable lane swap.
0 : Default
10 : For SerDes AB, channel A on lane B; for SerDes CD, channel C on lane D
Others: Do not use

7.6.1.1.4.11 Register 42h (address = 42h) [reset = 0h], SERDES_XX Page

Figure 117. Register 42h
7 6 5 4 3 2 1 0
0 0 0 0 INVERT_AC INVERT_BD
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 49. Register 42h Field Descriptions

Bit Field Type Reset Description
7-4 0 R/W 0h Must read or write 0
3-2 INVERT_AC R/W 0h These bits invert lanes A and C.
0 : No inversion
3 : Data inversion on lane A, C
Others: Do not use
1-0 INVERT_BD R/W 0h These bits invert lanes B and D.
0 : No inversion
3 : Data inversion on lane B, D
Others: Do not use

7.6.1.1.5 CHX Page Register Description

7.6.1.1.5.1 Register 26h (address = 26h) [reset = 0h], CHX Page

Figure 118. Register 26h
7 6 5 4 3 2 1 0
0 0 0 0 0 0 GAINWORD
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 50. Register 26h Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1-0 GAINWORD R/W 0h These bits control the channel A gain word.
0 : 0 dB
1 : 1 dB
2 : 2 dB
3 : 3 dB

7.6.1.1.5.2 Register 27h (address = 27h) [reset = 0h], CHX Page

Figure 119. Register 27h
7 6 5 4 3 2 1 0
OVR_ENABLE OVR_FAST_SEL 0 0 OVR_LSB1 0 OVR_LSB0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 51. Register 27h Field Descriptions

Bit Field Type Reset Description
7 OVR_ENABLE R/W 0h This bit enables or disables the OVR on the JESD lanes.
0 : Disables OVR
1 : Enables OVR
6 OVR_FAST_SEL R/W 0h This bit selects the fast or delay-matched OVR.
0 : Delay-matched OVR
1 : Fast OVR
5-4 0 R/W 0h Must read or write 0
3 OVR_LSB1 R/W 0h This bit selects either data or OVR on LSB1.
0 : Data selected
1 : OVR or FOVR selected
2 0 R/W 0h Must read or write 0
1 OVR_LSB0 R/W 0h This bit selects either data or OVR on LSB0.
0 : Data selected
1 : OVR or FOVR selected
0 0 R/W 0h Must read or write 0

7.6.1.1.5.3 Register 2Dh (address = 2Dh) [reset = 0h], CHX Page

Figure 120. Register 2Dh
7 6 5 4 3 2 1 0
0 0 0 0 0 0 NYQUIST_SELECT 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 52. Register 2Dh Field Descriptions

Bit Field Type Reset Description
7-2 0 R/W 0h Must read or write 0
1 NYQUIST_SELECT R/W 0h This bit selects the Nyquist zone of operation for trim loading.
0 : Nyquist 1
1 : Nyquist 2
0 0 R/W 0h Must read or write 0

7.6.1.1.5.4 Register 78h (address = 78h) [reset = 0h], CHX Page

Figure 121. Register 78h
7 6 5 4 3 2 1 0
0 0 0 0 0 FS4_SIGN NYQ_SEL_MODE02 NYQ_SEL
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 53. Register 78h Field Descriptions

Bit Field Type Reset Description
7-3 0 R/W 0h Must read or write 0
2 FS4_SIGN R/W 0h This bit controls the sign of mixing in mode 0.
0 : Centered at –fS / 4
1 : Centered at fS / 4
1 NYQ_SEL_MODE02 R/W 0h This bit selects the pass band of the decimation filter in mode 2.
0 : Low pass
1 : High pass
0 NYQ_SEL R/W 0h This bit selects the pass band of the filter before the DDC.
0 : LPF (0 – fS / 2)
1 : HPF (0 – fS / 2)

7.6.1.1.5.5 Register 7Ah (address = 7Ah) [reset = 0h], CHX Page

Figure 122. Register 7Ah
7 6 5 4 3 2 1 0
NCO_WORD[15:8]
R/W-0h

Table 54. Register 7Ah Field Descriptions

Bit Field Type Reset Description
7-0 NCO_WORD[15:8] R/W 0h These bits set the NCO frequency word.
0 : 0 × fS / 216
1 : 1 × fS / 216
2 : 2 × fS / 216
3 : 3 × fS / 216
5 : 5 × fS / 216
6 : 6 × fS / 216
…
65535 : 65535 × fS / 216

7.6.1.1.5.6 Register 7Bh (address = 7Bh) [reset = 0h], CHX Page

Figure 123. Register 7Bh
7 6 5 4 3 2 1 0
NCO_WORD[7:0]
R/W-0h

Table 55. Register 7Bh Field Descriptions

Bit Field Type Reset Description
7-0 NCO_WORD[7:0] R/W 0h These bits set the NCO frequency word.
0 : 0 × fS / 216
1 : 1 × fS / 216
2 : 2 × fS / 216
3 : 3 × fS / 216
5 : 5 × fS / 216
6 : 6 × fS / 216
…
65535 : 65535 × fS / 216

7.6.1.1.5.7 Register 7Eh (address = 7Eh) [reset = 3h], CHX Page

Figure 124. Register 7Eh
7 6 5 4 3 2 1 0
0 0 0 0 0 MODE467_GAIN MODE0_GAIN MODE13_GAIN
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-1h R/W-1h

Table 56. Register 7Eh Field Descriptions

Bit Field Type Reset Description
7-3 0 R/W 0h Must read or write 0
2 MODE467_GAIN R/W 0h This bit sets the mixer loss compensation for modes 4, 6, and 7.
0 : No gain
1 : 6-dB gain
1 MODE0_GAIN R/W 1h This bit sets the mixer loss compensation for mode 0.
0 : No gain
1 : 6-dB gain
0 MODE13_GAIN R/W 1h This bit sets the mixer loss compensation for modes 1 and 3.
0 : No gain
1 : 6-dB gain

7.6.1.1.6 ADCXX Page Register Description

7.6.1.1.6.1 Register 07h (address = 07h) [reset = FFh], ADCXX Page

Figure 125. Register 7h
7 6 5 4 3 2 1 0
FAST_OVR_THRESHOLD_HIGH
R/W-FFh

Table 57. Register 07h Field Descriptions

Bit Field Type Reset Description
7-0 FAST_OVR_THRESHOLD_HIGH R/W FFh Fast OVR threshold high; see the Overrange Indication section for programming.

7.6.1.1.6.2 Register 08h (address = 08h) [reset = 0h], ADCXX Page

Figure 126. Register 8h
7 6 5 4 3 2 1 0
FAST_OVR_THRESHOLD_LOW
R/W-0h

Table 58. Register 08h Field Descriptions

Bit Field Type Reset Description
7-0 FAST_OVR_THRESHOLD_LOW R/W 0h Fast OVR threshold low; see the Overrange Indication section for programming.

7.6.1.1.6.3 Register D5h (address = D5h) [reset = 0h], ADCXX Page

Figure 127. Register D5h
7 6 5 4 3 2 1 0
0 0 0 0 CAL_EN 0 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 59. Register D5h Field Descriptions

Bit Field Type Reset Description
7-4 0 R/W 0h Must read or write 0
3 CAL_EN R/W 0h This bit is the enable calibration bit. This bit must be toggled during the startup sequence.
0 : Disables calibration
1 : Enables calibration
2-0 0 R/W 0h Must read or write 0

7.6.1.1.6.4 Register 2Ah (address = 2Ah) [reset = 0h], ADCXX Page

Figure 128. Register 2Ah
7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 ADC_TRIM1
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 60. Register 2Ah Field Descriptions

Bit Field Type Reset Description
7-1 0 R/W 0h Must read or write 0
0 ADC Trim1 R/W 1h Always write 0

7.6.1.1.6.5 Register CFh (address = CFh) [reset = 0h], ADCXX Page

Figure 129. Register CFh
7 6 5 4 3 2 1 0
ADC_TRIM2 0 0 0 0
R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 61. Register CFh Field Descriptions

Bit Field Type Reset Description
7-4 ADC_TRIM2 R/W 0h Always write 5
3-0 0 R/W 0h Must read or write 0

8 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

8.1 Application Information

8.1.1 Start-Up Sequence

Table 62 lists the recommended start-up sequence for a 500-MSPS, Nyquist 2 operation with DDC mode 8 enabled.

Table 62. Recommended Start-Up Sequence for 500-MSPS, Nyquist 2, DDC Bypass Mode (Mode 8) Operation

STEP DESCRIPTION REGISTER ADDRESS REGISTER DATA COMMENT
1 Provide a 1.15-V power supply (AVDD, DVDD) — — —
2 Provide a 1.9-V power supply (AVDD19) — — A 1.15-V supply must be supplied first for proper operation.
3 Provide a clock to CLKINM, CLKINP and a SYSREF signal to SYSREFM, SYSREFP — — SYSREF must be established before SPI programming.
4 Pulse a reset (low to high to low) via a hardware reset (pin 48), wait 100 µs — — Hardware reset loads all trim register settings.
5 Issue a software reset to initialize the registers 00h 81h —
6 Set the high SNR mode for channel pairs AB and CD, select trims for 500-MSPS operation 11h 00h Select the DIGTOP page.
12h 01h
13h 00h
ABh 01h Set the high SNR mode for channels A and B.
ACh 01h Set the high SNR mode for channels C and D.
ADh 08h Select DDC bypass mode (mode 8) for channels A and B.
AEh 08h Select DDC bypass mode (mode 8) for channels C and D.
64h 02h Select trims for 500-MSPS operation.
7 Set up the SerDes configuration 11h 00h Select the SerDes_AB and SerDes_CD pages.
12h 60h
13h 00h
26h 0Fh Set the K value to 16 frames per multi-frame.
20h 80h Enable the K value from register 26h.
8 ADC calibration 11h FFh Select the ADC_A1, ADC_A2, ADC_B1, ADC_B2, ADC_C1, ADC_C2, ADC_D1, and ADC_D2 pages.
12h 00h
13h 00h
D5h 08h Enable ADC calibration.
Wait 2 ms ADC calibration time.
D5h 00h Disable ADC calibration.
2Ah 00h Internal trims.
CFh 50h
9 Select trims for the second Nyquist 11h 00h Select the channel A, channel B, channel C, and channel D pages.
12h 1Eh
13h 00h
2Dh 02h Select trims for the second Nyquist.
10 Load linearity trims 11h 00h Select the DIGTOP page.
12h 01h
13h 00h
8Ch 02h Load linearity trims.
B7h 01h
B7h 00h
11 Disable SYSREF 11h 00h Select the ANALOG page.
12h 00h
13h 01h
6Ah 02h Disable SYSREF.

Table 63 lists the recommended start-up sequence for a 500-MSPS, Nyquist 2, 2x interleaved dual ADC operation.

Table 63. Recommended Start-Up Sequence for 500-MSPS, Nyquist 2, 2x Interleaved Dual ADC Operation

STEP DESCRIPTION REGISTER ADDRESS REGISTER DATA COMMENT
1 Provide a 1.15-V power supply (AVDD, DVDD) — — —
2 Provide a 1.9-V power supply (AVDD19) — — A 1.15-V supply must be supplied first for proper operation.
3 Provide a clock to CLKINM, CLKINP and a SYSREF signal to SYSREFM, SYSREFP — — SYSREF must be established before SPI programming.
4 Pulse a reset (low to high to low) via a hardware reset (pin 48), wait 100 µs — — Hardware reset loads all trim register settings.
5 Issue a software reset to initialize the registers 00h 81h —
6 Set the high SNR mode for channel pairs AB and CD, select trims for 500-MSPS operation 11h 00h Select the DIGTOP page.
12h 01h
13h 00h
A5h 03h Enable averaging on the AB and CD channel pair.
A6h 20h Enable the averaging option.
ABh 03h Set the high SNR and interleave mode for channels A and B.
ACh 03h Set the high SNR and interleave mode for channels C and D.
ADh 08h Select DDC bypass mode (mode 8) for channels A and B.
AEh 08h Select DDC bypass mode (mode 8) for channels C and D.
64h 02h Select trims for 500-MSPS operation.
7 Set up the SerDes configuration 11h 00h Select the SERDES_AB and SERDES_CD pages.
12h 60h
13h 00h
26h 0Fh Set the K value to 16 frames per multi-frame.
20h 80h Enable the K value from register 26h.
8 ADC calibration 11h FFh Select the ADC_A1, ADC_A2, ADC_B1, ADC_B2, ADC_C1, ADC_C2, ADC_D1, and ADC_D2 pages.
12h 00h
13h 00h
D5h 08h Enable ADC calibration.
Wait 2 ms ADC calibration time.
D5h 00h Disable ADC calibration.
2Ah 00h Internal trims.
CFh 50h
9 Select trims for the second Nyquist 11h 00h Select the channel A, channel B, channel C, and channel D pages.
12h 1Eh
13h 00h
2Dh 02h Select trims for the second Nyquist.
10 Load linearity trims 11h 00h Select the DIGTOP page.
12h 01h
13h 00h
8Ch 02h Load linearity trims.
B7h 01h
B7h 00h
11 Disable SYSREF 11h 00h Select the ANALOG page.
12h 00h
13h 01h
6Ah 02h Disable SYSREF.

8.1.2 Hardware Reset

Figure 130 shows the timing information for the hardware reset.

ADS54J64 hardware_reset_tmng_dgm_sbas706.gif Figure 130. Hardware Reset Timing Diagram

Table 64. Timing Requirements for Figure 130

MIN TYP MAX UNIT
t1 Power-on delay from power-up to an active high RESET pulse 1 ms
t2 Reset pulse duration: active high RESET pulse duration 10 ns
t3 Register write delay from RESET disable to SEN active 100 µs

8.1.3 Frequency Planning

The ADS54J64 uses an architecture where the ADCs are 2x interleaved followed by a digital decimation by 2. The 2x interleaved and decimation architecture comes with a unique advantage of improved linearity resulting from frequency planning. Frequency planning refers to choosing the clock frequency and signal band appropriately such that the harmonic distortion components, resulting from the analog front-end (LNA, PGA), can be made to fall outside the decimation filter pass band. In absence of the 2x interleave and decimation architecture, these components alias back in band and limit the performance of the signal chain. For example, for fCLK = 983.04 MHz and fIN = 184.32 MHz:

Second-order harmonic distortion (HD2) = 2 × 184.32 = 368.64 MHz

Pass band of the 2x decimation filter = 0 MHz to 245.76 MHz (0 to fCLK / 4)

The second-order harmonic performance improves by the stop-band attenuation of the filter (approximately 40 dBc) because the second-order harmonic frequency is outside the pass band of the decimation filter.

Figure 131 shows the harmonic components (HD2–HD5) that fall in the decimation pass band for the input clock rate (fCLK) of the 983.04-MHz and 100-MHz signal band around the center frequency of 184.32 MHz.

ADS54J64 D046_SBAS807.gif

NOTE:

fCLK = 983.04 MHz, signal band = 134.32 MHz to 234.32 MHz.
Figure 131. In-Band Harmonics for a Frequency Planned System

As shown in Figure 131, both HD2 and HD3 are completely out of band. HD4 and HD5 fall in the decimation pass band for some frequencies of the input signal band.

Through proper frequency planning, the specifications of the ADC antialias filter can be relaxed.

8.1.4 SNR and Clock Jitter

The signal-to-noise ratio of the ADC is limited by three different factors (as shown in Equation 3): the quantization noise is typically not noticeable in pipeline converters and is 84 dB for a 14-bit ADC. The thermal noise limits the SNR at low input frequencies and the clock jitter sets the SNR for higher input frequencies.

Equation 3. ADS54J64 sgnl_to_noise_ratio_eq_sbas706.png

Equation 4 calculates the SNR limitation resulting from sample clock jitter:

Equation 4. ADS54J64 snr_limitation_eq_sbas706.png

The total clock jitter (TJitter) has two components: the internal aperture jitter (100 fS for the ADS54J64) that is set by the noise of the clock input buffer and the external clock jitter. Equation 5 calculates TJitter:

Equation 5. ADS54J64 total_jitter_eq_sbas706.png

External clock jitter can be minimized by using high-quality clock sources and jitter cleaners as well as band-pass filters at the clock input; a faster clock slew rate also improves the ADC aperture jitter.

The ADS54J64 has a thermal noise of approximately 70 dBFS and an internal aperture jitter of 100 fS.

8.1.5 ADC Test Pattern

The ADS54J64 provides several different options to output test patterns instead of the actual output data of the ADC in order to simplify debugging of the JESD204B digital interface link. Figure 132 shows the output data path.

ADS54J64 ADC_tst_Pttrn_sbas841.gif Figure 132. ADC Test Pattern

8.1.5.1 ADC Section

The ADC test pattern replaces the actual output data of the ADC. These test patterns can be programmed using register 91h of the DIGTOP page. Table 65 lists the supported test patterns.

Table 65. ADC Test Pattern Settings

BIT NAME DEFAULT DESCRIPTION
7-4 TESTPATTERNSELECT 0000 These bits select the test pattern on the output when the test pattern is enabled for a suitable channel.
0 : Default
1 : All zeros
2 : All ones
3 : Toggle pattern
4 : Ramp pattern
6 : Custom pattern 1
7 : Toggles between custom pattern 1 and custom pattern 2
8 : Deskew pattern (AAAAh)

8.1.5.2 Transport Layer Pattern

The transport layer maps the ADC output data into 8-bit octets and constructs the JESD204B frames using the LMFS parameters. Tail bits or 0s are added when needed. Alternatively, as shown in Table 66, the JESD204B long transport layer test pattern can be substituted by programming register 20h.

Table 66. Transport Layer Test Mode

BIT NAME DEFAULT DESCRIPTION
4 TRANS_TEST_EN 0 This bit generates the long transport layer test pattern mode according to clause 5.1.6.3 of the JESD204B specification.
0 = Test mode disabled
1 = Test mode enabled

8.1.5.3 Link Layer Pattern

The link layer contains the scrambler and the 8b, 10b encoding of any data passed on from the transport layer. Additionally, the link layer also handles the initial lane alignment sequence that can be manually restarted. The link layer test patterns are intended for testing the quality of the link (jitter testing and so forth). The test patterns do not pass through the 8b, 10b encoder. These test patterns can be used by programming register 22h of the SERDES_XX page. Table 67 shows the supported programming options.

Table 67. Link Layer Test Mode

BIT NAME DEFAULT DESCRIPTION
7-5 LINK_LAYER_TESTMODE_SEL 000 These bits generate a pattern according to clause 5.3.3.8.2 of the JESD204B document.
0 : Normal ADC data
1 : D21.5 (high-frequency jitter pattern)
2 : K28.5 (mixed-frequency jitter pattern)
3 : Repeats initial lane alignment (generates a K28.5 character and continuously repeats lane alignment sequences)
4 : 12-octet RPAT jitter pattern
6 : PRBS pattern (PRBS7,15,23,31); use PRBS mode (register 36h) to select the PRBS pattern

8.2 Typical Application

The ADS54J64 is designed for wideband receiver applications demanding excellent dynamic range over a large input frequency range. Figure 133 shows a typical schematic for an ac-coupled dual receiver [dual field-programmable gate array (FPGA) with a dual SYNC].

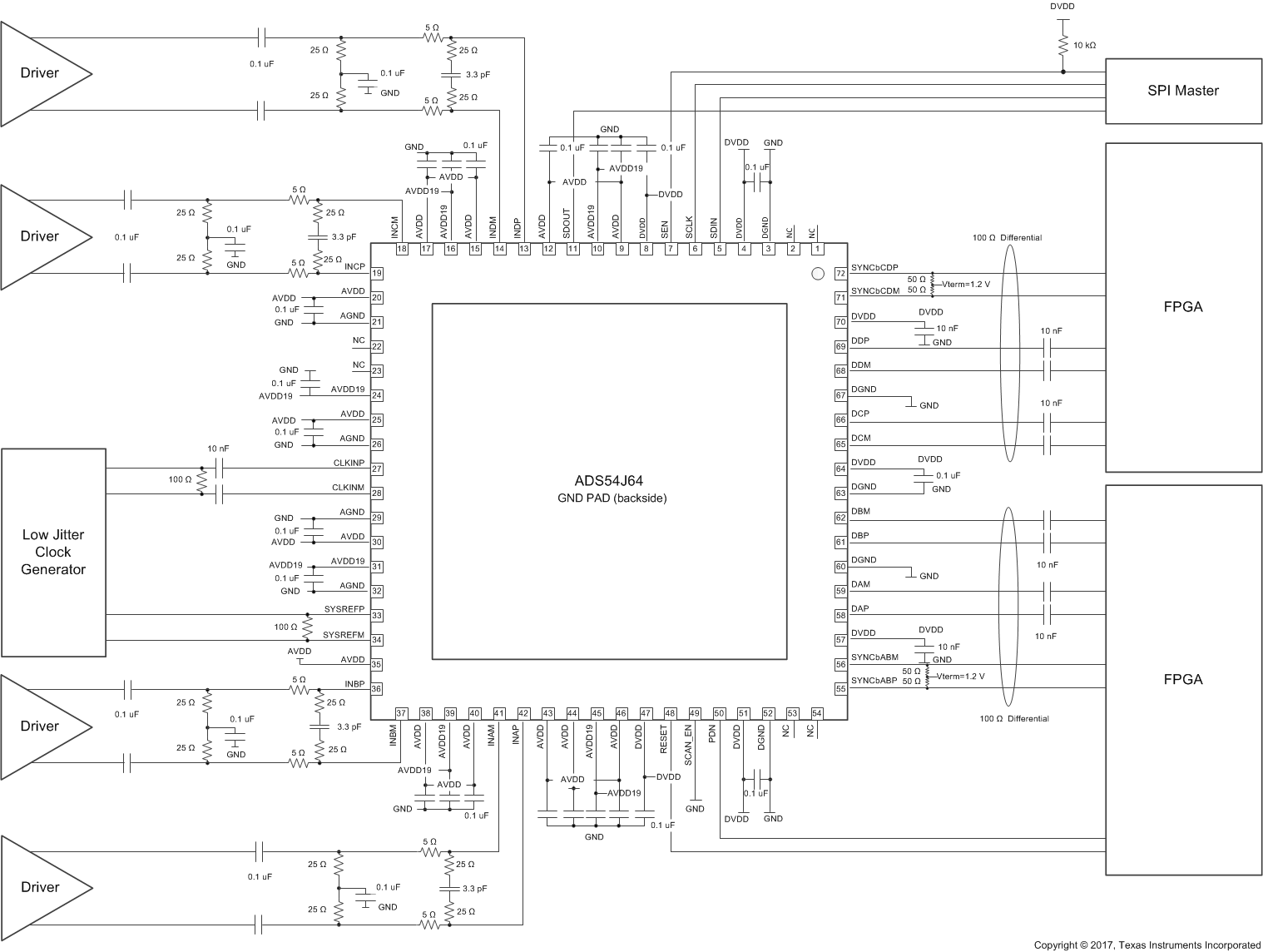

ADS54J64 typ_app_sbas841.gif

NOTE:

GND = AGND and DGND are connected in the PCB layout.
Figure 133. Application Diagram for the ADS54J64

8.2.1 Design Requirements

By using the simple drive circuit of Figure 133 (when the amplifier drives the ADC) or Figure 46 (when transformers drive the ADC), uniform performance can be obtained over a wide frequency range. The buffers present at the analog inputs of the device help isolate the external drive source from the switching currents of the sampling circuit.

8.2.2 Detailed Design Procedure

For optimum performance, the analog inputs must be driven differentially. This architecture improves the common-mode noise immunity and even-order harmonic rejection. A small resistor (5 Ω to 10 Ω) in series with each input pin, as shown in Figure 133, is recommended to damp out ringing caused by package parasitics.

8.2.3 Application Curves

Figure 134 and Figure 135 show the typical performance at 190 MHz and 230 MHz, respectively.

ADS54J64 D002_SBAS807.gif
fIN = 190 MHz, AIN = –1 dBFS,
SNR = 69.4 dBFS, SFDR = 88 dBc, SFDR = 96 dBc (non 23)
Figure 134. FFT for 190-MHz Input Signal
ADS54J64 D006_SBAS807.gif
fIN = 230 MHz, AIN = –1 dBFS,
SNR = 69.4 dBFS, SFDR = 85 dBc, SFDR = 96 dBc (non 23)
Figure 135. FFT for 230-MHz Input Signal



Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
