6.7 Typical Characteristics

Ambient temperature is 25°C and VIN is 3.7 V unless otherwise noted.
LM36274 D001_SNVSAC0.gif
Figure 2. Backlight LED Current, Linear Control
LM36274 D003_SNVSAC0.gif
Figure 4. Backlight LED Current Matching
LM36274 D005_SNVSAC0.gif
Figure 6. Backlight LED Current-Step Ratio
LM36274 D007_SNVSAC0.gif
Figure 8. Backlight LED Current Accuracy
LM36274 D009_SNVSAC0.gif
ƒ = 1 MHz
Figure 10. Backlight Boost Frequency
LM36274 D011_SNVSAC0.gif
ƒ = 250 kHz
Figure 12. Backlight Boost Frequency
LM36274 D028_SNVSAC0.gif
Figure 14. Backlight Regulated Headroom Voltage
LM36274 D013_SNVSAC0.gif
VLCM_OUT = 5.8 V
Figure 16. VLCM_OUT Load Regulation
LM36274 D015_SNVSAC0.gif
VLCM_OUT = 6.8 V
Figure 18. VLCM_OUT Load Regulation
LM36274 D017_SNVSAC0.gif
VVPOS = 5.5 V VLCM_OUT = 5.8 V
Figure 20. VVPOS Load Regulation
LM36274 D019_SNVSAC0.gif
VVPOS = 6.5 V VLCM_OUT = 6.8 V
Figure 22. VVPOS Load Regulation
LM36274 D021_SNVSAC0.gif
VVNEG = –5.5 V VLCM_OUT = 5.8 V
Figure 24. VVNEG Load Regulation
LM36274 D023_SNVSAC0.gif
VVNEG = –6.5 V VLCM_OUT = 6.8 V
Figure 26. VVNEG Load Regulation
LM36274 D025_SNVSAC0.gif
VHWEN = VIN I2C = VIN
Figure 28. IQ Standby
LM36274 D002_SNVSAC0.gif
Figure 3. Backlight LED Current, Exponential Control
LM36274 D004_SNVSAC0.gif
Figure 5. Backlight LED Current Matching
LM36274 D006_SNVSAC0.gif
Figure 7. Backlight LED Current-Step Ratio
LM36274 D008_SNVSAC0.gif
Figure 9. Backlight LED Current Accuracy
LM36274 D010_SNVSAC0.gif
ƒ = 500 kHz
Figure 11. Backlight Boost Frequency
LM36274 D027_SNVSAC0.gif
Figure 13. Backlight Regulated Headroom Voltage
LM36274 D012_SNVSAC0.gif
VLCM_OUT = 4.8 V
Figure 15. VLCM_OUT Load Regulation
LM36274 D014_SNVSAC0.gif
VLCM_OUT = 5.8 V
Figure 17. VLCM_OUT Load Regulation
LM36274 D016_SNVSAC0.gif
VVPOS = 4 V VLCM_OUT = 4.3 V
Figure 19. VVPOS Load Regulation

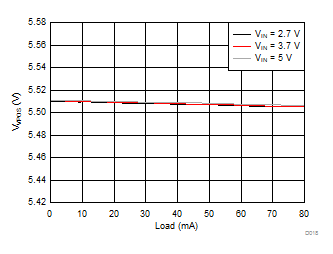

LM36274 D018_SNVSAC0.gif
VVPOS = 5.5 V VLCM_OUT = 5.8 V
Figure 21. VVPOS Load Regulation
LM36274 D020_SNVSAC0.gif
VVNEG = –4 V VLCM_OUT = 4.3 V
Figure 23. VVNEG Load Regulation
LM36274 D022_SNVSAC0.gif
VVNEG = –5.5 V VLCM_OUT = 5.8 V
Figure 25. VVNEG Load Regulation
LM36274 D024_SNVSAC0.gif
VHWEN = 0 V I2C = 0 V
Figure 27. Iq Shutdown
LM36274 D026_SNVSAC0.gif
VHWEN = 1.8 V I2C = 1.8 V
Figure 29. IQ Standby
