Typical Characteristics

VVIN = 48 V, RRT = 25 kΩ, SYNCIN tied to VCC, EN/UVLO tied to VIN (unless otherwise noted).

VOUT = 5 V VSYNCIN = VVCC FSW = 230 kHz
See Figure 9-5 RRT = 43.2 kΩ

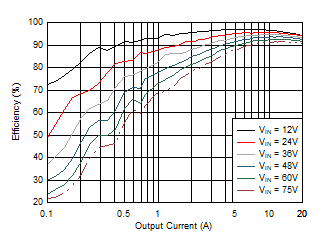

Figure 7-1 Efficiency vs Load, CCM
VOUT = 12 V FSW = 400 kHz
See Figure 9-20 RRT = 24.9 kΩ
Figure 7-3 Efficiency vs Load, CCM
VOUT = 1.1 V FSW = 300 kHz
See Figure 9-46 RRT = 33.2 kΩ
Figure 7-5 Efficiency vs Load, CCM

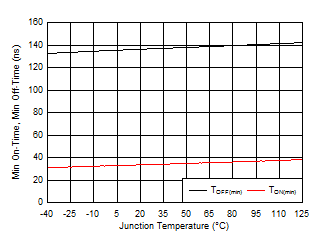

Figure 7-7 tON(min) and tOFF(min) vs Junction Temperature
VSW = 0 V VEN/UVLO = 1 V

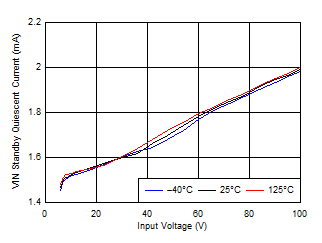

Figure 7-9 IQ-STANDBY vs Input Voltage
VSW = 0 V HO, LO Open

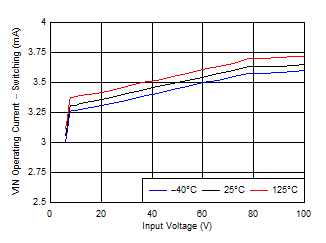

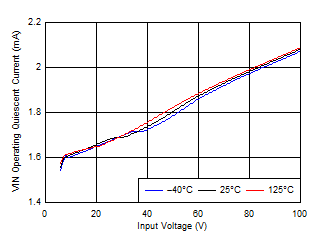

Figure 7-11 IQ-OPERATING (Switching) vs Input Voltage

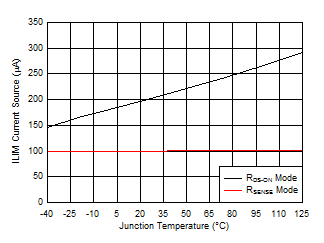

Figure 7-13 ILIM Current Source vs Junction Temperature

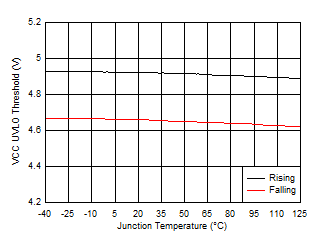

GUID-CBDAFB7A-7624-45A7-8F61-383025F00ACE-low.gifFigure 7-15 VCC UVLO Thresholds vs Junction Temperature
GUID-E9D2AEE7-07AD-4447-B788-E32D9B634942-low.gifFigure 7-17 PGOOD UVP Thresholds vs Junction Temperature

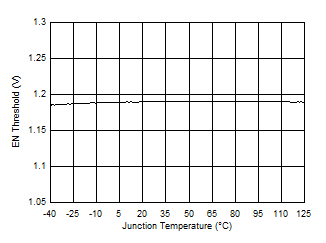

GUID-CCF8A686-1686-4382-A583-C956D9EE05AB-low.gifFigure 7-19 EN/UVLO Threshold vs Junction Temperature
VSW = 0 V

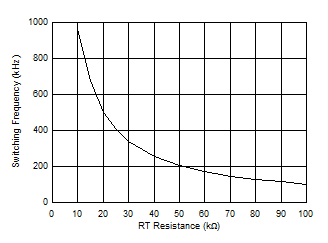

Figure 7-21 Oscillator Frequency vs RT Resistance

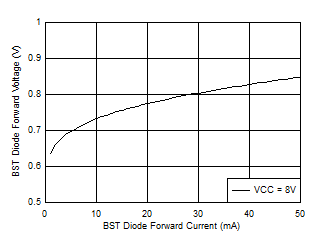

GUID-DB5D1971-B3CF-4D6D-ABF6-B1F97EB1C352-low.gifFigure 7-23 BST Diode Forward Voltage vs Current
GUID-071DF25C-6023-4F8C-9FC3-6DC647D8A889-low.gifFigure 7-25 HO Driver Resistance vs VCC Voltage
VSS/TRK = 0 V

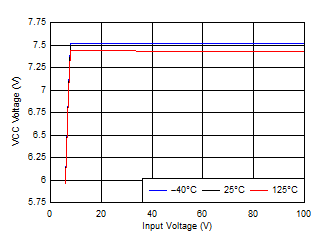

Figure 7-27 VCC Voltage vs Input Voltage
VIN = 12 V
Figure 7-29 VCC vs ICC Characteristic
VOUT = 5 V VSYNCIN = 0 V FSW = 230 kHz
See Figure 9-5 RRT = 43.2 kΩ

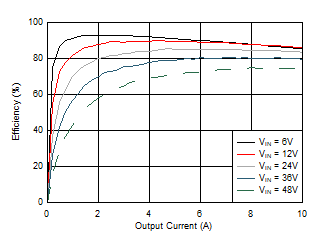

Figure 7-2 Efficiency vs Load, DCM
VOUT = 24 V FSW = 440 kHz
See Figure 9-33 RRT = 22.6 kΩ
Figure 7-4 Efficiency vs Load, CCM

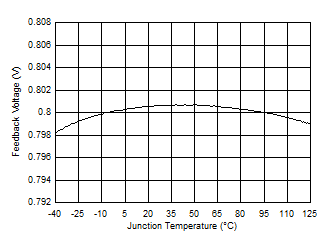

Figure 7-6 FB Voltage vs Junction Temperature
VSW = 0 V VEN/UVLO = 0 V

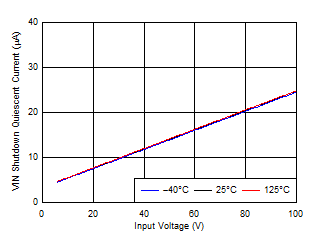

Figure 7-8 IQ-SHD vs Input Voltage
VSW = 0 V VEN/UVLO = VVIN VSS/TRK = 0 V

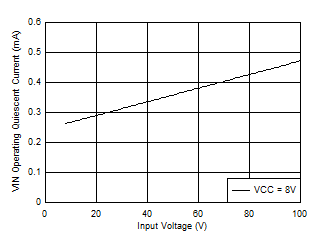

Figure 7-10 IQ-OPERATING (Non-switching) vs Input Voltage
VSW = 0 V VVCC = VBST = VILIM VFB = 0 V
Figure 7-12 VIN Quiescent Current With External VCC Applied
VSW = 0 V

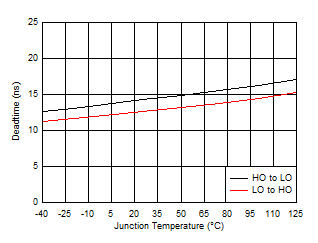

Figure 7-14 Deadtime vs Junction Temperature

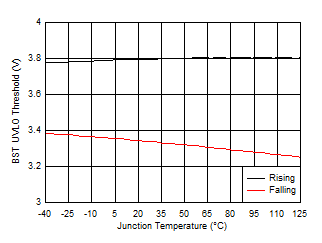

GUID-47390589-0E0B-4776-9DC1-F177C6AC263C-low.gifFigure 7-16 BST UVLO Thresholds vs Junction Temperature

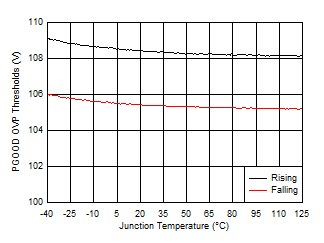

GUID-FA5893DB-94EE-4C15-8698-B241F569932C-low.gifFigure 7-18 PGOOD OVP Thresholds vs Junction Temperature

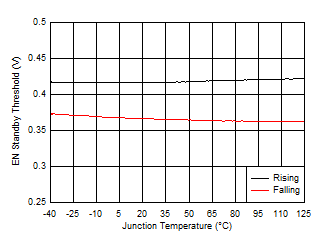

GUID-3A24C05A-00FB-47A2-9CD9-FEF37FC5062F-low.gifFigure 7-20 EN Standby Thresholds vs Junction Temperature

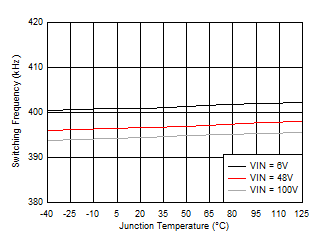

Figure 7-22 Oscillator Frequency vs Junction Temperature

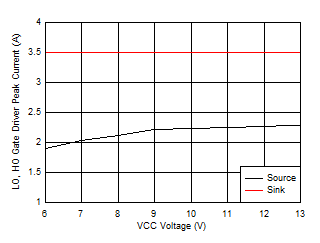

GUID-85261FEE-0BB2-492E-B2EE-4D4809545C8B-low.gifFigure 7-24 Gate Driver Peak Current vs VCC Voltage

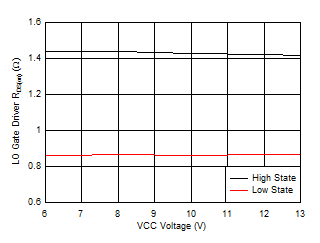

GUID-629011A7-AF74-4EA8-887A-0C6CDCDAE740-low.gifFigure 7-26 LO Driver Resistance vs VCC Voltage
VIN = 6 V

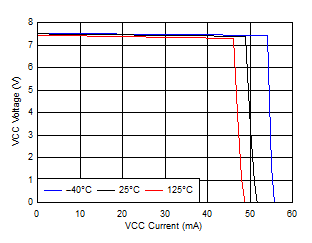

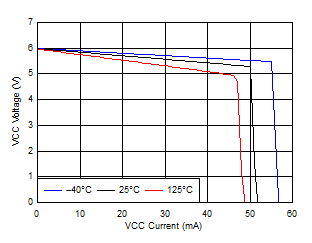

Figure 7-28 VCC vs ICC Characteristic

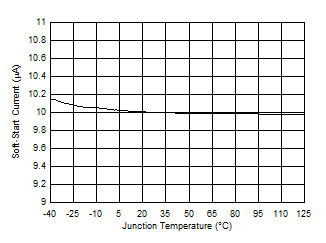

Figure 7-30 SS/TRK Current Source vs Junction Temperature
