Application Curves

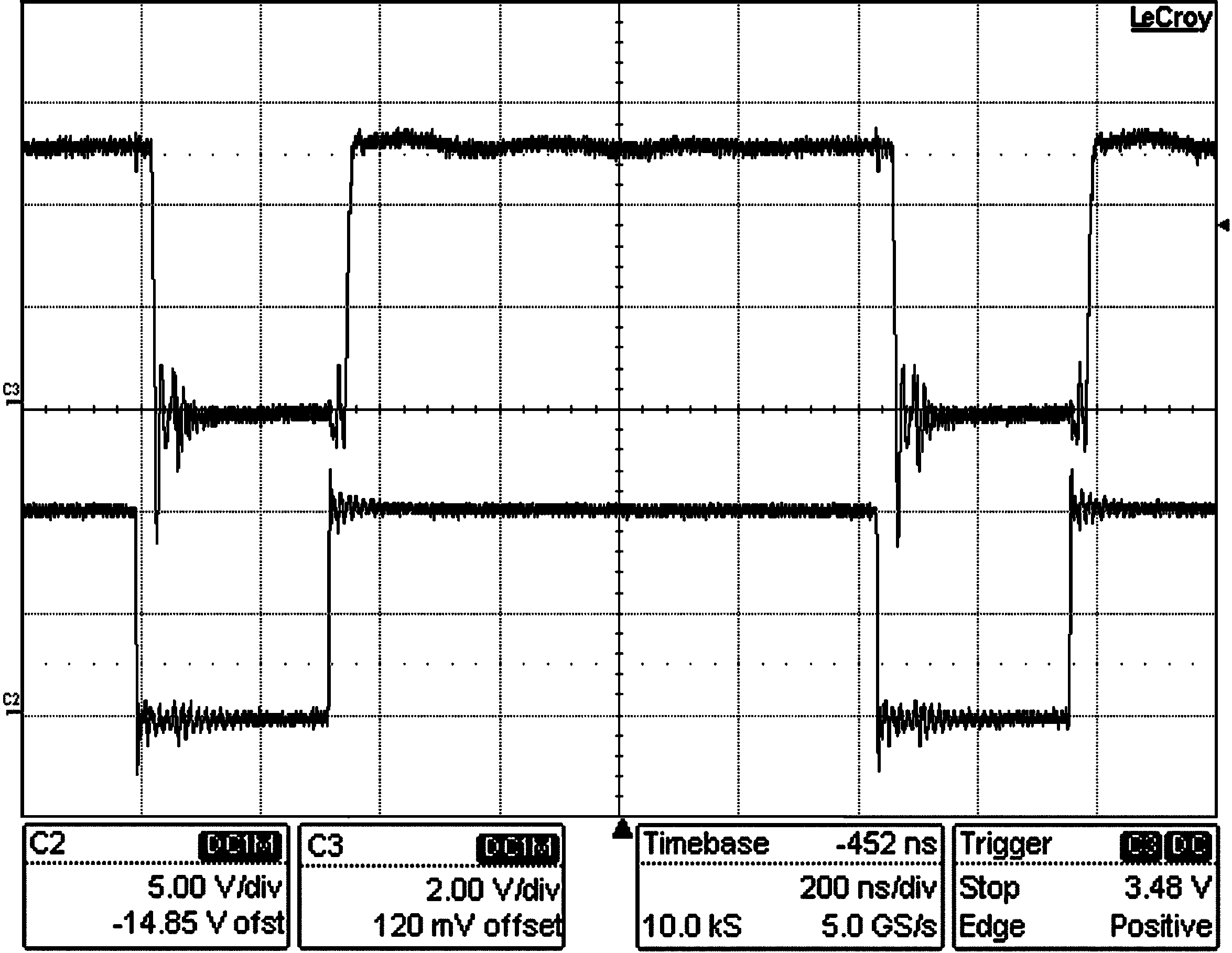

LM5113 30163005.png
Conditions:
Input Voltage = 48 V DC, Load Current = 5 A
Traces:
Top Trace: Gate of Low-Side eGaN FET, Volt/div = 2 V
Bottom Trace: LI of LM5113, Volt/div = 5 V
Bandwidth Limit = 600 MHz
Horizontal Resolution = 0.2 µs/div
Figure 22. Low-Side Driver Input and Output
LM5113 30163006.png
Conditions:
Input Voltage = 48 V DC,
Load Current = 10 A
Traces:
Trace: Switch-Node Voltage, Volts/div = 20 V
Bandwidth Limit = 600 MHz
Horizontal Resolution = 50 ns/div
Figure 23. Switch-Node Voltage
