Typical Characteristics

Common test conditions (unless specified otherwise): VDD = 3.3 V, Sense coil diameter = reference coil diameter, Target: Aluminum, 1.5 mm thickness, Target area / Coil area > 100%

See Basic Operation ModeADJ Code = 0
Coil diameter = 10 mm

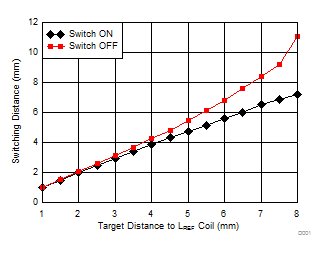

Figure 5-1 Switching Distance vs. LREF Target Distance
See Basic Operation ModeADJ Code = 0
Coil diameter = 6 mm, 15 mm, 29 mm
Figure 5-3 Normalized Switching Distance vs. LREF Target Distance
LSENSE frequency (fs) variedLREF frequency (fr) fixed
Figure 5-5 Frequency vs. Distance
ISENSOR_MAX = 4.35 mA
Specified for closest target proximity or minimum inductance in the application.

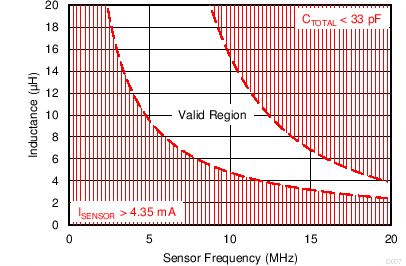

Figure 5-7 Sensor Design Space for VDD = 1.8 V
CTOTAL = 100 pF
Figure 5-9 ISENSOR vs. VDD

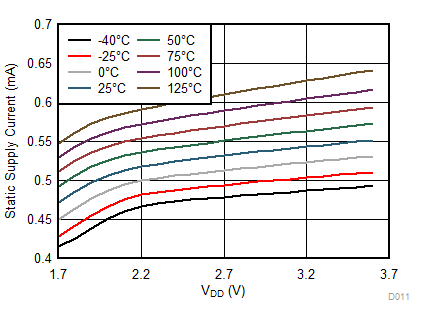

GUID-B2F4A6ED-779A-4011-B128-5D761AF0AD82-low.gifFigure 5-11 ISTATIC vs. VDD
GUID-B48DACB9-CEA2-429A-8CBD-A0F20044A2CF-low.gifFigure 5-13 ISENSOR vs. ƒSENSOR
See Threshold Adjust ModeNo reference target
Coil diameter = 10 mm

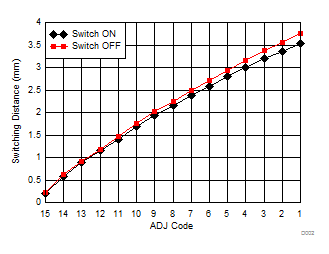

Figure 5-2 Switching Distance vs. ADJ code
See Threshold Adjust ModeNo reference target
Coil diameter = 6 mm, 15 mm, 29 mm

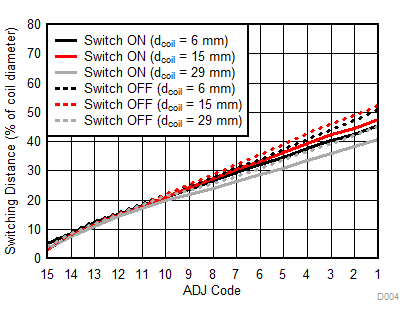

Figure 5-4 Normalized Switching Distance vs. ADJ Code
LSENSE inductance (Ls) variedLREF inductance (Lr) fixed
Figure 5-6 Inductance vs. Distance
ISENSOR_MAX = 6 mA
Specified for closest target proximity or minimum inductance in the application.
Figure 5-8 Sensor Design Space for VDD = 3.3 V
CBOARD = 12 pF
ƒSENSOR = 30 MHz
Figure 5-10 IDYN vs. VDD
GUID-E6641801-9CE3-4FF1-8B17-6C1B4A9498D1-low.gifFigure 5-12 ISD vs. VDD
Normalized to frequency at VDD = 3.6 V
Figure 5-14 ƒSENSOR Shift vs. VDD
