Layout

Layout Guidelines

The TMP708 is extremely simple to lay out. Figure 7 shows the recommended board layout.

Layout Example

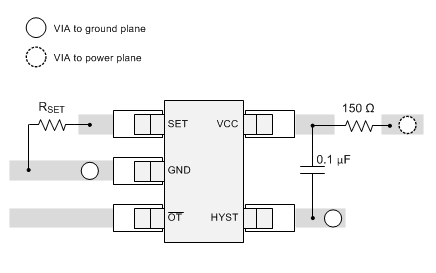

TMP708 TMP70x_Layout.gif Figure 7. Recommended Layout

Thermal Considerations

The TMP708 quiescent current is typically 40 μA. The device dissipates negligible power when the output drives a high-impedance load. Thus, the die temperature is the same as the package temperature. In order to maintain accurate temperature monitoring, provide a good thermal contact between the TMP708 package and the device being monitored. The rise in die temperature as a result of self-heating is given by Equation 2:

Equation 2. ΔTJ = PDISS × θJA

where

  • PDISS = power dissipated by the device.
  • θJA = package thermal resistance. Typical thermal resistance for SOT-23 package is 217.9°C/W.

To limit the effects of self-heating, keep the output current at a minimum level.
