2.1 Efficiency Graphs
Efficiency is shown in Figure 2-1.
Figure 2-1 Efficiency at
9Vout
Figure 2-2 Efficiency at
13.5Vout
Figure 2-3 Efficiency at 16Vout

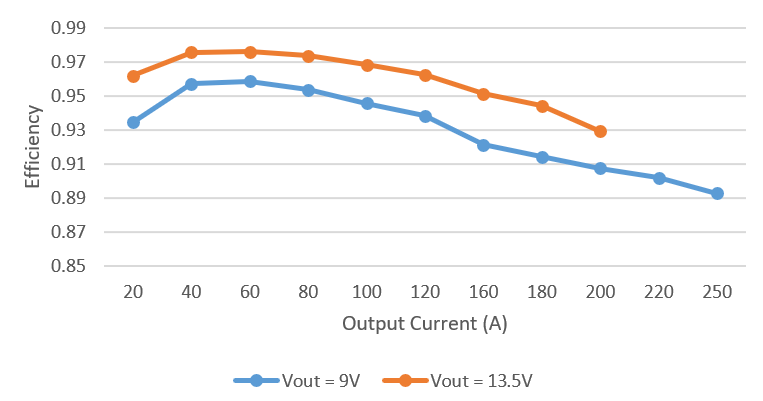

Figure 2-4 Efficiency at 200Vin
Figure 2-5 Efficiency at 320Vin
Figure 2-6 Efficiency at 400Vin
