Level Shifters

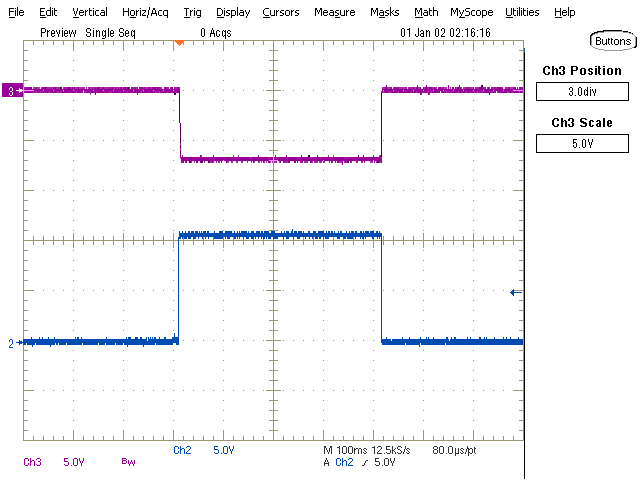

CH3: output voltage at 12VIN, –7VOUT
CH2: external enable signal (TP8)
Figure 3-21 Level Shifters
