2.5 Thermal Images

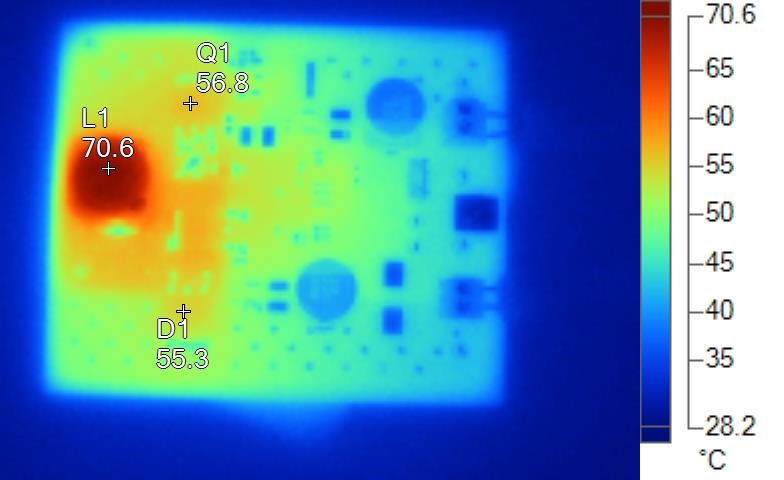

These images have been taken after 30 minutes of operation at full load and 600 mA each.

Note: For the final application, 48-V output voltage is just needed for less than one second.
24 VOUT 48 VOUT

30 VIN

60 VIN
Table 2-1 Temperature Comparison
Name 30 VIN 24 VOUT 60 VIN 24 VOUT 30 VIN 48 VOUT 60 VIN 48 VOUT

D1

41.3°C

43.5°C

55.3°C

49.9°C

D2

38.6°C

43.0°C

47.5°C

L1

39.9°C

43.4°C

70.6°C

52.1°C

Q1

56.8°C

Q2

50.8°C

U1 (bottom)

41.4°C

46.8°C

55.1°C
