3 Device Markings

Figure 3-1 shows an example of the IWRL684x Radar Device's package symbolization.

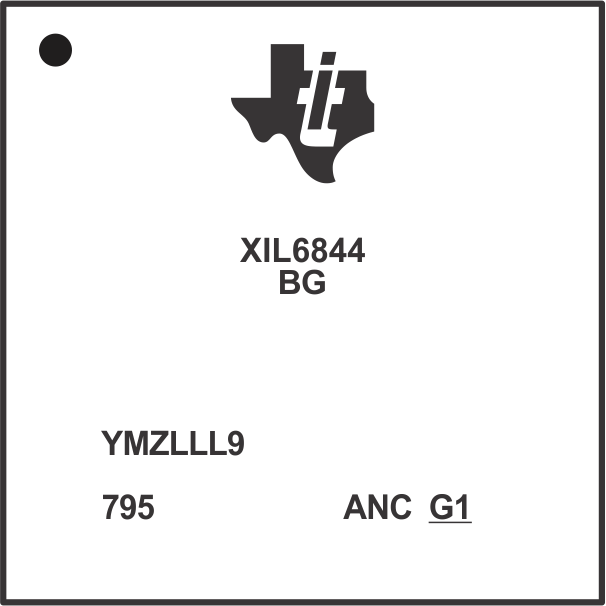

Figure 3-1 Example of Device Part Markings

This identifying number contains the following information:

• Line 1: TI Logo
• Line 1: Device Number
• Line 2: Safety Level and Security Grade

  • Q = Non-Functional Safety

  • B = ASIL-B capable

  • G = General

  • S = Secure

• Line 3: Lot Trace Code
  • YM = Year/Month Code
  • Z- Assembly Site Code
  • LLL = Assembly Lot
  • 9= Primary Site Code
• Line 4:
  • 795 = Device Identifier
  • ANC = Package Identifier
  • G1 = "Green" Package Build (must be underlined)
