Test Setup and Results

This section describes the test procedure for LM74721-Q1 device.

Default jumper setting for LM74721EVM board is shown in Figure 5-1.

Table 5-1 Default Jumper Setting for LM74721EVM
J5 J4
1-2 or connect 2 to external enable control 1-2, Output LED Indication

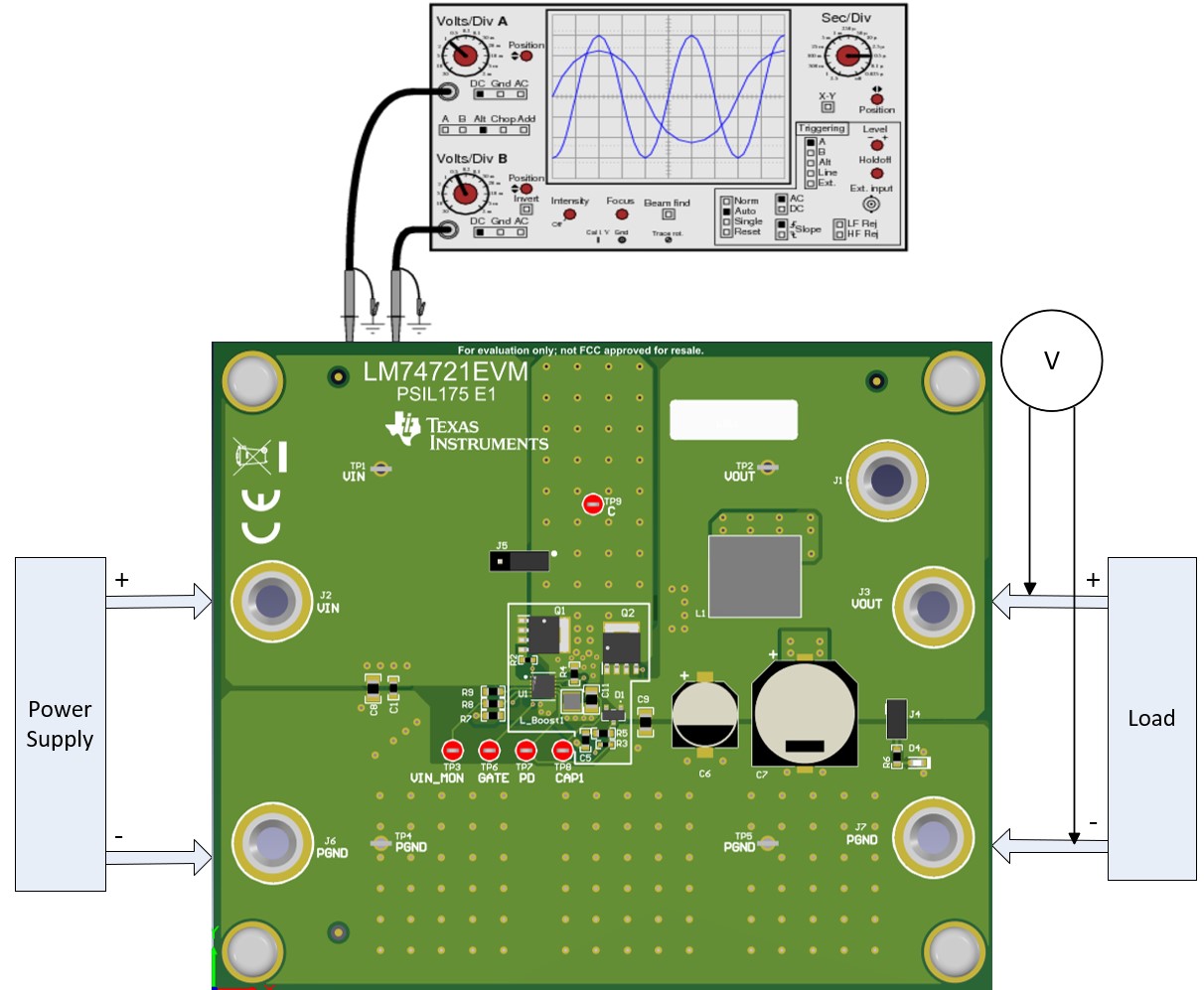

GUID-20210914-SS0I-HMZS-PGXC-1S6M0KZ5QJ8B-low.jpgFigure 5-1 LM74721EVM Test Setup
