2 EVM Hardware Overview and Operation

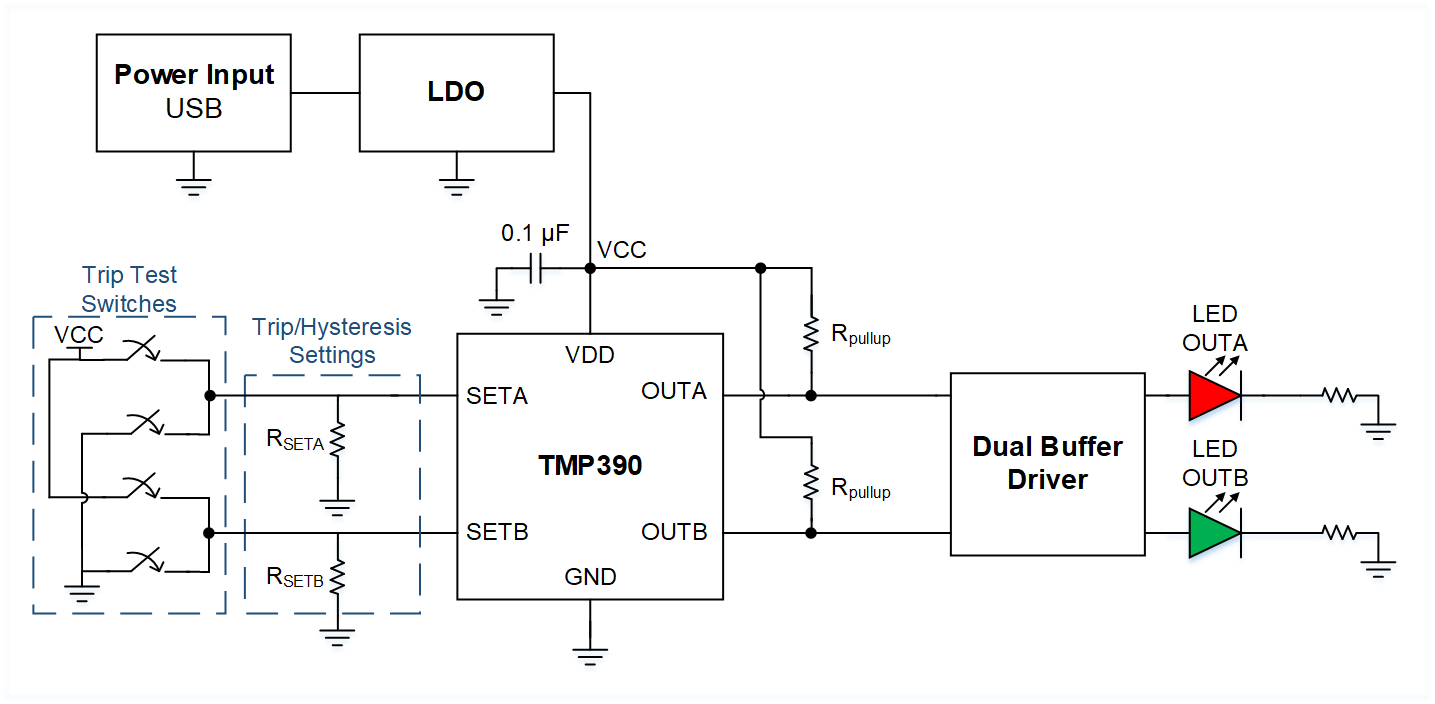

The TMP390EVM block diagram is shown in Figure 4, and each block is described in detail in the following sections.

tmp390_blockdiagram2.pngFigure 4. TMP390 Evaluation Board Block Diagram
