4.7 Output Voltage Ripple

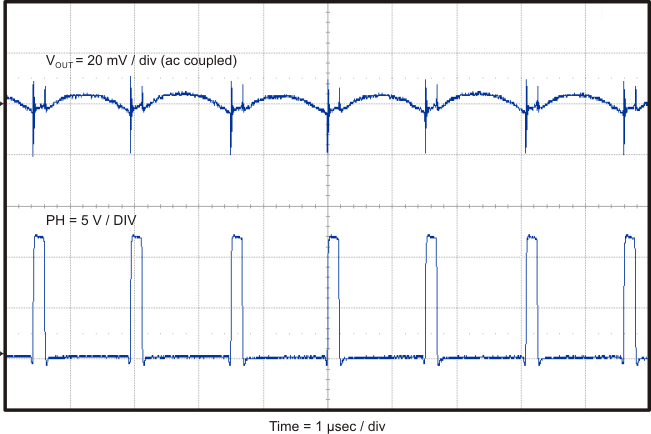

The TPS54528EVM-052 output voltage ripple is shown in Figure 4-7. The output current is the rated full load of 5 A.

GUID-9F3BE75C-F10A-45F4-A96B-4E69EB7766B2-low.gifFigure 4-7 TPS54528EVM-052 Output Voltage Ripple

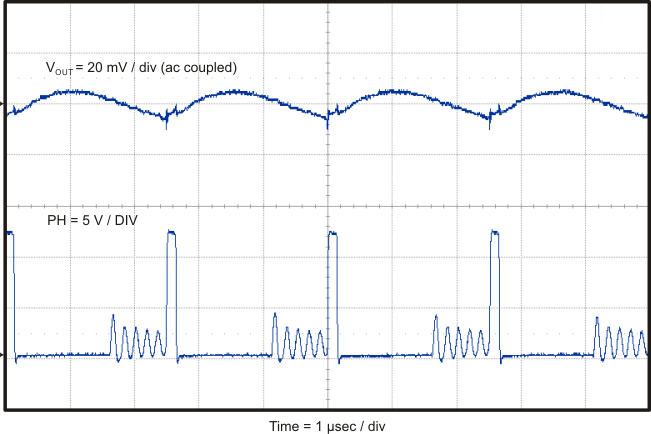

The TPS54528EVM-052 output voltage ripple during the start of Eco-mode™ operation is shown in Figure 4-8 . The output current is 30 mA.

GUID-0B2F0511-6BDC-458B-8628-CB01C346C536-low.gifFigure 4-8 TPS54528EVM-052 Start of Eco-mode™ Output Voltage Ripple

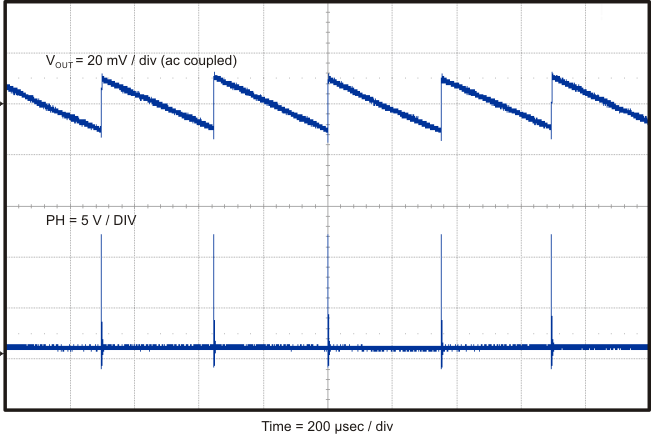

The TPS54528EVM-052 output voltage ripple during Eco-mode™ operation is shown in Figure 4-9. The output current is 2.1 mA.

GUID-F8FCE745-E3D9-44DD-8D58-5AFD4D185E81-low.gifFigure 4-9 TPS54528EVM-052 Eco-mode™ Output Voltage Ripple
