2.9 Start Up

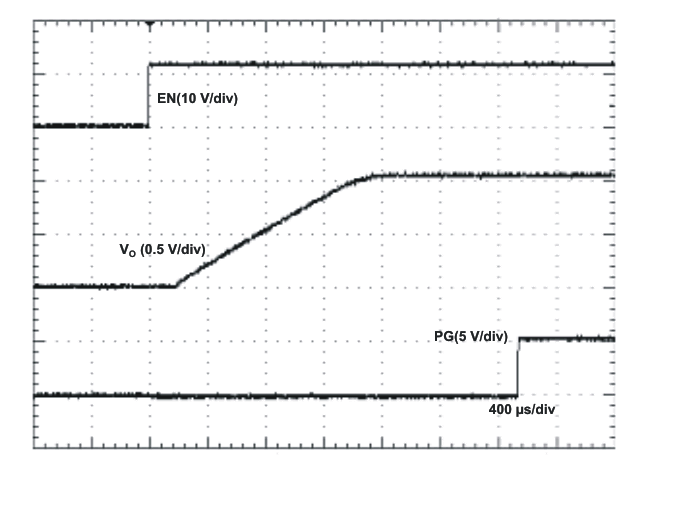

The TPS54325EVM start up waveform is shown in Figure 2-8.

GUID-7FA01963-7403-469C-9A32-5E44982B9C50-low.gif Figure 2-8 TPS54325EVM Start Up
