3 Battery Insertion

As Figure 3-1 shows, when the battery is inserted, the device automatically enters ship mode because the SYSOFF pin is pulled high and the device waits for a push-button control to pull SYSOFF low. This ensures the user has control over when to exit ship mode.

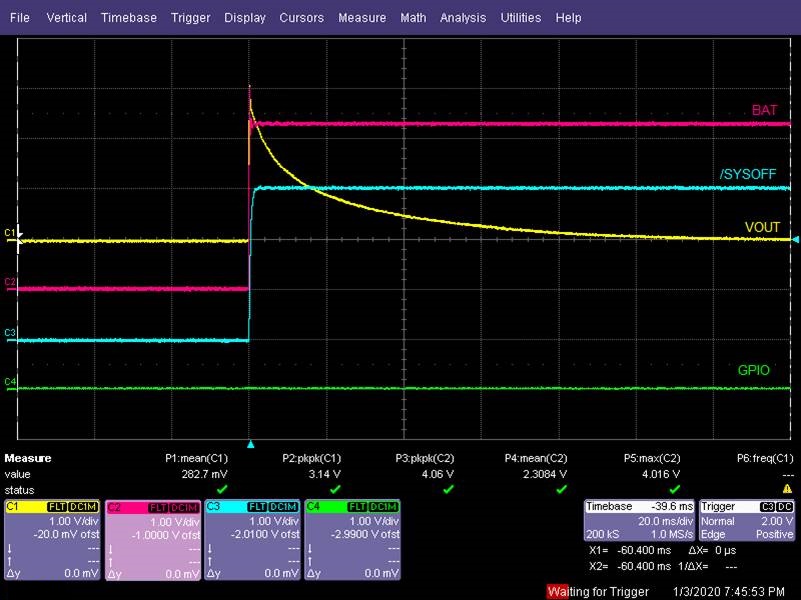

GUID-8DB6C887-3D04-4EEF-A0FC-4F8920D7A207-low.jpgFigure 3-1 Ship Mode Upon Battery Insertion
