7.19 Typical Characteristics

ISO7041 SLLSF54_D020.gif
TA = 25°C CL = 0 pF
Figure 3. ISO7041 Supply Current vs Data Rate at 1.8 V
(With No Load)

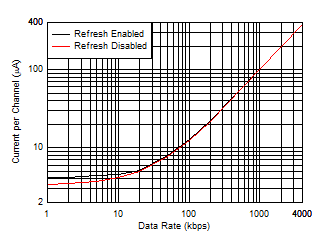

ISO7041 SLLSF54_D022.gif
TA = 25°C CL = 0 pF
Figure 5. ISO7041 Supply Current vs Data Rate at 2.5 V
(With No Load)
ISO7041 SLLSF54_D024.gif
TA = 25°C CL = 0 pF
Figure 7. ISO7041 Supply Current vs Data Rate at 3.3 V
(With No Load)

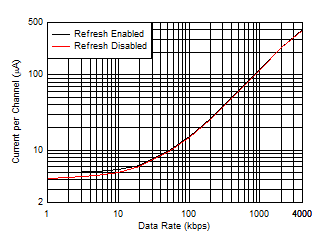

ISO7041 SLLSF54_D026.gif
TA = 25°C CL = 0 pF
Figure 9. ISO7041 Supply Current vs Data Rate at 5 V
(With No Load)
ISO7041 SLLSF54_D021.gif
TA = 25°C CL = 15 pF
Figure 4. ISO7041 Supply Current vs Data Rate at 1.8 V
(With 15-pF Load)

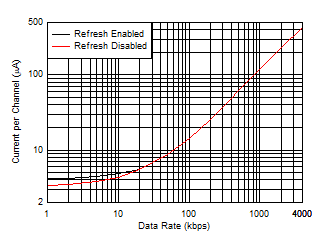

ISO7041 SLLSF54_D023.gif
TA = 25°C CL = 15 pF
Figure 6. ISO7041 Supply Current vs Data Rate at 2.5 V
(With 15-pF Load)

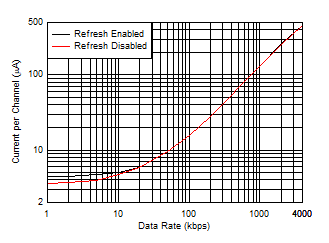

ISO7041 SLLSF54_D025.gif
TA = 25°C CL = 15 pF
Figure 8. ISO7041 Supply Current vs Data Rate at 3.3 V
(With 15-pF Load)

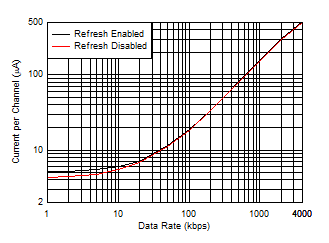

ISO7041 SLLSF54_D027.gif
TA = 25°C CL = 15 pF
Figure 10. ISO7041 Supply Current vs Data Rate at 5 V
(With 15-pF Load)
