Operation Timing

SNx5DP159 starts to operate after the OE signal goes high (see Figure 22, Figure 23, and Table 1). Keeping OE low until VDD and VCC become stable avoids any timing requirements as shown in Figure 22.

SN65DP159 SN75DP159 tim_powerup_DP159_SLLSEJ2.gifFigure 22. Power-Up Timing for SSNx5DP159

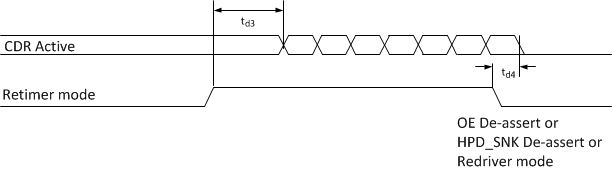

SN65DP159 SN75DP159 tim_CDR_DP159_SLLSEJ2.gifFigure 23. CDR Timing for SNx5DP159

Table 1. SNx5DP159 Operation Timing

MIN MAX UNIT
td1 VDD/VCC stable before VCC/VDD 0 200 µs
td2 VDD and VCC stable before OE deassertion 100 µs
td3 CDR active operation after retimer mode initial 15 ms
td4 CDR turn off time after retimer mode de-assert 120 ns
VDD_ramp VDD supply ramp-up requirements 100 ms
VCC_ramp VCC supply ramp-up requirements 100 ms
