2.2.1 MSP430FR2476 MCU

The MSP430FR2476 is an ultra-low-power MSP430FRx FRAM-based microcontroller (MCU), which offer extended data logging and security capabilities. The MSP430FR2476 offers the small LQFP package (7 mm × 7 mm) in the FRAM microcontroller portfolio, combined with a variety of integrated peripherals and ultra-low power consumption. FRAM is a cutting edge memory technology, combining the best features of flash and RAM into one nonvolatile memory. For more information on FRAM, visit www.ti.com/fram.

Device features include:

  • 1.8-V to 3.6-V operation
  • 16-bit RISC architecture up to 16-MHz system clock and 8-MHz FRAM access
  • 64KB of program FRAM, 512 bytes of information FRAM, and 8KB of RAM
  • 12-channel 12-bit ADC
  • One enhanced comparator with integrated 6-bit DAC as reference voltage
  • Four 16-bit timers with three capture/compare registers (Timer_B3)
  • One 16-bit timer with seven capture/compare registers (Timer_B7)
  • One 16-bit counter-only RTC
  • 16-bit cyclic redundancy check (CRC)
  • 43 GPIOs

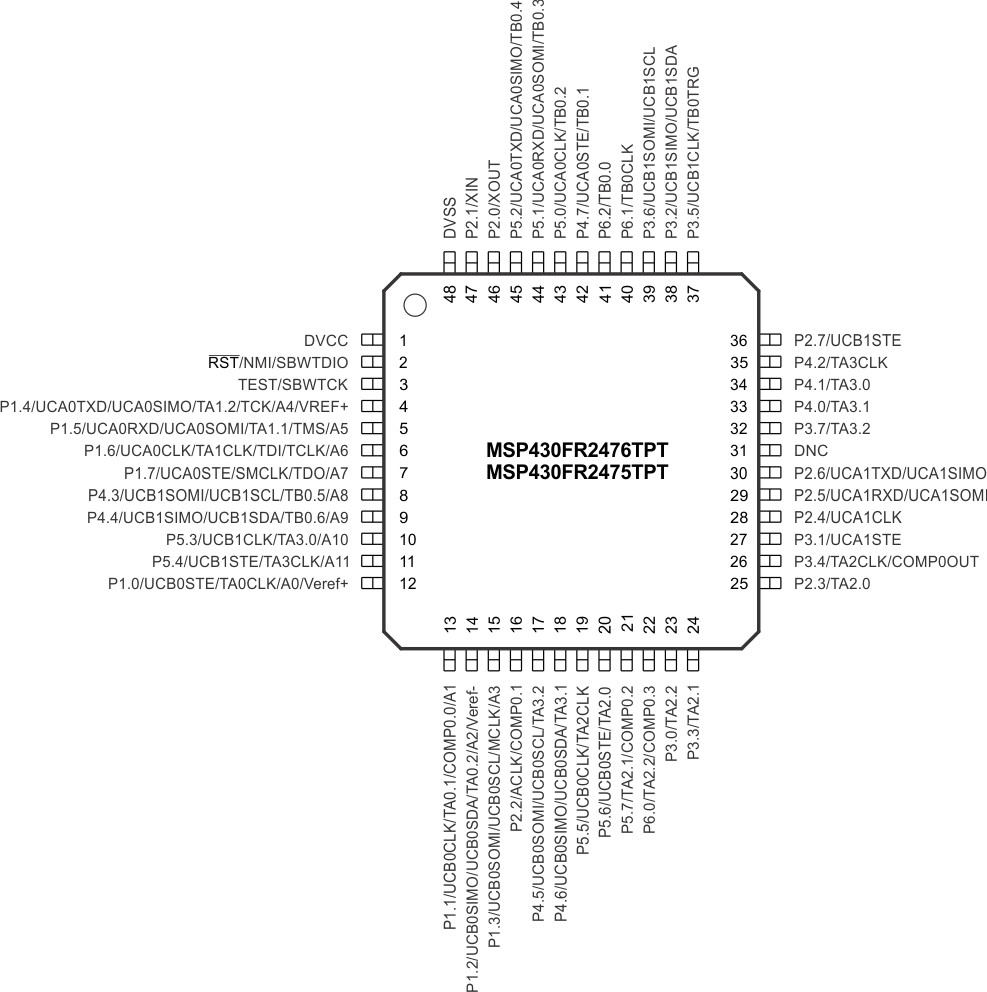

SLASO5_PINOUT_LQFP48C.gifFigure 4. MSP430FR2476 Pinout
