9.14.20 Port PJ (PJ.4 and PJ.5) Input/Output With Schmitt Trigger

Figure 9-21 and Figure 9-22 show the port diagrams. Table 9-43 summarizes the selection of the pin function.

Functional representation only.
Figure 9-21 Port PJ (PJ.4) Diagram
Functional representation only.

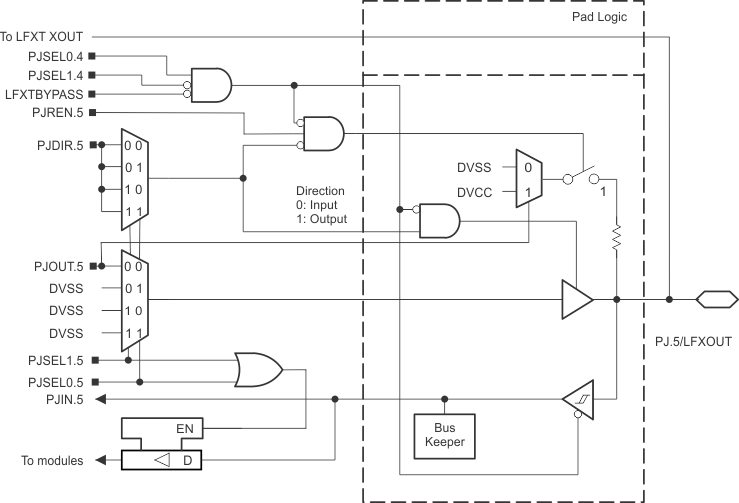

Figure 9-22 Port PJ (PJ.5) Diagram
Table 9-43 Port PJ (PJ.4 and PJ.5) Pin Functions
PIN NAME (PJ.x) x FUNCTION CONTROL BITS AND SIGNALS(1)
PJDIR.x PJSEL1.5 PJSEL0.5 PJSEL1.4 PJSEL0.4 LFXT
BYPASS
PJ.4/LFXIN 4 PJ.4 (I/O) I: 0; O: 1 X X 0 0 X
N/A 0 X X 1 X X
Internally tied to DVSS 1
LFXIN crystal mode(3) X X X 0 1 0
LFXIN bypass mode(3) X X X 0 1 1
PJ.5/LFXOUT 5 PJ.5 (I/O) I: 0; O: 1 0 0 0 0 0
1 X
X X 1(4)
N/A 0 see(2) see(2) 0 0 0
1 X
X X 1(4)
Internally tied to DVSS 1 see(2) see(2) 0 0 0
1 X
X X 1(4)
LFXOUT crystal mode(3) X X X 0 1 0
(1) X = Don't care
(2) If PJSEL0.5 = 1 or PJSEL1.5 = 1, the general-purpose I/O functionality is disabled. No input function is available. Configured as output, the pin is actively pulled to zero.
(3) If PJSEL1.4 = 0 and PJSEL0.4 = 1, the general-purpose I/O is disabled. When LFXTBYPASS = 0, PJ.4 and PJ.5 are configured for crystal operation and PJSEL1.5 and PJSEL0.5 are don't care. When LFXTBYPASS = 1, PJ.4 is configured for bypass operation and PJ.5 is configured as general-purpose I/O.
(4) When PJ.4 is configured in bypass mode, PJ.5 is configured as general-purpose I/O.
