6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
Supply Voltage VCC –0.3 20 V
Continuous Input Voltage Range LLC_CS –0.3 4.5 V
FB, AC1, AC2, VBULK, MD_SEL/PS_ON –0.3 VCC+0.3 V
AC_DET 0 4.5 V
SUFS –0.3 20 V
SUFG –0.3 SUFS+0.3 V
GD1, GD2, PFC_GD –0.5 VCC+0.5 V
PFC_CS –1.3 4.5 V
Continuous Input Current Range PFC_CS ±15 mA
TSOL Lead temperature (10 s) 260 °C
Operational Junction Temperature, TJ –40 125 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 Storage Conditions

MIN MAX UNIT
Tstg Storage temperature range –40 150 °C

6.3 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 500-V HBM is possible with the necessary precautions.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 250-V CDM is possible with the necessary precautions.

6.4 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VCC Supply voltage range 11 18 V
VFB FB pin voltage range 0 VCC V
VMD_SEL/PS_ON MD_SEL/PS_ON pin voltage range 0 VCC V
RL1/RL2 Line sensing resistors 9.3

6.5 Thermal Information

THERMAL METRIC(1) UCC29950 UNIT
SOIC (D)
16 PINS
RθJA Junction-to-ambient thermal resistance 78.9 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 40.3
RθJB Junction-to-board thermal resistance 36.3
ψJT Junction-to-top characterization parameter 8.9
ψJB Junction-to-board characterization parameter 36.0
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

6.6 Electrical Characteristics

–40°C < TJ < 125°C(5), VCC = 12 V, all voltages are with respect to AGND (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VCC Bias Supply (Self Bias Mode)
ISUFS Charging current into VCC SUFS = 7.5 V, VCC = 4 V –1 –2 –4 mA
VCCSB(start) In Self Bias mode, the controller will not start PFC and LLC gate drive outputs until the start up FET has charged the capacitance on the VCC pin above this level MD_SEL/PS_ON = VCC at power-up (self bias mode) 15.0 16.2 17.4 V
VCCSB_UVLO(stop) In Self Bias mode, VCC must be greater than this level to allow the controller to continue to output the PFC and LLC gate drives. VCC falling Self Bias Mode 7.3 7.9 8.5
VCC Bias Supply (Aux Bias Mode)
VCCSTART(1) Controller logic starts at this VCC voltage VCC rising 4.4 6 7.0 V
VCCSTOP(1) Controller logic stops at this VCC voltage VCC falling 3.7 5.0 5.8
VCCAB_UVLO(start) In Aux Bias Mode, VCC must be greater than this level to allow the controller to start the PFC and LLC gate drive outputs. VCC rising MD_SEL/PS_ON = 0 V at power-up (Aux Bias Mode) 10.0 10.5 10.9
VCCAB_UVLO(stop) In Aux Bias Mode, VCC must be greater than this level to allow the controller to continue to output the PFC and LLC gate drives. VCC falling Aux Bias Mode 9.1 9.6 10.0
VCC Supply Current
ICCENABLE Device is Enabled and providing PFC & LLC gate drive outputs GD1, GD2 at LLCFMAX. PFC_GD at fPFC (100 kHz nom). GD1, GD2 and PFC_GD pins unloaded. 7.5 8.0 18.3 mA
MD_SEL/PS_ON, Mode Select Function at Power Up
VMODE_SELSB Minimum voltage on the MD_SEL/PS_ON pin that will select Self Bias mode on power up (see Device Functional Modes). 1.1 1.6 2.1 V
TMODE_SEL_READ After VCC pin exceeds VCCSTART. This is the minimum time that the MD_SEL/PS_ON pin must remain below VMODE_SELSB to ensure that Aux Bias Mode is selected (see Device Functional Modes). 10 ms
MD_SEL/PS_ON, Power Supply On Function, Aux Bias Mode Only
VPS_ONPFC_RUN Minimum voltage on the MD_SEL/PS_ON pin that causes PFC stage to run(2) 20 25 33 %VCC
VPS_ONLLCPFC_RUN Minimum voltage on the MD_SEL/PS_ON pin that causes PFC and LLC stages to run(2) 66 75 85 %VCC
AC_DET
VOH_TP_LZ AC_DET output high I(AC_DET) = –1 mA 2.5 3.1 4.1 V
VOL AC_DET output low I(AC_DET) = 1 mA 19 35 80 mV
IO(max_source) AC_DET source current VOUT > 2.4 V –1.6 mA
IO(max_sink) AC_DET sink current VOUT< 0.5 V 6.0 mA
VBULK, PFC OUTPUT VOLTAGE
VBULK(ovp) PFC output overvoltage protection (auto recovery) 1.06 1.10 1.14 V
VBULK(reg) VBULK regulation set-point 0.907 0.940 0.973 V
VBULK(llc_start) LLC operation start threshold 0.70 0.73 0.77 V
VBULK(llc_stop) LLC operation stop threshold 0.45 0.49 0.53 V
AC1, AC2, AC LINE SENSING FOR PFC
RAC1 AC1 pin resistance to AGND AC1 pin 45 60 71
RAC2 AC2 pin resistance to AGND AC2 pin 45 60 71
IAC(det)(3)(7) AC_DET is active HIGH when IAC is below this level Force current into AC1 or AC2 pins. Unused pin input at 0 V. 7.03 7.48 7.93 µARMS
IAC(low_falling)(3)(7) PFC stage stops 100 ms after IAC is at or below this level Force current into AC1 or AC2 pins. Unused pin input at 0 V. 7.03 7.48 7.93
IAC(low_rising)(3)(7) PFC stage is allowed to start when IAC is at or above this level Force current into AC1 or AC2 pins. Unused pin input at 0 V. 8.04 8.55 9.1
IAC(high_falling)(3)(7) PFC stage restarts if IAC falls below this level. No soft-start Force current into AC1 or AC2 pins. Unused pin input at 0 V. 30.7 32.0 33.3
IAC(high_rising)(3)(7) PFC stage stops if IAC is at or above this level Force current into AC1 or AC2 pins. Unused pin input at 0 V. 31.8 33.1 34.4
IAC(halt)(3)(7) PFC and LLC stages stop if IAC is at or above this level Force current into AC1 or AC2 pins. Unused pin input at 0 V. 32.8 34.2 35.6
PFC_CS, PFC CURRENT SENSE
VPFCCS(cav_max) Maximum voltage at PFC_CS pin, (ignoring signal ripple due to inductor ripple current) that determines maximum power delivered. Used to determine RCS_PFC. (see PFC Stage Current SensingFigure 13 and Figure 6) –200 –225 –250 mV
VPFCCS(max) Maximum voltage at PFC_CS pin VBULK pin = 800 mV, |VAC1 – VAC2| = VAC_PEAK(4) –570 –800 –950
PFC_GD, PFC GATE DRIVER
VHI(pfc_2mA) PFC_GD high level IO(PFC_GD) = –2 mA 11.5 11.8 12.0 V
VHI(pfc_75mA) PFC_GD high level IO(PFC_GD) = –75 mA 8.5 9.5 10.5
RPFC(gd_hi) PFC_GD pull-up resistance IO(PFC_GD) = –50 mA 14 25 Ω
RPFC(gd_lo) PFC_GD pull-down resistance IO(PFC_GD) = 75 mA 4.4 10
tR(pfc) PFC_GD rise time Capacitive load of 1.0 nF on PFC_GD pin, 20% to 80% 30 45 ns
tF(pfc) PFC_GD fall time Capacitive load of 1.0 nF on PFC_GD pin, 20% to 80% 10 25
fPFC Switching frequency Includes dithering of ±2 kHz at nominal 333-Hz rate. 87 98 109 kHz
FB, LLC Control Loop Feedback
VFB(min)(8) Minimum voltage on FB pin where LLC frequency is modulated Below VFB_MIN, LLC frequency is LLCFmin 0.17 0.2 0.23 V
VFB(max)(8) Maximum voltage on FB pin where LLC frequency is modulated Between VFB_MAX, and VFB_LLC_OFF LLC frequency is LLCFmax 2.90 3 3.10
VFB(llc_off)(8) Voltage on FB pin above which LLC gate drive terminated Once VFB exceeds VFB_LLC_OFF, VFB must fall below VFB_MAX to resume switching 3.62 3.75 3.88
LLCFMIN(8) Minimum LLC switching frequency 63.7 70 74.8 kHz
LLCFMAX(8) Maximum LLC switching frequency 321 350 378
LLCT(dead)(9) Time for which GD1 and GD2 are both low during LLC operation at LLCFMIN LLC dead-time at minimum switching frequency. 224 300 388 ns
RFB Internal resistance from FB pin to AGND 45 60 71
LLC_CS, LLC Current Sense
VCS(ocp3)(10) LLC Overcurrent threshold level three If this level is exceeded the PFC and LLC stages will stop for tLONG(fault). Restart with a normal soft-start sequence 0.87 0.9 0.94 V
VCS(llc_max) Voltage at LLC_CS pin at 100% of full load 0.27 0.30 0.33
FAULT Section
tLONG(fault) Recovery time after long fault 0.9 1.0 1.5 s
tSHORT(fault) Recovery time after short fault 90 100 150 ms
GD1, GD2, LLC GATE Drive Output
VGD(hi_2mA) GD1, GD2 output high level IO(GDx) = –2 mA 11.5 11.8 12 V
VGD(hi_75mA) GD1, GD2 output high level IO(GDx) = –75 mA 9.3 10.1 10.9
RGD(hi) GD1, GD2 gate driver pull-up resistance IO(GDx) = –50 mA 5.8 10.5 Ω
RGD(lo) GD1, GD2 gate driver pull-down resistance IO(GDx) = 75 mA 1.6 5
tr(llcgd) LLC gate driver rise time Capacitive load of 1 nF on GD1, GD2 pins 12 30 ns
tf(llcgd) LLC gate driver fall time capacitive load of 1 nF on GD1, GD2 pins (20% to 80%) 11 25
Thermal Shutdown
TSD Thermal shutdown temperature 125 °C
TST Start / restart temperature 113
(1) VCCSTARTis always greater than VCCSTOP.
(2) Threshold voltage will track VCC and is therefore specified as a percentage of VCC.
(3) These are specified at 25°C. The relative levels for these specifications track each other. The equivalent line voltages are given in Table 3, assuming a source impedance of 9.3 MΩ.
(4) Tested at peak of line voltage or 90° from zero crossing.
(5)   The device has been characterized over the entire temperature range during development. Individual devices may enter temperature shutdown (TSD) at TJ lower than 125°C.
(6) The device has been characterized over the entire temperature range during development. Individual devices may enter temperature shutdown (TSD) at TJ lower than 125°C.
(7) This is the current into the AC1 or AC2 pins.
(8) Refer to Figure 1.
(9) Refer to Figure 2.
(10) Refer to Table 4 for other LLC Stage Over-Current Protection Levels.

6.7 Typical Characteristics

UCC29950 D102_slusc18.gif
A.
Figure 1. LLC Switching Frequency vs VFB
UCC29950 D104_slusc18.gif
A.
Figure 3. LLC Period vs Time During Soft-Start
UCC29950 D106_slusc18.gif
A.
Figure 5. Switching Frequency vs Temperature
(for PFC and LLC). Normalized to 1 at 20°C
UCC29950 D107_slusc18.gif
A.
Figure 7. RAC1, RAC2 Resistance vs Temperature
UCC29950 D401_SLUSC18.gif
A.

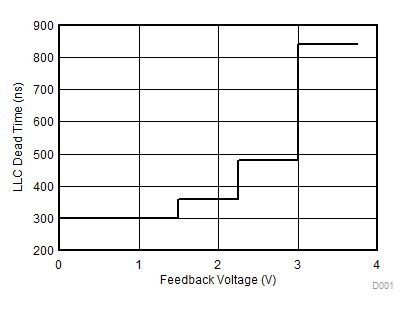

Figure 2. LLC Dead Time vs VFB
UCC29950 D105_slusc18.gif
A.
Figure 4. LLC Frequency vs Time During Soft-Start
UCC29950 D109_slusc18.gif
A.
Figure 6. PFC_CS Signal (diagrammatic)
UCC29950 D108_slusc18.gif
A.
Figure 8. SUFS to VCC Current vs Temperature
