5 Pin Configuration and Functions

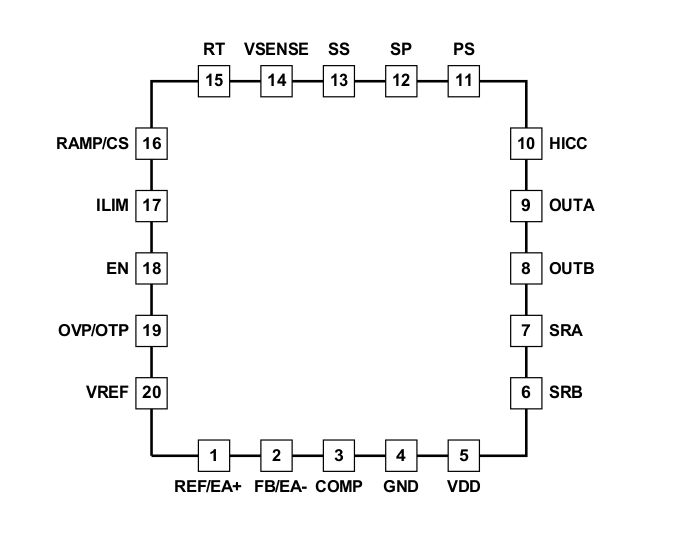

RGB Package
20-Pin VQFN
Top View
UCC28250 pinout_lusa29.gif

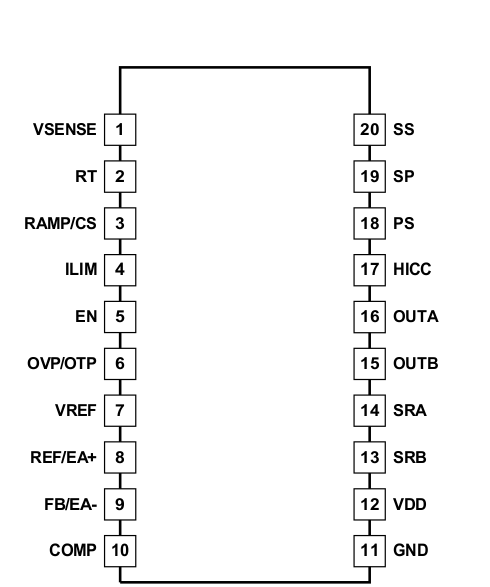

PW Package
20-Pin TSSOP
Top View
UCC28250 pinout2_lusa29.gif

Pin Functions

PIN I/O DESCRIPTION
NAME QFN PW
COMP 3 10 I/O Error amplifier output
EN 18 5 I Device enable and disable
FB/EA- 2 9 I Error amplifier inverting input
GND 4 11 I Ground
HICC 10 17 I Cycle-by-cycle current limit time delay and Hiccup time setting
ILIM 17 4 I Current sense for cycle-by-cycle overcurrent protection
OUTA 9 16 O 0.2-A sink/source primary switching output
OUTB 8 15 O 0.2-A sink/source primary switching output
OVP/OTP 19 6 I Overvoltage and overtemperature protection pin
PS 11 18 I Primary off to synchronous rectifier on dead-time set
RAMP/CS 16 3 I PWM ramp input (for voltage mode control) or current sense input (for current mode control)
REF/EA+ 1 8 I Error amplifier noninverting input
RT 15 2 I Oscillator frequency set or synchronous clock input
SP 12 19 I Synchronous rectifier off to primary on dead-time set
SRA 7 14 O 0.2-A sink/source synchronous rectifier output
SRB 6 13 O 0.2-A sink/source synchronous rectifier output
SS 13 20 I/O Soft-start programming
VDD 5 12 I Bias supply input
VREF 20 7 O 3.3-V reference output
VSENSE 14 1 I Output voltage sensing for prebias control
