7.1 Propagation Delay and Pulse Width Distortion

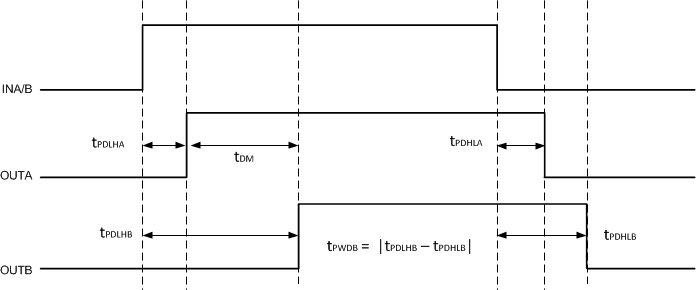

Figure 24 shows how to calculate pulse width distortion (tPWD) and delay matching (tDM) from the propagation delays of channels A and B. These parameters can be measured by ensuring that both inputs are in phase and disabling the dead time function by shorting the DT Pin to VCC.

UCC21225A UCC21520_PWD_CHOPPED_N_DROPPED.gifFigure 24. Overlapping Inputs, Dead Time Disabled
