Typical Characteristics

VDDA = VDDB= 12 V, VCCI = 3.3 V, TA = 25°C, No load unless otherwise noted.
UCC20225 NO_LOAD_I_5_17.gif
Figure 4. Per Channel Current Consumption vs. Frequency (No Load, VDD = 12 V or 25 V)
UCC20225 10nF_I_5_17.gif
Figure 6. Per Channel Current Consumption (IVDDA/B) vs. Frequency (10-nF Load, VDD = 12 V or 25 V)
UCC20225 IQ_5_17.gif
Figure 8. Per Channel (IVDDA/B) Quiescent Supply Current vs Temperature (No Load, Input Low, No Switching)
UCC20225 RF_LOAD_NU.gif

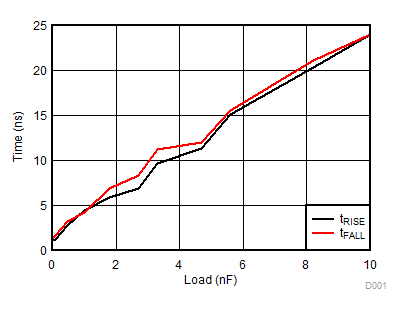

Figure 10. Rising and Falling Times vs. Load (VDD = 12 V)
UCC20225 PD_T_NU.gif
Figure 12. Propagation Delay vs. Temperature
UCC20225 PWD.gif
Figure 14. Pulse Width Distortion vs. Temperature
UCC20225 TDM_TEMP_NU.gif
Figure 16. Propagation Delay Matching (tDM) vs. Temperature
UCC20225 UVLO_VDD_TEMP_5_17.gif
Figure 18. VDD UVLO Threshold vs. Temperature
UCC20225 INDIS_LO_5_17.gif
Figure 20. PWM/DIS Low Threshold
UCC20225 DT_TEMP_NU.gif
Figure 22. Dead Time vs. Temperature (with RDT = 20 kΩ and 100 kΩ)
UCC20225 1nF_I_5_17.gif
Figure 5. Per Channel Current Consumption (IVDDA/B) vs. Frequency (1-nF Load, VDD = 12 V or 25 V)
UCC20225 IVDD_TEMP_5_17.gif
Figure 7. Per Channel (IVDDA/B) Supply Current Vs. Temperature (No Load, Different Switching Frequencies)
UCC20225 Iq_IVCCI.gif
Figure 9. IVCCI Quiescent Supply Current vs Temperature (No Load, DIS is High, No Switching)
UCC20225 OUTR_5_17.gif
Figure 11. Output Resistance vs. Temperature
UCC20225 PDVCC_NUNU.gif
Figure 13. Propagation Delay vs. VCCI
UCC20225 TDM_VDD_NU.gif
Figure 15. Propagation Delay Matching (tDM) vs. VDD
UCC20225 VDD_HYS_5_17.gif
Figure 17. VDD UVLO Hysteresis vs. Temperature
UCC20225 D001_SLUSCN0.gif
Figure 19. PWM/DIS Hysteresis vs. Temperature
UCC20225 INDIS_HI_5_17.gif
Figure 21. PWM/DIS High Threshold
UCC20225 DTM_TEMP_NU.gif
Figure 23. Dead Time Matching vs. Temperature (with RDT = 20 kΩ and 100 kΩ)
