9 Applications and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

9.1 Application Information

The TUSB8041-Q1 is a four-port USB 3.0 compliant hub. It provides simultaneous SuperSpeed USB and high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed, or low speed connections on the downstream port. The TUSB8041-Q1 can be used in any application that needs additional USB compliant ports. For example, a specific notebook may only have two downstream USB ports. By using the TUSB8041-Q1, the notebook can increase the downstream port count to five.

9.2 Typical Application

9.2.1 Discrete USB Hub Product

A common application for the TUSB8041-Q1 is as a self powered standalone USB hub product. The product is powered by an external 5V DC Power adapter. In this application, using a USB cable TUSB8041-Q1’s upstream port is plugged into a USB Host controller. The downstream ports of the TUSB8041-Q1 are exposed to users for connecting USB hard drives, cameras, flash drives, and so forth.

TUSB8041-Q1 discrete_USB_hub_sllsee6.gif Figure 4. Discrete USB Hub Product

9.2.1.1 Design Requirements

Table 48. Design Parameters

DESIGN PARAMETER EXAMPLE VALUE
VDD Supply 1.1V
VDD33 Supply 3.3V
Upstream Port USB Support (SS, HS, FS) SS, HS, FS
Downstream Port 1 USB Support (SS, HS, FS, LS) SS, HS, FS, LS
Downstream Port 2 USB Support (SS, HS, FS, LS) SS, HS, FS, LS
Downstream Port 3 USB Support (SS, HS, FS, LS) SS, HS, FS, LS
Downstream Port 4 USB Support (SS, HS, FS, LS) SS, HS, FS, LS
Number of Removable Downstream Ports 4
Number of Non-Removable Downstream Ports 0
Full Power Management of Downstream Ports Yes. (FULLPWRMGMTZ = 0)
Individual Control of Downstream Port Power Switch Yes. (GANGED = 0)
Power Switch Enable Polarity Active High. (PWRCTL_POL = 1)
Battery Charge Support for Downstream Port 1 Yes
Battery Charge Support for Downstream Port 2 Yes
Battery Charge Support for Downstream Port 3 Yes
Battery Charge Support for Downstream Port 4 Yes
I2C EEPROM Support No.
24MHz Clock Source Crystal

9.2.1.2 Detailed Design Procedure

9.2.1.2.1 Upstream Port Implementation

The upstream of the TUSB8041-Q1 is connected to a USB3 Type B connector. This particular example has GANGED pin and FULLPWRMGMTZ pin pulled low which results in individual power support each downstream port. The VBUS signal from the USB3 Type B connector is feed through a voltage divider. The purpose of the voltage divider is to make sure the level meets USB_VBUS input requirements

TUSB8041-Q1 upstream_port_imp_sllsee6.gif Figure 5. Upstream Port Implementation

9.2.1.2.2 Downstream Port 1 Implementation

The downstream port 1 of the TUSB8041-Q1 is connected to a USB3 Type A connector. With BATEN1 pin pulled up, Battery Charge support is enabled for Port 1. If Battery Charge support is not needed, then pull-up resistor on BATEN1 should be uninstalled.

TUSB8041-Q1 downstream_port1_imp_sllsee6.gif Figure 6. Downstream Port 1 Implementation

9.2.1.2.3 Downstream Port 2 Implementation

The downstream port 2 of the TUSB8041-Q1 is connected to a USB3 Type A connector. With BATEN2 pin pulled up, Battery Charge support is enabled for Port 2. If Battery Charge support is not needed, then pull-up resistor on BATEN2 should be uninstalled.

TUSB8041-Q1 downstream_port2_imp_sllsee6.gif Figure 7. Downstream Port 2 Implementation

9.2.1.2.4 Downstream Port 3 Implementation

The downstream port3 of the TUSB8041-Q1 is connected to a USB3 Type A connector. With BATEN3 pin pulled up, Battery Charge support is enabled for Port 3. If Battery Charge support is not needed, then pull-up resistor on BATEN3 should be uninstalled.

TUSB8041-Q1 downstream_port3_imp_sllsee6.gif Figure 8. Downstream Port 3 Implementation

9.2.1.2.5 Downstream Port 4 Implementation

The downstream port 4 of the TUSB8041-Q1 is connected to a USB3 Type A connector. With BATEN4 pin pulled up, Battery Charge support is enabled for Port 4. If Battery Charge support is not needed, then pull-up resistor on BATEN4 should be uninstalled.

TUSB8041-Q1 downstream_port4_imp_sllsee6.gif Figure 9. Downstream Port 4 Implementation

9.2.1.2.6 VBUS Power Switch Implementation

This particular example uses the Texas Instruments TPS2561 Dual Channel Precision Adjustable Current-Limited power switch. For details on this power switch or other power switches available from Texas Instruments, refer to the Texas Instruments website.

TUSB8041-Q1 vbus_pwr1_sllsee6.gif Figure 10. VBUS Power Switch Implementation

9.2.1.2.7 Clock, Reset, and Misc

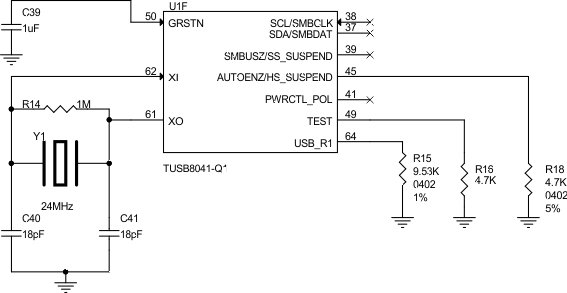

The PWRCTL_POL is left unconnected which results in active high power enable (PWRCTL1, PWRCTL2, PWRCTL3, and PWRCTL4) for a USB VBUS power switch. The 1 µF capacitor on the GRSTN pin can only be used if the VDD11 supply is stable before the VDD33 supply. The depending on the supply ramp of the two supplies the capacitor may have to be adjusted.

TUSB8041-Q1 clock_reset_misc_sllsee6.gif Figure 11. Clock, Reset, and Misc

9.2.1.2.8 TUSB8041-Q1 Power Implementation

TUSB8041-Q1 pwr_imp_sllsee6.gif Figure 12. TUSB8041-Q1 Power Implementation

9.2.1.3 Application Curves

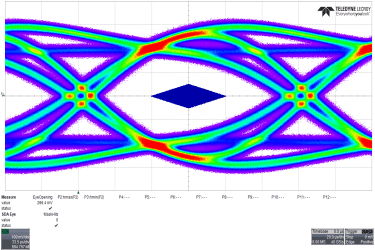

TUSB8041-Q1 eye_us_sllsee6.gif
Figure 13. Upstream Port
TUSB8041-Q1 eye_ds2_sllsee6.gif
Figure 15. Downstream Port 2
TUSB8041-Q1 eye_ds4_sllsee6.gif
Figure 17. Downstream Port 4
TUSB8041-Q1 eye_hs_ds1_sllsee6.gif
Figure 19. High-Speed Downstream Port 1
TUSB8041-Q1 eye_hs_ds3_sllsee6.gif
Figure 21. High-Speed Downstream Port 3
TUSB8041-Q1 eye_ds1_sllsee6.gif
Figure 14. Downstream Port 1
TUSB8041-Q1 eye_ds3_sllsee6.gif
Figure 16. Downstream Port 3
TUSB8041-Q1 eye_hs_us_sllsee6.gif
Figure 18. High-Speed Upstream Port

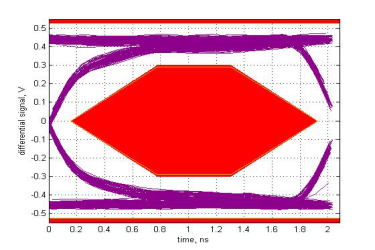

TUSB8041-Q1 eye_hs_ds2_sllsee6.gif
Figure 20. High-Speed Downstream Port 2
TUSB8041-Q1 eye_hs_ds4_sllsee6.gif
Figure 22. High-Speed Downstream Port 4
