7 Parameter Measurement Information

TS5MP645 scds371-on-resistance.gifFigure 7. On Resistance
TS5MP645 scds371-off-leakage.gifFigure 8. Off Leakage
TS5MP645 scds371-on-leakage.gifFigure 9. On Leakage
TS5MP645 scds371-t-switch-timing.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 3 ns, tf = 3 ns.
2. CL includes probe and jig capacitance.
Figure 10. tSWITCH timing
TS5MP645 scds371-t-on-and-t-off-timing-for-oe.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 3 ns, tf = 3 ns.
2. CL includes probe and jig capacitance.
Figure 11. tON and tOFF Timing for OE
TS5MP645 scds371-off-isolation.gifFigure 12. Off Isolation
TS5MP645 scds371-crosstalk.gifFigure 13. Crosstalk
TS5MP645 scds371-bw-and-insertion-loss.gifFigure 14. BW and Insertion Loss
TS5MP645 scds371-t-pd-t-sk-intra-and-t-sk-inter-setup.gifFigure 15. tPD, tSKEW(INTRA) and tSKEW Setup
TS5MP645 scds371-t-pd.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 100 ps, tf = 100 ps.
2. CL includes probe and jig capacitance.
Figure 16. tPD

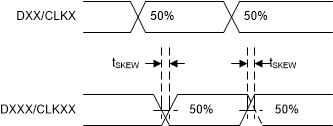

TS5MP645 scds371-tsk-instra.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 100 ps, tf = 100 ps.
2. CL includes probe and jig capacitance.
Figure 17. tSKEW
TS5MP645 scds371-t-sk-inter.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 100 ps, tf = 100 ps.
2. CL includes probe and jig capacitance.
3. tSK(INTER) is the max skew between all channels. Diagram exaggerates tSK(INTER) to show measurement technique
Figure 18. tSKEW
TS5MP645 scds371-t-bbm.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 3 ns, tf = 3 ns.
2. CL includes probe and jig capacitance.
Figure 19. tBBM
