Detailed Description

Overview

TRF3722 integrates a high performance direct conversion quadrature modulator with exceptional linearity and low noise performance. The modulator which upconverts low frequency baseband signal to high frequency RF typically operates at 0.25 V common mode. It supports seamless interface with current source DACs. It also features high gain and low power operating modes. Additionally, TRF3722 integrates PLL and VCO to provide the local oscillator (LO) to the integrated modulator. The PLL and VCO provides excellent phase noise and extremely low spurious performance. The device also provides an LO output for driving another modulator or mixer. TRF3722 supports the use of an external VCO or LO signal.

Functional Block Diagram

TRF3722 fbd_slws245.gif

Feature Description

RF Output

The RF output is single ended and can drive a 50-Ω load. It can be tuned with the use of an output matching network to optimize the linearity and return loss performance within a selected band.

Baseband Inputs

The baseband inputs consist of the in-phase signal (I) and the quadrature-phase signals (Q). These I and Q signals are differential. The baseband lines are nominally biased at 0.25-V common-mode voltage (VCM); however, the device can operate with a VCM in the range of 0 V to 0.5 V. The baseband input lines are normally terminated externally 50 Ω on TRF3722 evaluation board, though it is possible to modify this value if necessary to match to an external filter load impedance requirement.

LO Output

The LO outputs are open collector differential outputs and are biased externally. These differential outputs can be tuned to optimized output power along with OUTBUF_BIAS register settings. It also is possible to use LO outputs in single ended mode.

PLL Architecture

Figure 132 illustrates a block diagram of the PLL architecture.

The VCO output frequency (fVCO) is given by Equation 1:

Equation 1. TRF3722 eq_3_lws245.gif
Equation 2. TRF3722 eq_4_lws245.gif
Equation 3. TRF3722 eq_5_lws245.gif
Equation 4. TRF3722 eq_2_lws245.gif

Where fREF is the reference input frequency, RDIV is the reference divider division ratio and the phase - frequency detector frequency is fPFD. PLL_DIV_SEL controls the division ratio of the programmable divider (PLL DIV) before the dual-modulus prescaler (DMP). NINT and NFRAC/225 is the integer and fractional part of the fractional divider (N.f), respectively. In Integer mode, the fractional setting is ignored and Equation 5 is applied.

Equation 5. TRF3722 eq_1_lws245.gif

The complete feedback divider block consists of a PLL DIV, DMP, and N.f. The prescaler can be programmed as either a 4/5 or an 8/9. N.f includes an A and M digital counters.

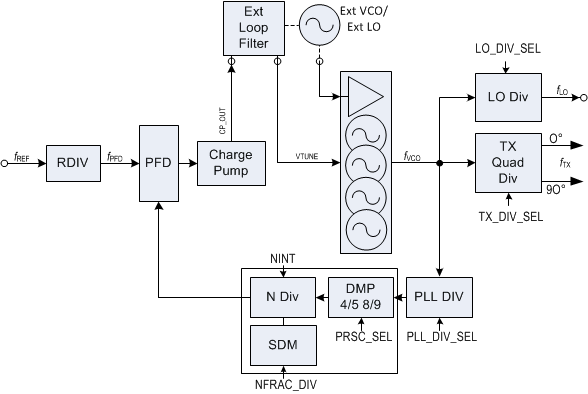

TRF3722 PLL_loop_dia_lws245.gif Figure 132. PLL Architecture

External VCO

An external LO or VCO signal may be applied. If an external LO is used the internal PLL can be powered down. Alternatively, dividers, phase-frequency detector, and charge pump can remain enabled and may be used to control the VTUNE of an external VCO. EN_EXTVCO is used to select the internal or external VCO.

Loop Filter

Loop filter design is critical for achieving low closed loop phase noise. Complete modulator performance data has been measured using integer mode loop filter. The integer mode loop filter was designed considering loop bandwidth 40 kHz and fPFD 2.56 MHz. Phase margin of 60 degrees was considered. Refer to TRF3722EVM User’s Guide to obtain the details on TRF3722 loop component calculations. Figure 133 shows integer loop filter.

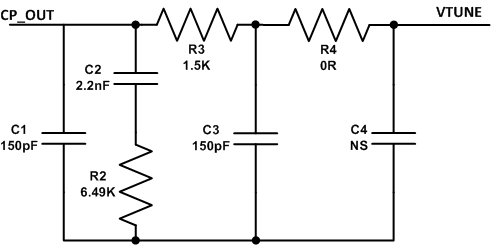

TRF3722 Integer_Loop_filter_slws245.gif Figure 133. Integer Loop Filter

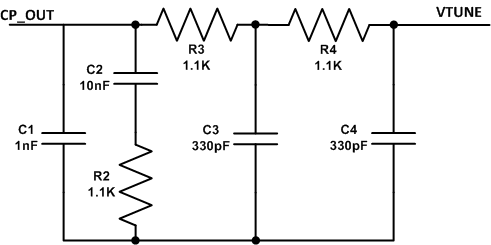

Frac-N performance data is obtained using the fractional loop filter shown in Figure 134. 40 kHz loop bandwidth and 15.36 MHz PFD was considered.

TRF3722 Fractional_Loop_filter_slws245.gif Figure 134. Fractional Loop Filter

Lock Detect

The lock detect signal is generated in the phase frequency detector by comparing the two input signals. When the two compared phase signals remain aligned for several clock cycles, an internal signal goes high. The precision of this comparison is controlled through the LD_ANA_PREC bits. This internal signal is then averaged and compared against a reference voltage to generate the lock detect (LD) signal. The number of averages used is controlled through LD_DIG_PREC. Therefore, when the VCO is frequency locked, LD is high. When the VCO frequency is not locked, LD may pulse high or exhibit periodic behavior.

By default, the internal lock detect signal is made available on the LD terminal. Register bits MUX_CTRL can be used to control a multiplexer to output other diagnostic signals on the LD output.

Device Functional Modes

Selecting PLL Divider Values

With reference to the PLL architecture illustrated in Figure 132, operation of the PLL requires TX_DIV_SEL / LO_DIV_SEL, PLL_DIV_SEL, RDIV, NINT, NFRAC and PRSC_SEL bits to be calculated.

  1. TX_DIV_SEL / LO_DIV_SEL
  2. The LO to the integrated modulator (ƒTX) and additional LO output (ƒLO) frequency is related to fVCO according to the following:

    ƒTX = fVCO / TX DIV

    ƒLO = fVCO / LO DIV

    Where TX DIV and LO DIV are related to TX_DIV_SEL and LO_DIV_SEL as:

    TX_DIV_SEL / LO_DIV_SEL TX_DIV / LO_DIV FREQUENCY RANGE
    TX_DIV_SEL = 0 TX DIV = 1 2050 MHz ≤ ƒTX ≤ 4100 MHz
    TX_DIV_SEL = 1 TX DIV = 2 1025 MHz ≤ ƒTX ≤ 2050 MHz
    TX_DIV_SEL = 2 TX DIV = 4 512.5 MHz ≤ ƒTX ≤ 1025 MHz
    TX_DIV_SEL = 3 TX DIV = 8 256.25 MHz ≤ ƒTX ≤ 512.5 MHz
    LO_DIV_SEL = 0 LO DIV = 1 2050 MHz ≤ ƒLO ≤ 4100 MHz
    LO_DIV_SEL = 1 LO DIV = 2 1025 MHz ≤ ƒLO ≤ 2050 MHz
    LO_DIV_SEL = 2 LO DIV = 4 512.5 MHz ≤ ƒLO ≤ 1025 MHz
    LO_DIV_SEL = 3 LO DIV = 8 256.25 MHz ≤ ƒLO ≤ 512.5 MHz
  3. PLL_DIV_SEL
  4. Given fVCO, select PLL_DIV_SEL so that the division ratio PLL DIV limits the input frequency to the prescaler , fDMP, is limited to a maximum of 3000 MHz.

    PLL DIV = min(1, 2, 4) such that fDMP ≤ 3000 MHz

    PLL DIV is related to PLL_DIV_SEL according to the following equation:

    PLL_DIV = 2PLL_DIV_SEL

    This calculation can be restated as Equation 6.

    Equation 6. TRF3722 eq_6_lws245.gif

    For both integer and fractional mode it is preferable to operate the fPFD at the highest possible frequency determined by the required frequency step of the RFOUT or LO_OUT. In Integer mode, select the maximum fPFD according to Equation 7.

    Equation 7. TRF3722 eq_7_lws245.gif

    In Fractional mode, small RF stepsize can be obtained through the fractional divider. In this case, the highest fPFD frequency should be selected according to the reference clock and system requirements.

  5. RDIV, NINT, NFRAC, PRSC_SEL
  6. The remaing PLL parameters are calculated according to the following equations:

    TRF3722 eq_8_lws245.gif
    TRF3722 eq_9_lws245.gif
    TRF3722 eq_10_lws245.gif

    The DMP division ratio (P/P+1) can be set to 4/5 or 8/9 through the PRSC_SEL bit. To allow proper fractional operation, set PRSC_SEL according to:

    PRSC_SEL = 0, (P/P+1) = 4/5 for 20 ≤ NINT < 72 in integer mode or 23 ≤ NINT < 75 in fractional mode.

    PRSC_SEL = 1, (P/P+1) = 8/9 for NINT ≥ 72 in integer mode or NINT ≥ 75 in fractional mode.

    The PRSC_SEL limit at NINT < 75 applies to Fractional mode with third-order modulation. In Integer mode, the PRSC_SEL = 8/9 should be used with NINT as low as 72. The divider block accounts for either value of PRSC_SEL without requiring NINT or NFRAC to be adjusted. Then, calculate the maximum input frequency (fN) to the digital divider. Use the lower of the possible prescaler divide settings, P = (4,8), as shown by Equation 8.

    Equation 8. TRF3722 eq_11_lws245.gif

    Verify that the frequency into the digital divider, fN, is less than or equal to 375 MHz. If fN exceeds 375 MHz, choose a larger value for PLL_DIV_SEL and recalculate fPFD, RDIV, NINT, NFRAC, and PRSC_SEL.

Setup Example for Integer Mode

Suppose the following operating characteristics fractional example are desired for Integer mode operation:

  • fREF = 61.44 MHz (reference input frequency)
  • Step at RF = 2.56 MHz (RF channel spacing)
  • fRF = 1799.68 MHz (RF frequency)

The VCO range is 2050 MHz to 4100 MHz. Therefore:

  • LO DIV = 2 (LO_DIV_SEL = 1)
  • fVCO = LO DIV × 1799.68 MHz = 3599.36 MHz

In order to keep the frequency of the prescaler below 3000 MHz:

  • PLL_DIV = 2 (PLL_DIV_SEL = 1)

The desired stepsize at RF is 2.56 MHz, so:

  • fPFD = 2.56 MHz
  • fVCO, stepsize = PLL_DIV × fPFD = 5.12 MHz

Using the reference frequency along with the required fPFD gives:

  • RDIV = 24
  • NINT = 703

NINT ≥ 75; therefore, select the 8/9 prescaler.

where

This example shows that Integer mode operation gives sufficient resolution for the required stepsize.

Integer and Fractional Mode Selection

The PLL is designed to operate in either Integer mode or Fractional mode. If the desired local oscillator (LO) frequency is an integer multiple of fPFD, then select integer mode otherwise select fractional mode. In Integer mode, the feedback divider ratio is an integer, and the fraction is zero. Thus, bits corresponding to the fractional control in integer mode are don’t care and fractional divider functionality is disabled.

In Fractional mode, the accuracy of the final frequency is set by 25-bit resolution. The RF stepsize is fPFD/225 which is less than 1 Hz for fPFD up to 33 MHz. The appropriate fractional control bits in the serial register must be programmed. Optimal performance may require tuning the MOD_ORD, ISOURCE_SINK, and ISOURCE_TRIM values according to the chosen frequency band.

Selecting the VCO and VCO Frequency Control

To achieve a broad frequency tuning range, the TRF3722 integrates multiple VCOs. Each VCO tank uses a bank of coarse tuning capacitor to bring VCO frequency within a few MHz of the desired value. For a given LO frequency an appropriate VCO and capacitor array must be selected. The device integrates logic that automatically selects an appropriate VCO and capacitor array, such that in closed loop V(TUNE) is approximately equal to the open loop calibration reference voltage set by VCO_CAL_REF. An on-chip temperature sensor automatically adjusts this reference voltage so that proper lock can be maintained over the temperature range.

The calibration logic is driven by a CAL_CLK signal which is scaled version of the reference frequency according to CAL_CLK_SEL. For optimum accuracy It is recommended to limit the CAL_CLK frequency to 600 kHz.

When VCO_SEL_MODE is '0', the device automatically selects the VCO and the capacitor array. When VCO_SEL_MODE is '1', the VCO selected by VCO_SEL is used and the logic automatically selects the capacitor array. The VCO and capacitor array settings resulting from the calibration can be read from Register 0 - read back register.

Automatic calibration can be disabled by setting CAL_BYPASS to '1'. In this manual calibration mode, the VCO is selected through register bits VCO_SEL, while the capacitor array is selected through register bits VCO_TRIM. Calibration modes are summarized in Table 3.

Table 3. VCO Calibration Modes

CAL_BYPASS VCO_SEL_MODE MAX CYCLES CAL_CLK VCO CAPACITOR ARRAY
0 0 46 Automatic
0 1 34 VCO_SEL Automatic
1 don't care N/A VCO_SEL VCO_TRIM

Register Maps

Table 4. Serial interface Register Summary

Bit Register 1 Register 2 Register 3 Register 4 Register 5 Register 6
Bit0 Register Address Register Address Register Address Register Address Register Address Register Address
Bit1
Bit2
Bit3
Bit4
Bit5 RDIV NINT NFRAC PWD_PLL RSV RSV
Bit6 PWD_CP IB_MOD_GM
Bit7 PWD_VCO VCO_TRIM
Bit8 PWD_VCO_MUX IB_MOD_LO
Bit9 PWD _DIV124
Bit10 PWD_PRESC VCO_BIAS
Bit11 RSV
Bit12 PWD_OUTBUF
Bit13 PWD_LO_DIV EN_LOCKDET
Bit14 PWD_TX_DIV VCOBUF_BIAS VCO_TEST_MODE
Bit15 PWD_MOD CAL_BYPASS
Bit16 EN_EXTVCO VCOMUX_BIAS MUX_CTRL
Bit17 RSV
Bit18 RSV EN_ISOURCE OUTBUF_BIAS
Bit19 REF_INV LD_ANA_PREC ISOURCE_SINKB
Bit20 NEG_VCO RSV ISOURCE_TRIM
Bit21 ICP PLL_DIV_SEL CP_TRISTATE
Bit22 VCO_CAL_IB
Bit23 PRSC_SEL SPEEDUP VCO_CAL_REF LO_DIV_SEL
Bit24 RSV LD_DIG_PREC
Bit25 MOD_ORD LO_DIV_BIAS
Bit26 ICPDOUBLE VCO_SEL VCO_AMPL_CTRL
Bit27 CAL_CLK_SEL TX_DIV_SEL
Bit28 VCO_SEL_MODE DITH_SEL VCO_VB_CTRL
Bit29 CAL_ACC DEL_SD_CLK TX_DIV_BIAS
Bit30 RSV RSV
Bit31 RSV EN_CAL EN_FRAC_MODE EN_LD_ISOURCE GAIN_CTRL

Serial interface Register Definition

Table 5. Register 1

Register 1 Bit Name Reset Value Description
Bit0 ADDR<0> 1 Register Address Bits
Bit1 ADDR<1> 0
Bit2 ADDR<2> 0
Bit3 ADDR<3> 1
Bit4 ADDR<4> 0
Bit5 RDIV<0> 1 13-bit Reference Divider Value
(Rmin = 1, Rmax = 8191)
Bit6 RDIV<1> 0
Bit7 RDIV<2> 0
Bit8 RDIV<3> 0
Bit9 RDIV<4> 0
Bit10 RDIV<5> 0
Bit11 RDIV<6> 0
Bit12 RDIV<7> 0
Bit13 RDIV<8> 0
Bit14 RDIV<9> 0
Bit15 RDIV<10> 0
Bit16 RDIV<11> 0
Bit17 RDIV<12> 0
Bit18 RSV 0 Reserved
Bit19 REF_INV 0 Invert Reference Clock Polarity; 1 = use falling edge
Bit20 NEG_VCO 1 VCO polarity control; 1 = negative slope (negative Kv)
Bit21 ICP<0> 0 Program charge pump DC current:
[00000] = 1.94 mA
[11111] = 0.47 mA
[01010] = 0.97 mA
Bit22 ICP<1> 1
Bit23 ICP<2> 0
Bit24 ICP<3> 1
Bit25 ICP<4> 0
Bit26 ICPDOUBLE 0 1 = Set ICP to double the current
Bit27 CAL_CLK_SEL<0> 0 Multiplication or division factor to create VCO calibration clock from the PFD frequency:
[0000] = Fastest ( Rdiv / 128)
[1111] = Slowest (Rdiv x 128), [1000] = Default (1x Rdiv)
Bit28 CAL_CLK_SEL<1> 0
Bit29 CAL_CLK_SEL<2> 0
Bit30 CAL_CLK_SEL<3> 1
Bit31 RSV 0 Reserved

CAL_CLK_SEL[3..0]: Set the frequency divider value used to derive the VCO calibration clock from the reference frequency.

Table 6. CAL_CLK_SEL Scaling Factor Setting

CAL_CLK_SEL Scaling Factor CAL_CLK_SEL Scaling Factor
1111 1/128 0111 NA
1110 1/64 0110 2
1101 1/32 0101 4
1100 1/16 0100 8
1011 1/8 0011 16
1010 1/4 0010 32
1001 1/2 0001 64
1000 1 0000 128

ICP[4..0]: Set the charge pump current.

Table 7. Charge Pump Current Set-Point

ICP[4..0] Current (mA) ICP[4..0] Current (mA)
00 000 1.94 10 000 0.75
00 001 1.76 10 001 0.72
00 010 1.62 10 010 0.69
00 011 1.49 10 011 0.67
00 100 1.38 10 100 0.65
00 101 1.29 10 101 0.63
00 110 1.21 10 110 0.61
00 111 1.14 10 111 0.59
01 000 1.08 11 000 0.57
01 001 1.02 11 001 0.55
01 010 0.97 11 010 0.54
01 011 0.92 11 011 0.52
01 100 0.88 11 100 0.51
01 101 0.84 11 101 0.50
01 110 0.81 11 110 0.48
01 111 0.78 11 111 0.47

Table 8. Register 2

Register 2 Bit Name Reset Value Description
Bit0 ADDR<0> 0 Register Address Bits
Bit1 ADDR<1> 1
Bit2 ADDR<2> 0
Bit3 ADDR<3> 1
Bit4 ADDR<4> 0
Bit5 NINT<0> 0 PLL N-Divider Value
Bit6 NINT<1> 0
Bit7 NINT<2> 0
Bit8 NINT<3> 0
Bit9 NINT<4> 0
Bit10 NINT<5> 0
Bit11 NINT<6> 0
Bit12 NINT<7> 1
Bit13 NINT<8> 0
Bit14 NINT<9> 0
Bit15 NINT<10> 0
Bit16 NINT<11> 0
Bit17 NINT<12> 0
Bit18 NINT<13> 0
Bit19 NINT<14> 0
Bit20 NINT<15> 0
Bit21 PLL_DIV_SEL<0> 1 Select division ratio of divider in front of prescaler
[00] = 1X, [01] = div2, [10] = div4
Bit22 PLL_DIV_SEL<1> 0
Bit23 PRSC_SEL 1 Select precaler modulus: [0] = 4/5, [1] =8/9
Bit24 RSV 0 Reserved
Bit25 RSV 0
Bit26 VCO_SEL<0> 0 Selects between the four integrated VCOs
[00] = lowest frequency, [11] = highest frequency
Bit27 VCO_SEL<1> 1
Bit28 VCO_SEL_MODE 0 Single VCO auto-calibration mode: [1] = active
Bit29 CAL_ACC<0> 0 Error count during the cap array calibration
[00] = 0, [01] = 1/32, [10] = 1/64, [11] =1/128)
Bit30 CAL_ACC<1> 0
Bit31 EN_CAL 0 Initiate VCO auto-calibration, resets automatically

Table 9. Register 3

Register 3 Bit Name Reset Value Description
Bit0 ADDR<0> 1 Register Address Bits
Bit1 ADDR<1> 1
Bit2 ADDR<2> 0
Bit3 ADDR<3> 1
Bit4 ADDR<4> 0
Bit5 NFRAC<0> 0 Fractional PLL N-Divider
0 to 0.99999 in fractional mode
Bit6 NFRAC<1> 0
Bit7 NFRAC<2> 0
Bit8 NFRAC<3> 0
Bit9 NFRAC<4> 0
Bit10 NFRAC<5> 0
Bit11 NFRAC<6> 0
Bit12 NFRAC<7> 0
Bit13 NFRAC<8> 0
Bit14 NFRAC<9> 0
Bit15 NFRAC<10> 0
Bit16 NFRAC<11> 0
Bit17 NFRAC<12> 0
Bit18 NFRAC<13> 0
Bit19 NFRAC<14> 0
Bit20 NFRAC<15> 0
Bit21 NFRAC<16> 0
Bit22 NFRAC<17> 0
Bit23 NFRAC<18> 0
Bit24 NFRAC<19> 0
Bit25 NFRAC<20> 0
Bit26 NFRAC<21> 0
Bit27 NFRAC<22> 0
Bit28 NFRAC<23> 0
Bit29 NFRAC<24> 0
Bit30 RSV 0 Reserved
Bit31 RSV 0

Table 10. Register 4

Register 4 Bit Name Reset Value Description
Bit0 ADDR<0> 0 Register Address Bits
Bit1 ADDR<1> 0
Bit2 ADDR<2> 1
Bit3 ADDR<3> 1
Bit4 ADDR<4> 0
Bit5 PWD_PLL 0 Power -down all PLL blocks: (1 = off)
Bit6 PWD_CP 0 Power-down Charge Pump: (1=off)
Bit7 PWD_VCO 0 Power-down VCO: (1=off)
Bit8 PWD_VCO_MUX 0 Power-down VCO Mux blocks: (1=off)
Bit9 PWD _DIV124 0 Power-down the div 1,2,4 in the PLL f/b path: (1=off)
Bit10 PWD_PRESC 0 Power-down Prescaler: (1=off)
Bit11 RSV 1 Reserved
Bit12 PWD_OUTBUF 1 Power-down Ouptut Buffer: (1=off)
Bit13 PWD_LO_DIV 1 Power-down LO divider block: (1=off)
Bit14 PWD_TX_DIV 1 Power-down TX divider block: (1=off)
Bit15 PWD_MOD 1 Power-down modulator block: (1=off)
Bit16 EN_EXTVCO 0 Enable external VCO input buffer: (1 = enabled)
Bit17 RSV 0 Reserved
Bit18 EN_ISOURCE 0 Enable offset current at CP output (frac-n mode only).
Bit19 LD_ANA_PREC<0> 0 Control precision of Analog Lock Detector:
[00] = H/H (High), [01] = L/L (Low), [10] = H/L , [11] = L/L
Bit20 LD_ANA_PREC<1> 0
Bit21 CP_TRISTATE<0> 0 Set the charge pump output in Tristate mode:
[00] = Off, [01] = Down, [10] = Up, [11] = Tristate
Bit22 CP_TRISTATE<1> 0
Bit23 SPEEDUP 0 Enable fast turn on/off time of bias blocks.
Bit24 LD_DIG_PREC 0 Lock detector precision (increases sampling time if set to 1)
Bit25 MOD_ORD<0> 1 Modulator order (1-4). Not used in integer mode
(defaul 3rd order + dither)
Bit26 MOD_ORD<1> 0
Bit27 MOD_ORD<2> 1
Bit28 DITH_SEL 0 Dither Mode: [0] = pseudo-random, [1] = constant
Bit29 DEL_SD_CLK<0> 0 DS modulator clock delay. Frac-n mode only.
[00] = Min delay, [11] = max delay
Bit30 DEL_SD_CLK<1> 1
Bit31 EN_FRAC_MODE 0 Enable Frac-n mode when set to 1

Table 11. Register 5

Register 5 Bit Name Reset Value Description
Bit0 ADDR<0> 1 Register Address Bits
Bit1 ADDR<1> 0
Bit2 ADDR<2> 1
Bit3 ADDR<3> 1
Bit4 ADDR<4> 0
Bit5 RSV 0 Reserved
Bit6 IB_MOD_GM<0> 0 Adjust modulator bias current gm
Bit7 IB_MOD_GM<1> 1
Bit8 IB_MOD_LO<0> 0 Adjust modulator BB and LO bias current
Bit9 IB_MOD_LO<1> 1
Bit10 VCO_BIAS<0> 0 Adjust VCO bias reference current
Bit11 VCO_BIAS<1> 0
Bit12 VCO_BIAS<2> 0
Bit13 VCO_BIAS<3> 1
Bit14 VCOBUF_BIAS<0> 0 Adjust VCO buffer reference current
Bit15 VCOBUF_BIAS<1> 1
Bit16 VCOMUX_BIAS<0> 0 Adjust VCO Mux reference current
Bit17 VCOMUX_BIAS<1> 1
Bit18 OUTBUF_BIAS<0> 0 Adjust output buffer current
Bit19 OUTBUF_BIAS<1> 1
Bit20 RSV 0 Reserved
Bit21 RSV 1
Bit22 VCO_CAL_IB 0 Bias current for CAL reference voltage: [0] = PTAT, [1] = Constant
Bit23 VCO_CAL_REF<0> 0 VCO calibration reference voltage adjustment
[000] = 0.9 V, [111] = 1.4 V
[011] = recommended = 1.11 V
Bit24 VCO_CAL_REF<1> 0
Bit25 VCO_CAL_REF<2> 1
Bit26 VCO_AMPL_CTRL<0> 0 Adjusts the signal level at the VCO_MUX input:
[00] =max, [11] = min
Bit27 VCO_AMPL_CTRL<1> 1
Bit28 VCO_VB_CTRL<0> 0 Adjusts the VCO core bias voltage:
[00] = 1.2 V, [01] = 1.35 V, [10] = 1.5 V, [11] = 1.65 V
Bit29 VCO_VB_CTRL<1> 1
Bit30 RSV 0 Reserved
Bit31 EN_LD_MON_ISOURCE 1 Enable monitoring of LD to turn on Isource; recommend [0] = Isource ctrl

Table 12. Register 6

Register 6 Bit Name Reset Value Description
Bit0 ADDR<0> 0 Register Address Bits
Bit1 ADDR<1> 1
Bit2 ADDR<2> 1
Bit3 ADDR<3> 1
Bit4 ADDR<4> 0
Bit5 RSV 0 Reserved
Bit6 RSV 0
Bit7 VCO_TRIM<0> 0 VCO capacitor array control bits;
used in manual cal mode
Bit8 VCO_TRIM<1> 0
Bit9 VCO_TRIM<2> 0
Bit10 VCO_TRIM<3> 0
Bit11 VCO_TRIM<4> 0
Bit12 VCO_TRIM<5> 1
Bit13 EN_LOCKDET 0 Enable monitor of lock detector output for autocal mode
Bit14 VCO_TEST_MODE 0 Counter mode, measure max and min freq for each VCO
Bit15 CAL_BYPASS 0 Bypass auto-cal; sets VCO_SEL and VCO_TRIM from Serial interface
Bit16 MUX_CTRL<0> 1 Select signal for test output:
[001] = LD, [010] = NDIV, [100] = RDIV, [110] = A_counter
Bit17 MUX_CTRL<1> 0
Bit18 MUX_CTRL<2> 0
Bit19 ISOURCE_SINKB 0 Offset current polarity
Bit20 ISOURCE_TRIM<0> 0 Adjust Isource bias current in frac-n mode.
Bit21 ISOURCE_TRIM<1> 0
Bit22 ISOURCE_TRIM<2> 1
Bit23 LO_DIV_SEL<0> 0 Adjust LO path divider:
[00] = Div/1, [01] = Div/2, [10] = Div/4. [11] = Div/8
Bit24 LO_DIV_SEL<1> 0
Bit25 LO_DIV_BIAS<0> 0 Adjust LO divider bias current:
[00] = 25 uA, [01] = 37.5 uA, [10] = 50 uA, [11] = 62.5 uA
Bit26 LO_DIV_BIAS<1> 1
Bit27 TX_DIV_SEL<0> 0 Adjust TX path divider.
Bit28 TX_DIV_SEL<1> 1 [00] = Div/1, [01] = Div/2, [10] = Div/4. [11] = Div/8
Bit29 TX_DIV_BIAS<0> 0 Adjust TX divider bias current:
[00] = 25 uA, [01] = 37.5 uA, [10] = 50 uA, [11] = 62.5 uA
Bit30 TX_DIV_BIAS<1> 1
Bit31 GAIN_CTRL 0 Modulator gain control: [0] = Default, [1] = High Gain

Table 13. READBACK Mode Summary Serial interface Map

Bit Register 0 RDBK
Bit0 Register Address Register Address
Bit1
Bit2
Bit3
Bit4
Bit5 CHIP_ID N/C
Bit6
Bit7 NU
Bit8
Bit9
Bit10
Bit11
Bit12 R_SAT_ERR
Bit13 COUNT VCO_TRIM
Bit14
Bit15
Bit16
Bit17
Bit18
Bit19
Bit20
Bit21 VCO_SEL
Bit22
Bit23
Bit24
Bit25
Bit26
Bit27 MUX_COUNT
Bit28 RB_REG
Bit29
Bit30
Bit31 MUX_COUNT RB_ENABLE

Table 14. Register 0 (Readback Only)

Register 0 Bit Name Reset Value Description
Bit0 ADDR<0> 0 Register Address Bits
Bit1 ADDR<1> 0
Bit2 ADDR<2> 0
Bit3 ADDR<3> 1
Bit4 ADDR<4> 0
Bit5 CHIP_ID<0> 1 Chip ID
Bit6 CHIP_ID<1> 0
Bit7 NU x Not Used
Bit8 NU x
Bit9 NU x
Bit10 NU x
Bit11 NU x
Bit12 R_SAT_ERR x R-div saturation error for cal
Bit13 COUNT<0>/NU x VCO frequency counter high when
MUX_COUNT = 0 and VCO_TEST_MODE = 1

VCO frequency counter low when
MUX_COUNT = 1 and VCO_TEST_MODE = 1

Autocal results for VCO_TRIM and VCO_SEL when
VCO_TEST_MODE = 0
Bit14 COUNT<1>/NU x
Bit15 COUNT<2>/VCO_TRIM<0> x
Bit16 COUNT<3>/VCO_TRIM<1> x
Bit17 COUNT<4>/VCO_TRIM<2> x
Bit18 COUNT<5>/VCO_TRIM<3> x
Bit19 COUNT<6>/VCO_TRIM<4> x
Bit20 COUNT<7>/VCO_TRIM<5> x
Bit21 COUNT<8>/VCO_SEL<0> x
Bit22 COUNT<9>/VCO_SEL<1> x
Bit23 COUNT<10>/VCO_SEL<2> x
Bit24 COUNT<11> x
Bit25 COUNT<12> x
Bit26 COUNT<13> x
Bit27 COUNT<14> x
Bit28 COUNT<15> x
Bit29 COUNT<16> x
Bit30 COUNT<17> x
Bit31 MUX_COUNT x [0] = max freq count, [1] = min freq count

Table 15. Register RDBK (Write Register for Readback)

RDBK Bit Name Reset Value Description
Bit0 ADDR<0> 0 Register Address Bits
Bit1 ADDR<1> 0
Bit2 ADDR<2> 0
Bit3 ADDR<3> 1
Bit4 ADDR<4> 0
Bit5 N/C 0
Bit6 N/C 0
Bit7 N/C 0
Bit8 N/C 0
Bit9 N/C 0
Bit10 N/C 0
Bit11 N/C 0
Bit12 N/C 0
Bit13 N/C 0
Bit14 N/C 0
Bit15 N/C 0
Bit16 N/C 0
Bit17 N/C 0
Bit18 N/C 0
Bit19 N/C 0
Bit20 N/C 0
Bit21 N/C 0
Bit22 N/C 0
Bit23 N/C 0
Bit24 N/C 0
Bit25 N/C 0
Bit26 N/C 0
Bit27 MUX_COUNT 0 [0] = max freq count, [1] = min freq count
Bit28 RB_REG<0> x Three LSBs of the address for the register that is being read:
[001] = Register 1
[110] = Register 6
Bit29 RB_REG<1> x
Bit30 RB_REG<2> x
Bit31 RB_ENABLE 1 Puts device in Readback mode

BIAS SETTINGS

Optimum TRF7322 bias settings used in the performance measurements are shown in Table 16.

Table 16. Register Settings With Optimized Bias Set Used in the Performance Measurement.

REGISTER BITS TYPICAL OPERATING MODE [256MHz-2GHz], INT MODE TYPICAL OPERATING MODE [2GHz - 3GHz], INT MODE TYPICAL OPERATING MODE [3GHz - 4.1GHz], INT MODE LOW POWER MODE, INT MODE FRACTIONAL MODE
REGISTER 1 RDIV x x x x x
REGISTER 1 REF_INV 0 0 0 0 0
REGISTER 1 NEG_VCO 1 1 1 1 1
REGISTER 1 ICP 0 0 0 0 0
REGISTER 1 ICPDOUBLE 0 0 0 0 0
REGISTER 1 CAL_CLK_SEL 13 13 13 13 15
REGISTER 2 NINT x x x x x
REGISTER 2 PLL_DIV_SEL x x x x x
REGISTER 2 PRSC_SEL x x x x x
REGISTER 2 VCO_SEL x x x x x
REGISTER 2 VCO_SEL_MODE x x x x x
REGISTER 2 CAL_ACC 0 0 0 0 0
REGISTER 2 EN_CAL 1 1 1 1 1
REGISTER 3 NFRAC 0 0 0 0 x
REGISTER 4 PWD_PLL 0 0 0 0 0
REGISTER 4 PWD_CP 0 0 0 0 0
REGISTER 4 PWD_VCO 0 0 0 0 0
REGISTER 4 PWD_VCO_MUX 0 0 0 0 0
REGISTER 4 PWD _DIV124 0 0 0 0 0
REGISTER 4 PWD_PRESC 0 0 0 0 0
REGISTER 4 PWD_OUTBUF 0 0 0 1 0
REGISTER 4 PWD_LO_DIV 0 0 0 1 0
REGISTER 4 PWD_TX_DIV 0 0 0 0 0
REGISTER 4 PWD_MOD 0 0 0 0 0
REGISTER 4 EN_EXTVCO 0 0 0 0 0
REGISTER 4 EN_ISOURCE 0 0 0 0 1
REGISTER 4 LD_ANA_PREC 0 0 0 0 3
REGISTER 4 CP_TRISTATE 0 0 0 0 0
REGISTER 4 SPEEDUP 0 0 0 0 0
REGISTER 4 LD_DIG_PREC 0 0 0 0 0
REGISTER 4 MOD_ORD 5 5 5 5 4
REGISTER 4 DITH_SEL 0 0 0 0 0
REGISTER 4 DEL_SD_CLK 2 2 2 2 0
REGISTER 4 EN_FRAC_MODE 0 0 0 0 1
REGISTER 5 IB_MOD_GM 3 3 2 0 3
REGISTER 5 IB_MOD_LO 0 1 0 0 0
REGISTER 5 VCO_BIAS 15 15 15 15 15
REGISTER 5 VCOBUF_BIAS 2 2 2 2 2
REGISTER 5 OUTBUF_BIAS 2 2 2 0 2
REGISTER 5 VCOMUX_BIAS 2 2 2 2 2
REGISTER 5 VCO_CAL_IB 0 0 0 0 0
REGISTER 5 VCO_CAL_REF 3 3 3 3 3
REGISTER 5 VCO_AMPL_CTRL 0 0 0 0 0
REGISTER 5 VCO_VB_CTRL 3 3 3 3 3
REGISTER 5 EN_LD_ISOURCE 0 0 0 0 0
REGISTER 6 VCO_TRIM x x x x x
REGISTER 6 EN_LOCKDET 0 0 0 0 0
REGISTER 6 VCO_TEST_MODE 0 0 0 0 0
REGISTER 6 CAL_BYPASS 0 0 0 0 0
REGISTER 6 MUX_CTRL 1 1 1 1 5
REGISTER 6 ISOURCE_SINKB 0 0 0 0 0
REGISTER 6 ISOURCE_TRIM 4 4 4 4 7
REGISTER 6 LO_DIV_SEL x x x x x
REGISTER 6 LO_DIV_BIAS 2 2 2 0 2
REGISTER 6 TX_DIV_SEL x x x x x
REGISTER 6 TX_DIV_BIAS 1 1 1 0 1
REGISTER 6 GAIN_CTRL 0 0 0 0 0
