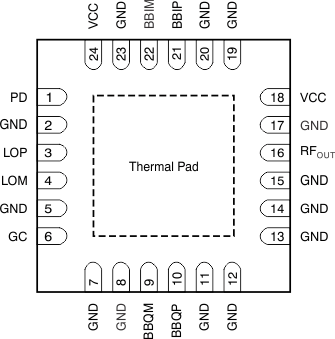

5 Pin Configuration and Functions

RGE Package
24 Pin VQFN
Top View
TRF3705 po_lws223.gif

Pin Functions

PIN I/O DESCRIPTION
NO. NAME
1 PD I Power-down digital input (high = device off)
2 GND I Ground
3 LOP I Local oscillator input
4 LOM I Local oscillator input
5 GND I Ground
6 GC I Gain control digital input (high = high gain)
7 GND Ground or leave unconnected
8 GND I Ground
9 BBQM I In-quadrature input
10 BBQP I In-quadrature input
11 GND I Ground
12 GND I Ground
13 GND I Ground
14 GND I Ground
15 GND I Ground
16 RFOUT O RF output
17 GND I Ground
18 VCC I Power supply
19 GND I Ground
20 GND I Ground
21 BBIP I In-phase input
22 BBIM I In-phase input
23 GND I Ground
24 VCC I Power supply
