Typical Characteristics

TJ = –40ºC to 150ºC, VIN = 14 V, and VEN ≥ 2 V (unless otherwise noted)
TPS7B70-Q1 D001_SLVSDU9.gif
Figure 1. Ground Current vs Output Current
TPS7B70-Q1 D003_SLVSD43.gif
EN = 0 V
Figure 3. Shutdown Current vs Ambient Temperature

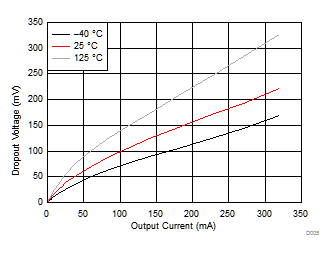

TPS7B70-Q1 D005_SLVSDU9.gif
Figure 5. Dropout Voltage vs Output Current
TPS7B70-Q1 D007_SLVSD43.gif
VOUT = 5 V
Figure 7. Output Voltage vs Ambient Temperature
TPS7B70-Q1 D009_SLVSD43.gif
VIN = 5.6 V
Figure 9. Output Current Limit (ILIM) vs Ambient Temperature
TPS7B70-Q1 D011_SLVSD43.gif
Figure 11. Line Regulation
TPS7B70-Q1 D013_SLVSD43.gif
COUT = 10 µF IOUT = 100 mA TA = 25°C
Figure 13. PSRR vs Frequency
TPS7B70-Q1 D015_SLVSD43.gif
VIN = 6 V to 40 V VOUT = 5 V COUT = 10 µF
IOUT = 1 mA
Figure 15. Line Transient
TPS7B70-Q1 D017_SLVSD43.gif
VIN = 6 V to 40 V VOUT = 5 V COUT = 10 µF
IOUT = 200 mA
Figure 17. Line Transient
TPS7B70-Q1 D019_SLVSD43.gif
VOUT = 5 V COUT = 10 µF IOUT = 1 mA to 200 mA
Figure 19. Load Transient
TPS7B70-Q1 D002_SLVSD43.gif
Figure 2. Ground Current vs Input Voltage
TPS7B70-Q1 D004_SLVSD43.gif
Figure 4. Ground Current vs Ambient Temperature
TPS7B70-Q1 D006_SLVSD43.gif
IOUT = 200 mA
Figure 6. Dropout Voltage vs Ambient Temperature
TPS7B70-Q1 D008_SLVSD43.gif
VOUT = 5 V
Figure 8. Output Voltage vs Input Voltage
TPS7B70-Q1 D010_SLVSDU9.gif
Figure 10. Load Regulation
TPS7B70-Q1 D012_SLVSD43.gif
COUT = 10 µF IOUT = 1 mA TA = 25°C
Figure 12. PSRR vs Frequency
TPS7B70-Q1 D014A_SLVSD43.gif
Figure 14. ESR Stability vs Output Capacitance
TPS7B70-Q1 D016_SLVSD43.gif
VIN = 40 V to 6 V VOUT = 5 V COUT = 10 µF
IOUT = 1 mA
Figure 16. Line Transient
TPS7B70-Q1 D018_SLVSD43.gif
VIN = 40 V to 6 V VOUT = 5 V COUT = 10 µF
IOUT = 200 mA
Figure 18. Line Transient
TPS7B70-Q1 D020_SLVSD43.gif
VOUT = 5 V COUT = 10 µF IOUT = 200 mA to 1 mA
Figure 20. Load Transient
