6.6 Typical Characteristics

at operating temperature TJ = 25°C, IOUT = 1 mA, VEN = 0.9 V, CIN = 2.2 µF, COUT = 2.2 μF, and VIN = VOUT(typ) + 0.8 V or 2.4 V (whichever is greater), unless otherwise noted; typical values are at TJ = 25°C
TPS7A26 D002_SBVS290.gif
IOUT = 1 mA
Figure 1. Line Regulation vs VIN
TPS7A26 D017_SBVS290.gif
IOUT = 100 mA
Figure 3. Dropout Voltage vs VIN
TPS7A26 D015_SBVS290.gif
IOUT = 500 mA
Figure 5. Dropout Voltage vs VIN
TPS7A26 D014_SBVS290.gif
VIN = 18 V

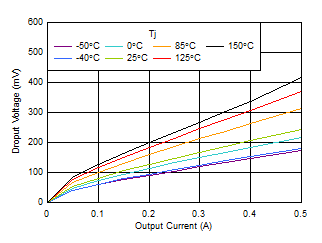

Figure 7. Dropout Voltage vs IOUT
TPS7A26 D018_SBVS290.gif
VOUT = 1.24 V, IOUT = 1 mA
Figure 9. IGND vs VIN
TPS7A26 D006_SBVS290.gif
VOUT = 1.24 V, IOUT = 0 A

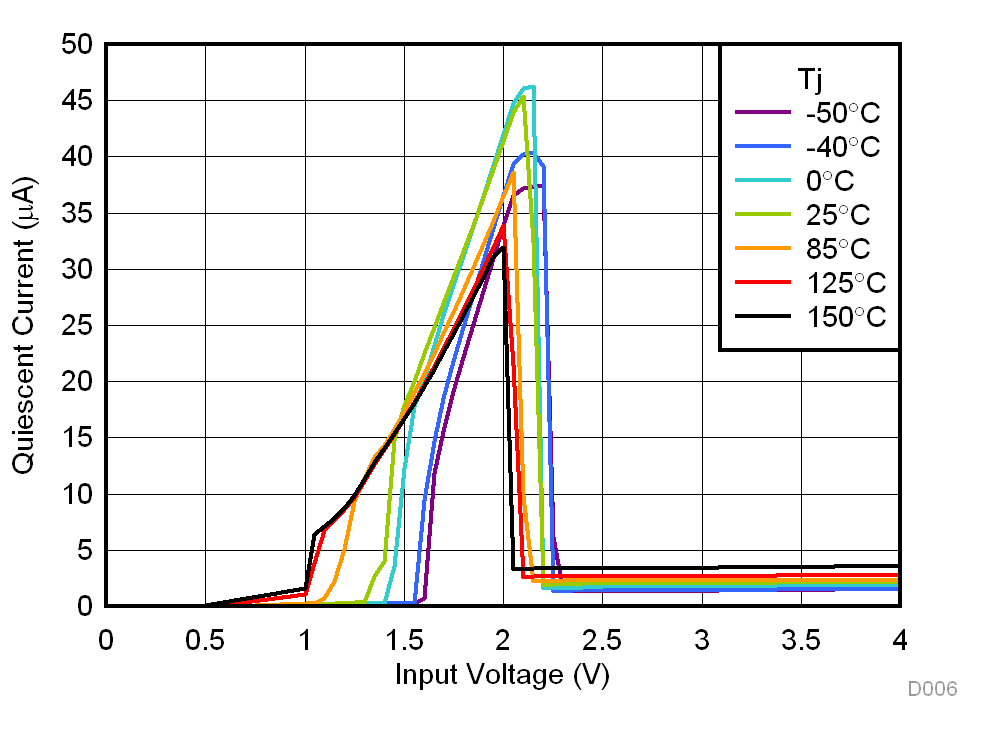

Figure 11. IQ vs VIN
TPS7A26 D011_SBVS290.gif
VOUT = 1.24 V
Figure 13. Shutdown Current vs VIN
TPS7A26 D021_SBVS290.gif
VOUT = 1.24 V, IOUT = 1 mA
Figure 15. UVLO Thresholds vs Temperature
TPS7A26 D023_SBVS290.gif
VOUT = 1.24 V
Figure 17. PG Leakage Current vs Temperature
TPS7A26 D027_SBVS290.gif
VOUT = 3.3 V, VIN = 4.3 V,
CIN = 0 μF, COUT = 1 μF, CFF = 10 nF
Figure 19. PSRR vs Frequency and IOUT
TPS7A26 D029_SBVS290.gif
VOUT = 3.3 V, VIN = 4.3 V, IOUT = 0.5 A,
CIN = 0 μF, CFF = 10 nF
Figure 21. PSRR vs Frequency and COUT
TPS7A26 D032_SBVS290.gif
VIN = VOUT + 1 V or 2.4 V (whichever is greater), IOUT = 0.5 A,
CIN = 0 μF, COUT = 1 μF, CFF = 10 nF
Figure 23. PSRR vs Frequency and VOUT
TPS7A26 D034_SBVS290.gif
VOUT = 1.24 V, CIN = 1 μF, COUT = 1 μF, CFF = 10 nF,
VRMS BW = 10 Hz to 100 kHz
Figure 25. Output Noise (Vn) vs Frequency and IOUT
TPS7A26 D036_SBVS290.gif
VOUT = 3.3 V, VIN = 4.3 V, IOUT = 0.5 A, CIN = 1 μF, COUT = 1 μF,
VRMS BW = 10 Hz to 100 kHz
Figure 27. Output Noise (Vn) vs Frequency and CFF
TPS7A26 D038_SBVS290.gif
IOUT = 0.5 A to 0.001 A, slew rate = 0.5 A/μs,
VOUT = 3.3 V, VIN = 4.3 V, CIN = 1 μF, COUT = 1 μF

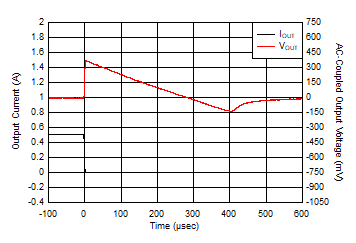

Figure 29. Load Transient
TPS7A26 D040_SBVS290.gif
VIN = 4.3 V to 5.3 V, slew rate = 0.5 V/μs, VOUT = 3.3 V,
IOUT = 0.5 A, CIN = 1 μF, COUT = 1 μF
Figure 31. Line Transient
TPS7A26 D042_SBVS290.gif
VIN = 0 V to 5 V, VEN = VIN, VOUT = 3.3 V, IOUT = 0.5 A,
CIN = 1 μF, COUT = 1 μF
Figure 33. Start-Up With Enable Pin Tied to Input
TPS7A26 D008_SBVS290.gif
VOUT = 1.24 V
Figure 2. Load Regulation vs IOUT
TPS7A26 D016_SBVS290.gif
IOUT = 250 mA
Figure 4. Dropout Voltage vs VIN
TPS7A26 D013_SBVS290.gif
VIN = 2.4 V
Figure 6. Dropout Voltage vs IOUT
TPS7A26 D012_SBVS290.gif
Figure 8. Current Limit vs VIN
TPS7A26 D005_SBVS290.gif
VOUT = 1.24 V, IOUT = 0 A
Figure 10. IQ vs VIN
TPS7A26 D009_SBVS290.gif
VOUT = 1.24 V

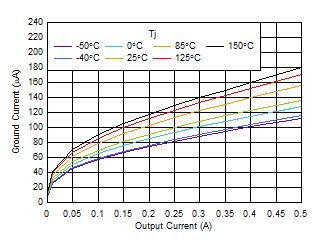

Figure 12. IGND vs IOUT
TPS7A26 D020_SBVS290.gif
VOUT = 1.24 V, 2.4 V ≤ V IN ≤ 18 V
Figure 14. VEN vs Temperature
TPS7A26 D022_SBVS290.gif
VOUT = 1.24 V
Figure 16. PG Thresholds vs Temperature
TPS7A26 D025_SBVS290.gif
VOUT = 1.24 V, CIN = 0 μF, COUT = 1 μF
Figure 18. PSRR vs Frequency and IOUT
TPS7A26 D028_SBVS290.gif
VOUT = 3.3 V, IOUT = 0.5 A,
CIN = 0 μF, COUT = 1 μF, CFF = 10 nF

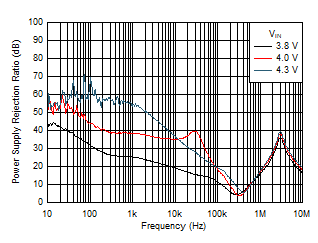

Figure 20. PSRR vs Frequency and VIN
TPS7A26 D030_SBVS290.gif
VOUT = 3.3 V, VIN = 4.3 V, IOUT = 0.5 A,
CIN = 0 μF, COUT = 1 μF
Figure 22. PSRR vs Frequency and CFF
TPS7A26 D033_SBVS290.gif
VIN = VOUT + 1 V or 2.4 V (whichever is greater),
IOUT = 0.5 A, CIN = 1 μF, COUT = 1 μF, CFF = 10 nF,
VRMS BW = 10 Hz to 100 kHz
Figure 24. Output Noise (Vn) vs Frequency and VOUT
TPS7A26 D035_SBVS290.gif
VOUT = 1.24 V, IOUT = 0.5 A, CIN = 1 μF, CFF = 10 nF,
VRMS BW = 10 Hz to 100 kHz
Figure 26. Output Noise (Vn) vs Frequency and COUT
TPS7A26 D037_SBVS290.gif
IOUT = 0.001 A to 0.5 A, slew rate = 0.5 A/μs,
VOUT = 3.3 V, VIN = 4.3 V, CIN = 1 μF, COUT = 1 μF
Figure 28. Load Transient
TPS7A26 D039_SBVS290.gif
VIN = 5.3 V to 4.3 V, slew rate = 0.5 V/μs, VOUT = 3.3 V,
IOUT = 0.5 A, CIN = 1 μF, COUT = 1 μF
Figure 30. Line Transient
TPS7A26 D041_SBVS290.gif
VEN= 0 V to 2 V, VOUT = 3.3 V, IOUT = 0.5 A,
CIN = 1 μF, COUT = 1 μF
Figure 32. Start-Up With Enable
