6.2.3 Application Curves

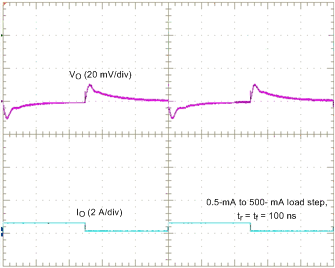

TPS65919-Q1 transient_SMPS12_Load_100ns_SLVSCO4.gif
VI = 3.15 V ƒS = 2.2 MHz VO = 1.05 V
Figure 6-5 Typical SMPS Load Transient Response for SMPS12
in Dual Phase Mode

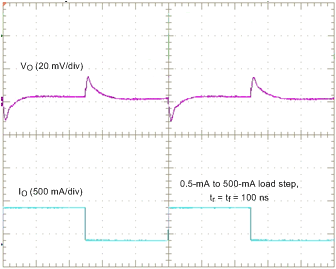

TPS65919-Q1 transient_SMPS1-5_Load_100ns_SLVSCO4.gif
VI = 3.15 V ƒS = 2.2 MHz VO = 0.7 V
Figure 6-7 Typical SMPS Load Transient Response for
SMPS1, SMPS2, SMPS3

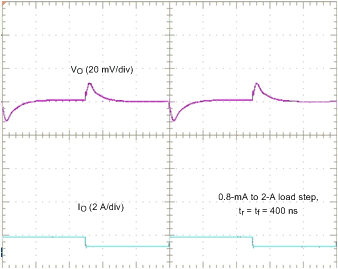

TPS65919-Q1 transient_SMPS12_Load_400ns_SLVSCO4.gif
VI = 3.15 V ƒS = 2.2 MHz VO = 1.05 V
Figure 6-6 Typical SMPS Load Transient Response for SMPS12
in Dual Phase Mode

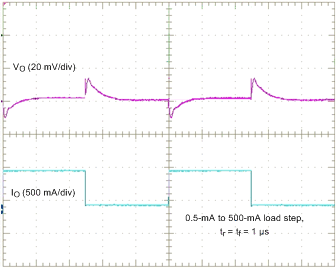

TPS65919-Q1 transient_SMPS_Typical_Load_1us_SLVSCO4.gif
VI = 5.25 V ƒS = 2.2 MHz VO = 0.7 V
Figure 6-8 Typical SMPS Load Transient Response for SMPS4
