Specifications

Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply inputs VIN –0.3 40 V
VIN_LDO –0.3 20 V
VIN-VIN_LDO –0.3 40 V
Control EN1, EN2 –0.3 40 V
EN1-VIN, EN2-VIN 1 V
Buck converter FB1 –0.3 3.6 V
SW –0.3
–2 V for 30 ns
40
BOOT –0.3 46
BOOT-SW 8
COMP –0.3 3.6
SS –0.3 3.6
RT/CLK, SS –0.3 3.6
LDO regulator LDO_OUT –0.3 7 V
FB2 –0.3 7
nRST –0.3 7
Operating ambient temperature, TA -40 125 °C
Operating junction temperature, TJ –40 150 °C
Storage temperature, Tstg –55 165 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±2000 V
Charged-device model (CDM), per AEC Q100-011 All pins ±500
Corner pins (1, 7, 8, and 14) ±750
AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Supply inputs VIN 3.6 36 V
VIN_LDO 3 20
Buck regulator BOOT1 3.6 42 V
SW1 –1 36
VFB1 0 0.8
SS 0 3
COMP 0 3
RT/CLK 0 3
LDO regulator LDO_OUT 1.1 5.5 V
VFB2 0 0.8
nRST 0 5.25
Control EN1 0 36 V
EN2 0 36
Temperature Operating junction temperature range, TJ –40 150 °C

Thermal Information

THERMAL METRIC(1) TPS65320C-Q1 UNIT
PWP (HTSSOP)
(14 PINS)
RθJA Junction-to-ambient thermal resistance 41.0 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 33.1 °C/W
RθJB Junction-to-board thermal resistance 25.4 °C/W
ψJT Junction-to-top characterization parameter 1.6 °C/W
ψJB Junction-to-board characterization parameter 25.1 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 2.7 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

Electrical Characteristics

VI = 6 V to 27 V, EN1 = EN2 = VI, over-operating free-air temperature range TA = –40°C to 125°C and maximum operating junction temperature TJ = 150°C, unless otherwise noted. VI is the voltage on the battery-supply pins, VIN and VIN_LDO.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VIN (INPUT POWER SUPPLY)
Operating input voltage Normal mode, after initial start-up 3.6 12 36 V
Shutdown supply current V(EN1) = V(EN2) = 0 V, 25°C 2 7 μA
Initial start-up voltage 6 36 V
ENABLE AND UVLO (EN1 AND EN2 PINS)
Enable low level 0.7 V
Enable high level 2.5 V
V(VIN)(f) Internal UVLO falling threshold Ramp V(VIN) down until output turns OFF 1.8 2.6 3 V
V(VIN)(r) Internal UVLO rising threshold Ramp V(VIN) up until output turns ON 2.2 2.8 3.2 V
BUCK REGULATOR
I(Qon) Operating: non-switching supply Measured at the VIN pin
V(FB1) = 0.83 V, V(VIN) = 12 V, 25°C
110 140 μA
Output capacitance ESR = 0.001 Ω to 0.1 Ω, large output capacitance may be required for load transient 10 μF
V(ref1) Voltage reference for FB1 pin Buck regulator output: 1.1 V to 20 V.
Buck regulator in continuous conducting mode without pulse-skipping
0.788 0.8 0.812 V
DC output voltage accuracy Includes voltage references, DC load and line regulation, process and temperature –2 2 %
DC(LDR) DC Load regulation, ΔVOUT / VOUT IOUT = 0 to IOUTmax 0.5 %
T(LDSR) Transient load step response V(VIN) = 12 V, IOUT = 200 mA to 3 A,
TR = TF = 1 µs, Buck Output Voltage = 5 V, ƒS = 2 MHz
5 %
BUCK REGULATOR: HIGH-SIDE MOSFET
r(DS(on) HS FET) On-resistance V(VIN) = 12 V, V(SW) = 6 V 127 250
BUCK REGULATOR: CURRENT-LIMIT
Current-limit threshold V(VIN) = 12 V, TJ = 25°C 4 6 A
BUCK REGULATOR: TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK PIN)
RT/CLK High threshold 1.9 2.2 V
RT/CLK Low threshold 0.5 0.7 V
IDischarge(SS) Soft-Start Pin Discharge Current V(SS) = 1 V, EN1 = 0, TA = 25°C 50 400 μA
V(SS) = 1 V, EN1 = 0, TA = 125°C 33 400 μA
LDO REGULATOR
ΔVO(ΔVI) Line regulation V(VIN_LDO) = 6 V to 20 V, V(VIN) = 20V, I(LDO_OUT) = 10 mA, V(LDO_OUT) = 3.3 V 20 mV
ΔVO(ΔIL) Load regulation I(LDO_OUT) = 10 mA to 200 mA, V(VIN) = 12V, V(VIN_LDO) = 5 V, V(LDO_OUT) = 3.3 V 35 mV
VDROPOUT Dropout voltage
(V(VIN_LDO) – V(LDO_OUT))
I(LDO_OUT) = 200 mA 300 450 mV
I(LDO_OUT) Output current V(LDO_OUT) in regulation, V(VIN) ≥ 4V 280 mA
VI(VIN_LDO) Operating input voltage on VIN_LDO pin V(LDO_OUT) in regulation 3 20 V
V(ref2) Voltage reference FB2 pin V(LDO_OUT) = 1.1 V to 5.5 V 0.788 0.8 0.812 V
ICL(LDO_OUT) Output current-limit V(LDO_OUT) = 0 V (the LDO_OUT pin is shorted to ground) 280 1000 mA
IQ(LDO) Quiescent current V(VIN) = 12 V; Measured at VIN pin
V(EN1) = 0 V, V(EN2) = 5 V,
I(LDO_OUT) = 0.01 mA to 0.75 mA
45 65 μA
PSRR Power supply ripple rejection V(VIN_LDO)(rip) = 0.5 VPP,
I(LDO_OUT) = 200 mA,
frequency (ƒ) = 100 Hz,
V(LDO_OUT) = 5 V and V(LDO_OUT) = 3.3 V
60 dB
V(VIN_LDO)(rip) = 0.5 VPP,
I(LDO_OUT) = 200 mA, ƒ = 150 kHz,
V(LDO_OUT) = 5 V and V(LDO_OUT) = 3.3 V
30 dB
C(LDO_OUT) Output capacitor ESR = 0.001 Ω to 100 mΩ, large output capacitance may be required for load transient; V(LDO_OUT) ≥ 3.3 V 1 40 μF
C(LDO_OUT) Output capacitor ESR = 0.001 Ω to 100 mΩ, large output capacitance may be required for load transient; 1.2 V ≤ V(LDO_OUT) < 3.3 V 20 40 μF
LDO REGULATOR: RESET (nRST PIN)
RESET threshold V(LDO_OUT) decreasing 85 90 95 %
VOH Output high Reset released due to rising LDO_OUT, V(LDO_OUT) ≥ 3.3V, IOH= 100 μA -5% x V(LDO_OUT) V
VOL Output low Reset asserted due to falling LDO_OUT, IOL = 1 mA 0.045 0.4 V
OVER TEMPERATURE PROTECTION
TSD Thermal-shutdown trip point 175 ºC
Thys Hysteresis 10 ºC

Switching Characteristics

VI = 6 V to 27 V, EN1 = EN2 = VI, over-operating free-air temperature range TA = –40°C to 125°C and maximum operating junction temperature TJ = 150°C, unless otherwise noted. VI is the voltage on the battery-supply pins, VIN and VIN_LDO.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
BUCK REGULATOR: HIGH-SIDE MOSFET
tonmin Minimum on-time ƒS = 2.5 MHz 115 ns
BUCK REGULATOR: TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK PIN)
ƒS Switching-frequency range using RT mode 100 2500 kHz
Switching frequency 200-kΩ resistor connected between pin RT/CLK and GND 523 585 640 kHz
Switching-frequency range using CLK mode 300 2200 kHz
Minimum CLK input pulse width Measures at CLK input = 2.2 MHz 30 ns
RT/CLK Falling edge to SW rising edge delay Measured at 500 kHz with 200-kΩ series resistor connected to RT/CLK pin 60 ns
PLL Lock-in time Measured at 500 kHz 100 μs
LDO REGULATOR: RESET (nRST PIN)
Filter time Delay before asserting nRST low 7 14 21 μs

Typical Characteristics

TPS65320D-Q1 D001_slvsd50.gif
ƒS = 2 MHz 3.6 V ≤ V(VIN) ≤ 6 V
Figure 1. Buck Output Voltage vs Minimum Input Voltage
TPS65320D-Q1 D002_slvsd50.gif
V(VIN) = 12 V TJ = 25°C
Figure 3. Buck-Regulator Switching Frequency vs RT_CLK Resistance
TPS65320D-Q1 D004_slvsd50.gif
V(VIN_LDO) = 5 V V(LDO_OUT) = 3.3 V
Figure 5. LDO-Regulator Load Regulation
TPS65320D-Q1 D006_slvsd50.gif
I(LDO_OUT) = 100 mA V(VIN_LDO) = 5 V
Figure 7. LDO-Regulator Feedback-Voltage Reference (V(FB2)) vs Junction Temperature
TPS65320D-Q1 C004_slvscf0.png
V(VIN) = 12 V
Figure 2. Buck-Regulator Switching Frequency vs V(FB1) Feedback Voltage
TPS65320D-Q1 D003_slvsd50.gif
No Load V(VIN) = 12 V
Figure 4. Buck-Regulator Feedback-Voltage Reference (V(FB1)) vs Junction Temperature

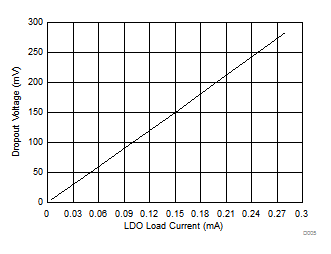

TPS65320D-Q1 D005_slvsd50.gif
V(LDO_OUT) = 3.3 V
Figure 6. LDO-Regulator Dropout Voltage vs Load Current
