8.2.3 Application Curves

TPS65197 TPS65197B A001_SLVSBB0.gif
Figure 11. Power Up, Power Down
TPS65197 TPS65197B A002_SLVSBB0.gif
Figure 12. No Charge Sharing Input Signals
TPS65197 TPS65197B A003_SLVSBB0.gif
Load: 150 pF
Figure 13. No Charge Sharing Outputs
TPS65197 TPS65197B A008_SLVSBB0.gif
Figure 15. 2-Channel Charge Sharing Input Signals
TPS65197 TPS65197B A010_SLVSBB0.gif
Load: 50 Ω, 4.7 nF RCS = 100 Ω
Figure 17. 2-Channel Charge Sharing Outputs
TPS65197 TPS65197B A006_SLVSBB0.gif
Load: 150 pF RCS = 100 Ω
Figure 19. 3-Channel Charge Sharing Outputs
TPS65197 TPS65197B A004_SLVSBB0.gif
Load: 50 Ω, 4.7 nF
Figure 14. No Charge Sharing Outputs
TPS65197 TPS65197B A009_SLVSBB0.gif
Load: 150 pF RCS = 100 Ω
Figure 16. 2-Channel Charge Sharing Outputs
TPS65197 TPS65197B A005_SLVSBB0.gif

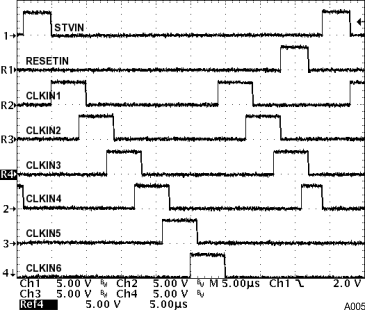

Figure 18. 3-Channel Charge Sharing Input Signals
TPS65197 TPS65197B A007_SLVSBB0.gif
Load: 50 Ω, 4.7 nF RCS = 100 Ω
Figure 20. 3-Channel Charge Sharing Outputs
