Various Output Voltages

The TPS62150A-Q1 can be set for different output voltages between 0.9V and 6V. Some examples are shown below.

spacing

TPS62150A-Q1 TPS62152A-Q1 TPS62153A-Q1 SLVSCC3_app5V.gifFigure 43. 5-V Power Supply Using TPS62153A-Q1 Fixed VOUT Version

spacing

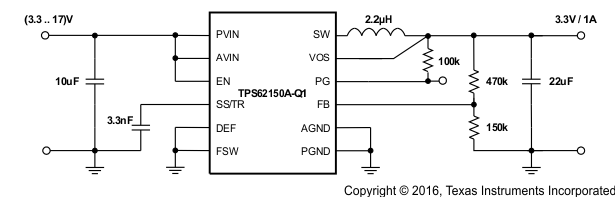

TPS62150A-Q1 TPS62152A-Q1 TPS62153A-Q1 SLVSCC3_app3.3V.gifFigure 44. 3.3V/1A Power Supply

spacing

TPS62150A-Q1 TPS62152A-Q1 TPS62153A-Q1 SLVSCC3_app2.5V.gifFigure 45. 2.5V/1A Power Supply

spacing

TPS62150A-Q1 TPS62152A-Q1 TPS62153A-Q1 SLVSCC3_app1.8V.gifFigure 46. 1.8V/1A Power Supply

spacing

TPS62150A-Q1 TPS62152A-Q1 TPS62153A-Q1 SLVSCC3_app1.5V.gifFigure 47. 1.5V/1A Power Supply

spacing

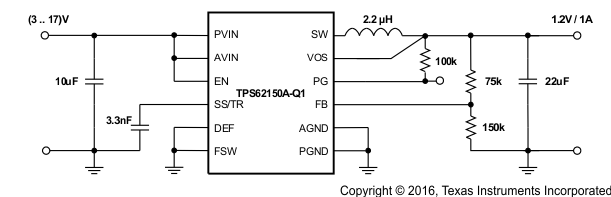

TPS62150A-Q1 TPS62152A-Q1 TPS62153A-Q1 SLVSCC3_app1.2V.gifFigure 48. 1.2V/1A Power Supply

spacing

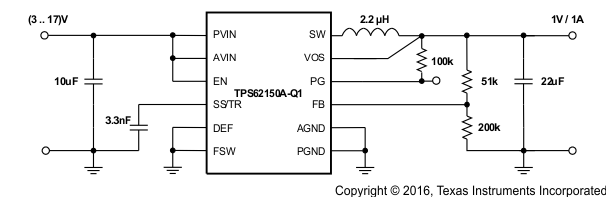

TPS62150A-Q1 TPS62152A-Q1 TPS62153A-Q1 SLVSCC3_app1V.gifFigure 49. 1V/1A Power Supply
