Parameter Measurement Information

Schematic

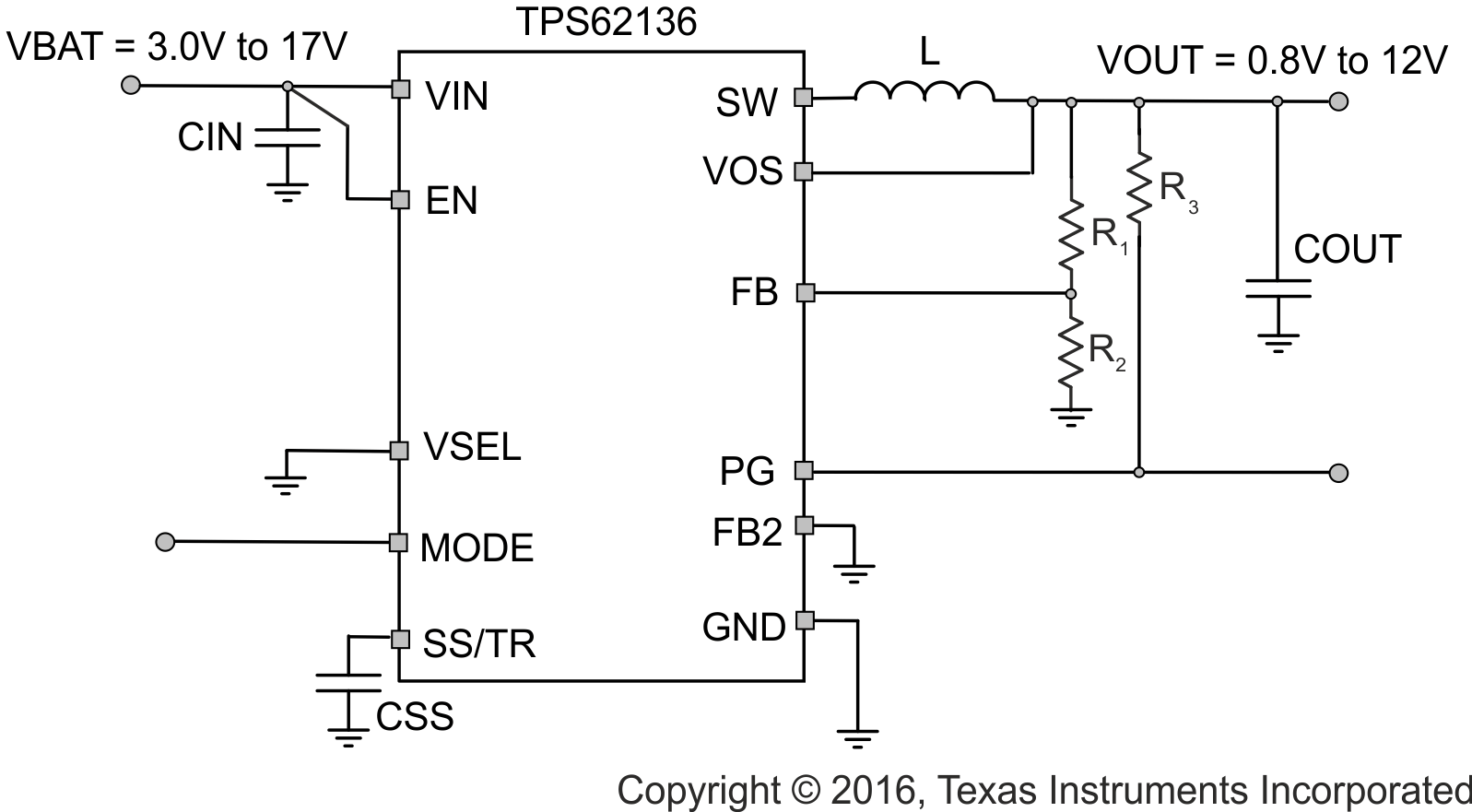

TPS62136 TPS621361 TPS62136_schematics_adjustable_parametermeas.gif Figure 3. Measurement Setup

Table 1. List of Components

REFERENCE DESCRIPTION MANUFACTURER
IC 17 V, 4 A Step-Down Converter TPS62136; Texas Instruments
L 1.5 µH inductor XEL4020-152; Coilcraft
CIN 10 µF, 25 V, Ceramic, 0805 TMK212BBJ106MG-T; Taiyo Yuden
COUT 2 x 22 µF, 16 V, Ceramic, 0805; all VOUT except 9 V and 1.2 V EMK212BBJ106MG-T; Taiyo Yuden
COUT 3 x 22 µF, 16 V, Ceramic, 0805 for VOUT = 1.2 V and VOUT = 9V EMK212BBJ106MG-T; Taiyo Yuden
CSS 3.3 nF, 10 V, Ceramic, X7R -
R1 Depending on Vout; see Table 5 Standard 1% metal film
R2 Depending on Vout; see Table 5 Standard 1% metal film
R3 470 kΩ, Chip, 0603, 1/16 W, 1% Standard 1% metal film
