8.2.3 Application Curves

TA = 25°C, VIN = 12 V (unless otherwise noted)

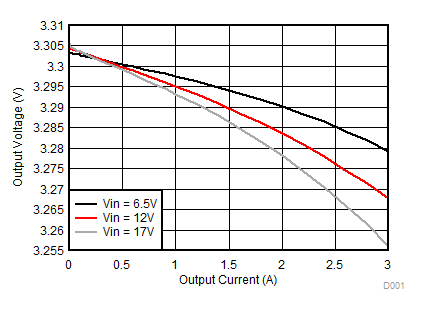

TPS563240 LoadReg_3.3V_SLVSE74_2p0.gifFigure 20. Load Regulation
TPS563240 Eff_3.3V_SLVSE74_2p0.gif
Figure 22. Efficiency
TPS563240 Vout ripple 0A_2p0.png
IOUT = 0 A
Figure 24. Output Voltage Ripple
TPS563240 Vout ripple 10mA_2p0.png
IOUT = 10 mA
Figure 26. Output Voltage Ripple
TPS563240 Vout ripple 3A_2p0.png
IOUT = 3 A
Figure 28. Output Voltage Ripple
TPS563240 Load tran 0to3A 1.6A-uS_2p0.png
Slew rate is 1.6A/µs
Figure 30. Transient Response, 0 to 3 A
TPS563240 Startup by EN at 3A_2p0.png
IOUT = 3 A
Figure 32. Start-Up Relative to EN
TPS563240 Shutdown by EN at 3A_2p0.png
IOUT = 3 A
Figure 34. Shutdown Relative to EN

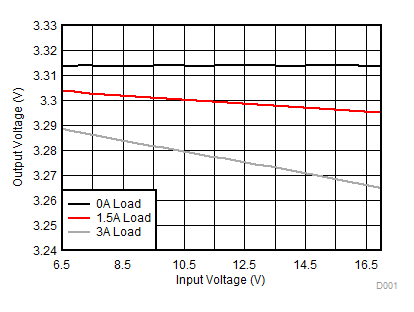

TPS563240 LineReg_3.3V_SLVSE74_2p0.gifFigure 21. Line Regulation
TPS563240 Vin ripple 3A_2p0.png
IOUT = 3 A
Figure 23. Input Voltage Ripple
TPS563240 Vout ripple 5mA_2p0.png
IOUT = 5 mA
Figure 25. Output Voltage Ripple

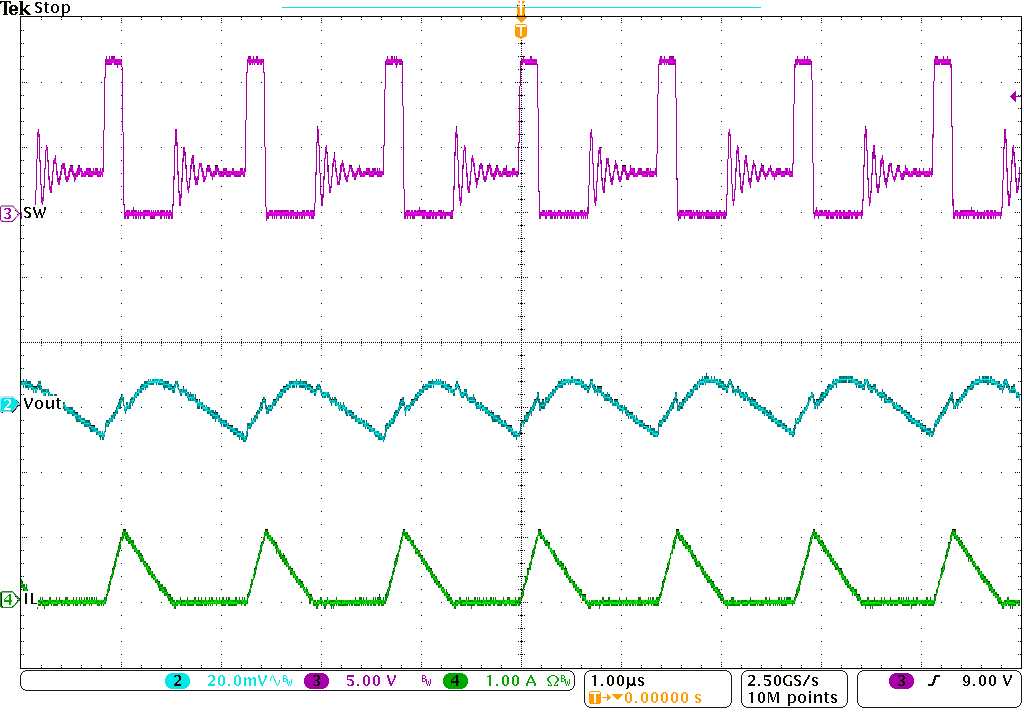

TPS563240 Vout ripple 250mA_2p0.png
IOUT = 0.25 A
Figure 27. Output Voltage Ripple
TPS563240 Load tran 0.6to2.4A 1.6A-uS_2p0.png
Slew rate is 1.6A/µs
Figure 29. Transient Response, 0.6 to 2.4A
TPS563240 Startup by Vin at 0A_2p0.png
IOUT = 0 A
Figure 31. Start Up Relative to VIN

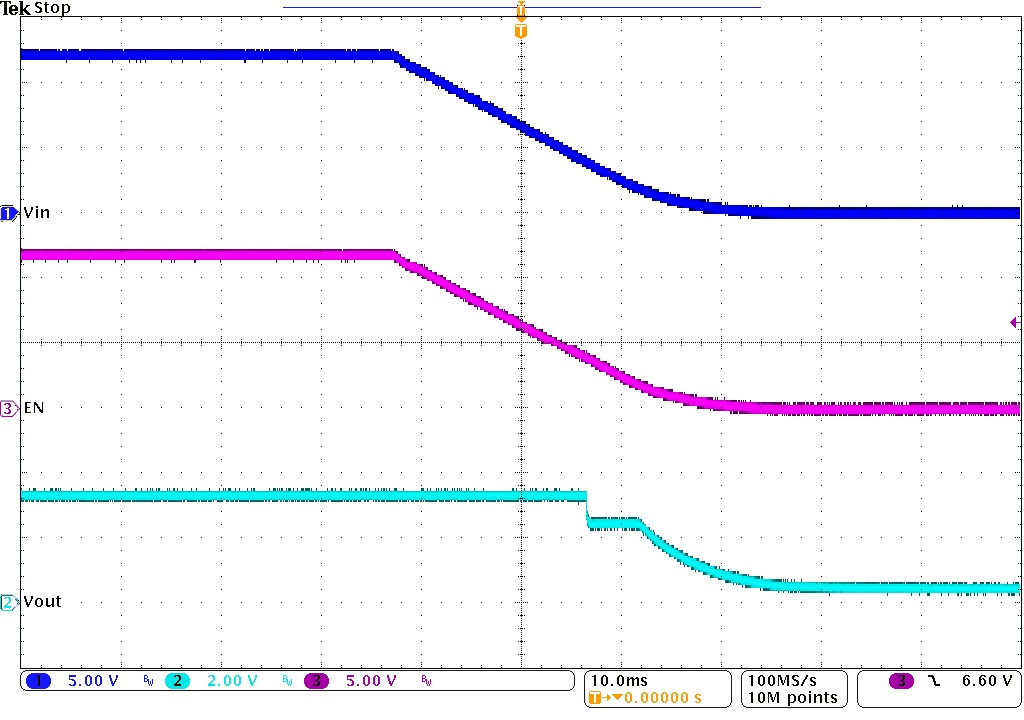

TPS563240 Shutdown by Vin at 0A_2p0.png
IOUT = 0 A
Figure 33. Shutdown Relative to VIN
